UCF20-AEAGK (1997)
Toyota Celsior
Production
Jul 1997
-
Aug 2000
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

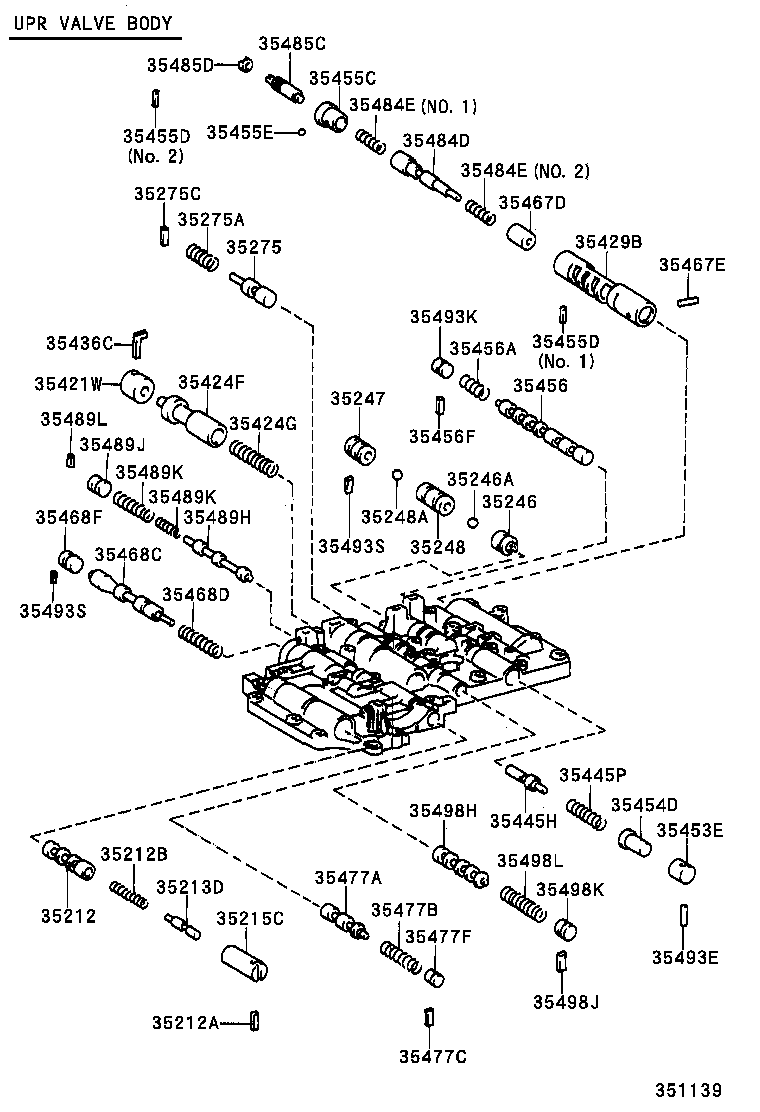

ILLUST NO. 2 OF 4(9707- )
Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-30050 |
UCF2# |
1 | ||
| 35212-24010 |
UCF2# |
1 | ||
| 35212A - SEAT, PLUG (FOR LOCK UP RELAY VALVE) | ||||
| 35493-22020 |
UCF2# |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06057 |
UCF2# |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-50010 |
UCF2# |
1 | ||
| 35213-24010 |
UCF2# |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-24010 |
UCF2# |
1 | ||
| 35246 - VALVE, CHECK, NO.1 | ||||
| 35246-30010 |
UCF2# |
1 | ||
| 35246A - BALL, REVERSE SHIFT RESTRICT (FOR CHECK VALVE NO.1) | ||||
| 90360-06004 |
UCF2# |
1 | ||
| 35247 - VALVE, CHECK, NO.2 | ||||
| 35247-30010 |
UCF2# |
1 | ||
| 35248 - VALVE, CHECK, NO.3 | ||||
| 35248-30020 |
UCF2# |
1 | ||
| 35248A - BALL, REVERSE SHIFT RESTRICT (FOR CHECK VALVE NO.3) | ||||
| 90360-06004 |
UCF2# |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-50010 |
UCF2# |
1 | ||
| 35275-30020 |
UCF2# |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-14157 |
UCF2# |
1 | ||
| 90501-12123 |
UCF2# |
1 | ||
| 35275C - KEY, STRAIGHT | ||||
| 35493-30130 |
UCF2# |
1 | ||
| 35421W - PLUG, C-1 ACCUMULATOR VALVE | ||||
| 35421-30040 |
UCF2# |
1 | ||
| 35421-50010 |
UCF2# |
1 | ||
| 35424F - VALVE, C-1 ACCUMULATOR | ||||
| 35424-50010 |
UCF2# |
1 | ||
| 35424-30030 |
UCF2# |
1 | ||
| 35424G - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE) | ||||
| 90501-18109 |
UCF2# |
1 | ||
| 90501-15016 |
UCF2# |
1 | ||
| 35429B - SLEEVE, B-3 CONTROL VALVE | ||||
| 35429-30020 |
UCF2# |
1 | ||
| 35436C - RETAINER, C-1 ACCUMULATOR VALVE | ||||
| 35436-50010 |
UCF2# |
1 | ||
| 35493-30140 |
UCF2# |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
UCF2# |
1 | ||
| 35445-30020 |
UCF2# |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10216 |
UCF2# |
1 | ||
| 90501-10166 |
UCF2# LIGHT GREEN,H=26.71 |
1 | ||
| 90501-11058 |
UCF2# NO PAINT,H=25.38 |
1 | ||
| 90501-10167 |
UCF2# ORANGE,H=26.11 |
1 | ||
| 35453E - SLEEVE, 2ND COAST MODULATOR VALVE | ||||
| 35453-14010 |
UCF2# |
1 | ||
| 35453-30020 |
UCF2# |
1 | ||
| 35454D - PLUNGER, 2ND COAST MODULATOR VALVE | ||||
| 35446-30010 |
UCF2# |
1 | ||
| 35454-14010 |
UCF2# |
1 | ||
| 35455C - PLUG, B-3 CONTROL VALVE | ||||
| 35455-30020 |
UCF2# |
1 | ||
| 35455D - SEAT, SHIFT VALVE PLUG, NO.3 | ||||
| 35493-30090 |
UCF2# NO.1 |
1 | ||
| 35493-50060 |
UCF2# NO.2 |
1 | ||
| 35455D - SEAT, SHIFT VALVE PLUG, NO.3 | ||||
| 35493-30090 |
UCF2# NO.1 |
1 | ||
| 35493-50060 |
UCF2# NO.2 |
1 | ||
| 35455E - ROLLER, NO.2 (FOR B-3 CONTROL VALVE) | ||||
| 90361-02023 |
UCF2# |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30080 |
UCF2# |
1 | ||
| 35456-30060 |
UCF2# |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
UCF2# |
1 | ||
| 90501-08135 |
UCF2# |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03016 |
UCF2# |
1 | ||
| 35493-30110 |
UCF2# |
1 | ||
| 35467D - PLUNGER, B-3 CONTROL VALVE | ||||
| 35467-30030 |
UCF2# |
1 | ||
| 35467E - ROLLER, NO.1 (FOR B-3 CONTROL VALVE) | ||||
| 90361-02030 |
UCF2# |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-50010 |
UCF2# |
1 | ||
| 35468-30020 |
UCF2# |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12150 |
UCF2# |
1 | ||
| 90501-12122 |
UCF2# |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
UCF2# |
1 | ||
| 35477A - VALVE, OVERDRIVE CLUTCH EXHAUST | ||||
| 35477-30040 |
UCF2# |
1 | ||
| 35477B - SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE | ||||
| 90501-07122 |
UCF2# |
1 | ||
| 35477C - SEAT, VALVE (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 35493-30040 |
UCF2# |
1 | ||
| 35477F - PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 90339-04003 |
UCF2# |
1 | ||
| 35484D - VALVE, B-3 CONTROL | ||||
| 35484-30020 |
UCF2# |
1 | ||
| 35484E - SPRING, COMPRESSION (FOR B-3 CONTROL VALVE) | ||||
| 90905-01036 |
UCF2# NO.2 |
1 | ||
| 90501-07123 |
UCF2# NO.1 |
1 | ||
| 35484E - SPRING, COMPRESSION (FOR B-3 CONTROL VALVE) | ||||
| 90905-01036 |
UCF2# NO.2 |
1 | ||
| 90501-07123 |
UCF2# NO.1 |
1 | ||
| 35485C - ADJUSTER, B-3 CONTROL VALVE | ||||
| 35485-30010 |
UCF2# |
1 | ||
| 35485D - CAP (FOR B-3 CONTROL VALVE ADJUSTER) | ||||
| 90339-05032 |
UCF2# |
1 | ||
| 35489H - VALVE, C-1 ORIFICE CONTROL | ||||
| 35489-50010 |
UCF2# |
1 | ||
| 35489-30030 |
UCF2# |
1 | ||
| 35489J - PLUG (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90339-05014 |
UCF2# |
1 | ||
| 90339-05025 |
UCF2# |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08123 |
UCF2# 内側 |
1 | ||
| 90501-08121 |
UCF2# 外側 |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08123 |
UCF2# 内側 |
1 | ||
| 90501-08121 |
UCF2# 外側 |
1 | ||
| 35489L - KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 35493-30040 |
UCF2# |
1 | ||
| 90282-03016 |
UCF2# |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 90250-05121 |
UCF2# |
1 | ||
| 35493-22020 |
UCF2# |
1 | ||
| 35493K - SEAT, SHIFT VALVE PLUG | ||||
| 90339-05019 |
UCF2# |
1 | ||
| 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG | ||||
| 35493-30030 |
UCF2# |
2 | ||
| 35493-30030 |
UCF2# |
1 | ||
| 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG | ||||
| 35493-30030 |
UCF2# |
2 | ||
| 35493-30030 |
UCF2# |
1 | ||
| 35498H - VALVE, 4-5 SHIFT | ||||
| 35498-30020 |
UCF2# |
1 | ||
| 35498J - SEAT, SHIFT VALVE PLUG, NO.2 | ||||
| 35493-30030 |
UCF2# |
1 | ||
| 35498K - PLUG (FOR 4-5 SHIFT VALVE) | ||||
| 90339-05019 |
UCF2# |
1 | ||
| 35498L - SPRING, COMPRESSION (FOR 4-5 SHIFT VALVE) | ||||
| 90501-08135 |
UCF2# |
1 | ||

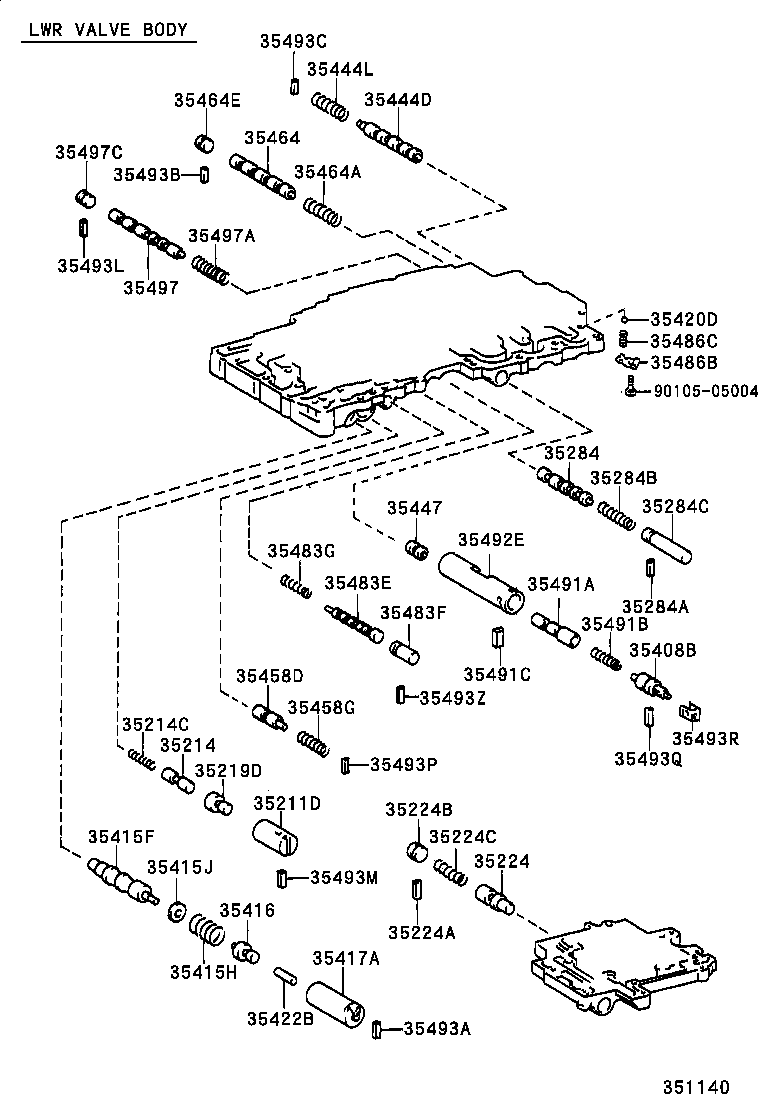

ILLUST NO. 3 OF 4(9707- )
Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-50010 |
UCF2# |
1 | ||
| 35211-50010 |
UCF2# |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-50010 |
UCF2# |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-07078 |
UCF2# |
1 | ||
| 90501-07111 |
UCF2# |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-50010 |
UCF2# |
1 | ||
| 35219-50010 |
UCF2# |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-30010 |
UCF2# |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 35493-30040 |
UCF2# |
1 | ||
| 90282-03010 |
UCF2# |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 35224-50020 |
UCF2# |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06065 |
UCF2# |
1 | ||
| 35284 - VALVE, SOLENOID RELAY | ||||
| 35284-50010 |
UCF2# |
1 | ||
| 35284-30010 |
UCF2# |
1 | ||
| 35284A - KEY, STRAIGHT (FOR SOLENOID RELAY VALVE) | ||||
| 90282-03016 |
UCF2# |
1 | ||
| 35493-30110 |
UCF2# |
1 | ||
| 35284B - SPRING, COMPRESSION (FOR SOLENOID RELAY VALVE) | ||||
| 90501-06055 |
UCF2# |
1 | ||
| 90501-07120 |
UCF2# |
1 | ||
| 35284C - PLUG (FOR SOLENOID RELAY VALVE) | ||||
| 90339-05030 |
UCF2# |
1 | ||
| 90339-04030 |
UCF2# |
1 | ||
| 35408B - PLUG SUB-ASSY, ACCUMULATOR CONTROL VALVE | ||||
| 35408-50010 |
UCF2# |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-50010 |
UCF2# |
1 | ||
| 35415-30060 |
UCF2# |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14117 |
UCF2# |
1 | ||
| 90501-15022 |
UCF2# |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
UCF2# |
1 | ||
| 90560-08099 |
UCF2# |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-50010 |
UCF2# |
1 | ||
| 35416-30060 |
UCF2# |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-50011 |
UCF2# |
1 | ||
| 35417-30080 |
UCF2# |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-08003 |
UCF2# 外径=8.00,ｽﾁｰﾙ |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50011 |
UCF2# |
1 | ||
| 35422-30020 |
UCF2# |
1 | ||
| 35444D - VALVE, RELEASE CONTROL | ||||
| 35444-30030 |
UCF2# |
1 | ||
| 35444L - SPRING, COMPRESSION (FOR SHIFT VALVE PLUG SEAT) | ||||
| 90501-08135 |
UCF2# |
1 | ||
| 35447 - PLUNGER, ACCUMULATOR CONTROL VALVE | ||||
| 35447-50010 |
UCF2# |
1 | ||
| 35447-14010 |
UCF2# |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-50010 |
UCF2# |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06055 |
UCF2# |
1 | ||
| 90501-07099 |
UCF2# |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
UCF2# |
1 | ||
| 35464-30050 |
UCF2# |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
UCF2# |
1 | ||
| 90501-07122 |
UCF2# |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05019 |
UCF2# |
1 | ||
| 90339-05014 |
UCF2# |
1 | ||
| 35483E - VALVE, C-0 CONTROL RELAY | ||||
| 35483-30020 |
UCF2# |
1 | ||
| 35483F - PLUG (FOR C-0 CONTROL RELAY VALVE) | ||||
| 90339-05031 |
UCF2# |
1 | ||
| 35483G - SPRING, COMPRESSION (FOR C-0 CONTROL RELAY VALVE) | ||||
| 90501-06062 |
UCF2# |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-50010 |
UCF2# |
1 | ||
| 35486-30030 |
UCF2# |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-12142 |
UCF2# |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-30030 |
UCF2# |
1 | ||
| 35491-50010 |
UCF2# |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-11049 |
UCF2# |
1 | ||
| 90501-13048 |
UCF2# |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03015 |
UCF2# |
1 | ||
| 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE | ||||
| 35492-50010 |
UCF2# |
1 | ||
| 35492-14010 |
UCF2# |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
UCF2# |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30110 |
UCF2# |
1 | ||
| 35493-22020 |
UCF2# |
1 | ||
| 35493C - SEAT, RELEASE CONTROL VALVE PLUG | ||||
| 35493-30130 |
UCF2# |
1 | ||
| 35493L - SEAT, SHIFT VALVE PLUG | ||||
| 35493-30110 |
UCF2# |
1 | ||
| 35493M - SEAT, LOCK UP CONTROL VALVE PLUG | ||||
| 35493-30080 |
UCF2# |
1 | ||
| 35493-50050 |
UCF2# |
1 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30130 |
UCF2# |
1 | ||
| 35493-30040 |
UCF2# |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 35493-50020 |
UCF2# |
1 | ||
| 35493R - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.2 | ||||
| 35493-50030 |
UCF2# |
1 | ||
| 35493Z - SEAT, SHIFT VALVE PLUG, NO.1 | ||||
| 35493-30040 |
UCF2# |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30060 |
UCF2# |
1 | ||
| 35497-30040 |
UCF2# |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
UCF2# |
1 | ||
| 90501-08135 |
UCF2# |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
UCF2# |
1 | ||
| 90339-05019 |
UCF2# |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||

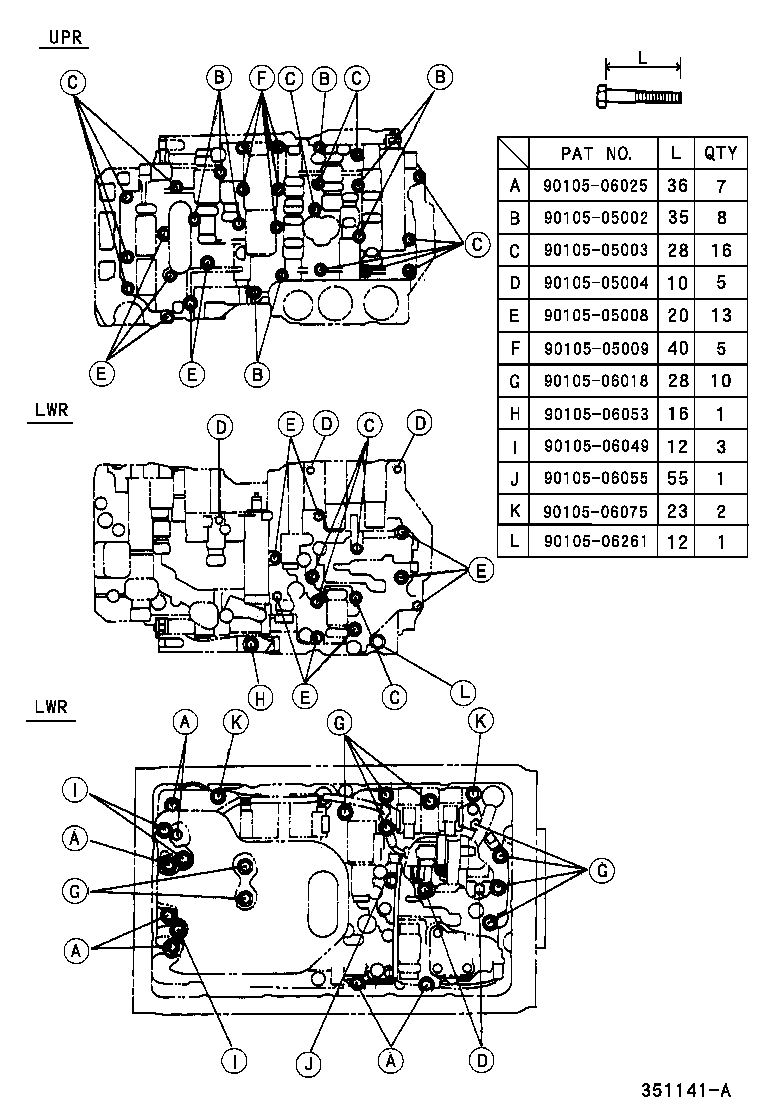

ILLUST NO. 4 OF 4(9707- )
Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05004 | ||||
| 90105-05008 | ||||
| 90105-05009 | ||||
| 90105-06018 | ||||
| 90105-06025 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06055 | ||||
| 90105-06075 | ||||
| 90105-06261 | ||||

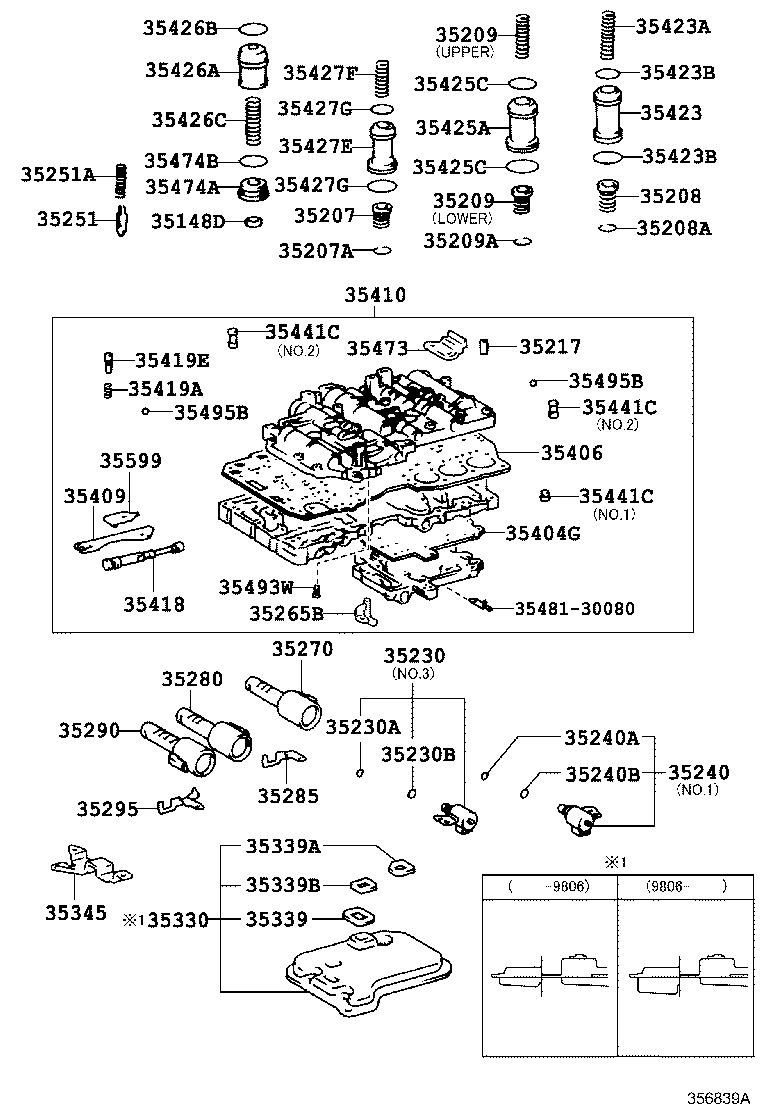

ILLUST NO. 1 OF 4(9707- )
Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35148D - GASKET (FOR C-O ACCUMULATOR PISTON) | ||||
| 35148-16010 |
UCF2# |
1 | ||
| 35148-16010 |
UCF2# |
1 | ||
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-50010 |
UCF2# |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UCF2# |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
UCF2# |
1 | ||
| 35208-22010 |
UCF2# |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UCF2# |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-50010 |
UCF2# |
1 | ||
| 35209-24010 |
UCF2# 下側 |
1 | ||
| 35209-50030 |
UCF2# 上側 |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-50010 |
UCF2# |
1 | ||
| 35209-24010 |
UCF2# 下側 |
1 | ||
| 35209-50030 |
UCF2# 上側 |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UCF2# |
1 | ||
| 35217 - VALVE, ACCUMULATOR CONTROL, NO.2 | ||||
| 35217-30010 |
UCF2# |
1 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-30010 |
UCF2# NO.3 |
1 | ||
| 35230A - RING, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2) | ||||
| 90301-08013 |
UCF2# |
1 | ||
| 35230B - RING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2) | ||||
| 90301-12013 |
UCF2# |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-30020 |
UCF2# NO.1 |
1 | ||
| 35240A - RING, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID) | ||||
| 90301-08011 |
UCF2# |
1 | ||
| 35240B - RING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID) | ||||
| 90301-12014 |
UCF2# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
UCF2# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
UCF2# |
1 | ||
| 35265B - TUBE, OIL COOLER RETURN | ||||
| 35265-50010 |
UCF2# |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-30030 |
UCF2# |
1 | ||
| 35270-50010 |
UCF2# |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-50010 |
UCF2# |
1 | ||
| 35280-30040 |
UCF2# |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-50010 |
UCF2# |
1 | ||
| 35285-30060 |
UCF2# |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-30040 |
UCF2# |
1 | ||
| 35295 - PLATE, SOLENOID LOCK, NO.2 | ||||
| 35295-30010 |
UCF2# |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30030 |
UCF2# |
1 | ||
| 35330-50010 |
UCF2# |
1 | ||
| 35330-30050 |
UCF2# |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30080 |
UCF2# |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
UCF2# |
1 | ||
| 35339B - GASKET, OIL STRAINER, NO.2 | ||||
| 35339-30100 |
UCF2# |
1 | ||
| 35345 - PLATE, OIL GUIDE | ||||
| 35345-50010 |
UCF2# |
1 | ||
| 35404G - PLATE SUB-ASSY, VALVE BODY, NO.2 | ||||
| 35404-30020 |
UCF2# |
1 | ||
| 35406 - PLATE SUB-ASSY, VALVE BODY | ||||
| 35406-30220 |
UCF2# |
1 | ||
| 35406-50030 |
UCF2# |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
UCF2# |
1 | ||
| 35409-50020 |
UCF2# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-50050 |
UCF2# |
1 | ||
| 35410-30850 |
UCF2# |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30090 |
UCF2# |
1 | ||
| 35418-50010 |
UCF2# |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
UCF2# |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50010 |
UCF2# |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
UCF2# |
1 | ||
| 35423-30030 |
UCF2# |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25052 |
UCF2# |
1 | ||
| 90501-27020 |
UCF2# |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
UCF2# 下側 |
1 | ||
| 90301-31002 |
UCF2# 下側 |
1 | ||
| 90301-23194 |
UCF2# 上側 |
1 | ||
| 90301-23010 |
UCF2# 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
UCF2# 下側 |
1 | ||
| 90301-31002 |
UCF2# 下側 |
1 | ||
| 90301-23194 |
UCF2# 上側 |
1 | ||
| 90301-23010 |
UCF2# 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-40010 |
UCF2# |
1 | ||
| 35425-30020 |
UCF2# |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90903-01003 |
UCF2# 下側 |
1 | ||
| 90301-31002 |
UCF2# 下側 |
1 | ||
| 90301-25003 |
UCF2# 上側 |
1 | ||
| 90903-01003 |
UCF2#..5FC 上側 |
1 | ||
| 90903-01001 |
UCF2# 上側 |
1 | ||
| 90903-01001 |
UCF2#..5FC 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90903-01003 |
UCF2# 下側 |
1 | ||
| 90301-31002 |
UCF2# 下側 |
1 | ||
| 90301-25003 |
UCF2# 上側 |
1 | ||
| 90903-01003 |
UCF2#..5FC 上側 |
1 | ||
| 90903-01001 |
UCF2# 上側 |
1 | ||
| 90903-01001 |
UCF2#..5FC 下側 |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-50010 |
UCF2# |
1 | ||
| 35426-50010 |
UCF2# |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
UCF2# |
1 | ||
| 90301-24001 |
UCF2# |
2 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-20113 |
UCF2# 内側 |
1 | ||
| 90501-20112 |
UCF2# 外側 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
UCF2# |
1 | ||
| 35427-30040 |
UCF2# |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-22019 |
UCF2# |
1 | ||
| 90905-01025 |
UCF2# |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
UCF2# 下側 |
1 | ||
| 90301-20008 |
UCF2# 上側 |
1 | ||
| 90301-26002 |
UCF2# 下側 |
1 | ||
| 90301-20002 |
UCF2# 上側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
UCF2# 下側 |
1 | ||
| 90301-20008 |
UCF2# 上側 |
1 | ||
| 90301-26002 |
UCF2# 下側 |
1 | ||
| 90301-20002 |
UCF2# 上側 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24020 |
UCF2# NO.1 |
1 | ||
| 35441-50030 |
UCF2# |
2 | ||
| 35441-50030 |
UCF2# NO.2 |
2 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24020 |
UCF2# NO.1 |
1 | ||
| 35441-50030 |
UCF2# |
2 | ||
| 35441-50030 |
UCF2# NO.2 |
2 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24020 |
UCF2# NO.1 |
1 | ||
| 35441-50030 |
UCF2# |
2 | ||
| 35441-50030 |
UCF2# NO.2 |
2 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-50020 |
UCF2# |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-50010 |
UCF2# |
1 | ||
| 35474-30010 |
UCF2# |
1 | ||
| 35474B - RING, O (FOR ACCUMULATOR COVER) | ||||
| 90301-24010 |
UCF2# |
1 | ||
| 35493W - SEAT, VALVE BODY | ||||
| 35493-50040 |
UCF2# |
2 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
UCF2# |
12 | ||
| 35495-22020 |
UCF2# |
14 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
UCF2# |
12 | ||
| 35495-22020 |
UCF2# |
14 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22020 |
UCF2# |
1 | ||
| Common parts | ||||
| 35481-30080 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
