UCF11-AEPQK (1989)
Toyota Celsior
Production
Nov 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8911-9208)

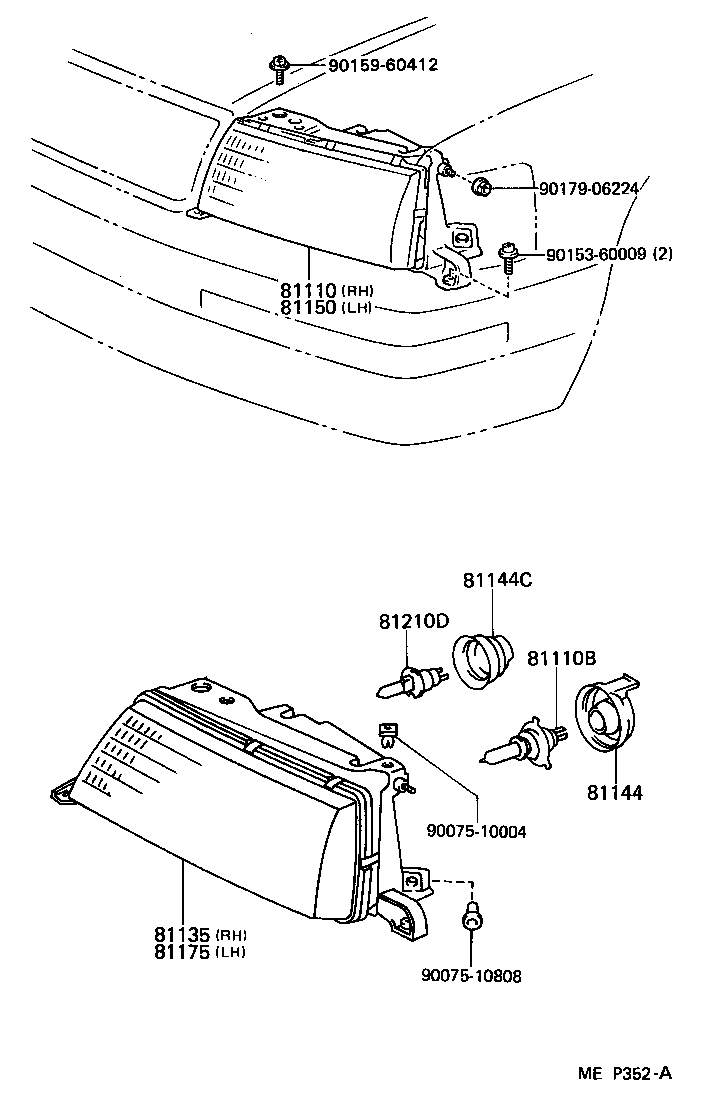

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-50090 |
UCF1# |
1 | ||
| 81110-50080 |
UCF1# |
1 | ||
| 81110-50091 |
UCF1# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-22004 |
UCF1# 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
UCF1# 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22001 |
UCF1# 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-50080 |
UCF1# |
1 | ||
| 81130-50091 |
UCF1# |
1 | ||
| 81130-50090 |
UCF1# |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-20730 |
UCF1# |
2 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-99072 |
UCF1# |
2 | ||
| 90075-99015 |
UCF1# |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-50080 |
UCF1# |
1 | ||
| 81150-50090 |
UCF1# |
1 | ||
| 81150-50091 |
UCF1# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-50091 |
UCF1# |
1 | ||
| 81170-50090 |
UCF1# |
1 | ||
| 81170-50080 |
UCF1# |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13027 |
UCF1# 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| Common parts | ||||
| 90075-10004 | ||||
| 90075-10808 | ||||
| 90153-60009 | ||||
| 90159-60412 | ||||
| 90179-06224 | ||||
(9208- )

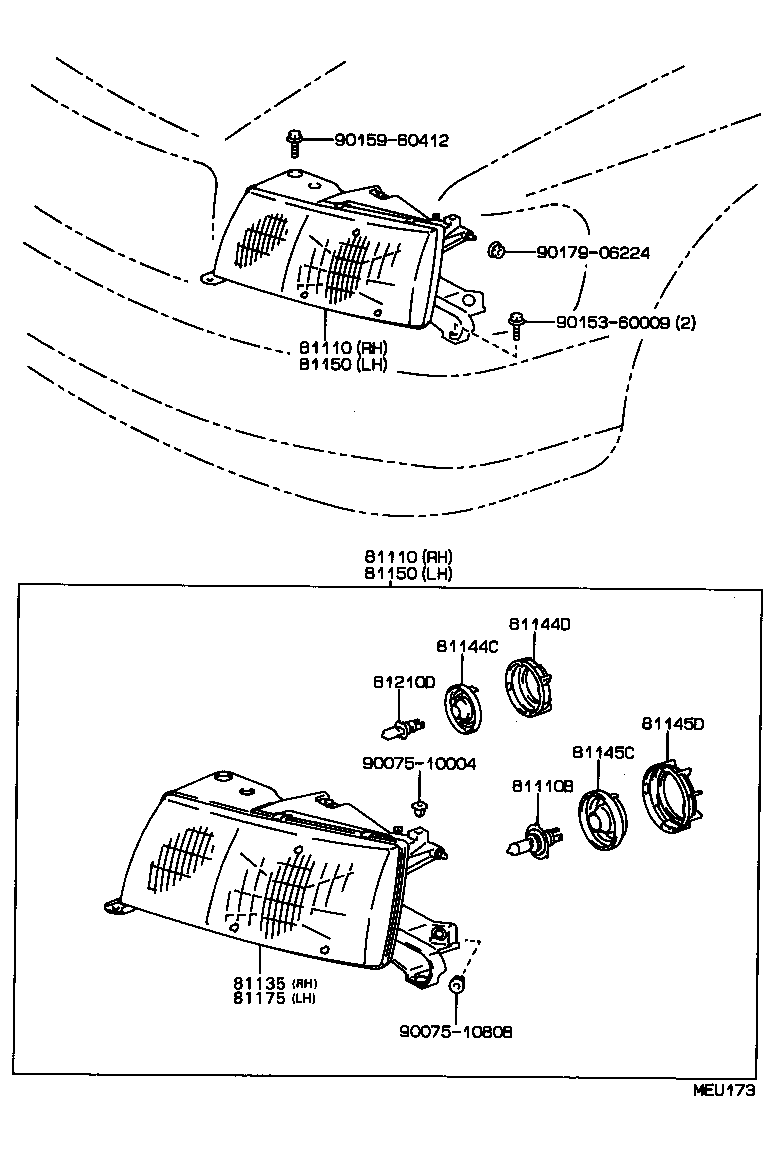

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-50090 |
UCF1# |
1 | ||
| 81110-50080 |
UCF1# |
1 | ||
| 81110-50091 |
UCF1# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-50090 |
UCF1# |
1 | ||
| 81110-50080 |
UCF1# |
1 | ||
| 81110-50091 |
UCF1# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-22004 |
UCF1# 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
UCF1# 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22001 |
UCF1# 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-50080 |
UCF1# |
1 | ||
| 81130-50091 |
UCF1# |
1 | ||
| 81130-50090 |
UCF1# |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-99072 |
UCF1# |
2 | ||
| 90075-99015 |
UCF1# |
2 | ||
| 81144D - CAP, HEADLAMP LOCKING | ||||
| 90075-99073 |
UCF1# |
2 | ||
| 81145C - COVER, HEADLAMP SOCKET, NO.2 | ||||
| 90075-99075 |
UCF1# |
2 | ||
| 81145D - CAP, HEADLAMP LOCKING NO.2 | ||||
| 90075-99074 |
UCF1# |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-50080 |
UCF1# |
1 | ||
| 81150-50090 |
UCF1# |
1 | ||
| 81150-50091 |
UCF1# |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-50080 |
UCF1# |
1 | ||
| 81150-50090 |
UCF1# |
1 | ||
| 81150-50091 |
UCF1# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-50091 |
UCF1# |
1 | ||
| 81170-50090 |
UCF1# |
1 | ||
| 81170-50080 |
UCF1# |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13027 |
UCF1# 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| Common parts | ||||
| 90075-10004 | ||||
| 90075-10808 | ||||
| 90153-60009 | ||||
| 90159-60412 | ||||
| 90179-06224 | ||||
