UCF11-AEPQK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

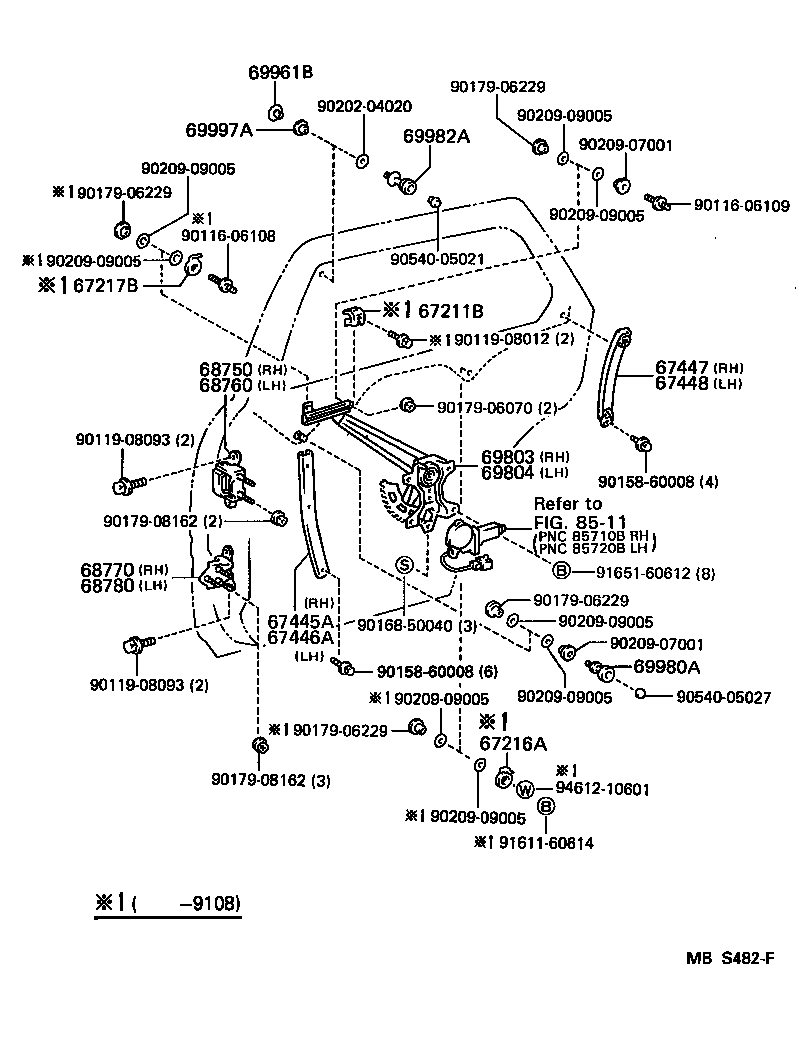

Click highlighted areas on diagram

diagram 67211B 67216A 67217B 67445A 67446A 67447 67448 68750 68760 68770 68780 69803 69804 69961B 69980A 69982A 69997A 8511 9011606108 9011606109 9011908012 9011908093 9011908093 9015860008 9015860008 9016850040 9017906070 9017906229 9017906229 9017906229 9017906229 9017908162 9017908162 9020204020 9020907001 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9054005021 9054005027 9161160614 9165160612 9461210601
Part # Description Qty Price
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-22020

UCF1#

 4
67216A - STOPPER, FRONT DOOR GLASS, UPPER NO.2
67216-30050

UCF1#

 2
67217B - STOPPER, REAR DOOR GLASS
67217-50010

UCF1#

 2
67445A - GUIDE, REAR DOOR WINDOW, FRONT LOWER, RH
67445-50010

UCF1#

 1
67446A - GUIDE, REAR DOOR WINDOW, FRONT LOWER, LH
67446-50010

UCF1#

 1
67447 - GUIDE, REAR DOOR WINDOW, REAR LOWER RH
67447-50010

UCF1#

 1
67448 - GUIDE, REAR DOOR WINDOW, REAR LOWER LH
67448-50010

UCF1#

 1
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-50020

UCF1#

 1
68750-50010

UCF1#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-50010

UCF1#

 1
68760-50020

UCF1#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-50010

UCF1#

 1
68770-50020

UCF1#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-50010

UCF1#

 1
68780-50020

UCF1#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-50010

UCF1#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-50010

UCF1#

 1
69961B - RETAINER, REAR DOOR GLASS
69961-50010

UCF1#

 2
69980A - ROLLER ASSY, REAR DOOR GLASS GUIDE
69980-50020

UCF1#

 2
69982A - ROLLER, REAR DOOR GLASS GUIDE, NO.2
69982-50010

UCF1#

 2
69997A - SPACER, REAR DOOR GLASS GUIDE
69997-24010

UCF1#

 2
Common parts
90116-06108
90116-06109
90119-08012
90119-08093
90158-60008
90168-50040
90179-06070
90179-06229
90179-08162
90202-04020
90209-07001
90209-09005
90540-05021
90540-05027
91611-60614
91651-60612
94612-10601
Linked diagrams
8511
