UCF11-AEPQK (1989)
Toyota Celsior
Production
Nov 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8911- )

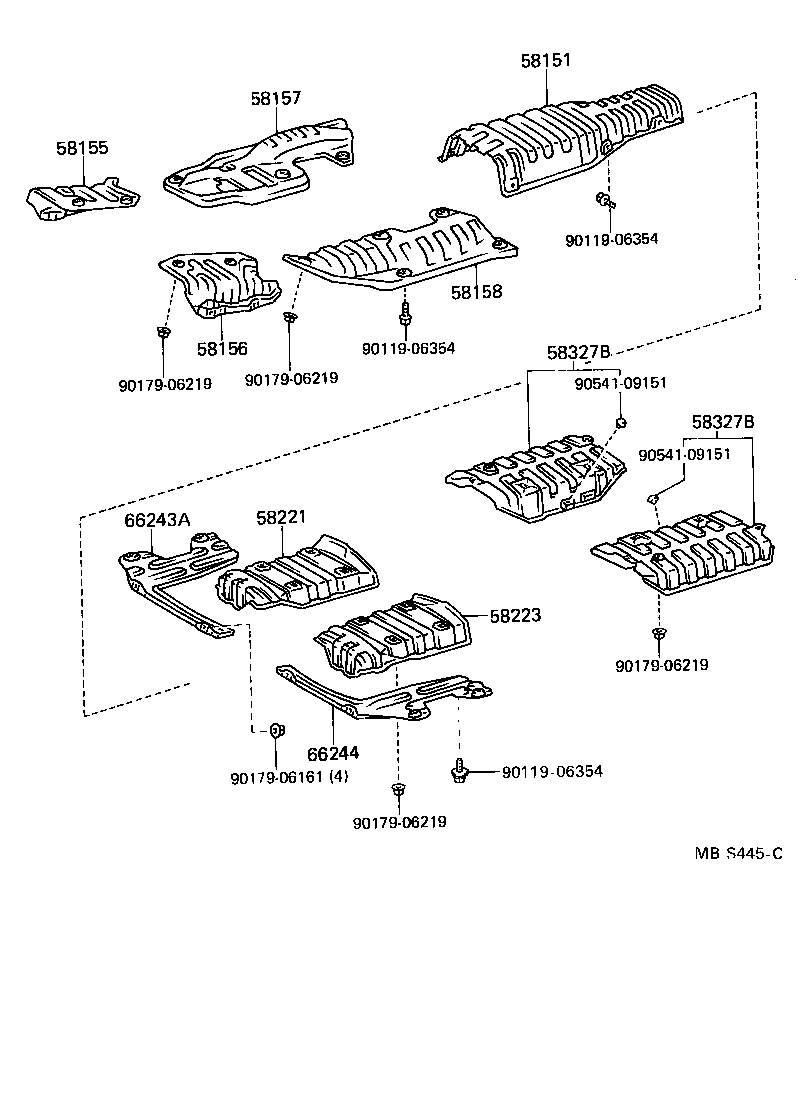

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-50010 |
UCF1# |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58155-50010 |
UCF1# |
1 | ||
| 58156 - INSULATOR, FRONT FLOOR HEAT, NO.4 | ||||
| 58156-50030 |
UCF1# |
1 | ||
| 58156-50010 |
UCF1# |
1 | ||
| 58157 - INSULATOR, FRONT FLOOR HEAT, NO.5 | ||||
| 58157-50010 |
UCF1# |
1 | ||
| 58158 - INSULATOR, FRONT FLOOR HEAT, NO.6 | ||||
| 58158-50010 |
UCF1# |
1 | ||
| 58221 - INSULATOR, CENTER FLOOR HEAT, NO.1 | ||||
| 58221-50020 |
UCF1# |
1 | ||
| 58221-50010 |
UCF1# |
1 | ||
| 58223 - INSULATOR, CENTER FLOOR HEAT, NO.2 | ||||
| 58223-50020 |
UCF1# |
1 | ||
| 58223-50010 |
UCF1# |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-50010 |
UCF1# 右側 |
1 | ||
| 58328-50010 |
UCF1# 左側 |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-50010 |
UCF1# 右側 |
1 | ||
| 58328-50010 |
UCF1# 左側 |
1 | ||
| 66243A - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-50021 |
UCF1# |
1 | ||
| 66243-50020 |
UCF1# |
1 | ||
| 66243-50010 |
UCF1# |
1 | ||
| 66244 - PROTECTOR, REAR BODY, NO.2 | ||||
| 66244-50010 |
UCF1# |
1 | ||
| 66244-50021 |
UCF1# |
1 | ||
| 66244-50020 |
UCF1# |
1 | ||
| Common parts | ||||
| 90119-06354 | ||||
| 90179-06161 | ||||
| 90179-06219 | ||||
| 90541-09151 | ||||
