Toyota Celsior UCF11 FRONT FENDER APRON & DASH PANEL

Part #	Description	Period	Qty
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-50010	UCF1#	11/1989 - 08/1991	1
53202-50011	UCF1#	08/1991 - 10/1994	1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-50010	UCF1#	11/1989 - 10/1994	1
53204D - GUIDE SUB-ASSY, LOWER WIND
53204-50011	UCF1#	06/1992 - 10/1994	1
53204-50010	UCF1#	11/1989 - 06/1992	1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-50010	UCF1#	11/1989 - 04/1992	1
53205-50012	UCF1#	08/1992 - 10/1994	1
53205-50011	UCF1#	04/1992 - 08/1992	1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53217-50010	UCF1#	11/1989 - 10/1994	1
53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-50010	UCF1#	11/1989 - 10/1994	1
53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-50010	UCF1#	11/1989 - 10/1994	1
53285B - SEAL, RADIATOR SIDE AIR, NO.1
53285-50020	UCF1#	11/1989 - 10/1994	1
53286B - SEAL, RADIATOR SIDE AIR, NO.2
53286-50020	UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ)	08/1992 - 08/1993	1
53286-50010	UCF1#	11/1989 - 08/1993	1
53286-50020	UCF11 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ)	08/1993 - 10/1994	1
53286-50010	UCF1#..A,C	08/1993 - 10/1994	1
53286-50020	UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ)	11/1989 - 08/1992	1
53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-50020	UCF1#	11/1989 - 10/1994	1
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-50020	UCF1#	11/1989 - 10/1994	1
53293B - SEAL, RADIATOR SUPPORT SERVICE HOLE
53293-50010	UCF1#	11/1989 - 08/1992	1
53293-50011	UCF1#	08/1992 - 10/1994	1
53561 - GUIDE, HOOD AUXILIARY CATCH HOOK
53561-50010	UCF1#	11/1989 - 10/1994	1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-50030	UCF11	11/1989 - 08/1992	1
53701-50082	UCF11 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	08/1992 - 12/1992	1
53701-50034	UCF11	05/1994 - 10/1994	1
53701-50084	UCF11 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	05/1994 - 10/1994	1
53701-50033	UCF11	12/1992 - 05/1994	1
53701-50080	UCF11 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	11/1989 - 08/1992	1
53701-50083	UCF11 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	12/1992 - 05/1994	1
53701-50032	UCF11	08/1992 - 12/1992	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-50060	UCF11	11/1989 - 08/1992	1
53702-50062	UCF11	08/1992 - 12/1992	1
53702-50100	UCF11 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	11/1989 - 08/1992	1
53702-50103	UCF11 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	12/1992 - 05/1994	1
53702-50063	UCF11	12/1992 - 05/1994	1
53702-50102	UCF11 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	08/1992 - 12/1992	1
53702-50104	UCF11 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	05/1994 - 10/1994	1
53702-50064	UCF11	05/1994 - 10/1994	1
53711B - APRON, FRONT FENDER, FRONT RH
53711-50020	UCF1#	11/1989 - 12/1989	1
53711-50020	UCF11	12/1989 - 08/1992	1
53711-50021	UCF1#	08/1992 - 10/1994	1
53712B - APRON, FRONT FENDER, FRONT LH
53712-50020	UCF1#	11/1989 - 03/1992	1
53712-50021	UCF1#	03/1992 - 10/1994	1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-50011	UCF1#	04/1992 - 08/1992	1
53731-50020	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	11/1989 - 04/1992	1
53731-50012	UCF1#	08/1992 - 10/1994	1
53731-50010	UCF1#	11/1989 - 04/1992	1
53731-50021	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	04/1992 - 08/1992	1
53731-50022	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	08/1992 - 10/1994	1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-50010	UCF1#	11/1989 - 04/1992	1
53732-50020	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	11/1989 - 04/1992	1
53732-50012	UCF1#	08/1992 - 10/1994	1
53732-50022	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	08/1992 - 10/1994	1
53732-50011	UCF1#	04/1992 - 08/1992	1
53732-50021	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	04/1992 - 08/1992	1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-50903	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	08/1992 - 10/1994	1
53735-50902	UCF1#	08/1992 - 10/1994	1
53735-50901	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	11/1989 - 08/1992	1
53735-50900	UCF1#	11/1989 - 08/1992	1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-50901	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	11/1989 - 08/1992	1
53736-50902	UCF1#	08/1992 - 10/1994	1
53736-50900	UCF1#	11/1989 - 08/1992	1
53736-50903	UCF1# ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	08/1992 - 10/1994	1
55101 - PANEL SUB-ASSY, DASH
55101-50901	UCF1#	11/1989 - 06/1992	1
55101-50904	UCF1#	06/1992 - 10/1994	1
55113A - PANEL DASH, LOWER RH, W/INSULATOR
55113-50901	UCF1#	11/1989 - 10/1994	1
55114 - PANEL DASH, LOWER LH, W/INSULATOR
55114-50901	UCF1#	11/1989 - 10/1994	1
55210 - INSULATOR ASSY, DASH PANEL
55210-50020	UCF1#	11/1989 - 08/1992	1
55210-50021	UCF1#	08/1992 - 10/1994	1
55223A - INSULATOR, DASH PANEL, OUTER
55223-50030	UCF1# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	11/1989 - 05/1992	1
55223-50022	UCF1#	08/1992 - 10/1994	1
55223-50031	UCF1# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	05/1992 - 08/1992	1
55223-50032	UCF1# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	08/1992 - 10/1994	1
55223-50020	UCF1#	11/1989 - 05/1992	1
55223-50021	UCF1#	05/1992 - 08/1992	1
57161A - MEMBER, FRONT CROSS, FRONT W/REAR
57104-50031	UCF1#	12/1992 - 10/1994	1
57104-50030	UCF1#	11/1989 - 12/1992	1
Common parts
90119-06459
90119-06599
90159-60431
90179-06009
90183-06006
90189-06123
90467-08115
90467-08116
90467-08129
90467-10005
90467-12129
90561-04013
90561-09013
90561-11003
90561-11004
90561-12009
90561-13001
90950-01006
90950-01112
90950-01133
90950-01181
90950-01247
90950-01356
90950-01398
90950-01555
90950-01657
90950-01662
90950-01663
90950-01664
90950-01680
90950-01684
90950-01736

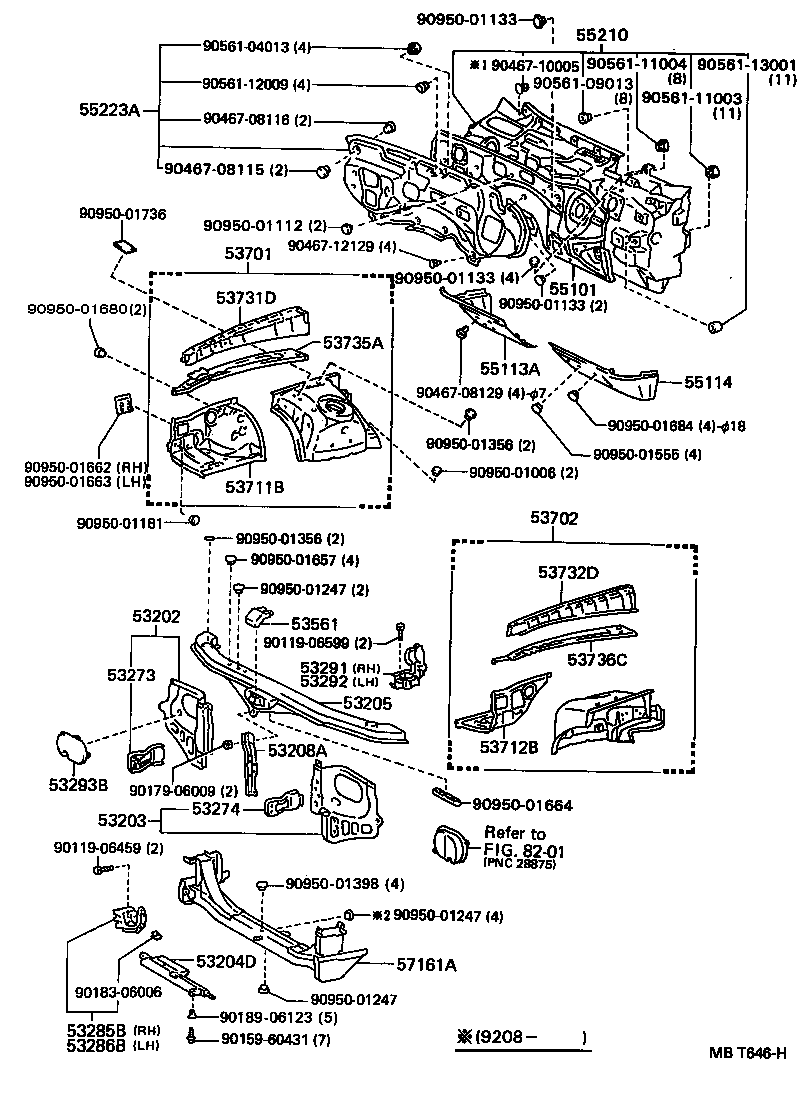

Linked diagrams
8201

UCF11-AEPQK (1989)

(8911- )
