UCF11-AEPQK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8911- )

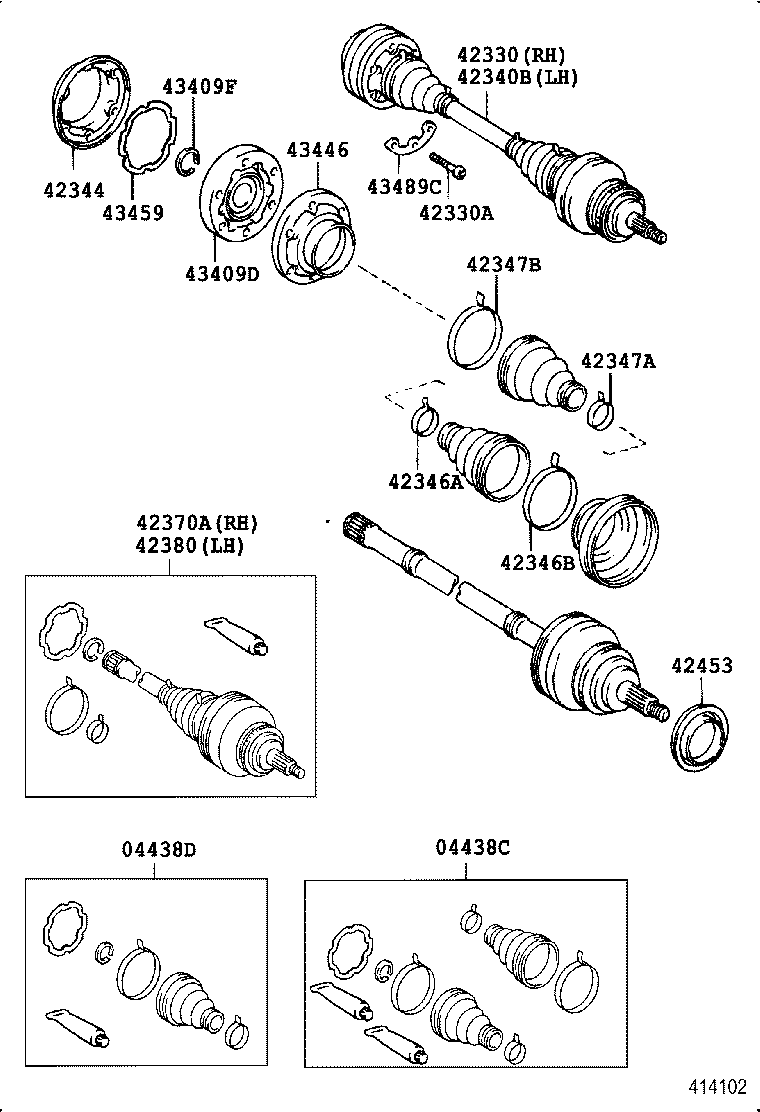

Click highlighted areas on diagram

diagram 04438C 04438D 42330 42330A 42340B 42344 42346A 42346B 42347A 42347B 42370A 42380 42453 43409D 43409F 43446 43459 43489C
Part # Description Qty Price
04438C - BOOT KIT, REAR DRIVE SHAFT
04437-50021

UCF1#

 2
04437-50020

UCF1#

 2
04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
04437-50010

UCF1#

 2
04437-50011

UCF1#

 2
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-50020

UCF1#..B,C

 1
42330-50021

UCF1#..B,C

 1
42330A - BOLT(FOR REAR DRIVE SHAFT)
90110-12004

UCF1#

*12−1.25PX54−29

 4
90110-12003

UCF1#

*12−1.25PX53−28

 8
90110-12003

UCF1#

*12−1.25PX53−28

 12
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-50021

UCF1#..B,C

 1
42340-50020

UCF1#..B,C

 1
42344 - COVER, REAR AXLE INBOARD JOINT END
42344-50010

UCF1#

 2
42344-50011

UCF1#

 2
42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
90949-01514

UCF1#

 2
42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
90949-01513

UCF1#

 2
42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
90949-01514

UCF1#

 2
42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
90949-01513

UCF1#

 2
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-59026

UCF1#..B,C

 1
42370-59025

UCF1#..B,C

 1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42380-59025

UCF1#..B,C

 1
42380-59026

UCF1#..B,C

 1
42453 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.3
42453-50010

UCF1#

 2
43409D - JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE
43409-50011

UCF1#

 2
43409-24010

UCF1#

 2
43409-50010

UCF1#

 2
43409F - RING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
90520-26028

UCF1#

 2
90520-27052

UCF1#

 2
43446 - COVER, REAR AXLE INBOARD JOINT
43446-50020

UCF1#

 2
43459 - GASKET, REAR AXLE INBOARD JOINT END COVER
43459-50010

UCF1#

 2
43459-50011

UCF1#

 2
43489C - WASHER, REAR DRIVE SHAFT
43489-50010

UCF1#

 4

ILLUST NO. 1 OF 2(8911- )

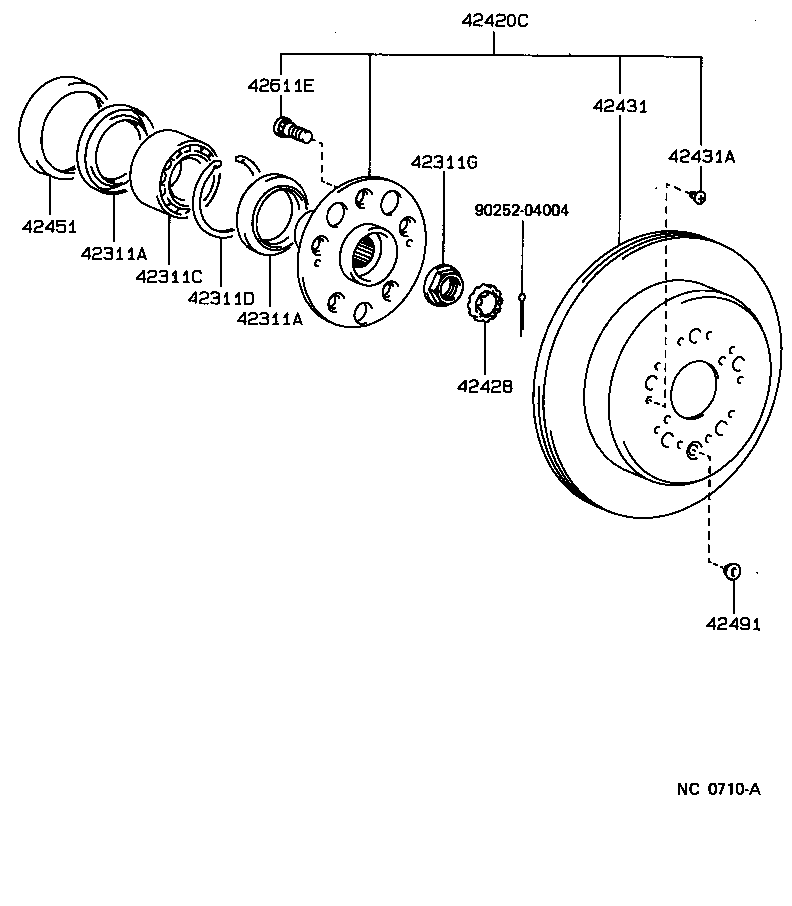

Click highlighted areas on diagram

diagram 42311A 42311A 42311C 42311D 42311G 42420C 42428 42431 42431A 42451 42491 42611E 9025204004
Part # Description Qty Price
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-57001

UCF1#

外側

 2
90311-63002

UCF1#

INNER

 2
90311-63001

UCF1#

内側

 2
90311-57002

UCF1#

OUTER

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-57001

UCF1#

外側

 2
90311-63002

UCF1#

INNER

 2
90311-63001

UCF1#

内側

 2
90311-57002

UCF1#

OUTER

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90369-43005

UCF1#

 2
90369-43005

UCF1#

 2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90521-85002

UCF1#

 2
90521-85002

UCF1#

 2
42311G - NUT (FOR REAR AXLE SHAFT)
90179-24009

UCF1#

 2
42420C - SHAFT & DISC ASSY, REAR AXLE
42420-50020

UCF1#

 2
42420-50041

UCF1#

 2
42420-50031

UCF1#

 2
42428 - PLATE, REAR AXLE LOCK NUT
42428-22010

UCF1#

 2
42431 - DISC, REAR
42431-50040

UCF1#

 2
42431-50020

UCF1#

 2
42431A - SCREW (FOR REAR DISC)
90155-60002

UCF1#

 4
42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1
42451-50010

UCF1#

 2
42451-50010

UCF1#

 2
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

UCF1#

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02049

UCF1#

 10
90942-02049

UCF1#

 10
90942-02070

UCF1#

 10
Common parts
90252-04004
