UCF11-AEPQK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

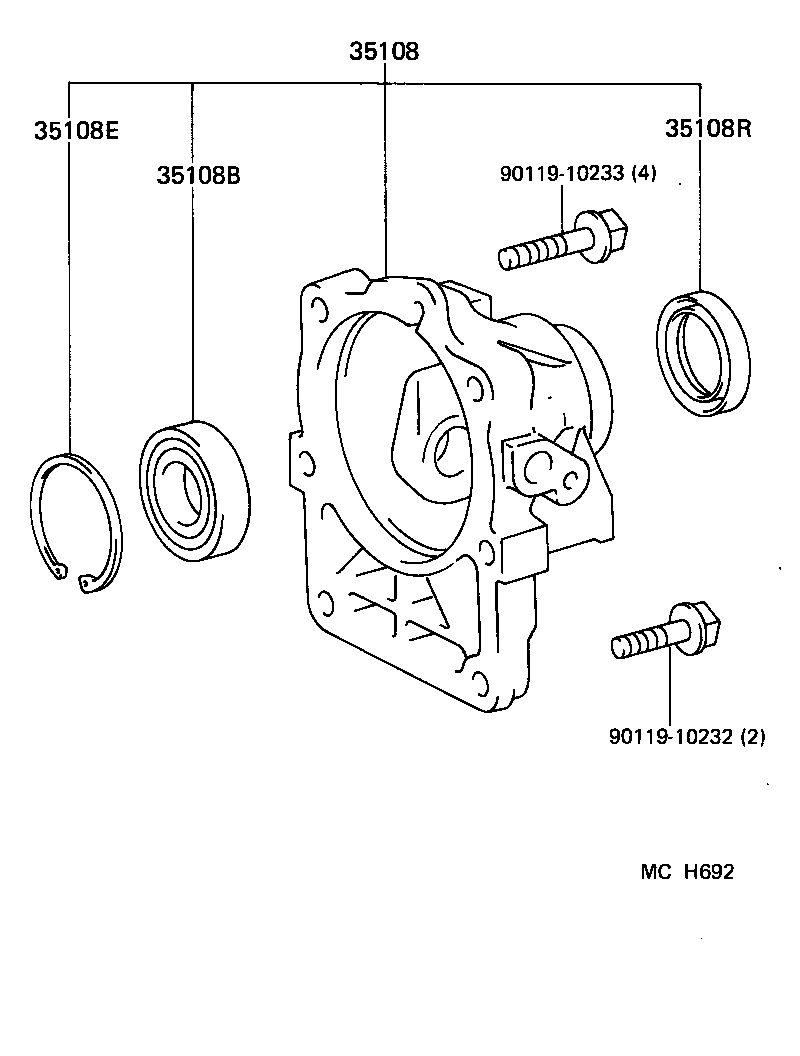

Click highlighted areas on diagram

A341E

diagram 35108 35108B 35108E 35108R 9011910232 9011910233
Part # Description Qty Price
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-50010

UCF1#

 1
35108B - BEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
90363-30063

UCF1#

 1
35108E - RING, HOLE SNAP (FOR ATM EXTENSION HOUSING)
90521-66006

UCF1#

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-42024

UCF1#

 1
Common parts
90119-10232
90119-10233
