UCF11-AEPQK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

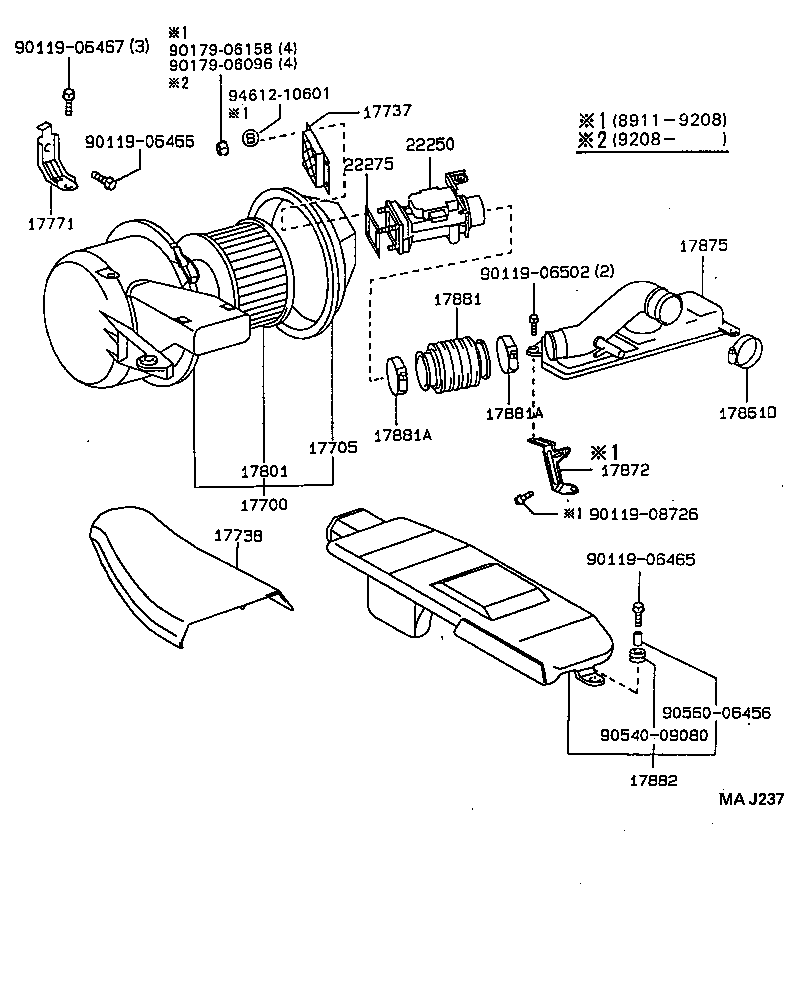

Click highlighted areas on diagram

diagram 17700 17705 17737 17738 17771 17801 17861D 17872 17875 17881 17881A 17881A 17882 22250 22275 9011906465 9011906466 9011906467 9011906502 9011908726 9017906096 9017906158 9054009080 9056006456 9461210601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-50020

1UZFE..UCF1#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-50010

1UZFE..UCF1#

 1
17737 - COVER, AIR CLEANER
17737-50010

1UZFE..UCF1#

 1
17738 - COVER, AIR CLEANER, NO.2
17738-50010

1UZFE..UCF1#

 1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-50010

1UZFE..UCF1#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-50010

1UZFE..UCF1#

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
90460-96001

1UZFE..UCF1#

 1
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-50010

1UZFE..UCF1#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-50010

1UZFE..UCF1#

 1
17875-50060

1UZFE..UCF1#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-50010

1UZFE..UCF1#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-96001

1UZFE..UCF1#

AIR FLOW METER SIDE

 1
90460-92001

1UZFE..UCF1#

PIPE SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-96001

1UZFE..UCF1#

AIR FLOW METER SIDE

 1
90460-92001

1UZFE..UCF1#

PIPE SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17890-50020

1UZFE..UCF1#

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-50010

1UZFE..UCF1#

 1
22275 - GASKET, AIR FLOW METER
22275-50010

1UZFE..UCF1#

 1
Common parts
90119-06465
90119-06466
90119-06467
90119-06502
90119-08726
90179-06096
90179-06158
90540-09080
90560-06456
94612-10601
