UCF10-AEPNK (1989)
Toyota Celsior
Production
Nov 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8911- )

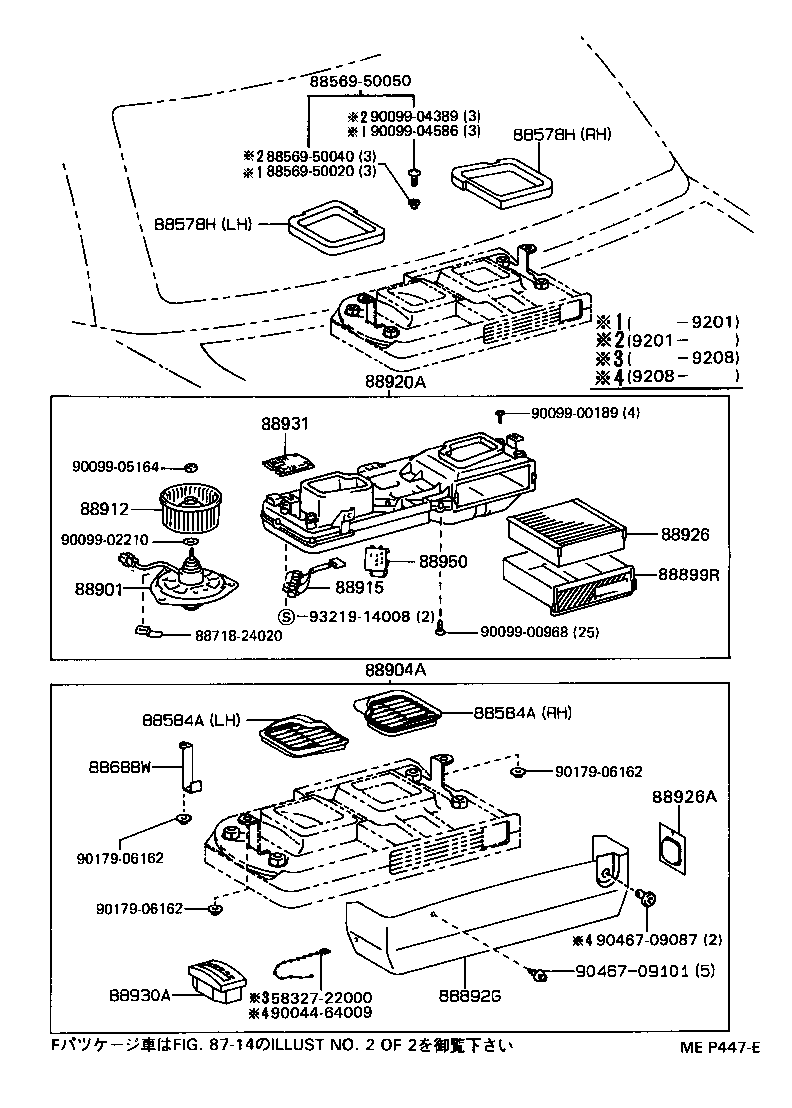

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-50010 |
UCF1# 右側 |
1 | ||
| 88578-50020 |
UCF1# 左側 |
1 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-50010 |
UCF1# 右側 |
1 | ||
| 88578-50020 |
UCF1# 左側 |
1 | ||
| 88584A - GUIDE, AIR | ||||
| 88584-50010 |
UCF1# 右側 |
1 | ||
| 88584-50020 |
UCF1# 左側 |
1 | ||
| 88584A - GUIDE, AIR | ||||
| 88584-50010 |
UCF1# 右側 |
1 | ||
| 88584-50020 |
UCF1# 左側 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-50070 |
UCF1# |
1 | ||
| 88892G - PLATE SUB-ASSY | ||||
| 88892-50030 |
UCF10..A |
1 | ||
| 88892-50050 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 88892-50030 |
UCF1#..B,C |
1 | ||
| 88892-50030 |
UCF1# |
1 | ||
| 88899R - FRAME, AIR PURIFIER | ||||
| 88899-50011 |
UCF1# |
1 | ||
| 88899-50010 |
UCF1# |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-50010 |
UCF1# |
1 | ||
| 88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE | ||||
| 88904-50010 |
UCF1#..B,C |
1 | ||
| 88904-50010 |
UCF1# |
1 | ||
| 88904-50010 |
UCF10..A |
1 | ||
| 88904-50030 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 88912-50010 |
UCF1# |
1 | ||
| 88915 - RESISTOR, AIR PURIFIER | ||||
| 88915-50010 |
UCF1# |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-50010 |
UCF1# |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-50011 |
UCF1# ﾅｼ(F ﾊﾟﾂｹ-ｼﾞ) |
1 | ||
| 88926-50010 |
UCF1# ﾅｼ(F ﾊﾟﾂｹ-ｼﾞ) |
1 | ||
| 88926A - ODOR, CARTRIDGE | ||||
| 88926-30110 |
UCF1# |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-50010 |
UCF1# |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-22012 |
UCF1# |
1 | ||
| 88950 - AMPLIFIER ASSY, AIR PURIFIER | ||||
| 88950-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 58327-22000 | ||||
| 88569-50020 | ||||
| 88569-50040 | ||||
| 88569-50050 | ||||
| 88718-24020 | ||||
| 90044-64009 | ||||
| 90099-00189 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-04389 | ||||
| 90099-04586 | ||||
| 90099-05164 | ||||
| 90179-06162 | ||||
| 90467-09087 | ||||
| 90467-09101 | ||||
| 93219-14008 | ||||
