UCF10-AEPNK (1989)
Toyota Celsior
Production
Nov 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8911- )
Click highlighted areas on diagram
O RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14067 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||
(8911- )

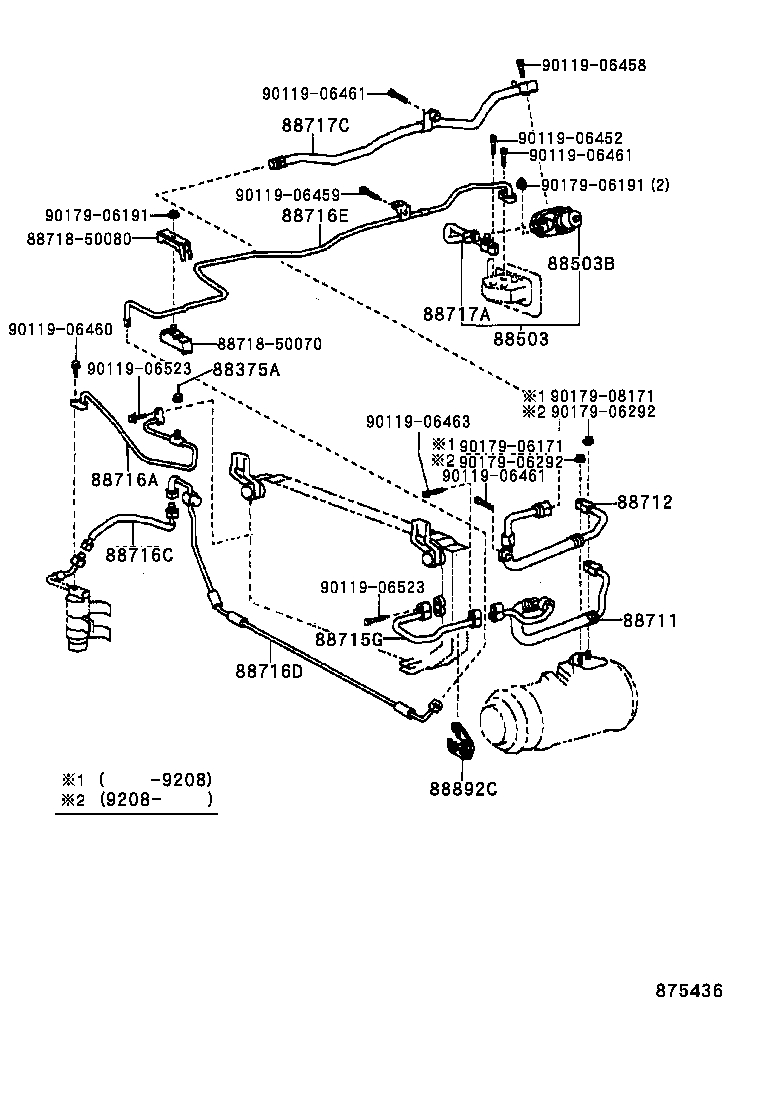

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
UCF1# |
1 | ||
| 88375-30280 |
UCF1# |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-50031 |
UCF1# |
1 | ||
| 88503-50030 |
UCF1# |
1 | ||
| 88503-50130 |
UCF1# |
1 | ||
| 88503B - REGULATOR SUB-ASSY, PRESSURE | ||||
| 88503-50150 |
UCF1# |
1 | ||
| 88503-50051 |
UCF1# |
1 | ||
| 88503-50050 |
UCF1# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-50010 |
UCF1# |
1 | ||
| 88711-50020 |
UCF1# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-50050 |
UCF1# |
1 | ||
| 88712-50070 |
UCF1# |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-50020 |
UCF1# |
1 | ||
| 88715-50010 |
UCF1# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-50160 |
UCF1# |
1 | ||
| 88716-50010 |
UCF1# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-50110 |
UCF1# |
1 | ||
| 88716-50170 |
UCF1# |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-50180 |
UCF1# |
1 | ||
| 88716-50090 |
UCF1# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-50060 |
UCF1# |
1 | ||
| 88716-50200 |
UCF1# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-50040 |
UCF1# |
1 | ||
| 88717-50130 |
UCF1# |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-50150 |
UCF1# |
1 | ||
| 88717-50070 |
UCF1# |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-50040 |
UCF1# |
1 | ||
| 88892-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 88718-50070 | ||||
| 88718-50080 | ||||
| 90119-06452 | ||||
| 90119-06458 | ||||
| 90119-06459 | ||||
| 90119-06460 | ||||
| 90119-06461 | ||||
| 90119-06463 | ||||
| 90119-06523 | ||||
| 90179-06171 | ||||
| 90179-06191 | ||||
| 90179-06292 | ||||
| 90179-08171 | ||||
(8911- )

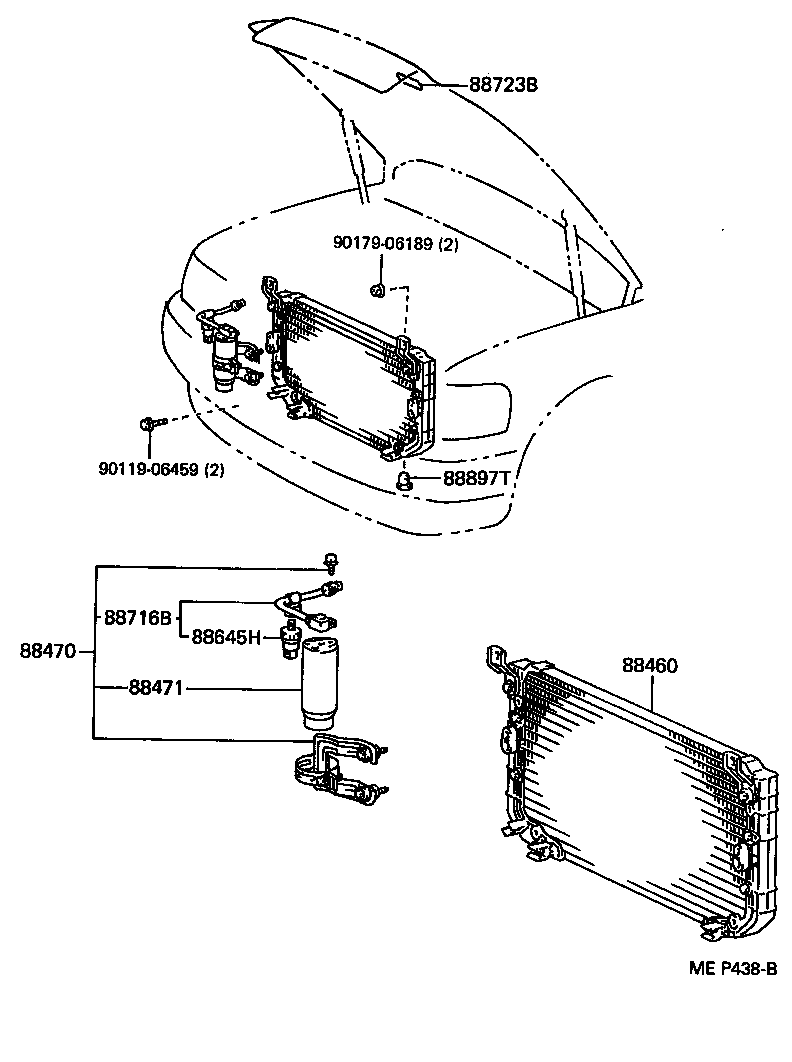

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-50050 |
UCF1# |
1 | ||
| 88460-50080 |
UCF1# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-50050 |
UCF1# |
1 | ||
| 88470-50010 |
UCF1# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
UCF1# |
1 | ||
| 88471-50010 |
UCF1# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
UCF1# |
1 | ||
| 88645-50010 |
UCF1# |
1 | ||
| 88645-20040 |
UCF1# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-50030 |
UCF1# |
1 | ||
| 88710-50170 |
UCF1# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-50060 |
UCF1# |
1 | ||
| 88723-20030 |
UCF1# |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-50010 |
UCF1# |
2 | ||
| Common parts | ||||
| 90119-06459 | ||||
| 90179-06189 | ||||
