UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

Click highlighted areas on diagram

diagram 87173C 87240 87245A 87245E 87246E 9017906191 9046024002 9046722008 9046722008 9046722008 9046722008 9046724002
Part # Description Qty Price
87173C - PROTECTOR, HEATER
87173-50010

UCF1#

 1
87240 - VALVE ASSY, HEATER WATER
87240-50020

UCF1#

 1
87240-50030

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-50040

UCF1#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-50030

UCF1#

 1
87245-50060

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-50050

UCF1#

 1
Common parts
90179-06191
90460-24002
90467-22008
90467-24002

(8911- )

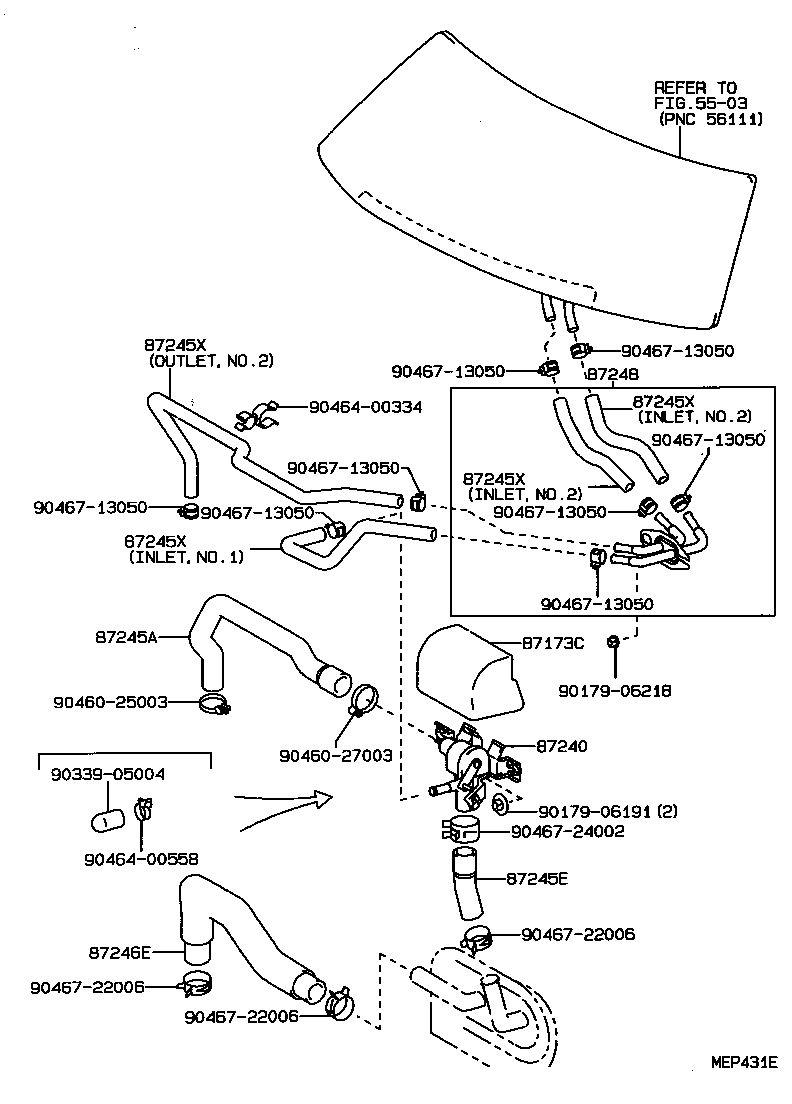

Click highlighted areas on diagram

W(PANEL HEATER)

diagram 5503 87173C 87240 87245A 87245E 87245X 87245X 87245X 87245X 87246E 87248 9017906191 9017906218 9033905004 9046025003 9046027003 9046400334 9046400558 9046713050 9046713050 9046713050 9046713050 9046713050 9046713050 9046713050 9046713050 9046722006 9046722006 9046722006 9046724002
Part # Description Qty Price
87173C - PROTECTOR, HEATER
87173-50010

UCF1#

 1
87240 - VALVE ASSY, HEATER WATER
87240-50020

UCF1#

 1
87240-50030

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-50040

UCF1#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-50030

UCF1#

 1
87245-50060

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245X - HOSE, HEATER WATER
87245-50070

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),OUTLET,NO.2

 1
87245-50080

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.1

 1
87245-50080

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.1

 1
87245-50070

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),OUTLET,NO.2

 1
99556-10160

UCF1#

*H,L=160,ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.2

 2
99556-10160

UCF1#

*H,L=160,ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.2

 2
87245X - HOSE, HEATER WATER
87245-50070

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),OUTLET,NO.2

 1
87245-50080

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.1

 1
87245-50080

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.1

 1
87245-50070

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),OUTLET,NO.2

 1
99556-10160

UCF1#

*H,L=160,ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.2

 2
99556-10160

UCF1#

*H,L=160,ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.2

 2
87245X - HOSE, HEATER WATER
87245-50070

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),OUTLET,NO.2

 1
87245-50080

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.1

 1
87245-50080

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.1

 1
87245-50070

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),OUTLET,NO.2

 1
99556-10160

UCF1#

*H,L=160,ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.2

 2
99556-10160

UCF1#

*H,L=160,ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.2

 2
87245X - HOSE, HEATER WATER
87245-50070

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),OUTLET,NO.2

 1
87245-50080

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.1

 1
87245-50080

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.1

 1
87245-50070

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),OUTLET,NO.2

 1
99556-10160

UCF1#

*H,L=160,ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.2

 2
99556-10160

UCF1#

*H,L=160,ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ),INLET,NO.2

 2
87246E - HOSE, HEATER WATER, OUTLET E
87245-50050

UCF1#

 1
87248 - PIPE SUB-ASSY, WATER
87248-50020

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87248-50020

UCF1#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
Common parts
90179-06191
90179-06218
90339-05004
90460-25003
90460-27003
90464-00334
90464-00558
90467-13050
90467-22006
90467-24002
Linked diagrams
5503
