UCF10-AEPNK (1989)
Toyota Celsior
(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

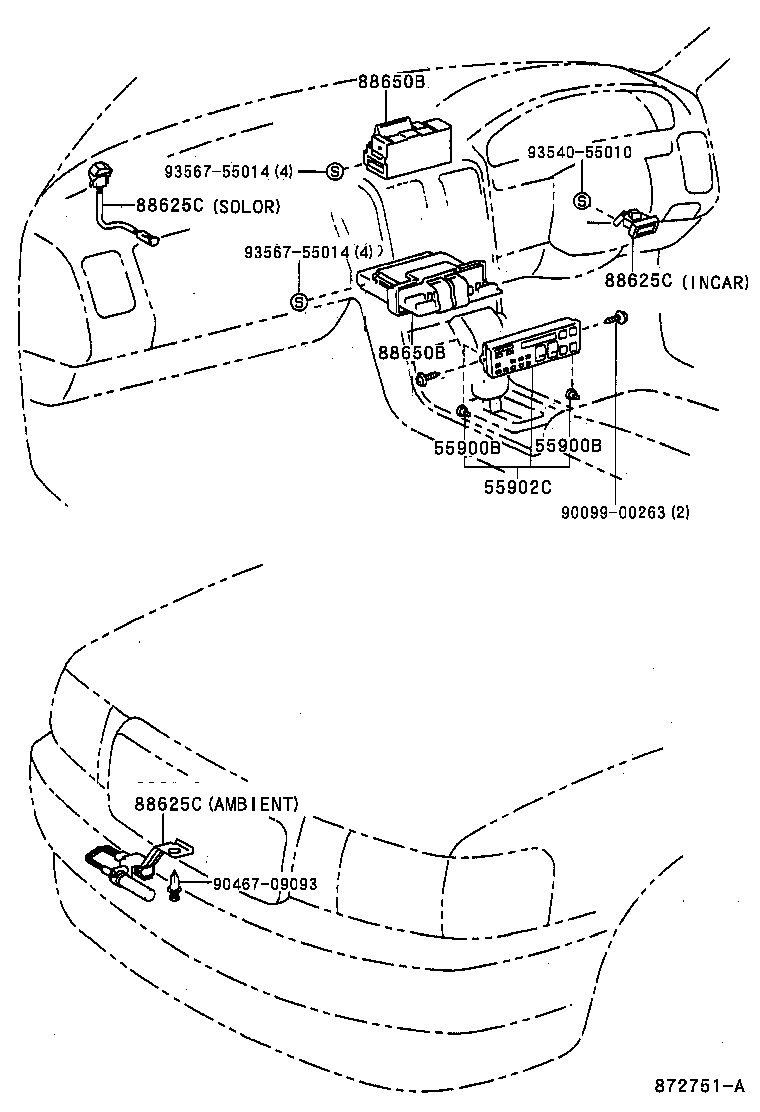

| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 83119-24490 |
UCF1# 14V 1.12W,SOCKET(GRAY) |
3 | ||
| 83119-24510 |
UCF1# 14V 0.91W,F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83119-24530 |
UCF1# 14V 1.12W,14V 1.12W,SOCKET(BLACK) |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 83119-24490 |
UCF1# 14V 1.12W,SOCKET(GRAY) |
3 | ||
| 83119-24510 |
UCF1# 14V 0.91W,F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83119-24530 |
UCF1# 14V 1.12W,14V 1.12W,SOCKET(BLACK) |
2 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-50100 |
UCF1# |
1 | ||
| 55902-50150 |
UCF1# |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-50060 |
UCF1# SOLOR SENSOR |
1 | ||
| 88625-50090 |
UCF1# AMBIENT SENSOR |
1 | ||
| 88625-50010 |
UCF1# AMBIENT SENSOR |
1 | ||
| 88625-50050 |
UCF1# INCAR SENSOR |
1 | ||
| 88625-50040 |
UCF1# SOLOR SENSOR |
1 | ||
| 88625-50080 |
UCF1# INCAR SENSOR |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-50060 |
UCF1# SOLOR SENSOR |
1 | ||
| 88625-50090 |
UCF1# AMBIENT SENSOR |
1 | ||
| 88625-50010 |
UCF1# AMBIENT SENSOR |
1 | ||
| 88625-50050 |
UCF1# INCAR SENSOR |
1 | ||
| 88625-50040 |
UCF1# SOLOR SENSOR |
1 | ||
| 88625-50080 |
UCF1# INCAR SENSOR |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-50060 |
UCF1# SOLOR SENSOR |
1 | ||
| 88625-50090 |
UCF1# AMBIENT SENSOR |
1 | ||
| 88625-50010 |
UCF1# AMBIENT SENSOR |
1 | ||
| 88625-50050 |
UCF1# INCAR SENSOR |
1 | ||
| 88625-50040 |
UCF1# SOLOR SENSOR |
1 | ||
| 88625-50080 |
UCF1# INCAR SENSOR |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-50200 |
UCF1# |
1 | ||
| 88650-50280 |
UCF1# |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-50200 |
UCF1# |
1 | ||
| 88650-50280 |
UCF1# |
1 | ||
| Common parts | ||||
| 90099-00263 | ||||
| 90467-09093 | ||||
| 93540-55010 | ||||
| 93567-55014 | ||||
(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

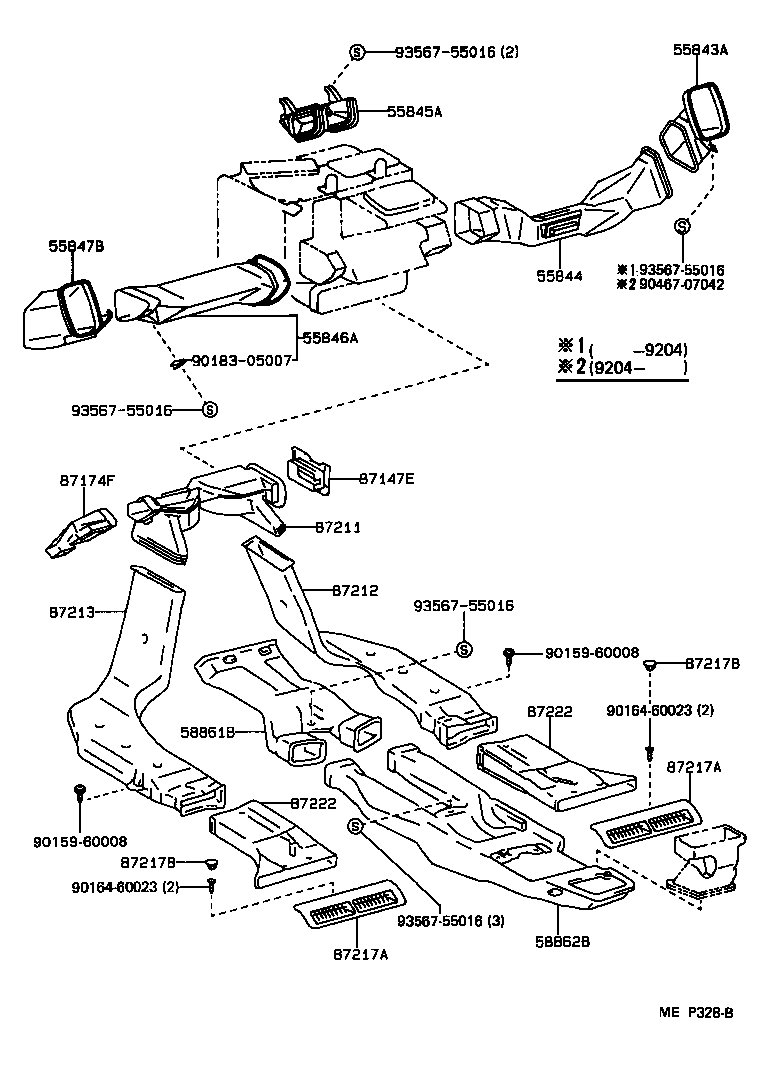

| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-50020 |
UCF1# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-50021 |
UCF1# |
1 | ||
| 55844-50020 |
UCF1# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-50010 |
UCF1# |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-50020 |
UCF1# |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-50020 |
UCF1# |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-50010 |
UCF1# |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-50010 |
UCF1# |
1 | ||
| 87147E - GUIDE, AIR HEATER | ||||
| 87174-5003003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 87174-50030A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 87174-50030B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 87174-5003006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 87174-50030J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 87174-5003008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 87174-5003004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 87174-50030K0 |
UCF1#..B,C ME.TAUPE,TRIM9# |
1 | ||
| 87174F - GUIDE, AIR HEATER | ||||
| 87174-50040 |
UCF1# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-50020 |
UCF1# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-50010 |
UCF1# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-50010 |
UCF1# |
1 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-5002005 |
UCF1#..B,C ROSE,TRIM4# |
2 | ||
| 87217-5002008 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 87217-5002003 |
UCF1# GRAY,TRIM1# |
2 | ||
| 87217-50030J1 |
UCF1# EISEN BLUE,TRIM8# |
2 | ||
| 87217-5003003 |
UCF1# GRAY,TRIM1# |
2 | ||
| 87217-50030A1 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 87217-50030K0 |
UCF1#..B,C ME.TAUPE,TRIM9# |
2 | ||
| 87217-5003004 |
UCF1# BLUE,TRIM8# |
2 | ||
| 87217-5002004 |
UCF1# BLUE,TRIM8# |
2 | ||
| 87217-5003005 |
UCF1#..B,C ROSE,TRIM4# |
2 | ||
| 87217-5003008 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 87217-50030B1 |
UCF1# SLATE GRAY,TRIM1# |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-5002005 |
UCF1#..B,C ROSE,TRIM4# |
2 | ||
| 87217-5002008 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 87217-5002003 |
UCF1# GRAY,TRIM1# |
2 | ||
| 87217-50030J1 |
UCF1# EISEN BLUE,TRIM8# |
2 | ||
| 87217-5003003 |
UCF1# GRAY,TRIM1# |
2 | ||
| 87217-50030A1 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 87217-50030K0 |
UCF1#..B,C ME.TAUPE,TRIM9# |
2 | ||
| 87217-5003004 |
UCF1# BLUE,TRIM8# |
2 | ||
| 87217-5002004 |
UCF1# BLUE,TRIM8# |
2 | ||
| 87217-5003005 |
UCF1#..B,C ROSE,TRIM4# |
2 | ||
| 87217-5003008 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 87217-50030B1 |
UCF1# SLATE GRAY,TRIM1# |
2 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A1 |
UCF1#..B,C IVORY,TRIM0# |
4 | ||
| 90950-0169303 |
UCF1# GRAY,TRIM1# |
4 | ||
| 90950-0169305 |
UCF1#..B,C ROSE,TRIM4# |
4 | ||
| 90950-0169304 |
UCF1# BLUE,TRIM8# |
4 | ||
| 90950-0169308 |
UCF1#..B,C IVORY,TRIM0# |
4 | ||
| 90950-01693J1 |
UCF1# EISEN BLUE,TRIM8# |
4 | ||
| 90950-01693B1 |
UCF1# SLATE GRAY,TRIM1# |
4 | ||
| 90950-01693K0 |
UCF1#..B,C ME.TAUPE,TRIM9# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A1 |
UCF1#..B,C IVORY,TRIM0# |
4 | ||
| 90950-0169303 |
UCF1# GRAY,TRIM1# |
4 | ||
| 90950-0169305 |
UCF1#..B,C ROSE,TRIM4# |
4 | ||
| 90950-0169304 |
UCF1# BLUE,TRIM8# |
4 | ||
| 90950-0169308 |
UCF1#..B,C IVORY,TRIM0# |
4 | ||
| 90950-01693J1 |
UCF1# EISEN BLUE,TRIM8# |
4 | ||
| 90950-01693B1 |
UCF1# SLATE GRAY,TRIM1# |
4 | ||
| 90950-01693K0 |
UCF1#..B,C ME.TAUPE,TRIM9# |
4 | ||
| 87222 - GUIDE, AIR DUCT, REAR | ||||
| 87215-50010 |
UCF1# |
2 | ||
| 87215-50010 |
UCF1# ﾅｼ(PTC ﾋ-ﾀ) |
2 | ||
| 87222 - GUIDE, AIR DUCT, REAR | ||||
| 87215-50010 |
UCF1# |
2 | ||
| 87215-50010 |
UCF1# ﾅｼ(PTC ﾋ-ﾀ) |
2 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90164-60023 | ||||
| 90183-05007 | ||||
| 90467-07042 | ||||
| 93567-55016 | ||||
