UCF10-AEPNK (1989)
Toyota Celsior
Production
Nov 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

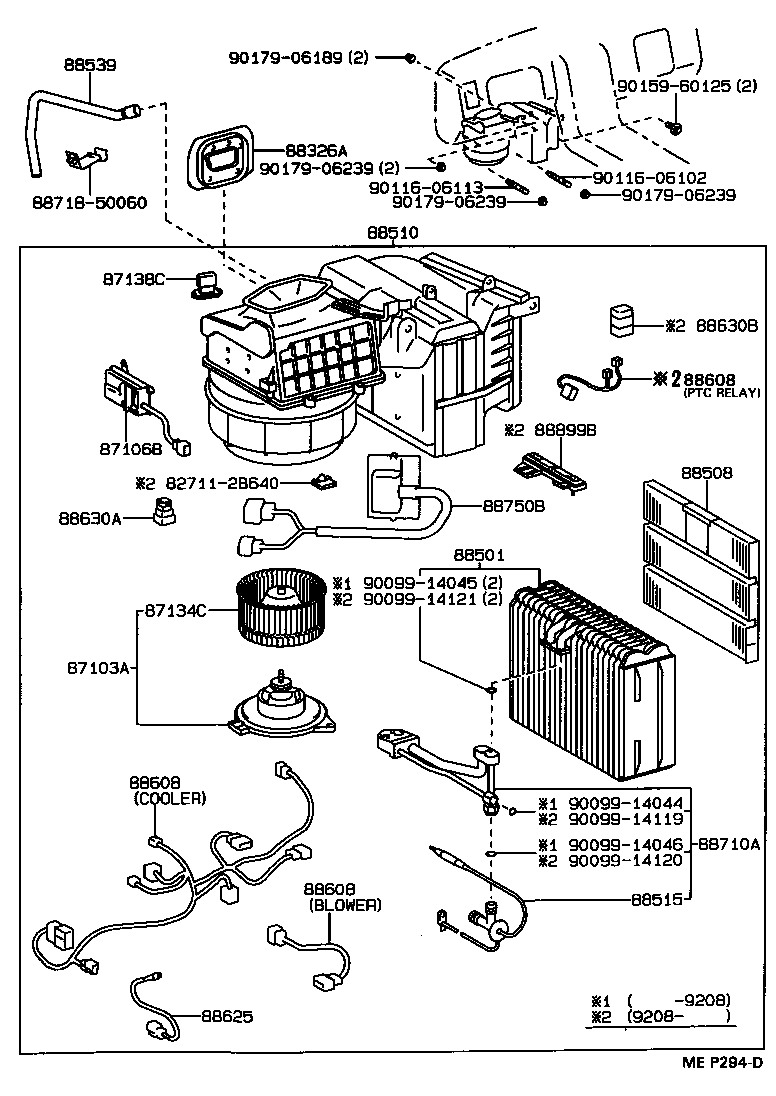

ILLUST NO. 1 OF 2(8911- )
Click highlighted areas on diagram
FRONT COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-50020 |
UCF1# |
1 | ||
| 87103-50010 |
UCF1# |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-50080 |
UCF1# |
1 | ||
| 87134C - FAN, BLOWER(FOR COOLING UNIT) | ||||
| 87134-30040 |
UCF1# |
1 | ||
| 87134-30050 |
UCF1# |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-50010 |
UCF1# |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-50020 |
UCF1# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-50020 |
UCF1# |
1 | ||
| 88501-50021 |
UCF1# |
1 | ||
| 88501-50050 |
UCF1# |
1 | ||
| 88501-50022 |
UCF1# |
1 | ||
| 88501-50100 |
UCF1# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-50010 |
UCF1# |
1 | ||
| 88508-50030 |
UCF1# |
2 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-50060 |
UCF1# |
1 | ||
| 88510-50090 |
UCF1# |
1 | ||
| 88510-50061 |
UCF1# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50010 |
UCF1# |
1 | ||
| 88515-50031 |
UCF1# |
1 | ||
| 88515-50011 |
UCF1# |
1 | ||
| 88515-50030 |
UCF1# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-50020 |
UCF1# |
1 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-50100 |
UCF1# PTC RELAY |
1 | ||
| 88608-50060 |
UCF1# ｸｰﾗｰ |
1 | ||
| 88608-50020 |
UCF1# ﾌﾞﾛﾜ |
1 | ||
| 88608-50090 |
UCF1# ｸｰﾗｰ |
1 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-50100 |
UCF1# PTC RELAY |
1 | ||
| 88608-50060 |
UCF1# ｸｰﾗｰ |
1 | ||
| 88608-50020 |
UCF1# ﾌﾞﾛﾜ |
1 | ||
| 88608-50090 |
UCF1# ｸｰﾗｰ |
1 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-50100 |
UCF1# PTC RELAY |
1 | ||
| 88608-50060 |
UCF1# ｸｰﾗｰ |
1 | ||
| 88608-50020 |
UCF1# ﾌﾞﾛﾜ |
1 | ||
| 88608-50090 |
UCF1# ｸｰﾗｰ |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-32040 |
UCF1# |
1 | ||
| 88625-50100 |
UCF1# |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-50010 |
UCF1# |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-50020 |
UCF1# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50250 |
UCF1# |
1 | ||
| 88710-50160 |
UCF1# |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-50020 |
UCF1# |
1 | ||
| 88750-50010 |
UCF1# |
1 | ||
| 88750-50040 |
UCF1# |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88891-50020 |
UCF1# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88718-50060 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90116-06102 | ||||
| 90116-06113 | ||||
| 90159-60125 | ||||
| 90179-06189 | ||||
| 90179-06239 | ||||
