UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911-9208)

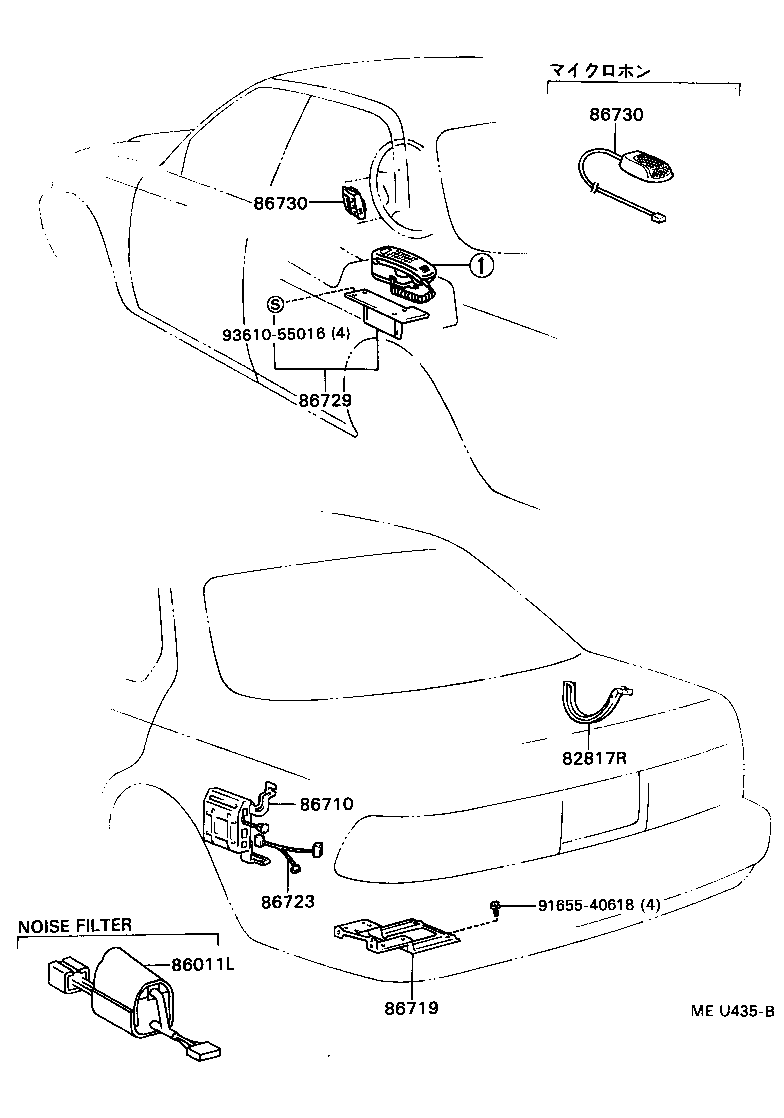

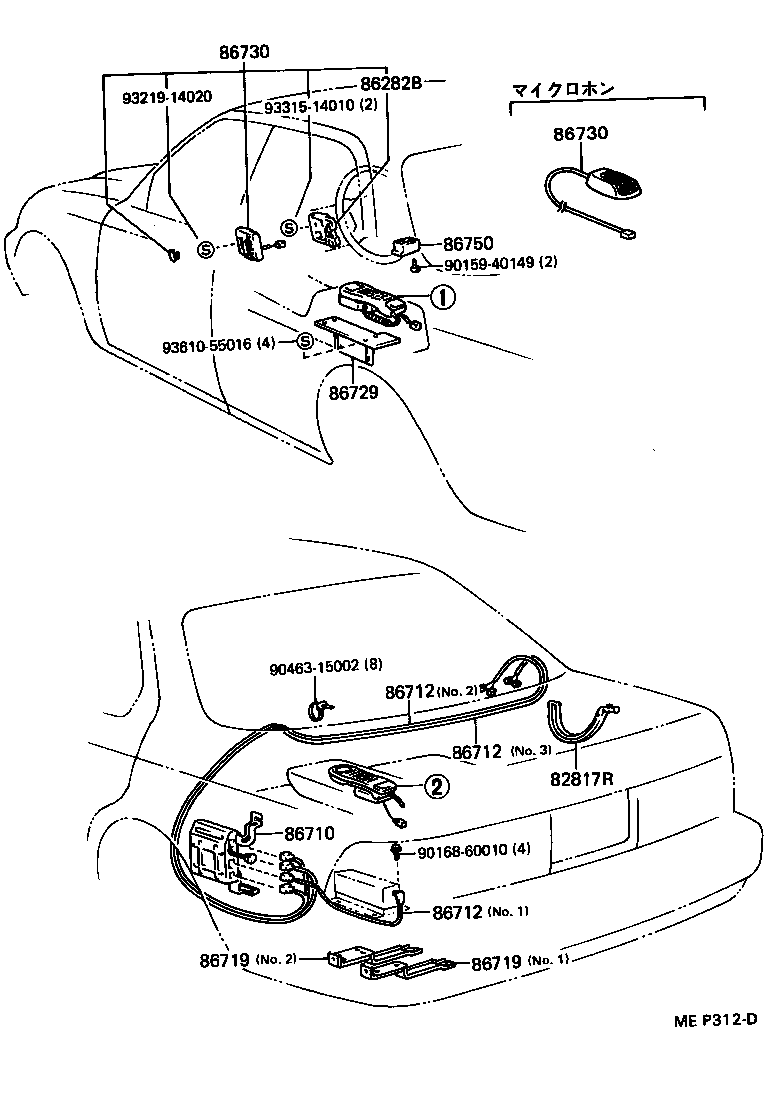

Click highlighted areas on diagram

diagram 82817R 86282B 86710 86712 86712 86712 86719 86719 86729 86730 86730 86750 9015940149 9016860010 9046315002 9321914020 9331514010 9361055016
Part # Description Qty Price
82817R - PROTECTOR, WIRING HARNESS, NO.16
82817-50520

UCF1#

 1
86282B - BRACKET, MICROPHONE
86282-50010

UCF1#

 1
86710 - COMPUTER ASSY, TELEPHONE
86710-50040

UCF1#

ｱﾘ(ｵﾝｾｲﾆﾝｼｷ)

 1
86710-50030

UCF1#

 1
86710-50010

UCF1#

ｱﾘ(ｵﾝｾｲﾆﾝｼｷ)

 1
86710-50020

UCF1#

 1
86712 - WIRE, TELEPHONE
86712-22021

UCF1#

NO.1

 1
86712-50030

UCF1#

NO.3

 1
86712-50050

UCF1#

NO.3

 1
86712-50020

UCF1#

NO.2

 1
86712-30050

UCF1#

NO.1

 1
86712-50040

UCF1#

 1
86712-50040

UCF1#

NO.4

 1
86712 - WIRE, TELEPHONE
86712-22021

UCF1#

NO.1

 1
86712-50030

UCF1#

NO.3

 1
86712-50050

UCF1#

NO.3

 1
86712-50020

UCF1#

NO.2

 1
86712-30050

UCF1#

NO.1

 1
86712-50040

UCF1#

 1
86712-50040

UCF1#

NO.4

 1
86712 - WIRE, TELEPHONE
86712-22021

UCF1#

NO.1

 1
86712-50030

UCF1#

NO.3

 1
86712-50050

UCF1#

NO.3

 1
86712-50020

UCF1#

NO.2

 1
86712-30050

UCF1#

NO.1

 1
86712-50040

UCF1#

 1
86712-50040

UCF1#

NO.4

 1
86719 - BRACKET, TELEPHONE
86719-50060

UCF1#

 1
86719-50050

UCF1#

NO.2

 1
86719-50040

UCF1#

NO.1

 1
86719 - BRACKET, TELEPHONE
86719-50060

UCF1#

 1
86719-50050

UCF1#

NO.2

 1
86719-50040

UCF1#

NO.1

 1
86729 - BRACKET, MOBILEPHONE
86729-50020

UCF1#

 1
86729-50060

UCF1#

 1
86730 - MICROPHONE ASSY, TELEPHONE
86730-30080

UCF1#

 1
86730-50020

UCF1#

 1
86730-50020

UCF1#

ｱﾘ(ﾊﾝﾄﾞﾌﾘ- ﾃﾞﾝﾜ)

 1
86730-30080

UCF1#

 1
86730-50030

UCF1#

ｱﾘ(ﾊﾝﾄﾞﾌﾘ- ﾃﾞﾝﾜ)

 1
86730 - MICROPHONE ASSY, TELEPHONE
86730-30080

UCF1#

 1
86730-50020

UCF1#

 1
86730-50020

UCF1#

ｱﾘ(ﾊﾝﾄﾞﾌﾘ- ﾃﾞﾝﾜ)

 1
86730-30080

UCF1#

 1
86730-50030

UCF1#

ｱﾘ(ﾊﾝﾄﾞﾌﾘ- ﾃﾞﾝﾜ)

 1
86750 - SWITCH ASSY, TELEPHONE
86750-50030

UCF1#

ｱﾘ(ｵﾝｾｲﾆﾝｼｷ)

 1
86750-50010

UCF1#

ｱﾘ(ｵﾝｾｲﾆﾝｼｷ)

 1
86750-50020

UCF1#

 1
86750-50040

UCF1#

 1
Common parts
90159-40149
90168-60010
90463-15002
93219-14020
93315-14010
93610-55016

(8911-9208)

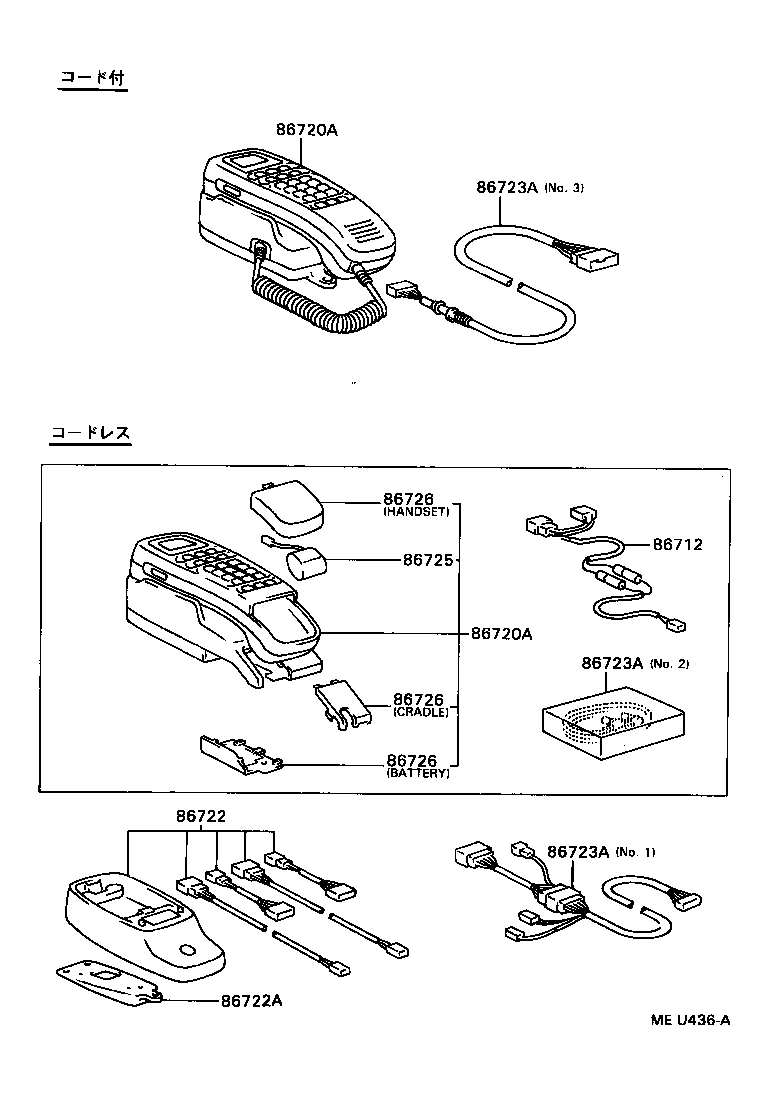

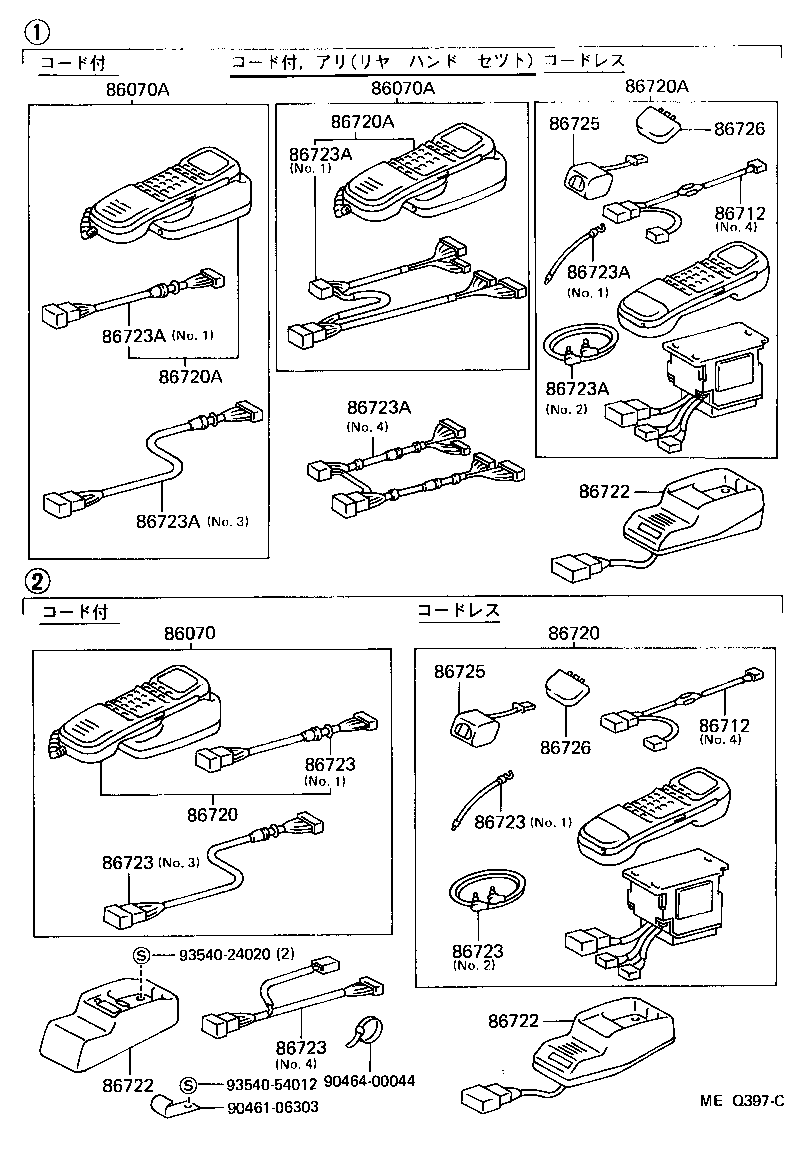

Click highlighted areas on diagram

diagram 86070 86070A 86070A 86712 86712 86720 86720 86720A 86720A 86720A 86722 86722 86722 86723 86723 86723 86723 86723 86723A 86723A 86723A 86723A 86723A 86723A 86725 86725 86726 86726 9046106303 9046400044 9354024020 9354054012
Part # Description Qty Price
86070 - MOBILEPHONE & ACCESSORY ASSY
86070-30160

UCF1#

 1
86070-30030

UCF1#

 1
86070A - MOBILEPHONE & ACCESSORY ASSY (HANDSET)
86070-30030

UCF1#

 1
86070-30160

UCF1#

 1
86070-30170

UCF1#

ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86070-30020

UCF1#

ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86070A - MOBILEPHONE & ACCESSORY ASSY (HANDSET)
86070-30030

UCF1#

 1
86070-30160

UCF1#

 1
86070-30170

UCF1#

ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86070-30020

UCF1#

ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86712 - WIRE, TELEPHONE
86712-22021

UCF1#

NO.1

 1
86712-50030

UCF1#

NO.3

 1
86712-50050

UCF1#

NO.3

 1
86712-50020

UCF1#

NO.2

 1
86712-30050

UCF1#

NO.1

 1
86712-50040

UCF1#

 1
86712-50040

UCF1#

NO.4

 1
86712 - WIRE, TELEPHONE
86712-22021

UCF1#

NO.1

 1
86712-50030

UCF1#

NO.3

 1
86712-50050

UCF1#

NO.3

 1
86712-50020

UCF1#

NO.2

 1
86712-30050

UCF1#

NO.1

 1
86712-50040

UCF1#

 1
86712-50040

UCF1#

NO.4

 1
86720 - MOBILEPHONE ASSY
86720-50020

UCF1#

 1
86720-30051

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720 - MOBILEPHONE ASSY
86720-50020

UCF1#

 1
86720-30051

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720A - MOBILEPHONE ASSY
86720-30051

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ,MATSUSHITA

 1
86720-50020

UCF1#

 1
86720-40020

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30060

UCF1#

NIPPONDENSO

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ,TEN

 1
86720A - MOBILEPHONE ASSY
86720-30051

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ,MATSUSHITA

 1
86720-50020

UCF1#

 1
86720-40020

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30060

UCF1#

NIPPONDENSO

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ,TEN

 1
86720A - MOBILEPHONE ASSY
86720-30051

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ,MATSUSHITA

 1
86720-50020

UCF1#

 1
86720-40020

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30060

UCF1#

NIPPONDENSO

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ,TEN

 1
86722 - CRADLE, MOBILEPHONE
86722-50020

UCF1#

ﾅｼ(ﾜｲﾔﾚｽ),REAR

 1
86722-50040

UCF1#

ｱﾘ(ﾜｲﾔﾚｽ),REAR

 1
86722-50030

UCF1#

ｱﾘ(ﾜｲﾔﾚｽ),FRONT

 1
86722-30010

UCF1#

 1
86722 - CRADLE, MOBILEPHONE
86722-50020

UCF1#

ﾅｼ(ﾜｲﾔﾚｽ),REAR

 1
86722-50040

UCF1#

ｱﾘ(ﾜｲﾔﾚｽ),REAR

 1
86722-50030

UCF1#

ｱﾘ(ﾜｲﾔﾚｽ),FRONT

 1
86722-30010

UCF1#

 1
86722 - CRADLE, MOBILEPHONE
86722-50020

UCF1#

ﾅｼ(ﾜｲﾔﾚｽ),REAR

 1
86722-50040

UCF1#

ｱﾘ(ﾜｲﾔﾚｽ),REAR

 1
86722-50030

UCF1#

ｱﾘ(ﾜｲﾔﾚｽ),FRONT

 1
86722-30010

UCF1#

 1
86723 - WIRE, MOBILEPHONE
86723-50020

UCF1#

NO.1

 1
86723-50010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.4

 1
86723-50020

UCF1#

NO.1

 2
86723-50030

UCF1#

NO.2

 1
86723-50070

UCF1#

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723 - WIRE, MOBILEPHONE
86723-50020

UCF1#

NO.1

 1
86723-50010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.4

 1
86723-50020

UCF1#

NO.1

 2
86723-50030

UCF1#

NO.2

 1
86723-50070

UCF1#

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723 - WIRE, MOBILEPHONE
86723-50020

UCF1#

NO.1

 1
86723-50010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.4

 1
86723-50020

UCF1#

NO.1

 2
86723-50030

UCF1#

NO.2

 1
86723-50070

UCF1#

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723 - WIRE, MOBILEPHONE
86723-50020

UCF1#

NO.1

 1
86723-50010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.4

 1
86723-50020

UCF1#

NO.1

 2
86723-50030

UCF1#

NO.2

 1
86723-50070

UCF1#

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723 - WIRE, MOBILEPHONE
86723-50020

UCF1#

NO.1

 1
86723-50010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.4

 1
86723-50020

UCF1#

NO.1

 2
86723-50030

UCF1#

NO.2

 1
86723-50070

UCF1#

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723A - WIRE, MOBILEPHONE
86723-50030

UCF1#

NO.2

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-50040

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.4

 1
86723-30060

UCF1#

NO.1

 1
86723-50030

UCF1#

NO.2

 1
86723-50020

UCF1#

NO.1

 1
86723-50020

UCF1#

NO.1

 2
86723-40030

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30090

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,TEN

 1
86723-40010

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30080

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,MATSUSHITA

 1
86723A - WIRE, MOBILEPHONE
86723-50030

UCF1#

NO.2

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-50040

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.4

 1
86723-30060

UCF1#

NO.1

 1
86723-50030

UCF1#

NO.2

 1
86723-50020

UCF1#

NO.1

 1
86723-50020

UCF1#

NO.1

 2
86723-40030

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30090

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,TEN

 1
86723-40010

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30080

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,MATSUSHITA

 1
86723A - WIRE, MOBILEPHONE
86723-50030

UCF1#

NO.2

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-50040

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.4

 1
86723-30060

UCF1#

NO.1

 1
86723-50030

UCF1#

NO.2

 1
86723-50020

UCF1#

NO.1

 1
86723-50020

UCF1#

NO.1

 2
86723-40030

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30090

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,TEN

 1
86723-40010

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30080

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,MATSUSHITA

 1
86723A - WIRE, MOBILEPHONE
86723-50030

UCF1#

NO.2

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-50040

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.4

 1
86723-30060

UCF1#

NO.1

 1
86723-50030

UCF1#

NO.2

 1
86723-50020

UCF1#

NO.1

 1
86723-50020

UCF1#

NO.1

 2
86723-40030

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30090

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,TEN

 1
86723-40010

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30080

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,MATSUSHITA

 1
86723A - WIRE, MOBILEPHONE
86723-50030

UCF1#

NO.2

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-50040

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.4

 1
86723-30060

UCF1#

NO.1

 1
86723-50030

UCF1#

NO.2

 1
86723-50020

UCF1#

NO.1

 1
86723-50020

UCF1#

NO.1

 2
86723-40030

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30090

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,TEN

 1
86723-40010

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30080

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,MATSUSHITA

 1
86723A - WIRE, MOBILEPHONE
86723-50030

UCF1#

NO.2

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-50040

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.4

 1
86723-30060

UCF1#

NO.1

 1
86723-50030

UCF1#

NO.2

 1
86723-50020

UCF1#

NO.1

 1
86723-50020

UCF1#

NO.1

 2
86723-40030

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30090

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,TEN

 1
86723-40010

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30080

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,MATSUSHITA

 1
86725 - BATTERY, MOBILEPHONE
86725-50010

UCF1#

 1
86725 - BATTERY, MOBILEPHONE
86725-50010

UCF1#

 1
86726 - COVER, MOBILEPHONE
86726-30020

UCF1#

BATTRY

 1
86726-30030

UCF1#

CRADLE

 1
86726-30010

UCF1#

HANDSET

 1
86726-50010

UCF1#

 1
86726 - COVER, MOBILEPHONE
86726-30020

UCF1#

BATTRY

 1
86726-30030

UCF1#

CRADLE

 1
86726-30010

UCF1#

HANDSET

 1
86726-50010

UCF1#

 1
Common parts
90461-06303
90464-00044
93540-24020
93540-54012

(9208- )

Click highlighted areas on diagram

diagram 82817R 86011L 86710 86719 86723 86729 86730 86730 9165540618 9361055016
Part # Description Qty Price
82817R - PROTECTOR, WIRING HARNESS, NO.16
82817-50520

UCF1#

 1
86011L - FILTER, NOISE
90980-05203

UCF1#

 1
90980-05280

UCF1#

 1
86710 - COMPUTER ASSY, TELEPHONE
86710-50040

UCF1#

ｱﾘ(ｵﾝｾｲﾆﾝｼｷ)

 1
86710-50030

UCF1#

 1
86710-50010

UCF1#

ｱﾘ(ｵﾝｾｲﾆﾝｼｷ)

 1
86710-50020

UCF1#

 1
86719 - BRACKET, TELEPHONE
86719-50060

UCF1#

 1
86719-50050

UCF1#

NO.2

 1
86719-50040

UCF1#

NO.1

 1
86723 - WIRE, MOBILEPHONE
86723-50020

UCF1#

NO.1

 1
86723-50010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.4

 1
86723-50020

UCF1#

NO.1

 2
86723-50030

UCF1#

NO.2

 1
86723-50070

UCF1#

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86729 - BRACKET, MOBILEPHONE
86729-50020

UCF1#

 1
86729-50060

UCF1#

 1
86730 - MICROPHONE ASSY, TELEPHONE
86730-30080

UCF1#

 1
86730-50020

UCF1#

 1
86730-50020

UCF1#

ｱﾘ(ﾊﾝﾄﾞﾌﾘ- ﾃﾞﾝﾜ)

 1
86730-30080

UCF1#

 1
86730-50030

UCF1#

ｱﾘ(ﾊﾝﾄﾞﾌﾘ- ﾃﾞﾝﾜ)

 1
86730 - MICROPHONE ASSY, TELEPHONE
86730-30080

UCF1#

 1
86730-50020

UCF1#

 1
86730-50020

UCF1#

ｱﾘ(ﾊﾝﾄﾞﾌﾘ- ﾃﾞﾝﾜ)

 1
86730-30080

UCF1#

 1
86730-50030

UCF1#

ｱﾘ(ﾊﾝﾄﾞﾌﾘ- ﾃﾞﾝﾜ)

 1
Common parts
91655-40618
93610-55016

(9208- )

Click highlighted areas on diagram

diagram 86712 86720A 86720A 86722 86722A 86723A 86723A 86723A 86725 86726 86726 86726
Part # Description Qty Price
86712 - WIRE, TELEPHONE
86712-22021

UCF1#

NO.1

 1
86712-50030

UCF1#

NO.3

 1
86712-50050

UCF1#

NO.3

 1
86712-50020

UCF1#

NO.2

 1
86712-30050

UCF1#

NO.1

 1
86712-50040

UCF1#

 1
86712-50040

UCF1#

NO.4

 1
86720A - MOBILEPHONE ASSY
86720-30051

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ,MATSUSHITA

 1
86720-50020

UCF1#

 1
86720-40020

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30060

UCF1#

NIPPONDENSO

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ,TEN

 1
86720A - MOBILEPHONE ASSY
86720-30051

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ,MATSUSHITA

 1
86720-50020

UCF1#

 1
86720-40020

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30080

UCF1#

ｺ-ﾄﾞﾂｷ

 1
86720-30060

UCF1#

NIPPONDENSO

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ)

 1
86720-30090

UCF1#

ｺ-ﾄﾞﾂｷ,TEN

 1
86722 - CRADLE, MOBILEPHONE
86722-50020

UCF1#

ﾅｼ(ﾜｲﾔﾚｽ),REAR

 1
86722-50040

UCF1#

ｱﾘ(ﾜｲﾔﾚｽ),REAR

 1
86722-50030

UCF1#

ｱﾘ(ﾜｲﾔﾚｽ),FRONT

 1
86722-30010

UCF1#

 1
86722A - CRADLE, MOBILEPHONE
86722-50060

UCF1#

 1
86723A - WIRE, MOBILEPHONE
86723-50030

UCF1#

NO.2

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-50040

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.4

 1
86723-30060

UCF1#

NO.1

 1
86723-50030

UCF1#

NO.2

 1
86723-50020

UCF1#

NO.1

 1
86723-50020

UCF1#

NO.1

 2
86723-40030

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30090

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,TEN

 1
86723-40010

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30080

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,MATSUSHITA

 1
86723A - WIRE, MOBILEPHONE
86723-50030

UCF1#

NO.2

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-50040

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.4

 1
86723-30060

UCF1#

NO.1

 1
86723-50030

UCF1#

NO.2

 1
86723-50020

UCF1#

NO.1

 1
86723-50020

UCF1#

NO.1

 2
86723-40030

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30090

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,TEN

 1
86723-40010

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30080

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,MATSUSHITA

 1
86723A - WIRE, MOBILEPHONE
86723-50030

UCF1#

NO.2

 1
86723-30030

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3

 1
86723-30010

UCF1#

ｺ-ﾄﾞﾂｷ,NO.1

 1
86723-50040

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.4

 1
86723-30060

UCF1#

NO.1

 1
86723-50030

UCF1#

NO.2

 1
86723-50020

UCF1#

NO.1

 1
86723-50020

UCF1#

NO.1

 2
86723-40030

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30090

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,TEN

 1
86723-40010

UCF1#

ｺ-ﾄﾞﾂｷ, ｱﾘ(ﾘﾔ ﾊﾝﾄﾞ ｾﾂﾄ),NO.1

 1
86723-30080

UCF1#

ｺ-ﾄﾞﾂｷ,NO.3,MATSUSHITA

 1
86725 - BATTERY, MOBILEPHONE
86725-50010

UCF1#

 1
86726 - COVER, MOBILEPHONE
86726-30020

UCF1#

BATTRY

 1
86726-30030

UCF1#

CRADLE

 1
86726-30010

UCF1#

HANDSET

 1
86726-50010

UCF1#

 1
86726 - COVER, MOBILEPHONE
86726-30020

UCF1#

BATTRY

 1
86726-30030

UCF1#

CRADLE

 1
86726-30010

UCF1#

HANDSET

 1
86726-50010

UCF1#

 1
86726 - COVER, MOBILEPHONE
86726-30020

UCF1#

BATTRY

 1
86726-30030

UCF1#

CRADLE

 1
86726-30010

UCF1#

HANDSET

 1
86726-50010

UCF1#

 1
