UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

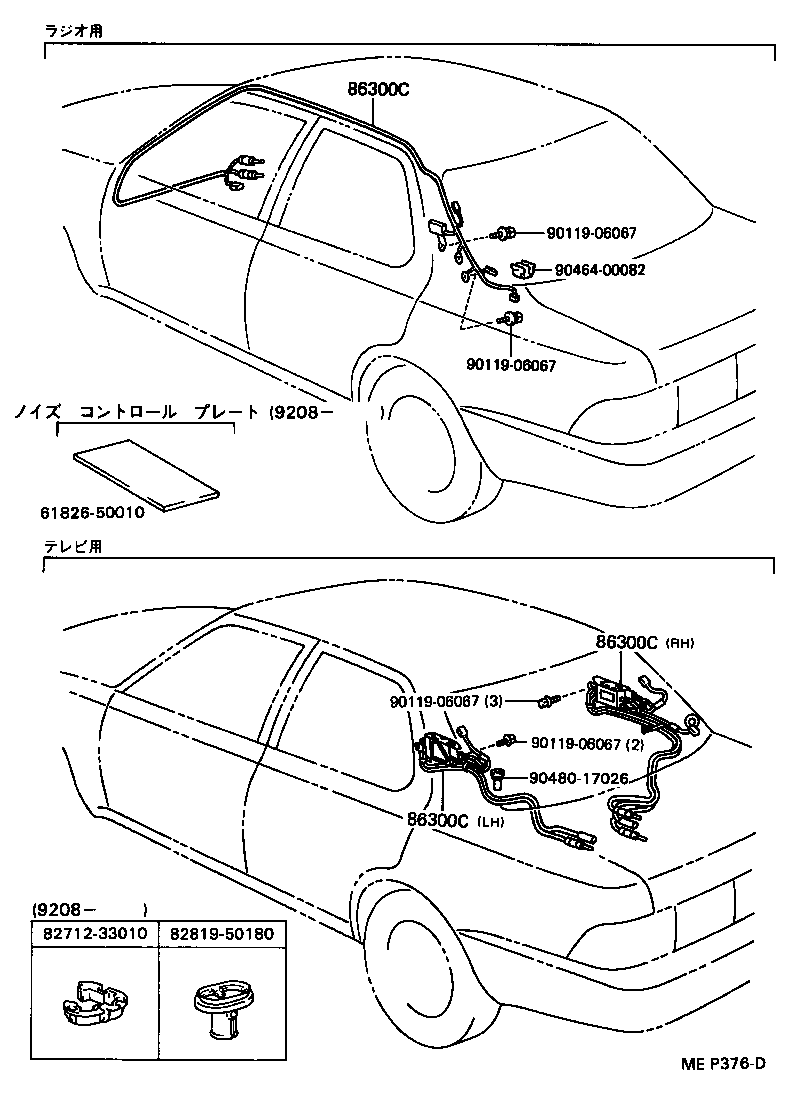

Click highlighted areas on diagram

diagram 6182650010 8271233010 8281950180 86300C 86300C 86300C 9011906067 9011906067 9011906067 9011906067 9046400082 9048017026
Part # Description Qty Price
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-50030

UCF10..A

 1
86300-50031

UCF10..A

 1
86300-50040

UCF1#..B,C

 1
86300-50110

UCF1#..B,C

 1
86300-50100

UCF10..A

 1
86300-50041

UCF1#..B,C

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-50030

UCF10..A

 1
86300-50031

UCF10..A

 1
86300-50040

UCF1#..B,C

 1
86300-50110

UCF1#..B,C

 1
86300-50100

UCF10..A

 1
86300-50041

UCF1#..B,C

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-50030

UCF10..A

 1
86300-50031

UCF10..A

 1
86300-50040

UCF1#..B,C

 1
86300-50110

UCF1#..B,C

 1
86300-50100

UCF10..A

 1
86300-50041

UCF1#..B,C

 1
Common parts
61826-50010
82712-33010
82819-50180
90119-06067
90464-00082
90480-17026
