UCF10-AEPNK (1989)
Toyota Celsior
Production
Nov 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

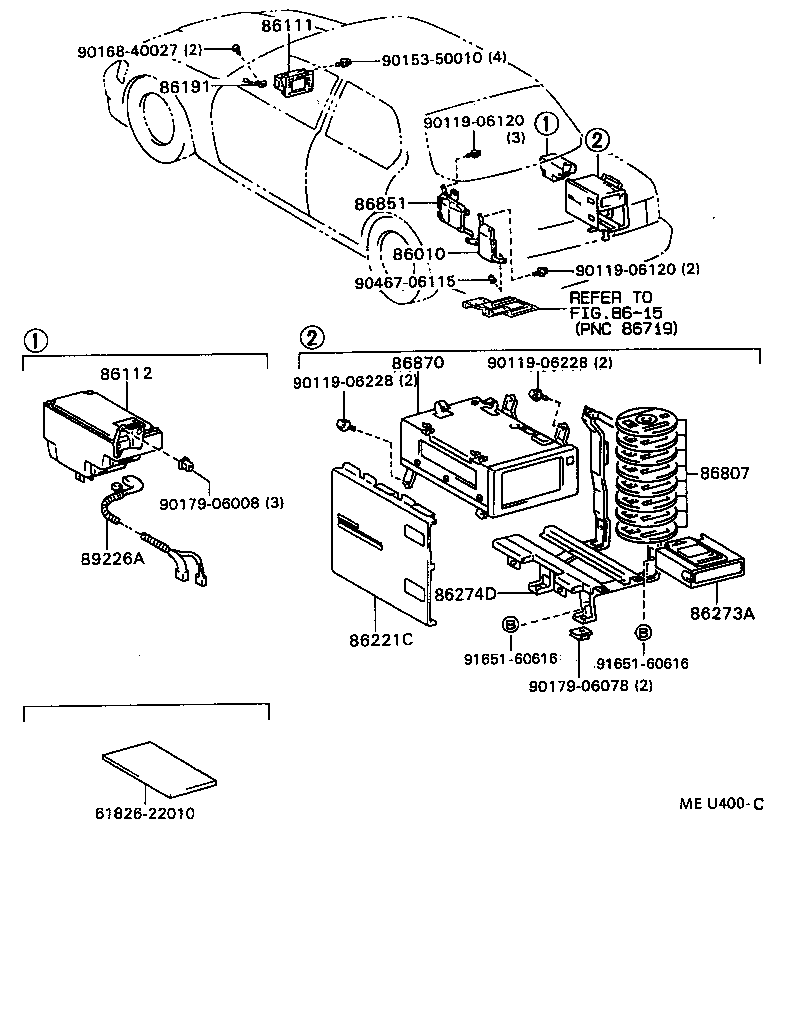

ILLUST NO. 1 OF 2(8911- )B,C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86010 - TUNER ASSY, TELEVISION | ||||
| 86010-50020 |
UCF1#..B,C |
1 | ||
| 86111 - MULTI-DISPLAY | ||||
| 86111-50010 |
UCF1#..B,C AISHIN AW |
1 | ||
| 86112 - COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY) | ||||
| 86112-50010 |
UCF1#..B,C |
1 | ||
| 86191 - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-50010 |
UCF1#..B,C |
1 | ||
| 86221C - PANEL, RADIO RECEIVER | ||||
| 86221-50010 |
UCF1#..B,C |
1 | ||
| 86273A - MAGAZINE, DISC PLAYER | ||||
| 86273-50030 |
UCF1#..B,C |
1 | ||
| 86274D - BRACKET, DISC PLAYER | ||||
| 86274-50020 |
UCF1#..B,C |
1 | ||
| 86807 - DISC KIT, CD-ROM | ||||
| 04864-50010 |
UCF1#..B,C |
1 | ||
| 86807-50010 |
UCF1#..B,C |
1 | ||
| 86851 - RECEIVER, NAVIGATION | ||||
| 86851-50010 |
UCF1#..B,C |
1 | ||
| 86851-50011 |
UCF1#..B,C |
1 | ||
| 86870 - PLAYER ASSY, CD-ROM | ||||
| 86871-50010 |
UCF1#..B,C |
1 | ||
| 86870-50010 |
UCF1#..B,C |
1 | ||
| 89226A - FIBER, OPTICAL | ||||
| 89226-50010 |
UCF1#..B,C |
1 | ||
| Common parts | ||||
| 61826-22010 | ||||
| 90119-06120 | ||||
| 90119-06228 | ||||
| 90153-50010 | ||||
| 90168-40027 | ||||
| 90179-06008 | ||||
| 90179-06078 | ||||
| 90467-06115 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8615 | ||||

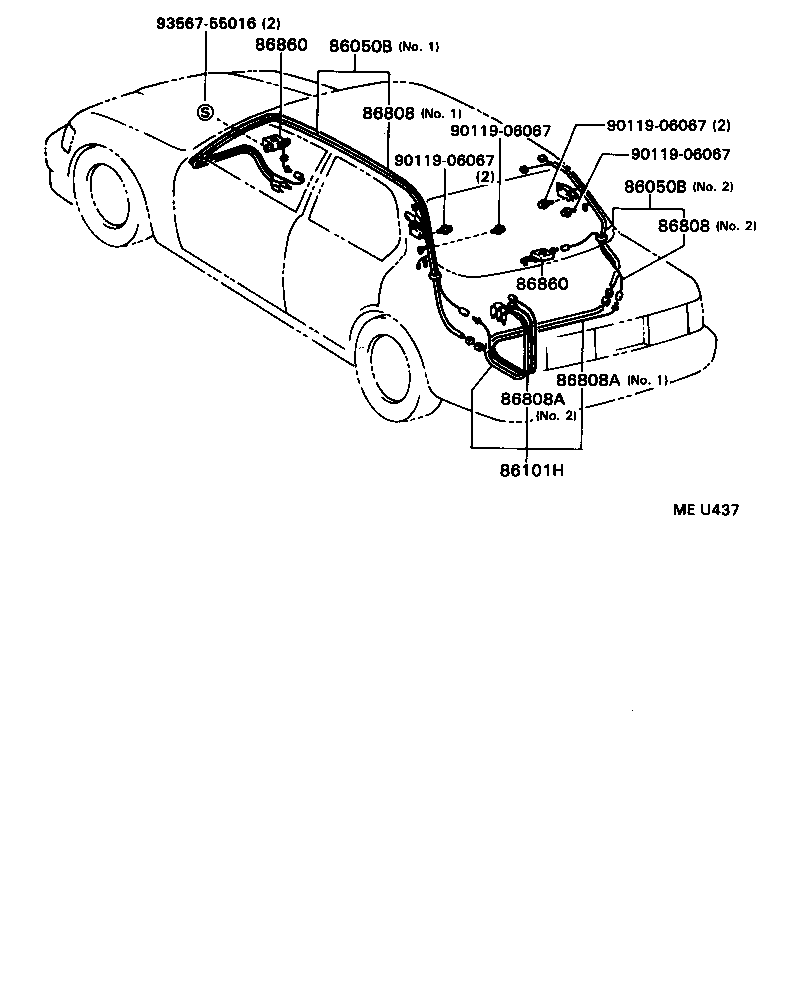

ILLUST NO. 2 OF 2(8911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06067 | ||||
| 93567-55016 | ||||
