UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

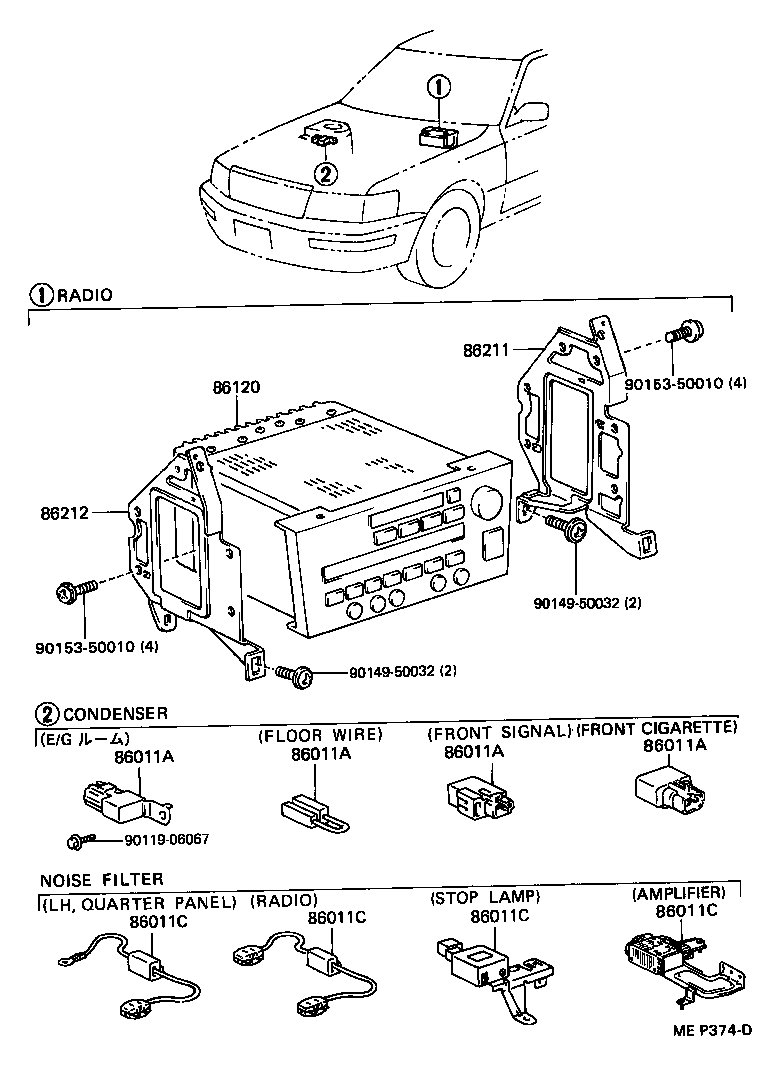

ILLUST NO. 1 OF 2(8911- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011A 86011C 86011C 86011C 86011C 86120 86211 86212 9011906067 9014950032 9014950032 9015350010 9015350010
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04111

UCF1#

FRONT CIGARETTE

 1
90980-04077

UCF1#

E/G ROOM

 1
90980-04098

UCF1#

FRONT SIGNAL

 1
90980-04093

UCF1#

FLOOR WIRE

 1
86011A - CONDENSER, RADIO SETTING
90980-04111

UCF1#

FRONT CIGARETTE

 1
90980-04077

UCF1#

E/G ROOM

 1
90980-04098

UCF1#

FRONT SIGNAL

 1
90980-04093

UCF1#

FLOOR WIRE

 1
86011A - CONDENSER, RADIO SETTING
90980-04111

UCF1#

FRONT CIGARETTE

 1
90980-04077

UCF1#

E/G ROOM

 1
90980-04098

UCF1#

FRONT SIGNAL

 1
90980-04093

UCF1#

FLOOR WIRE

 1
86011A - CONDENSER, RADIO SETTING
90980-04111

UCF1#

FRONT CIGARETTE

 1
90980-04077

UCF1#

E/G ROOM

 1
90980-04098

UCF1#

FRONT SIGNAL

 1
90980-04093

UCF1#

FLOOR WIRE

 1
86011C - FILTER, NOISE
90980-05184

UCF1#

RR ROOM LAMP

 1
90980-05183

UCF1#

LH,QUARTER PANEL

 1
90980-05264

UCF1#

ｽﾄｯﾌﾟﾗﾝﾌﾟ

 1
90980-05210

UCF1#

ｽﾄｯﾌﾟﾗﾝﾌﾟ

 1
86011C - FILTER, NOISE
90980-05184

UCF1#

RR ROOM LAMP

 1
90980-05183

UCF1#

LH,QUARTER PANEL

 1
90980-05264

UCF1#

ｽﾄｯﾌﾟﾗﾝﾌﾟ

 1
90980-05210

UCF1#

ｽﾄｯﾌﾟﾗﾝﾌﾟ

 1
86011C - FILTER, NOISE
90980-05184

UCF1#

RR ROOM LAMP

 1
90980-05183

UCF1#

LH,QUARTER PANEL

 1
90980-05264

UCF1#

ｽﾄｯﾌﾟﾗﾝﾌﾟ

 1
90980-05210

UCF1#

ｽﾄｯﾌﾟﾗﾝﾌﾟ

 1
86011C - FILTER, NOISE
90980-05184

UCF1#

RR ROOM LAMP

 1
90980-05183

UCF1#

LH,QUARTER PANEL

 1
90980-05264

UCF1#

ｽﾄｯﾌﾟﾗﾝﾌﾟ

 1
90980-05210

UCF1#

ｽﾄｯﾌﾟﾗﾝﾌﾟ

 1
86120 - RECEIVER ASSY, RADIO
86120-50180

UCF1#..B,C

 1
86120-50200

UCF1#..B,C

ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)

 1
86120-50170

UCF10..A

 1
86120-50260

UCF1#..B,C

 1
86120-50220

UCF1#..B,C

ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)

 1
86120-50190

UCF1#..B,C

ｱﾘ(ﾃﾞｲｽｸ ﾌﾟﾚ-ﾔ---DAT ﾀｲｵｳ)

 1
86120-50171

UCF10..A

 1
86211 - BRACKET, RADIO, NO.1
86211-50010

UCF1#

 1
86211-50020

UCF1#

 1
86212 - BRACKET, RADIO, NO.2
86212-50010

UCF1#

 1
86212-50020

UCF1#

 1
Common parts
90119-06067
90149-50032
90153-50010

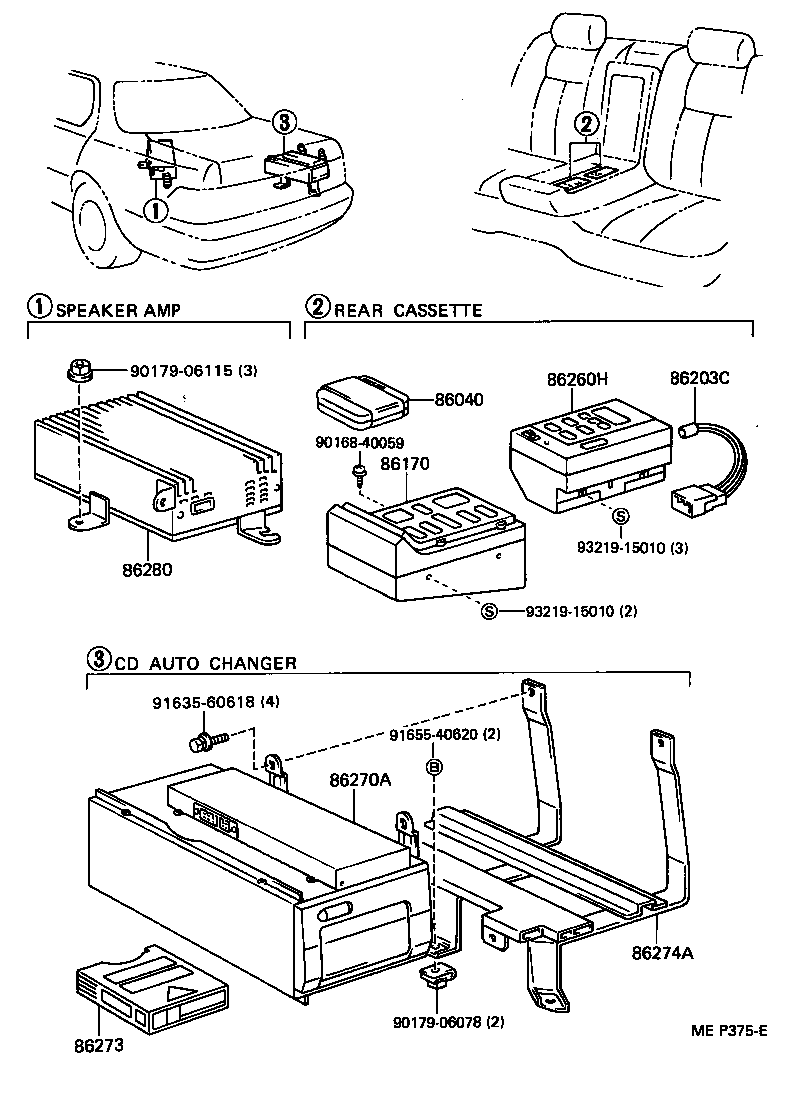

ILLUST NO. 2 OF 2(8911-9208)

Click highlighted areas on diagram

diagram 86040 86170 86203C 86260H 86270A 86273 86274A 86280 9016840059 9017906078 9017906115 9163560618 9165540620 9321915010 9321915010
Part # Description Qty Price
86270A - DISC PLAYER ASSY
86270-50020

UCF1#..B,C

 1
86273 - MAGAZINE, DISC PLAYER
86273-50020

UCF1#..B,C

 1
86273-22010

UCF1#

8CM

 1
86273-50020

UCF1#..B,C

12CM

 1
86274A - BRACKET, DISC PLAYER
86274-50010

UCF1#..B,C

 1
86274-50050

UCF1#..B,C

NO.2

 1
86274-50030

UCF1#..B,C

NO.1

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-50060

UCF1#..B,C

ｱﾘ(PNC86120=*36,DAT)

 1
86280-50050

UCF1#..B,C

ｱﾘ(ﾗｼﾞｵ---*36,ﾊﾟｲｵﾆｱ)

 1
86280-50080

UCF1#..B,C

ｱﾘ(*LES & ﾗｼﾞｵ---*36,ﾊﾟｲｵﾆｱ)

 1
Common parts
90168-40059
90179-06078
90179-06115
91635-60618
91655-40620
93219-15010

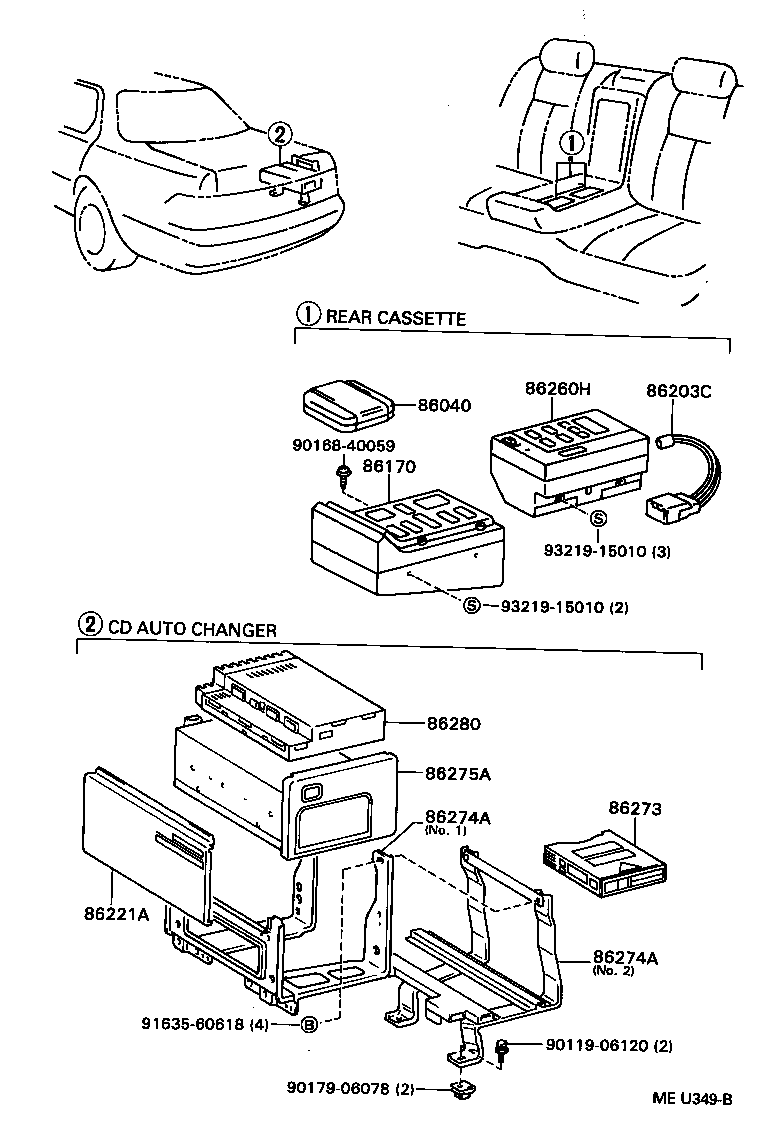

ILLUST NO. 2 OF 2(9208- )

Click highlighted areas on diagram

diagram 86040 86170 86203C 86221A 86260H 86273 86274A 86274A 86275A 86280 9011906120 9016840059 9017906078 9163560618 9321915010 9321915010
Part # Description Qty Price
86221A - PANEL, RADIO RECEIVER
86221-50030

UCF1#..B,C

 1
86273 - MAGAZINE, DISC PLAYER
86273-50020

UCF1#..B,C

 1
86273-22010

UCF1#

8CM

 1
86273-50020

UCF1#..B,C

12CM

 1
86274A - BRACKET, DISC PLAYER
86274-50010

UCF1#..B,C

 1
86274-50050

UCF1#..B,C

NO.2

 1
86274-50030

UCF1#..B,C

NO.1

 1
86274A - BRACKET, DISC PLAYER
86274-50010

UCF1#..B,C

 1
86274-50050

UCF1#..B,C

NO.2

 1
86274-50030

UCF1#..B,C

NO.1

 1
86275A - CHANGER, DISC PLAYER
86275-50030

UCF1#..B,C

ｱﾘ(ﾗｼﾞｵ---*36,ﾊﾟｲｵﾆｱ)

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-50060

UCF1#..B,C

ｱﾘ(PNC86120=*36,DAT)

 1
86280-50050

UCF1#..B,C

ｱﾘ(ﾗｼﾞｵ---*36,ﾊﾟｲｵﾆｱ)

 1
86280-50080

UCF1#..B,C

ｱﾘ(*LES & ﾗｼﾞｵ---*36,ﾊﾟｲｵﾆｱ)

 1
Common parts
90119-06120
90168-40059
90179-06078
91635-60618
93219-15010
