UCF10-AEPNK (1989)
Toyota Celsior

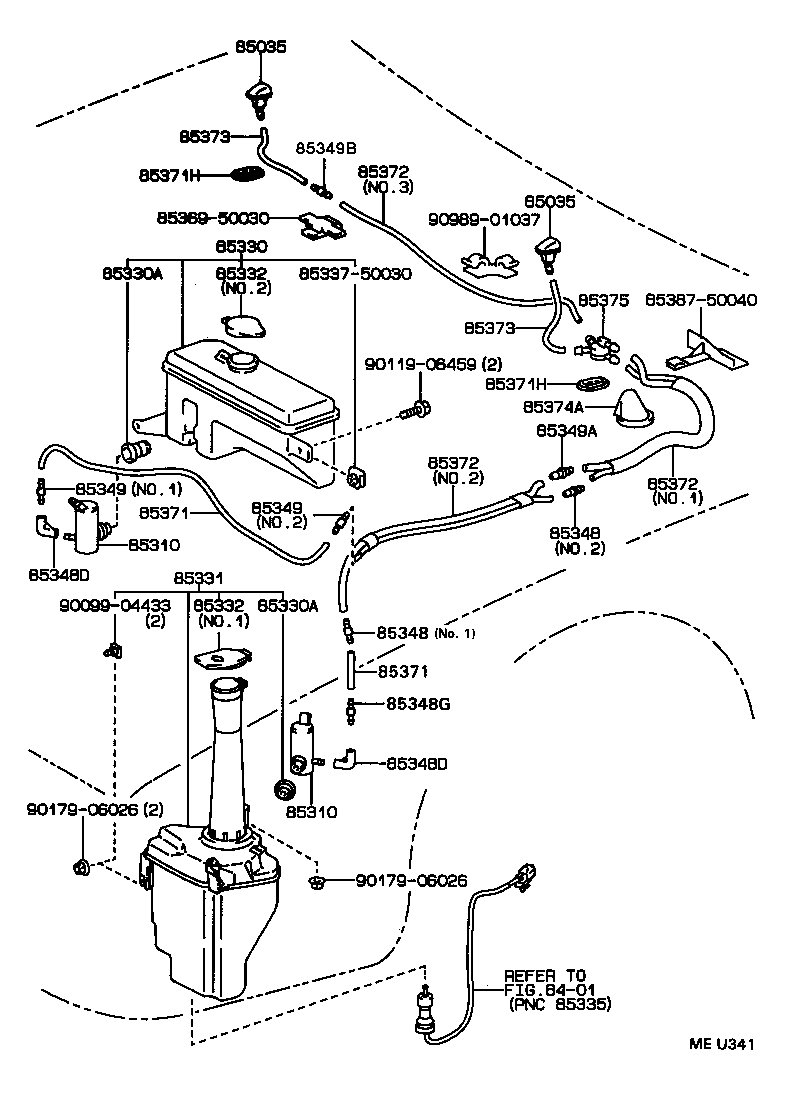

(8911-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-5001001 |
UCF1# BLACK,202 |
2 | ||
| 85381-5001007 |
UCF1# DARK GREEN M.I.0.,6K4 |
2 | ||
| 85381-5001012 |
UCF1#..B,C GRAYISH ROSE MICA M,3H9 |
2 | ||
| 85381-5001006 |
UCF1#..B,C DARK BROWN MICA,4K8 |
2 | ||
| 85381-5001008 |
UCF1# WHITE PEARL MICA,051 |
2 | ||
| 85341-5001007 |
UCF1# DARK GREEN M.I.O.,6K4 |
2 | ||
| 85381-5001023 |
UCF1# GRAY MICA M,180 |
2 | ||
| 85381-5001003 |
UCF1# BLUISH GRAY MICA M,172 |
2 | ||
| 85381-5001002 |
UCF1# DEEP RED MICA,3H8 |
2 | ||
| 85381-5001005 |
UCF1#..B,C BEIGE M,4K9 |
2 | ||
| 85381-5001013 |
UCF1# SUPER SILVER 3 M,176 |
2 | ||
| 85341-5001005 |
UCF1#..B,C BEIGE METALLIC,4K9 |
2 | ||
| 85341-5001001 |
UCF1# BLACK,202 |
2 | ||
| 85341-5001013 |
UCF1# SUPER SILVER 3 M,176 |
2 | ||
| 85341-5001008 |
UCF1# WHITE PEARL MICA,051 |
2 | ||
| 85381-50010J0 |
UCF1# DK.BLUE MCFP,8J5 |
2 | ||
| 85381-50010B0 |
UCF1# SILVER ME.,199 |
2 | ||
| 85341-5001023 |
UCF1# GRAY MICA METALLIC,180 |
2 | ||
| 85381-50010K0 |
UCF1#..B,C GRAYISH PURPLE M,923 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-5001001 |
UCF1# BLACK,202 |
2 | ||
| 85381-5001007 |
UCF1# DARK GREEN M.I.0.,6K4 |
2 | ||
| 85381-5001012 |
UCF1#..B,C GRAYISH ROSE MICA M,3H9 |
2 | ||
| 85381-5001006 |
UCF1#..B,C DARK BROWN MICA,4K8 |
2 | ||
| 85381-5001008 |
UCF1# WHITE PEARL MICA,051 |
2 | ||
| 85341-5001007 |
UCF1# DARK GREEN M.I.O.,6K4 |
2 | ||
| 85381-5001023 |
UCF1# GRAY MICA M,180 |
2 | ||
| 85381-5001003 |
UCF1# BLUISH GRAY MICA M,172 |
2 | ||
| 85381-5001002 |
UCF1# DEEP RED MICA,3H8 |
2 | ||
| 85381-5001005 |
UCF1#..B,C BEIGE M,4K9 |
2 | ||
| 85381-5001013 |
UCF1# SUPER SILVER 3 M,176 |
2 | ||
| 85341-5001005 |
UCF1#..B,C BEIGE METALLIC,4K9 |
2 | ||
| 85341-5001001 |
UCF1# BLACK,202 |
2 | ||
| 85341-5001013 |
UCF1# SUPER SILVER 3 M,176 |
2 | ||
| 85341-5001008 |
UCF1# WHITE PEARL MICA,051 |
2 | ||
| 85381-50010J0 |
UCF1# DK.BLUE MCFP,8J5 |
2 | ||
| 85381-50010B0 |
UCF1# SILVER ME.,199 |
2 | ||
| 85341-5001023 |
UCF1# GRAY MICA METALLIC,180 |
2 | ||
| 85381-50010K0 |
UCF1#..B,C GRAYISH PURPLE M,923 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-50020 |
UCF1# |
2 | ||
| 85310-20190 |
UCF1# |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-50020 |
UCF1# |
2 | ||
| 85310-20190 |
UCF1# |
2 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-50030 |
UCF1# |
1 | ||
| 85310-50030 |
UCF1# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
UCF1# |
2 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
UCF1# |
2 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85315-50040 |
UCF1# |
1 | ||
| 85315-50030 |
UCF1# NO.2 |
1 | ||
| 85331-50010 |
UCF1# NO.1 |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85315-50040 |
UCF1# |
1 | ||
| 85315-50030 |
UCF1# NO.2 |
1 | ||
| 85331-50010 |
UCF1# NO.1 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-50010 |
UCF1# NO.1 |
1 | ||
| 85316-50030 |
UCF1# NO.2 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-50010 |
UCF1# NO.1 |
1 | ||
| 85316-50030 |
UCF1# NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85376-50040 |
UCF1# NO.2 |
1 | ||
| 85334-22480 |
UCF1# NO.1 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85376-50040 |
UCF1# NO.2 |
1 | ||
| 85334-22480 |
UCF1# NO.1 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-32110 |
UCF1# |
2 | ||
| 85355-32110 |
UCF1# |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-16192 |
UCF1# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
UCF1# NO.2 |
1 | ||
| 85349-89122 |
UCF1# |
2 | ||
| 85349-50030 |
UCF1# NO.1 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
UCF1# NO.2 |
1 | ||
| 85349-89122 |
UCF1# |
2 | ||
| 85349-50030 |
UCF1# NO.1 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-50030 |
UCF1# |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
UCF1# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
UCF1# 長さ=1100 |
1 | ||
| 90099-33080 |
UCF1# L=1450 |
1 | ||
| 90099-33813 |
UCF1# *H,L=720 |
1 | ||
| 85371H - COVER, WASHER NOZZLE SERVICE HOLE | ||||
| 85371-50010 |
UCF1# |
2 | ||
| 85371H - COVER, WASHER NOZZLE SERVICE HOLE | ||||
| 85371-50010 |
UCF1# |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33084 |
UCF1# *H,L=630,NO.3 |
1 | ||
| 85376-50080 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85375-50080 |
UCF1# 長さ=1440,NO.2 |
1 | ||
| 85379-50040 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85389-50040 |
UCF1# 長さ=1540,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33084 |
UCF1# *H,L=630,NO.3 |
1 | ||
| 85376-50080 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85375-50080 |
UCF1# 長さ=1440,NO.2 |
1 | ||
| 85379-50040 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85389-50040 |
UCF1# 長さ=1540,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33084 |
UCF1# *H,L=630,NO.3 |
1 | ||
| 85376-50080 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85375-50080 |
UCF1# 長さ=1440,NO.2 |
1 | ||
| 85379-50040 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85389-50040 |
UCF1# 長さ=1540,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
UCF1# L=1450 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
UCF1# L=1450 |
2 | ||
| 85374A - PROTECTOR, WASHER HOSE | ||||
| 85374-50010 |
UCF1# |
1 | ||
| 85375 - HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE) | ||||
| 85375-50040 |
UCF1# |
1 | ||
| Common parts | ||||
| 85337-50030 | ||||
| 85369-50030 | ||||
| 85387-50040 | ||||
| 90099-04433 | ||||
| 90119-06459 | ||||
| 90179-06026 | ||||
| 90989-01037 | ||||

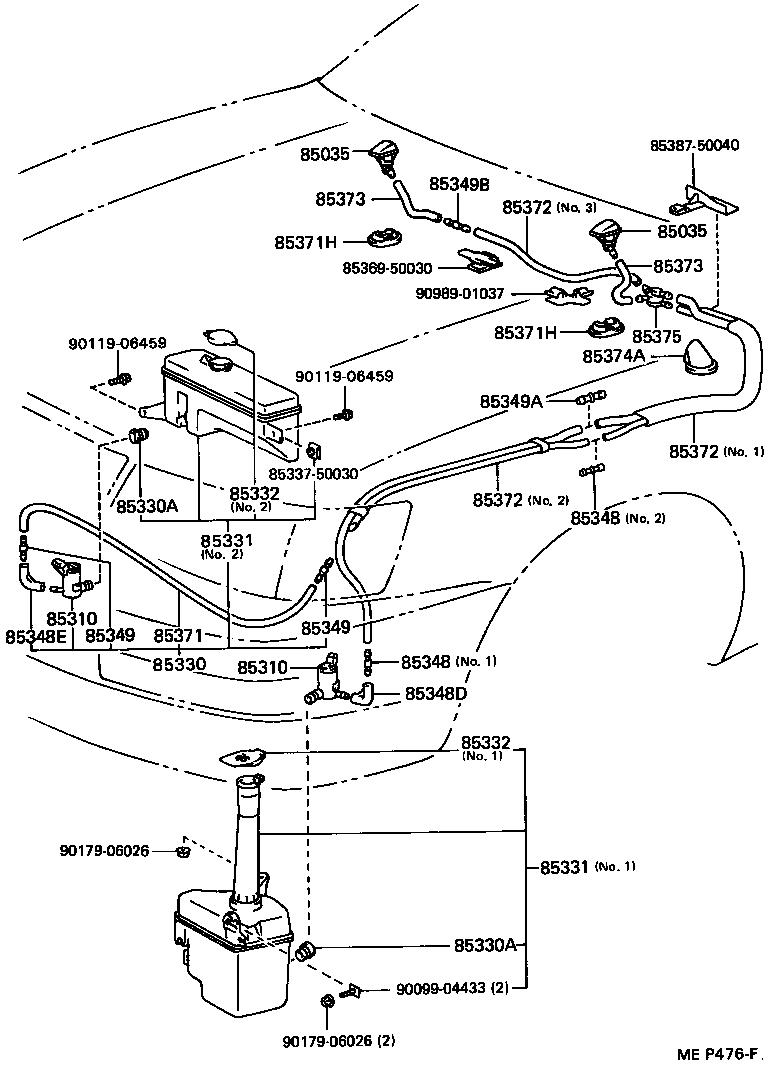

(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-5001001 |
UCF1# BLACK,202 |
2 | ||
| 85381-5001007 |
UCF1# DARK GREEN M.I.0.,6K4 |
2 | ||
| 85381-5001012 |
UCF1#..B,C GRAYISH ROSE MICA M,3H9 |
2 | ||
| 85381-5001006 |
UCF1#..B,C DARK BROWN MICA,4K8 |
2 | ||
| 85381-5001008 |
UCF1# WHITE PEARL MICA,051 |
2 | ||
| 85341-5001007 |
UCF1# DARK GREEN M.I.O.,6K4 |
2 | ||
| 85381-5001023 |
UCF1# GRAY MICA M,180 |
2 | ||
| 85381-5001003 |
UCF1# BLUISH GRAY MICA M,172 |
2 | ||
| 85381-5001002 |
UCF1# DEEP RED MICA,3H8 |
2 | ||
| 85381-5001005 |
UCF1#..B,C BEIGE M,4K9 |
2 | ||
| 85381-5001013 |
UCF1# SUPER SILVER 3 M,176 |
2 | ||
| 85341-5001005 |
UCF1#..B,C BEIGE METALLIC,4K9 |
2 | ||
| 85341-5001001 |
UCF1# BLACK,202 |
2 | ||
| 85341-5001013 |
UCF1# SUPER SILVER 3 M,176 |
2 | ||
| 85341-5001008 |
UCF1# WHITE PEARL MICA,051 |
2 | ||
| 85381-50010J0 |
UCF1# DK.BLUE MCFP,8J5 |
2 | ||
| 85381-50010B0 |
UCF1# SILVER ME.,199 |
2 | ||
| 85341-5001023 |
UCF1# GRAY MICA METALLIC,180 |
2 | ||
| 85381-50010K0 |
UCF1#..B,C GRAYISH PURPLE M,923 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-5001001 |
UCF1# BLACK,202 |
2 | ||
| 85381-5001007 |
UCF1# DARK GREEN M.I.0.,6K4 |
2 | ||
| 85381-5001012 |
UCF1#..B,C GRAYISH ROSE MICA M,3H9 |
2 | ||
| 85381-5001006 |
UCF1#..B,C DARK BROWN MICA,4K8 |
2 | ||
| 85381-5001008 |
UCF1# WHITE PEARL MICA,051 |
2 | ||
| 85341-5001007 |
UCF1# DARK GREEN M.I.O.,6K4 |
2 | ||
| 85381-5001023 |
UCF1# GRAY MICA M,180 |
2 | ||
| 85381-5001003 |
UCF1# BLUISH GRAY MICA M,172 |
2 | ||
| 85381-5001002 |
UCF1# DEEP RED MICA,3H8 |
2 | ||
| 85381-5001005 |
UCF1#..B,C BEIGE M,4K9 |
2 | ||
| 85381-5001013 |
UCF1# SUPER SILVER 3 M,176 |
2 | ||
| 85341-5001005 |
UCF1#..B,C BEIGE METALLIC,4K9 |
2 | ||
| 85341-5001001 |
UCF1# BLACK,202 |
2 | ||
| 85341-5001013 |
UCF1# SUPER SILVER 3 M,176 |
2 | ||
| 85341-5001008 |
UCF1# WHITE PEARL MICA,051 |
2 | ||
| 85381-50010J0 |
UCF1# DK.BLUE MCFP,8J5 |
2 | ||
| 85381-50010B0 |
UCF1# SILVER ME.,199 |
2 | ||
| 85341-5001023 |
UCF1# GRAY MICA METALLIC,180 |
2 | ||
| 85381-50010K0 |
UCF1#..B,C GRAYISH PURPLE M,923 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-50020 |
UCF1# |
2 | ||
| 85310-20190 |
UCF1# |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-50020 |
UCF1# |
2 | ||
| 85310-20190 |
UCF1# |
2 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-50030 |
UCF1# |
1 | ||
| 85310-50030 |
UCF1# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
UCF1# |
2 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
UCF1# |
2 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85315-50040 |
UCF1# |
1 | ||
| 85315-50030 |
UCF1# NO.2 |
1 | ||
| 85331-50010 |
UCF1# NO.1 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-50010 |
UCF1# NO.1 |
1 | ||
| 85316-50030 |
UCF1# NO.2 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-50010 |
UCF1# NO.1 |
1 | ||
| 85316-50030 |
UCF1# NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85376-50040 |
UCF1# NO.2 |
1 | ||
| 85334-22480 |
UCF1# NO.1 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85376-50040 |
UCF1# NO.2 |
1 | ||
| 85334-22480 |
UCF1# NO.1 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-32110 |
UCF1# |
2 | ||
| 85355-32110 |
UCF1# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-32110 |
UCF1# |
2 | ||
| 85355-32110 |
UCF1# |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85334-22480 |
UCF1# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
UCF1# NO.2 |
1 | ||
| 85349-89122 |
UCF1# |
2 | ||
| 85349-50030 |
UCF1# NO.1 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
UCF1# NO.2 |
1 | ||
| 85349-89122 |
UCF1# |
2 | ||
| 85349-50030 |
UCF1# NO.1 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-50030 |
UCF1# |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
UCF1# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
UCF1# 長さ=1100 |
1 | ||
| 90099-33080 |
UCF1# L=1450 |
1 | ||
| 90099-33813 |
UCF1# *H,L=720 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
UCF1# 長さ=1100 |
1 | ||
| 90099-33080 |
UCF1# L=1450 |
1 | ||
| 90099-33813 |
UCF1# *H,L=720 |
1 | ||
| 85371H - COVER, WASHER NOZZLE SERVICE HOLE | ||||
| 85371-50010 |
UCF1# |
2 | ||
| 85371H - COVER, WASHER NOZZLE SERVICE HOLE | ||||
| 85371-50010 |
UCF1# |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33084 |
UCF1# *H,L=630,NO.3 |
1 | ||
| 85376-50080 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85375-50080 |
UCF1# 長さ=1440,NO.2 |
1 | ||
| 85379-50040 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85389-50040 |
UCF1# 長さ=1540,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33084 |
UCF1# *H,L=630,NO.3 |
1 | ||
| 85376-50080 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85375-50080 |
UCF1# 長さ=1440,NO.2 |
1 | ||
| 85379-50040 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85389-50040 |
UCF1# 長さ=1540,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33084 |
UCF1# *H,L=630,NO.3 |
1 | ||
| 85376-50080 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85375-50080 |
UCF1# 長さ=1440,NO.2 |
1 | ||
| 85379-50040 |
UCF1# 長さ=580,NO.1 |
1 | ||
| 85389-50040 |
UCF1# 長さ=1540,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
UCF1# L=1450 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
UCF1# L=1450 |
2 | ||
| 85374A - PROTECTOR, WASHER HOSE | ||||
| 85374-50010 |
UCF1# |
1 | ||
| 85375 - HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE) | ||||
| 85375-50040 |
UCF1# |
1 | ||
| Common parts | ||||
| 85337-50030 | ||||
| 85369-50030 | ||||
| 85387-50040 | ||||
| 90099-04433 | ||||
| 90119-06459 | ||||
| 90179-06026 | ||||
| 90989-01037 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
