Toyota Celsior UCF10 TRACTION CONTROL

Part #	Description	Period	Qty
84988 - SWITCH, TRACTION CONTROL
84988-50030	UCF1#..B,C	11/1989 - 10/1994	1
84988-50020	UCF10..A	11/1989 - 10/1994	1
84988-50030	UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	01/1991 - 10/1994	1
84988 - SWITCH, TRACTION CONTROL
84988-50030	UCF1#..B,C	11/1989 - 10/1994	1
84988-50020	UCF10..A	11/1989 - 10/1994	1
84988-50030	UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	01/1991 - 10/1994	1
84988A - BULB, TRACTION CONTROL SWITCH
84999-10620	UCF1#..B,C 14V 0.63W	11/1989 - 01/1991	1
84999-10620	UCF1# 14V 0.63W	01/1991 - 10/1994	1
85999V - BRACKET, RELAY
85999-50060	UCF1# MOTOR RELAY	01/1991 - 10/1994	1
85999-50050	UCF1#..B,C BRAKE MAIN RELAY	11/1989 - 01/1991	1
85999-50060	UCF1#..B,C MOTOR RELAY	11/1989 - 01/1991	1
85999-50050	UCF1# BRAKE MAIN RELAY	01/1991 - 10/1994	1
85999V - BRACKET, RELAY
85999-50060	UCF1# MOTOR RELAY	01/1991 - 10/1994	1
85999-50050	UCF1#..B,C BRAKE MAIN RELAY	11/1989 - 01/1991	1
85999-50060	UCF1#..B,C MOTOR RELAY	11/1989 - 01/1991	1
85999-50050	UCF1# BRAKE MAIN RELAY	01/1991 - 10/1994	1
89452C - SENSOR, THROTTLE POSITION
89452-50010	UCF1#	01/1991 - 08/1992	1
89452-50010	UCF1#..B,C	11/1989 - 01/1991	1
89452-50020	UCF1#	08/1992 - 10/1994	1
89631 - COMPUTER, TRACTION CONTROL
89631-30080	UCF1#	08/1993 - 10/1994	1
89631-50010	UCF1#	08/1992 - 08/1993	1
89632 - MOTOR, TRACTION THROTTLE VALVE
89632-50010	UCF1#	01/1991 - 08/1992	1
89632-50010	UCF1#..B,C	11/1989 - 01/1991	1
89632-50020	UCF1#	08/1992 - 10/1994	1
89633 - RELAY, TRACTION CONTROL
89633-50030	UCF1#..B,C MOTOR RELAY	11/1989 - 01/1991	1
89633-50060	UCF1#..B,C BRAKE MAIN RELAY	11/1989 - 01/1991	1
89633-50030	UCF1# MOTOR RELAY	01/1991 - 10/1994	1
89633-50060	UCF1# BRAKE MAIN RELAY	01/1991 - 10/1994	1
89633 - RELAY, TRACTION CONTROL
89633-50030	UCF1#..B,C MOTOR RELAY	11/1989 - 01/1991	1
89633-50060	UCF1#..B,C BRAKE MAIN RELAY	11/1989 - 01/1991	1
89633-50030	UCF1# MOTOR RELAY	01/1991 - 10/1994	1
89633-50060	UCF1# BRAKE MAIN RELAY	01/1991 - 10/1994	1
89634 - BRACKET, TRACTION CONTROL COMPUTER
89634-50020	UCF1# NO.1	08/1992 - 10/1994	1
89634-50040	UCF1# NO.2	08/1992 - 10/1994	1
89634 - BRACKET, TRACTION CONTROL COMPUTER
89634-50020	UCF1# NO.1	08/1992 - 10/1994	1
89634-50040	UCF1# NO.2	08/1992 - 10/1994	1
Common parts
90119-06433
90119-06466
93269-54010

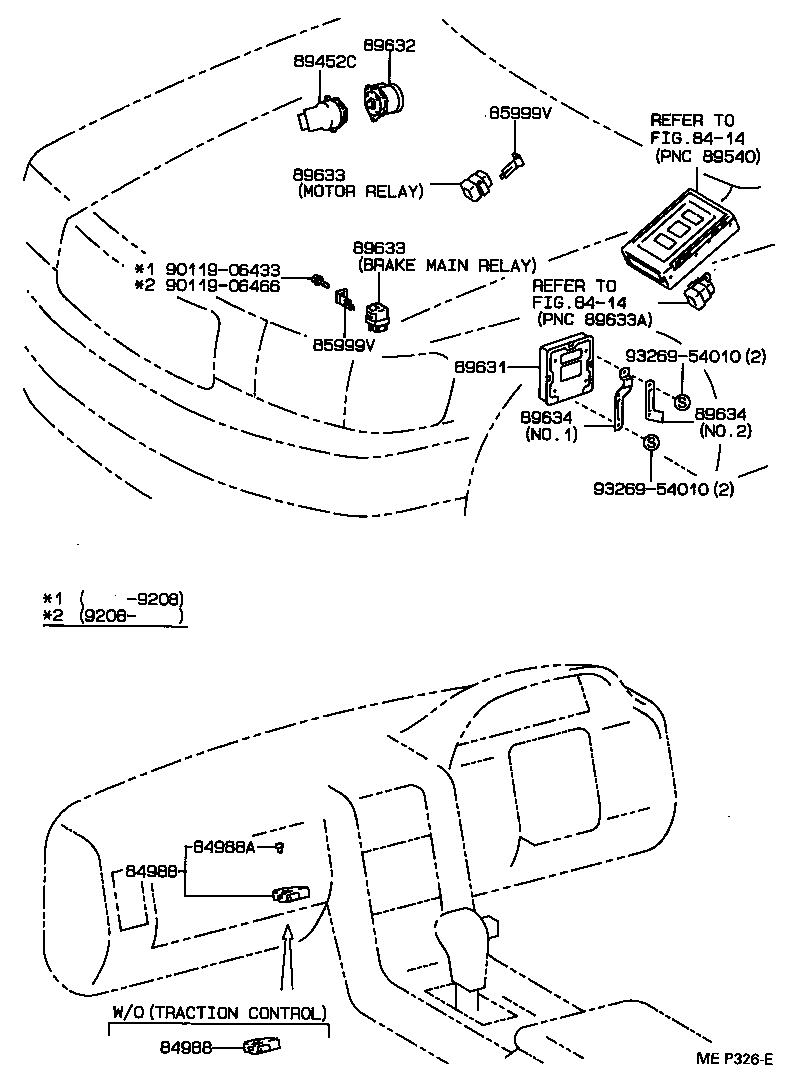

Linked diagrams
8414

UCF10-AEPNK (1989)

(8911- )
