UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

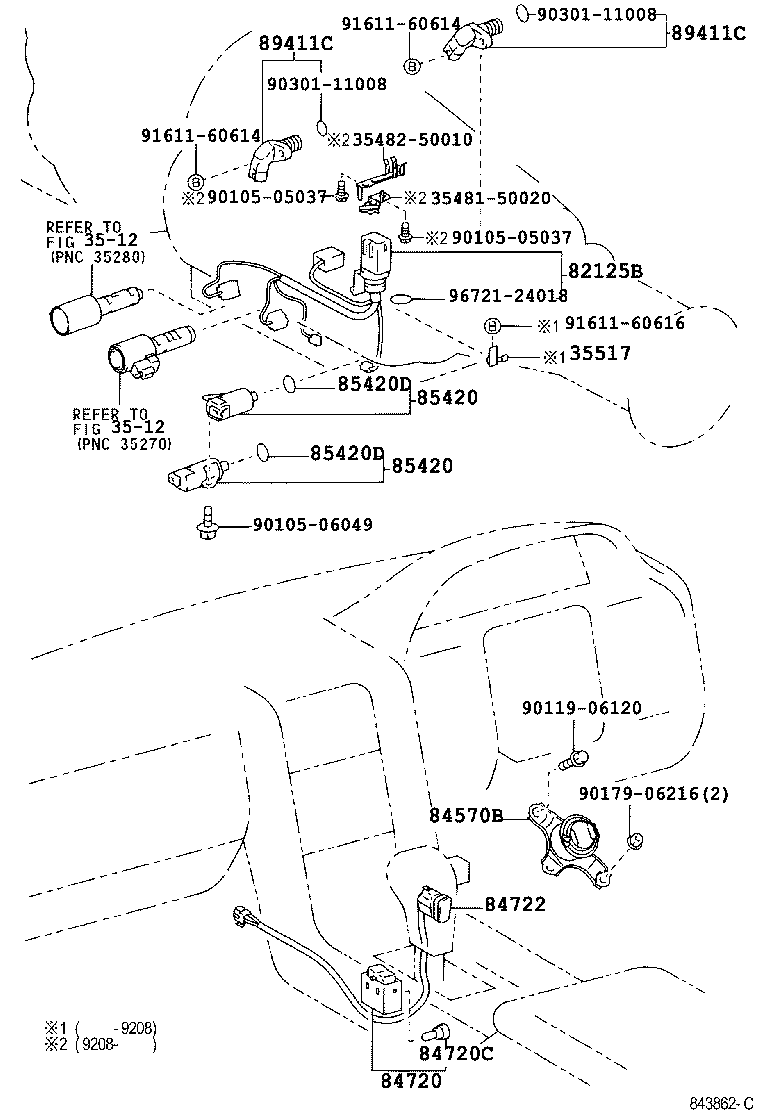

Click highlighted areas on diagram

diagram 3512 3512 3548150020 3548250010 35517 82125B 84570B 84720 84720C 84722 85420 85420 85420D 85420D 89411C 89411C 9010505037 9010505037 9010506049 9011906120 9017906216 9030111008 9030111008 9161160614 9161160614 9161160616 9672124018
Part # Description Qty Price
35517 - PLATE, TRANSMISSION WIRE LOCK
35517-50010

UCF1#

 1
82125B - WIRE, TRANSMISSION
82125-50030

UCF1#

 1
82125-50010

UCF1#

 1
84570B - SWITCH ASSY, KICK DOWN
84570-50020

UCF1#

 1
84570-50030

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-30170

UCF1#

 1
84720-50010

UCF1#

 1
84720C - BULB(FOR PATTERN SELECT SWITCH)
84999-10320

UCF1#

14V 0.84W

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-5003003

UCF10..A

SHADOW GRAY,TRIM1#

 1
84722-50050B0

UCF1#

SHADOW GRAY,TRIM1#

 1
84722-5004006

UCF1#..B,C

DARK ROSE,TRIM4#

 1
84722-5004005

UCF1#..B,C

GREIGE,TRIM0#

 1
84722-50050J0

UCF1#

DK.BLUE,TRIM8#

 1
84722-50050E0

UCF1#..B,C

OAK,TRIM0#

 1
84722-5004003

UCF1#..B,C

SHADOW GRAY,TRIM1#

 1
84722-5004004

UCF1#..B,C

DARK BLUE,TRIM8#

 1
84722-50050K0

UCF1#..B,C

TAUPE,TRIM9#

 1
84722-5003004

UCF10..A

DARK BLUE,TRIM8#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-50020

UCF1#

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-50020

UCF1#

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

UCF1#

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

UCF1#

 2
89411C - SENSOR, SPEED
89411-50010

UCF1#

 2
89411C - SENSOR, SPEED
89411-50010

UCF1#

 2
Common parts
35481-50020
35482-50010
90105-05037
90105-06049
90119-06120
90179-06216
90301-11008
91611-60614
91611-60616
96721-24018
Linked diagrams
3512
