UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

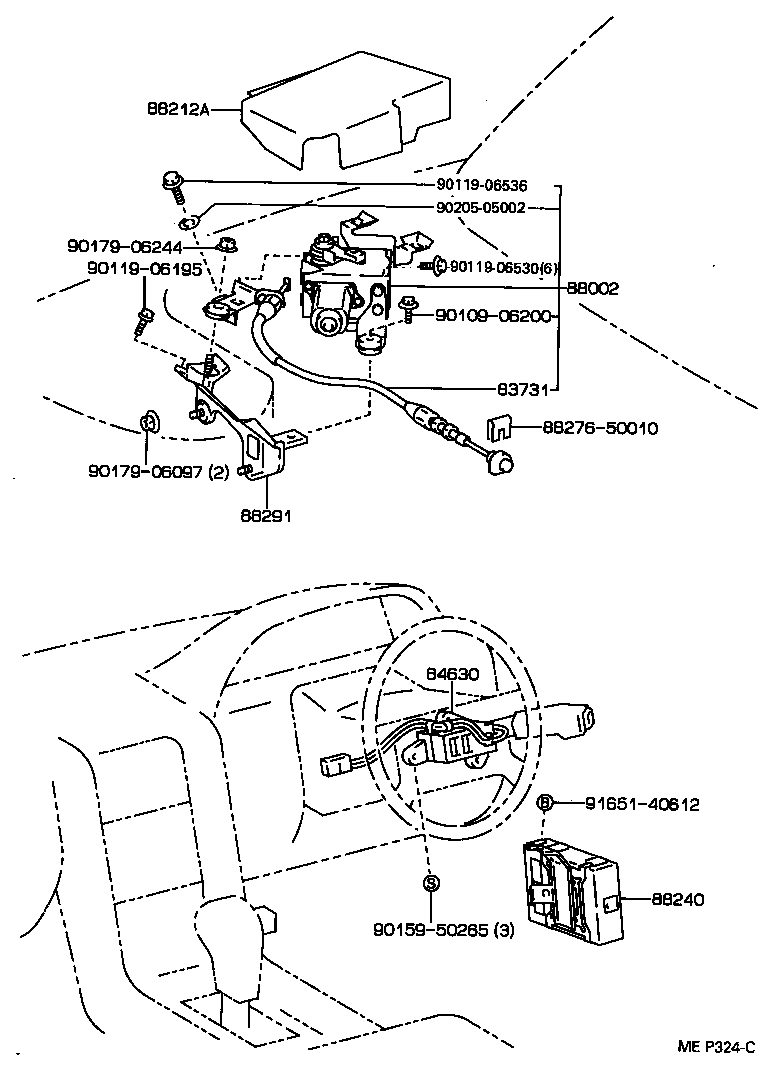

Click highlighted areas on diagram

diagram 83731 84630 88002 88212A 88240 8827650010 88291 9010906200 9011906195 9011906530 9011906536 9015950265 9017906097 9017906244 9020505002 9165140612
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-50020

UCF1#

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-50010

UCF1#

 1
84630-50020

UCF1#

 1
88002 - CRUISE CONTROL(AUTO DRIVE) SET
88002-50020

UCF1#

 1
88002-50040

UCF1#

 1
88002-50021

UCF1#

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-50020

UCF1#

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-50031

UCF1#

 1
88240-50060

UCF1#

 1
88240-50030

UCF1#

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-50021

UCF1#

 1
88291-50020

UCF1#

 1
Common parts
88276-50010
90109-06200
90119-06195
90119-06530
90119-06536
90159-50265
90179-06097
90179-06244
90205-05002
91651-40612
