UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

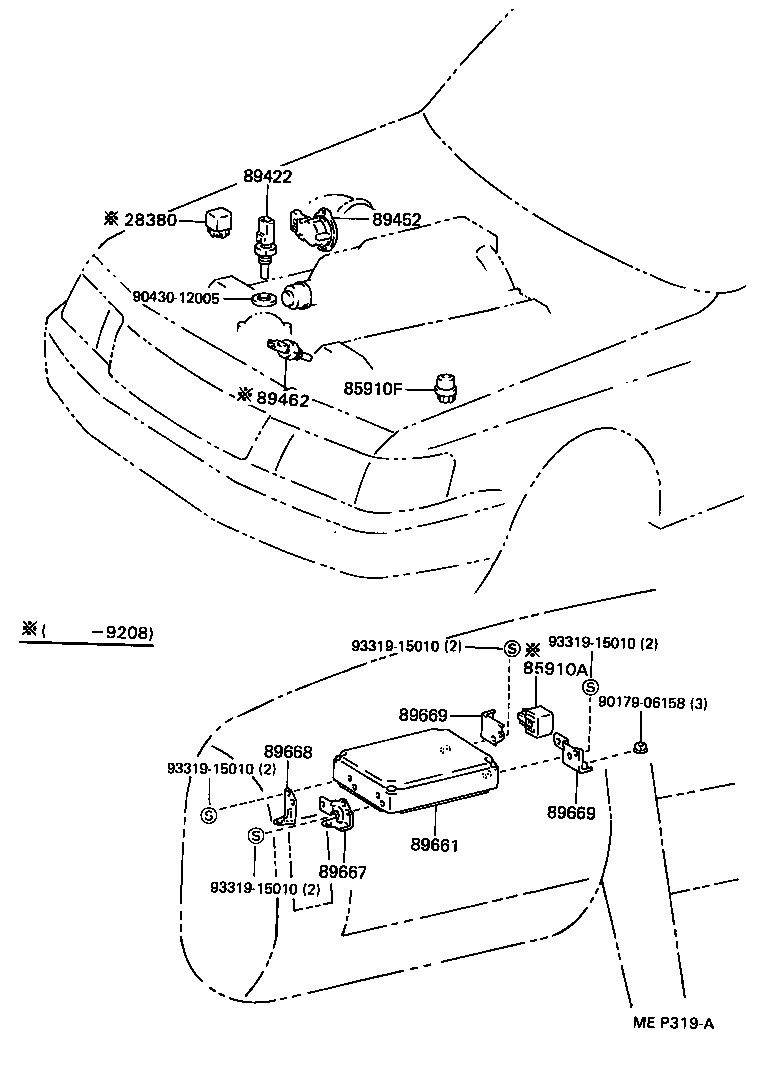

ILLUST NO. 1 OF 2(8911- )

Click highlighted areas on diagram

diagram 28380 85910A 85910F 89422 89452 89462 89661 89667 89668 89669 89669 9017906158 9043012005 9331915010 9331915010 9331915010 9331915010
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
28380-30010

1UZFE..UCF1#

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-22040

UCF1#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

UCF1#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

UCF1#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12050

UCF1#

 1
89452-32060

UCF1#

 1
89462 - SWITCH, START INJECTOR TIME
89462-20030

UCF1#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-50092

UCF10..A

 1
89661-50100

UCF1#..B,C

 1
89661-50102

UCF10..A

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89661-50170

UCF1#

 1
89661-50090

UCF10..A

 1
89661-50102

UCF1#..B,C

 1
89661-50171

UCF1#

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-50020

UCF1#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-50020

UCF1#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-50030

UCF1#

FRONT

 1
89669-50020

UCF1#

REAR

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-50030

UCF1#

FRONT

 1
89669-50020

UCF1#

REAR

 1
Common parts
90179-06158
90430-12005
93319-15010

ILLUST NO. 2 OF 2(9208- )

Click highlighted areas on diagram

diagram 89570A 9017906100
Part # Description Qty Price
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-50010

UCF1#

 1
Common parts
90179-06100
