UCF10-AEPNK (1989)
Toyota Celsior
(8911- )

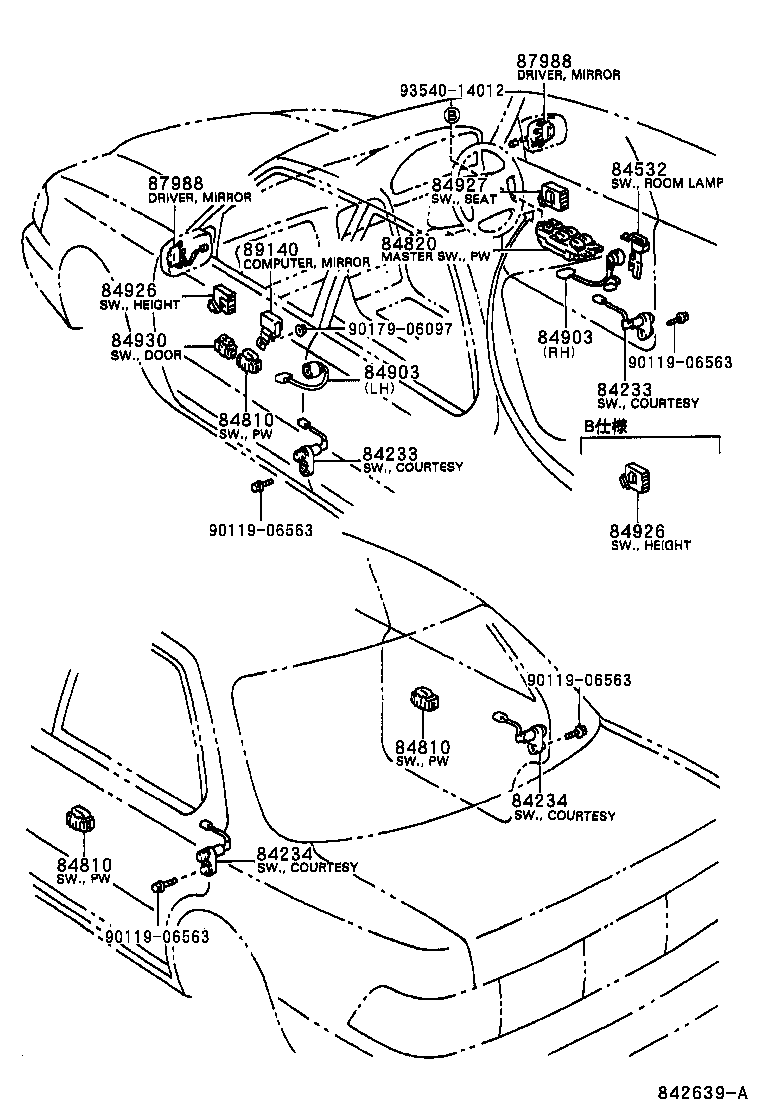

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50010 |
UCF1# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50010 |
UCF1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-50010 |
UCF1# |
2 | ||
| 84231-50040 |
UCF1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-50010 |
UCF1# |
2 | ||
| 84231-50040 |
UCF1# |
2 | ||
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-50020 |
UCF1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-50010 |
UCF1# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-50010 |
UCF1# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-50010 |
UCF1# |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-50040 |
UCF1# |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-50090 |
UCF1# RH |
1 | ||
| 84903-50060 |
UCF1# LH |
1 | ||
| 84903-50050 |
UCF1# RH |
1 | ||
| 84903-50100 |
UCF1# LH |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-50090 |
UCF1# RH |
1 | ||
| 84903-50060 |
UCF1# LH |
1 | ||
| 84903-50050 |
UCF1# RH |
1 | ||
| 84903-50100 |
UCF1# LH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-50010 |
UCF1# |
1 | ||
| 84930-50020 |
UCF1# |
1 | ||
| 87988 - DRIVER,MIRROR VIBRATION CONTROL | ||||
| 87988-50010 |
UCF1#..B,C 右側 |
1 | ||
| 87987-50010 |
UCF1#..B,C 左側 |
1 | ||
| 87988 - DRIVER,MIRROR VIBRATION CONTROL | ||||
| 87988-50010 |
UCF1#..B,C 右側 |
1 | ||
| 87987-50010 |
UCF1#..B,C 左側 |
1 | ||
| 89140 - COMPUTER,ASSY MIRROR VIBLATION CONTROL | ||||
| 89140-50010 |
UCF1#..B,C |
1 | ||
| 89140-50020 |
UCF1#..B,C |
1 | ||
| Common parts | ||||
| 90119-06563 | ||||
| 90179-06097 | ||||
| 93540-14012 | ||||
(8911- )

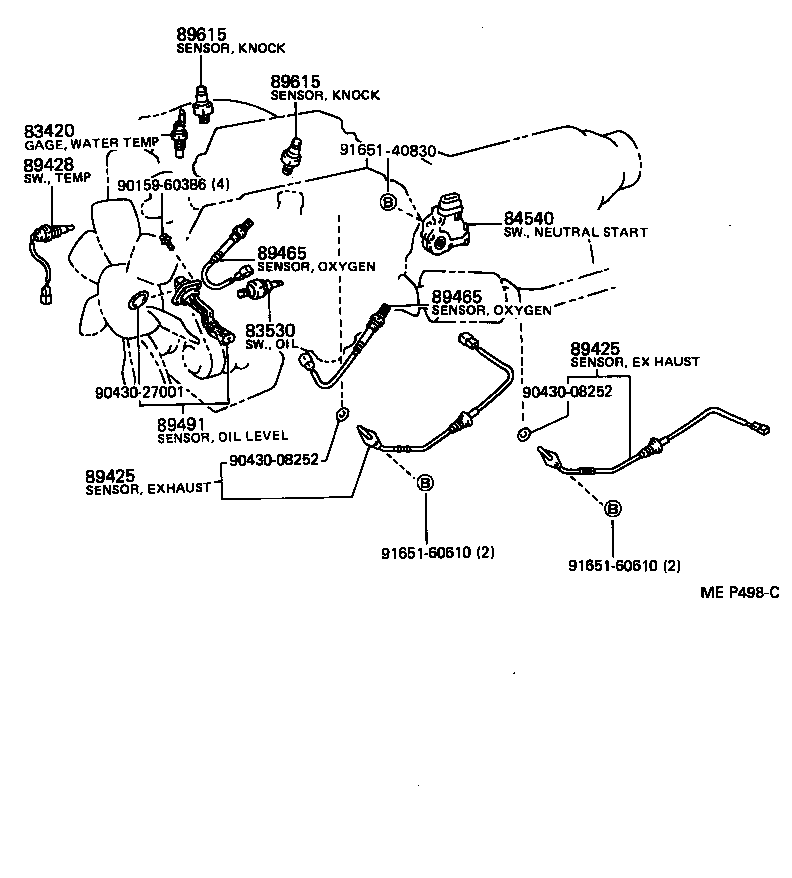

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
UCF1# |
1 | ||
| 83420-16050 |
UCF1# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14060 |
UCF1# |
1 | ||
| 83530-30080 |
UCF1# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-50010 |
UCF1# |
1 | ||
| 84540-30280 |
UCF1# MATSUSHITA |
1 | ||
| 84540-30270 |
UCF1# 東海理化 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-59025 |
UCF1# |
2 | ||
| 89425-59015 |
UCF1# |
2 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-59025 |
UCF1# |
2 | ||
| 89425-59015 |
UCF1# |
2 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-50010 |
UCF1# ENGINE |
1 | ||
| 89429-24020 |
UCF1# |
1 | ||
| 89429-32010 |
UCF1# RADIATOR,LOWER |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30100 |
UCF1# |
2 | ||
| 89465-50040 |
UCF1# |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30100 |
UCF1# |
2 | ||
| 89465-50040 |
UCF1# |
2 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30030 |
UCF1# |
1 | ||
| 89491-50020 |
UCF1# |
1 | ||
| 89491-50010 |
UCF1# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20010 |
UCF1# |
2 | ||
| 89615-50010 |
UCF1# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20010 |
UCF1# |
2 | ||
| 89615-50010 |
UCF1# |
2 | ||
| Common parts | ||||
| 90159-60386 | ||||
| 90430-08252 | ||||
| 90430-27001 | ||||
| 91651-40830 | ||||
| 91651-60610 | ||||
(8911- )

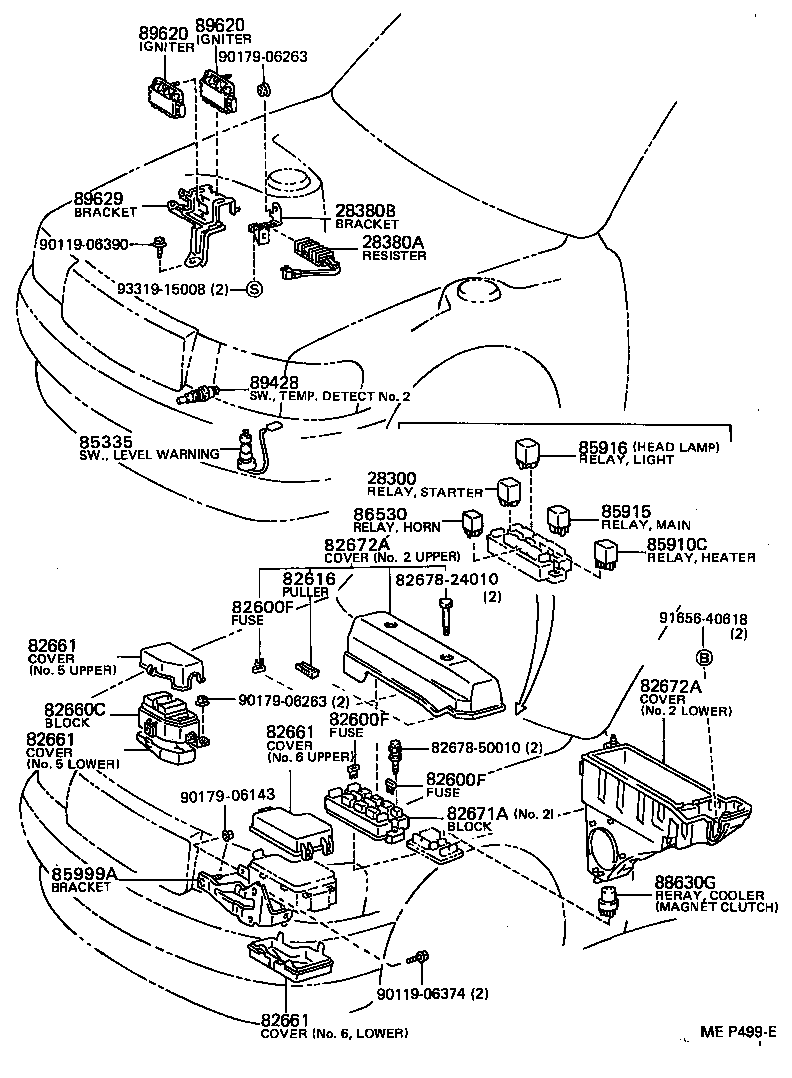

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
1UZFE..UCF1# |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23285-50010 |
1UZFE..UCF1# |
1 | ||
| 28380B - BRACKET, FUEL PUMP RESISTER | ||||
| 23286-50011 |
1UZFE..UCF1# |
1 | ||
| 23286-50010 |
1UZFE..UCF1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
UCF1# 15A |
7 | ||
| 90982-09002 |
UCF1# 10A |
4 | ||
| 90982-09004 |
UCF1# 20A,黄 |
5 | ||
| 90982-09005 |
UCF1# 7.5A |
5 | ||
| 90982-09006 |
UCF1# 25A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
UCF1# 15A |
7 | ||
| 90982-09002 |
UCF1# 10A |
4 | ||
| 90982-09004 |
UCF1# 20A,黄 |
5 | ||
| 90982-09005 |
UCF1# 7.5A |
5 | ||
| 90982-09006 |
UCF1# 25A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
UCF1# 15A |
7 | ||
| 90982-09002 |
UCF1# 10A |
4 | ||
| 90982-09004 |
UCF1# 20A,黄 |
5 | ||
| 90982-09005 |
UCF1# 7.5A |
5 | ||
| 90982-09006 |
UCF1# 25A |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
UCF1# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-50010 |
UCF1# |
1 | ||
| 82660-50011 |
UCF1# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-50020 |
UCF1#..B,C NO.6,UPPER |
1 | ||
| 82662-50020 |
UCF10..A NO.6,UPPER |
1 | ||
| 82663-50020 |
UCF1#..B,C NO.6,LOWER |
1 | ||
| 82662-50020 |
UCF10..A NO.6,UPPER |
1 | ||
| 82662-50010 |
UCF1# NO.5,UPPER |
1 | ||
| 82663-50020 |
UCF10..A NO.6,LOWER |
1 | ||
| 82663-50020 |
UCF10..A NO.6,LOWER |
1 | ||
| 82663-50010 |
UCF1# NO.5,LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-50020 |
UCF1#..B,C NO.6,UPPER |
1 | ||
| 82662-50020 |
UCF10..A NO.6,UPPER |
1 | ||
| 82663-50020 |
UCF1#..B,C NO.6,LOWER |
1 | ||
| 82662-50020 |
UCF10..A NO.6,UPPER |
1 | ||
| 82662-50010 |
UCF1# NO.5,UPPER |
1 | ||
| 82663-50020 |
UCF10..A NO.6,LOWER |
1 | ||
| 82663-50020 |
UCF10..A NO.6,LOWER |
1 | ||
| 82663-50010 |
UCF1# NO.5,LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-50020 |
UCF1#..B,C NO.6,UPPER |
1 | ||
| 82662-50020 |
UCF10..A NO.6,UPPER |
1 | ||
| 82663-50020 |
UCF1#..B,C NO.6,LOWER |
1 | ||
| 82662-50020 |
UCF10..A NO.6,UPPER |
1 | ||
| 82662-50010 |
UCF1# NO.5,UPPER |
1 | ||
| 82663-50020 |
UCF10..A NO.6,LOWER |
1 | ||
| 82663-50020 |
UCF10..A NO.6,LOWER |
1 | ||
| 82663-50010 |
UCF1# NO.5,LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-50020 |
UCF1#..B,C NO.6,UPPER |
1 | ||
| 82662-50020 |
UCF10..A NO.6,UPPER |
1 | ||
| 82663-50020 |
UCF1#..B,C NO.6,LOWER |
1 | ||
| 82662-50020 |
UCF10..A NO.6,UPPER |
1 | ||
| 82662-50010 |
UCF1# NO.5,UPPER |
1 | ||
| 82663-50020 |
UCF10..A NO.6,LOWER |
1 | ||
| 82663-50020 |
UCF10..A NO.6,LOWER |
1 | ||
| 82663-50010 |
UCF1# NO.5,LOWER |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-50020 |
UCF1# NO.2 |
1 | ||
| 82671-50011 |
UCF1# NO.1 |
1 | ||
| 82671-50010 |
UCF1# NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-50060 |
UCF1# NO.1,FUSE COVER |
1 | ||
| 82672-50030 |
UCF1# NO.3 |
1 | ||
| 82672-50061 |
UCF1# NO.1,FUSE COVER |
1 | ||
| 82672-50091 |
UCF1# NO.2,UPPER |
1 | ||
| 82674-50011 |
UCF1# NO.2,LOWER |
1 | ||
| 82674-50010 |
UCF1# NO.2,LOWER |
1 | ||
| 82672-50090 |
UCF1# NO.2,UPPER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-50060 |
UCF1# NO.1,FUSE COVER |
1 | ||
| 82672-50030 |
UCF1# NO.3 |
1 | ||
| 82672-50061 |
UCF1# NO.1,FUSE COVER |
1 | ||
| 82672-50091 |
UCF1# NO.2,UPPER |
1 | ||
| 82674-50011 |
UCF1# NO.2,LOWER |
1 | ||
| 82674-50010 |
UCF1# NO.2,LOWER |
1 | ||
| 82672-50090 |
UCF1# NO.2,UPPER |
1 | ||
| 85335 - SWITCH ASSY, WASHER LEVEL WARNING | ||||
| 85397-50040 |
UCF1# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85925-17010 |
UCF1# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
UCF1# HEADLAMP |
1 | ||
| 90987-02008 |
UCF1# TAIL LAMP |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-50030 |
UCF1#..B,C |
1 | ||
| 85999-50030 |
UCF1# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
UCF1# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
UCF1# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-50010 |
UCF1# ENGINE |
1 | ||
| 89429-24020 |
UCF1# |
1 | ||
| 89429-32010 |
UCF1# RADIATOR,LOWER |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12050 |
UCF1# |
2 | ||
| 89621-12010 |
UCF1# |
2 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12050 |
UCF1# |
2 | ||
| 89621-12010 |
UCF1# |
2 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 82678-24010 | ||||
| 82678-50010 | ||||
| 90119-06374 | ||||
| 90119-06390 | ||||
| 90179-06143 | ||||
| 90179-06263 | ||||
| 91656-40618 | ||||
| 93319-15008 | ||||
(8911- )

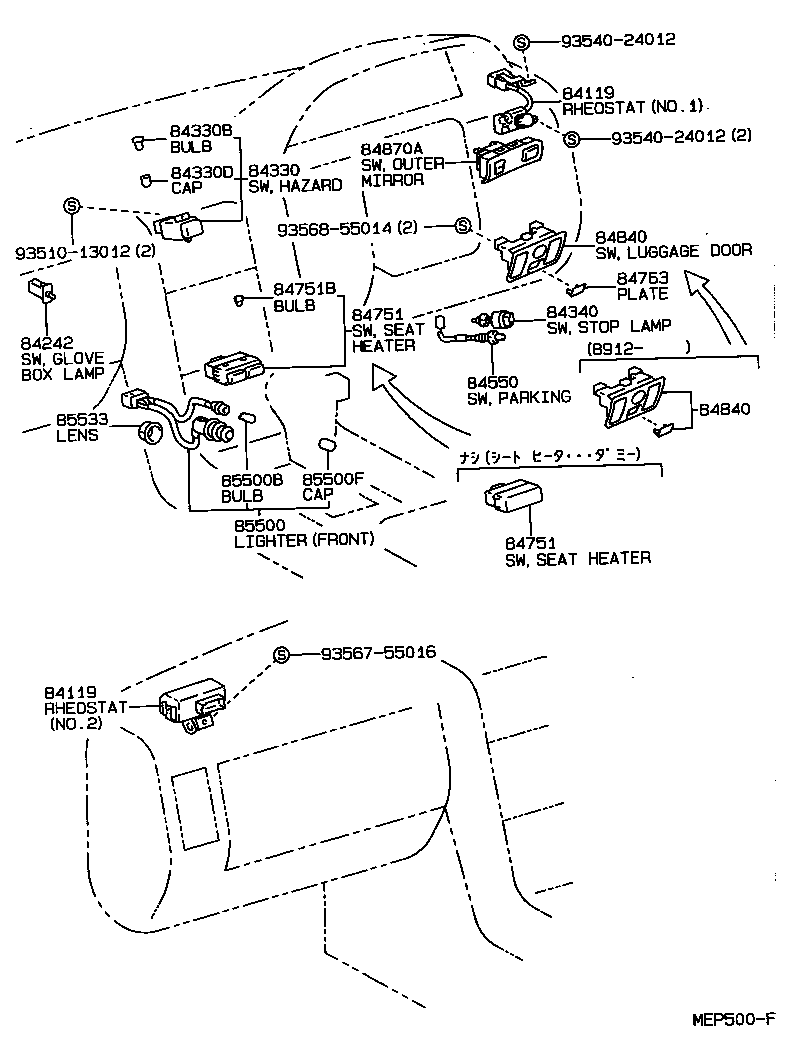

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-50130 |
UCF10..A ｱﾘ(*80)---ｼﾞﾖｼﾕｾｷ,NO.2 |
1 | ||
| 84119-50020 |
UCF10..A NO.2 |
1 | ||
| 84119-50040 |
UCF1#..A,C NO.1 |
1 | ||
| 84119-50140 |
UCF1#..B,C NO.2 |
1 | ||
| 84119-50100 |
UCF1# NO.1 |
1 | ||
| 84119-50150 |
UCF1#..B,C ｱﾘ(*80)---ｼﾞﾖｼﾕｾｷ,NO.2 |
1 | ||
| 84119-50030 |
UCF1#..B,C NO.2 |
1 | ||
| 84119-50160 |
UCF10..A NO.2 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-50130 |
UCF10..A ｱﾘ(*80)---ｼﾞﾖｼﾕｾｷ,NO.2 |
1 | ||
| 84119-50020 |
UCF10..A NO.2 |
1 | ||
| 84119-50040 |
UCF1#..A,C NO.1 |
1 | ||
| 84119-50140 |
UCF1#..B,C NO.2 |
1 | ||
| 84119-50100 |
UCF1# NO.1 |
1 | ||
| 84119-50150 |
UCF1#..B,C ｱﾘ(*80)---ｼﾞﾖｼﾕｾｷ,NO.2 |
1 | ||
| 84119-50030 |
UCF1#..B,C NO.2 |
1 | ||
| 84119-50160 |
UCF10..A NO.2 |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
UCF1# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-50010 |
UCF1# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
UCF1# 14V 0.84W |
1 | ||
| 84330D - CAP, HAZARD WARNING SWITCH BULB | ||||
| 84998-10240 |
UCF1# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-50010 |
UCF1# |
1 | ||
| 84340-50020 |
UCF1# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-32020 |
UCF1# |
1 | ||
| 84550-50010 |
UCF1# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-50020 |
UCF1# ﾅｼ(ｼ-ﾄ ﾋ-ﾀ---ﾀﾞﾐ-),INSTRUMENT PANEL |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-50020 |
UCF1# ﾅｼ(ｼ-ﾄ ﾋ-ﾀ---ﾀﾞﾐ-),INSTRUMENT PANEL |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 84763-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 84763-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 84763-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 84840-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 84840-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 84840-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 84840-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 84840-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 84840-50010K0 |
UCF1#..B,C ME.TAUPE,TRIM9# |
1 | ||
| 84840-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 84840-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 84840-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 84840-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 84840-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 84840-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 84840-50010K0 |
UCF1#..B,C ME.TAUPE,TRIM9# |
1 | ||
| 84840-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-5005004 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),DARK BLUE,TRIM8# |
1 | ||
| 84870-5007005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 84870-5005005 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),GREIGE,TRIM0# |
1 | ||
| 84870-5005006 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),DARK ROSE,TRIM4# |
1 | ||
| 84870-5004004 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),DARK BLUE,TRIM8# |
1 | ||
| 84870-5004003 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),SHADOW GRAY,TRIM1# |
1 | ||
| 84870-5005003 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),SHADOW GRAY,TRIM1# |
1 | ||
| 84870-50150B0 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 84870-50140E0 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),OAK,TRIM0# |
1 | ||
| 84870-5007004 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 84870-5007003 |
UCF1#..B,C SHDOW GRAY,TRIM1# |
1 | ||
| 84870-5008003 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 84870-50140J0 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),DK.BLUE,TRIM8# |
1 | ||
| 84870-50170B0 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),SHADOW GRAY,TRIM1# |
1 | ||
| 84870-5008004 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 84870-50160B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 84870-5007006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 84870-50150J0 |
UCF1#..B,C DK.BLUE,TRIM8# |
1 | ||
| 84870-50140B0 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),SHADOW GRAY,TRIM1# |
1 | ||
| 84870-50140K0 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),TAUPE,TRIM9# |
1 | ||
| 84870-50150E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 84870-50170J0 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),DK.BLUE,TRIM8# |
1 | ||
| 84870-50160J0 |
UCF10..A DK.BLUE,TRIM8# |
1 | ||
| 84870-50150K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50020 |
UCF1# REAR |
1 | ||
| 85500-50010 |
UCF1# FRONT |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
UCF1# 14V 1.4W,REAR |
1 | ||
| 84999-10440 |
UCF1# 14V 2.0W,FRONT |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10530 |
UCF1# FRONT |
1 | ||
| 84998-10540 |
UCF1# REAR |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 93510-13012 | ||||
| 93540-24012 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
(8911- )

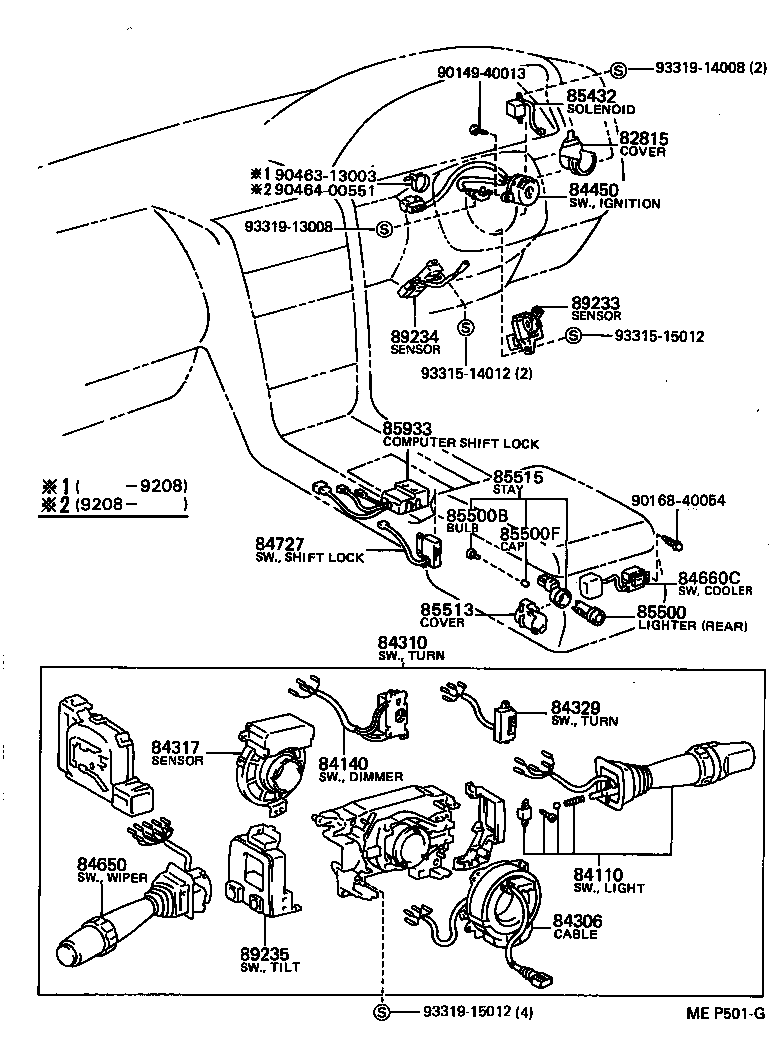

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815 - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-50010 |
UCF1# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-59046 |
UCF1# |
1 | ||
| 84112-59045 |
UCF1# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-50020 |
UCF1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-50060 |
UCF1# |
1 | ||
| 84306-50100 |
UCF1# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-50211 |
UCF10..A |
1 | ||
| 84310-50290 |
UCF1#..B,C |
1 | ||
| 84310-50210 |
UCF10..A |
1 | ||
| 84310-50190 |
UCF1#..B,C |
1 | ||
| 84317 - SENSOR, STEERING POSITION | ||||
| 84317-50020 |
UCF1#..B,C |
1 | ||
| 84317-50040 |
UCF1#..B,C |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-50010 |
UCF1# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-50020 |
UCF1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-50040 |
UCF1# |
1 | ||
| 84652-50041 |
UCF1# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-50040 |
UCF1# |
1 | ||
| 84660-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 84660-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 84660-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 84660-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-50020 |
UCF1# |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-50010 |
UCF1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50020 |
UCF1# REAR |
1 | ||
| 85500-50010 |
UCF1# FRONT |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
UCF1# 14V 1.4W,REAR |
1 | ||
| 84999-10440 |
UCF1# 14V 2.0W,FRONT |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10530 |
UCF1# FRONT |
1 | ||
| 84998-10540 |
UCF1# REAR |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
UCF1# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-50010 |
UCF1# |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-50010 |
UCF1# |
1 | ||
| 85933-50030 |
UCF1# |
1 | ||
| 89233 - SENSOR, TILT POSITION | ||||
| 89233-50010 |
UCF1# |
1 | ||
| 89234 - SENSOR, TELESCOPIC POSITION | ||||
| 89234-50010 |
UCF1#..B,C |
1 | ||
| 89235 - SWITCH, TILT STEERING | ||||
| 89235-50041 |
UCF1#..B,C |
1 | ||
| 89235-50030 |
UCF10..A |
1 | ||
| 89235-50040 |
UCF1#..B,C |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90168-40054 | ||||
| 90463-13003 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93315-15012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
(8911- )

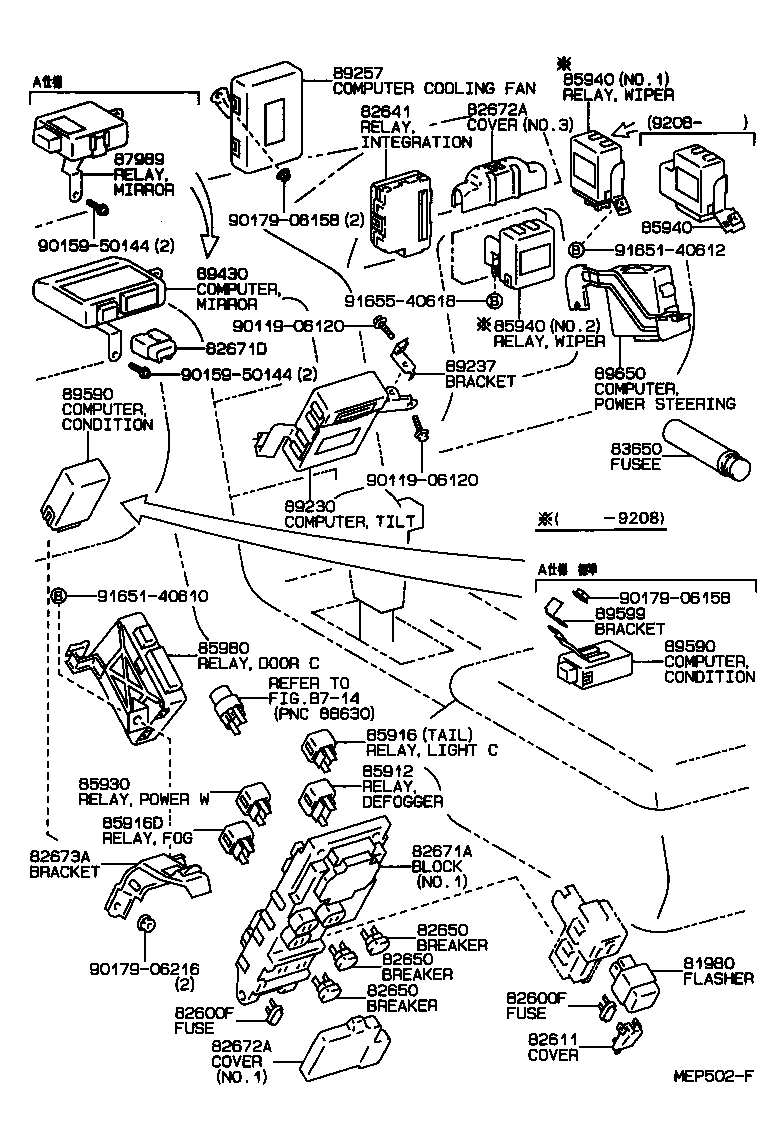

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50010 |
UCF1# |
1 | ||
| 81980-12070 |
UCF1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
UCF1# 15A |
7 | ||
| 90982-09002 |
UCF1# 10A |
4 | ||
| 90982-09004 |
UCF1# 20A,黄 |
5 | ||
| 90982-09005 |
UCF1# 7.5A |
5 | ||
| 90982-09006 |
UCF1# 25A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
UCF1# 15A |
7 | ||
| 90982-09002 |
UCF1# 10A |
4 | ||
| 90982-09004 |
UCF1# 20A,黄 |
5 | ||
| 90982-09005 |
UCF1# 7.5A |
5 | ||
| 90982-09006 |
UCF1# 25A |
2 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-50010 |
UCF1# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-50040 |
UCF1# |
1 | ||
| 82641-50010 |
UCF1# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
UCF1# 30A |
4 | ||
| 82650-20011 |
UCF1# 30A |
2 | ||
| 82650-20020 |
UCF1# 40A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
UCF1# 30A |
4 | ||
| 82650-20011 |
UCF1# 30A |
2 | ||
| 82650-20020 |
UCF1# 40A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
UCF1# 30A |
4 | ||
| 82650-20011 |
UCF1# 30A |
2 | ||
| 82650-20020 |
UCF1# 40A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-50020 |
UCF1# NO.2 |
1 | ||
| 82671-50011 |
UCF1# NO.1 |
1 | ||
| 82671-50010 |
UCF1# NO.1 |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30350 |
UCF1# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-50060 |
UCF1# NO.1,FUSE COVER |
1 | ||
| 82672-50030 |
UCF1# NO.3 |
1 | ||
| 82672-50061 |
UCF1# NO.1,FUSE COVER |
1 | ||
| 82672-50091 |
UCF1# NO.2,UPPER |
1 | ||
| 82674-50011 |
UCF1# NO.2,LOWER |
1 | ||
| 82674-50010 |
UCF1# NO.2,LOWER |
1 | ||
| 82672-50090 |
UCF1# NO.2,UPPER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-50060 |
UCF1# NO.1,FUSE COVER |
1 | ||
| 82672-50030 |
UCF1# NO.3 |
1 | ||
| 82672-50061 |
UCF1# NO.1,FUSE COVER |
1 | ||
| 82672-50091 |
UCF1# NO.2,UPPER |
1 | ||
| 82674-50011 |
UCF1# NO.2,LOWER |
1 | ||
| 82674-50010 |
UCF1# NO.2,LOWER |
1 | ||
| 82672-50090 |
UCF1# NO.2,UPPER |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-50020 |
UCF1# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
UCF1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02011 |
UCF1# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
UCF1# HEADLAMP |
1 | ||
| 90987-02008 |
UCF1# TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02008 |
UCF1# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02008 |
UCF1# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-50041 |
UCF1# NO.2 |
1 | ||
| 85940-50021 |
UCF1# NO.1 |
1 | ||
| 85940-50080 |
UCF1# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-50041 |
UCF1# NO.2 |
1 | ||
| 85940-50021 |
UCF1# NO.1 |
1 | ||
| 85940-50080 |
UCF1# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-50041 |
UCF1# NO.2 |
1 | ||
| 85940-50021 |
UCF1# NO.1 |
1 | ||
| 85940-50080 |
UCF1# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-50010 |
UCF1# |
1 | ||
| 85980-50011 |
UCF1# |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-50020 |
UCF10..A |
1 | ||
| 87989-50011 |
UCF10..A |
1 | ||
| 89230 - COMPUTER ASSY, TILT STEERING | ||||
| 89230-50030 |
UCF10..A |
1 | ||
| 89237 - BRACKET, COMPUTER UNIT | ||||
| 89237-50010 |
UCF1# |
1 | ||
| 89237-50011 |
UCF1# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-50010 |
UCF1# |
1 | ||
| 89257-50020 |
UCF1# |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-50020 |
UCF1#..B,C |
1 | ||
| 89430-50050 |
UCF1#..B,C |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-50020 |
UCF10..A |
1 | ||
| 89590-50011 |
UCF10..A ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 89590-50011 |
UCF1#..B,C |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-50020 |
UCF10..A |
1 | ||
| 89590-50011 |
UCF10..A ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 89590-50011 |
UCF1#..B,C |
1 | ||
| 89599 - BRACKET, CONDITION INDICATOR COMPUTER | ||||
| 89599-50020 |
UCF10..A |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-50030 |
UCF1# |
1 | ||
| 89650-50070 |
UCF1# |
1 | ||
| 89650-50031 |
UCF1# |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90159-50144 | ||||
| 90179-06158 | ||||
| 90179-06216 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91655-40618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
(8911- )

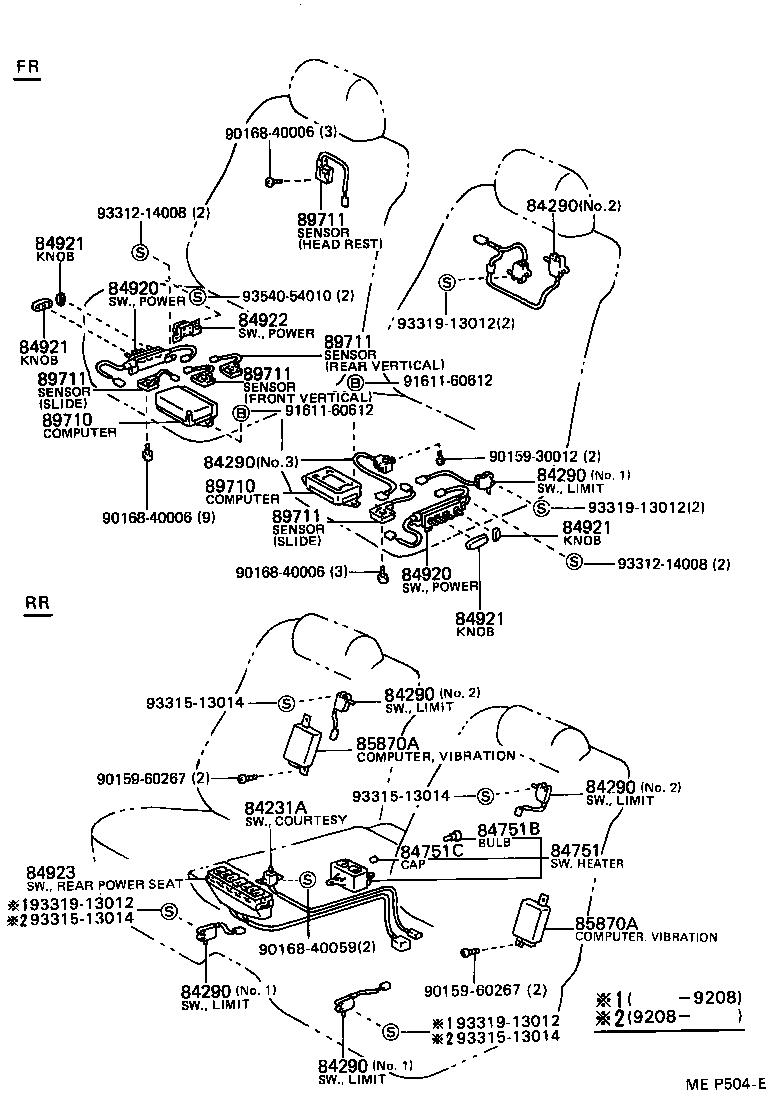

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-50020 |
UCF1# ﾅｼ(ｼ-ﾄ ﾋ-ﾀ---ﾀﾞﾐ-),INSTRUMENT PANEL |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-50060 |
UCF10 右側 |
1 | ||
| 84920-50130 |
UCF10 左側 |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-50060 |
UCF10 右側 |
1 | ||
| 84920-50130 |
UCF10 左側 |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-5001004 |
UCF1# BLUE,TRIM8#,SEAT POSITION,LH |
1 | ||
| 84921-5001008 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,LH |
1 | ||
| 84921-5001006 |
UCF1#..B,C ROSE,TRIM4#,SEAT POSITION,LH |
1 | ||
| 84921-5001003 |
UCF1# GRAY,TRIM1#,SEAT POSITION,LH |
1 | ||
| 84921-5003004 |
UCF10 BLUE,TRIM8#,BACK ANGLE,LH |
1 | ||
| 84921-5005003 |
UCF10 GRAY,TRIM1#,BACK ANGLE,RH |
1 | ||
| 84921-5007005 |
UCF1#..B,C ROSE,TRIM4#,SEAT POSITION,RH |
1 | ||
| 84921-5003003 |
UCF10 GRAY,TRIM1#,BACK ANGLE,LH |
1 | ||
| 84921-5005004 |
UCF10 BLUE,TRIM8#,BACK ANGLE,RH |
1 | ||
| 84921-5007003 |
UCF1# GRAY,TRIM1#,SEAT POSITION,RH |
1 | ||
| 84921-50010A0 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,LH |
1 | ||
| 84921-50010S7 |
UCF1# SLATE GRAY,TRIM1#,SEAT POSITION,LH |
1 | ||
| 84921-5007004 |
UCF1# BLUE,TRIM8#,SEAT POSITION,RH |
1 | ||
| 84921-50010K0 |
UCF1#..B,C ME.TAUPE,TRIM9#,SEAT POSITION,LH |
1 | ||
| 84921-5007008 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,RH |
1 | ||
| 84921-50050S7 |
UCF10 SLATE GRAY,TRIM1#,BACK ANGLE,RH |
1 | ||
| 84921-50010W4 |
UCF1# EISEN BLUE,TRIM8#,SEAT POSITION,LH |
1 | ||
| 84921-50030S7 |
UCF10 SLATE GRAY,TRIM1#,BACK ANGLE,LH |
1 | ||
| 84921-50050W4 |
UCF10 EISEN BLUE,TRIM8#,BACK ANGLE,RH |
1 | ||
| 84921-50030W4 |
UCF10 EISEN BLUE,TRIM8#,BACK ANGLE,LH |
1 | ||
| 84921-50070A0 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,RH |
1 | ||
| 84921-50070K0 |
UCF1#..B,C ME.TAUPE,TRIM9#,SEAT POSITION,RH |
1 | ||
| 84921-50070W4 |
UCF1# EISEN BLUE,TRIM8#,SEAT POSITION,RH |
1 | ||
| 84921-50070S7 |
UCF1# SLATE GRAY,TRIM1#,SEAT POSITION,RH |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-5001004 |
UCF1# BLUE,TRIM8#,SEAT POSITION,LH |
1 | ||
| 84921-5001008 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,LH |
1 | ||
| 84921-5001006 |
UCF1#..B,C ROSE,TRIM4#,SEAT POSITION,LH |
1 | ||
| 84921-5001003 |
UCF1# GRAY,TRIM1#,SEAT POSITION,LH |
1 | ||
| 84921-5003004 |
UCF10 BLUE,TRIM8#,BACK ANGLE,LH |
1 | ||
| 84921-5005003 |
UCF10 GRAY,TRIM1#,BACK ANGLE,RH |
1 | ||
| 84921-5007005 |
UCF1#..B,C ROSE,TRIM4#,SEAT POSITION,RH |
1 | ||
| 84921-5003003 |
UCF10 GRAY,TRIM1#,BACK ANGLE,LH |
1 | ||
| 84921-5005004 |
UCF10 BLUE,TRIM8#,BACK ANGLE,RH |
1 | ||
| 84921-5007003 |
UCF1# GRAY,TRIM1#,SEAT POSITION,RH |
1 | ||
| 84921-50010A0 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,LH |
1 | ||
| 84921-50010S7 |
UCF1# SLATE GRAY,TRIM1#,SEAT POSITION,LH |
1 | ||
| 84921-5007004 |
UCF1# BLUE,TRIM8#,SEAT POSITION,RH |
1 | ||
| 84921-50010K0 |
UCF1#..B,C ME.TAUPE,TRIM9#,SEAT POSITION,LH |
1 | ||
| 84921-5007008 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,RH |
1 | ||
| 84921-50050S7 |
UCF10 SLATE GRAY,TRIM1#,BACK ANGLE,RH |
1 | ||
| 84921-50010W4 |
UCF1# EISEN BLUE,TRIM8#,SEAT POSITION,LH |
1 | ||
| 84921-50030S7 |
UCF10 SLATE GRAY,TRIM1#,BACK ANGLE,LH |
1 | ||
| 84921-50050W4 |
UCF10 EISEN BLUE,TRIM8#,BACK ANGLE,RH |
1 | ||
| 84921-50030W4 |
UCF10 EISEN BLUE,TRIM8#,BACK ANGLE,LH |
1 | ||
| 84921-50070A0 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,RH |
1 | ||
| 84921-50070K0 |
UCF1#..B,C ME.TAUPE,TRIM9#,SEAT POSITION,RH |
1 | ||
| 84921-50070W4 |
UCF1# EISEN BLUE,TRIM8#,SEAT POSITION,RH |
1 | ||
| 84921-50070S7 |
UCF1# SLATE GRAY,TRIM1#,SEAT POSITION,RH |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-5001004 |
UCF1# BLUE,TRIM8#,SEAT POSITION,LH |
1 | ||
| 84921-5001008 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,LH |
1 | ||
| 84921-5001006 |
UCF1#..B,C ROSE,TRIM4#,SEAT POSITION,LH |
1 | ||
| 84921-5001003 |
UCF1# GRAY,TRIM1#,SEAT POSITION,LH |
1 | ||
| 84921-5003004 |
UCF10 BLUE,TRIM8#,BACK ANGLE,LH |
1 | ||
| 84921-5005003 |
UCF10 GRAY,TRIM1#,BACK ANGLE,RH |
1 | ||
| 84921-5007005 |
UCF1#..B,C ROSE,TRIM4#,SEAT POSITION,RH |
1 | ||
| 84921-5003003 |
UCF10 GRAY,TRIM1#,BACK ANGLE,LH |
1 | ||
| 84921-5005004 |
UCF10 BLUE,TRIM8#,BACK ANGLE,RH |
1 | ||
| 84921-5007003 |
UCF1# GRAY,TRIM1#,SEAT POSITION,RH |
1 | ||
| 84921-50010A0 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,LH |
1 | ||
| 84921-50010S7 |
UCF1# SLATE GRAY,TRIM1#,SEAT POSITION,LH |
1 | ||
| 84921-5007004 |
UCF1# BLUE,TRIM8#,SEAT POSITION,RH |
1 | ||
| 84921-50010K0 |
UCF1#..B,C ME.TAUPE,TRIM9#,SEAT POSITION,LH |
1 | ||
| 84921-5007008 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,RH |
1 | ||
| 84921-50050S7 |
UCF10 SLATE GRAY,TRIM1#,BACK ANGLE,RH |
1 | ||
| 84921-50010W4 |
UCF1# EISEN BLUE,TRIM8#,SEAT POSITION,LH |
1 | ||
| 84921-50030S7 |
UCF10 SLATE GRAY,TRIM1#,BACK ANGLE,LH |
1 | ||
| 84921-50050W4 |
UCF10 EISEN BLUE,TRIM8#,BACK ANGLE,RH |
1 | ||
| 84921-50030W4 |
UCF10 EISEN BLUE,TRIM8#,BACK ANGLE,LH |
1 | ||
| 84921-50070A0 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,RH |
1 | ||
| 84921-50070K0 |
UCF1#..B,C ME.TAUPE,TRIM9#,SEAT POSITION,RH |
1 | ||
| 84921-50070W4 |
UCF1# EISEN BLUE,TRIM8#,SEAT POSITION,RH |
1 | ||
| 84921-50070S7 |
UCF1# SLATE GRAY,TRIM1#,SEAT POSITION,RH |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-5001004 |
UCF1# BLUE,TRIM8#,SEAT POSITION,LH |
1 | ||
| 84921-5001008 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,LH |
1 | ||
| 84921-5001006 |
UCF1#..B,C ROSE,TRIM4#,SEAT POSITION,LH |
1 | ||
| 84921-5001003 |
UCF1# GRAY,TRIM1#,SEAT POSITION,LH |
1 | ||
| 84921-5003004 |
UCF10 BLUE,TRIM8#,BACK ANGLE,LH |
1 | ||
| 84921-5005003 |
UCF10 GRAY,TRIM1#,BACK ANGLE,RH |
1 | ||
| 84921-5007005 |
UCF1#..B,C ROSE,TRIM4#,SEAT POSITION,RH |
1 | ||
| 84921-5003003 |
UCF10 GRAY,TRIM1#,BACK ANGLE,LH |
1 | ||
| 84921-5005004 |
UCF10 BLUE,TRIM8#,BACK ANGLE,RH |
1 | ||
| 84921-5007003 |
UCF1# GRAY,TRIM1#,SEAT POSITION,RH |
1 | ||
| 84921-50010A0 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,LH |
1 | ||
| 84921-50010S7 |
UCF1# SLATE GRAY,TRIM1#,SEAT POSITION,LH |
1 | ||
| 84921-5007004 |
UCF1# BLUE,TRIM8#,SEAT POSITION,RH |
1 | ||
| 84921-50010K0 |
UCF1#..B,C ME.TAUPE,TRIM9#,SEAT POSITION,LH |
1 | ||
| 84921-5007008 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,RH |
1 | ||
| 84921-50050S7 |
UCF10 SLATE GRAY,TRIM1#,BACK ANGLE,RH |
1 | ||
| 84921-50010W4 |
UCF1# EISEN BLUE,TRIM8#,SEAT POSITION,LH |
1 | ||
| 84921-50030S7 |
UCF10 SLATE GRAY,TRIM1#,BACK ANGLE,LH |
1 | ||
| 84921-50050W4 |
UCF10 EISEN BLUE,TRIM8#,BACK ANGLE,RH |
1 | ||
| 84921-50030W4 |
UCF10 EISEN BLUE,TRIM8#,BACK ANGLE,LH |
1 | ||
| 84921-50070A0 |
UCF1#..B,C IVORY,TRIM0#,SEAT POSITION,RH |
1 | ||
| 84921-50070K0 |
UCF1#..B,C ME.TAUPE,TRIM9#,SEAT POSITION,RH |
1 | ||
| 84921-50070W4 |
UCF1# EISEN BLUE,TRIM8#,SEAT POSITION,RH |
1 | ||
| 84921-50070S7 |
UCF1# SLATE GRAY,TRIM1#,SEAT POSITION,RH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-5004003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 84922-5004004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 84922-50040K0 |
UCF1#..B,C ME.TAUPE,TRIM9# |
1 | ||
| 84922-50040W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 84922-5004008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 84922-50040A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 84922-5004005 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 84922-50040S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-30012 | ||||
| 90159-60267 | ||||
| 90168-40006 | ||||
| 90168-40059 | ||||
| 91611-60612 | ||||
| 93312-14008 | ||||
| 93315-13014 | ||||
| 93319-13012 | ||||
| 93540-54010 | ||||
(8911- )

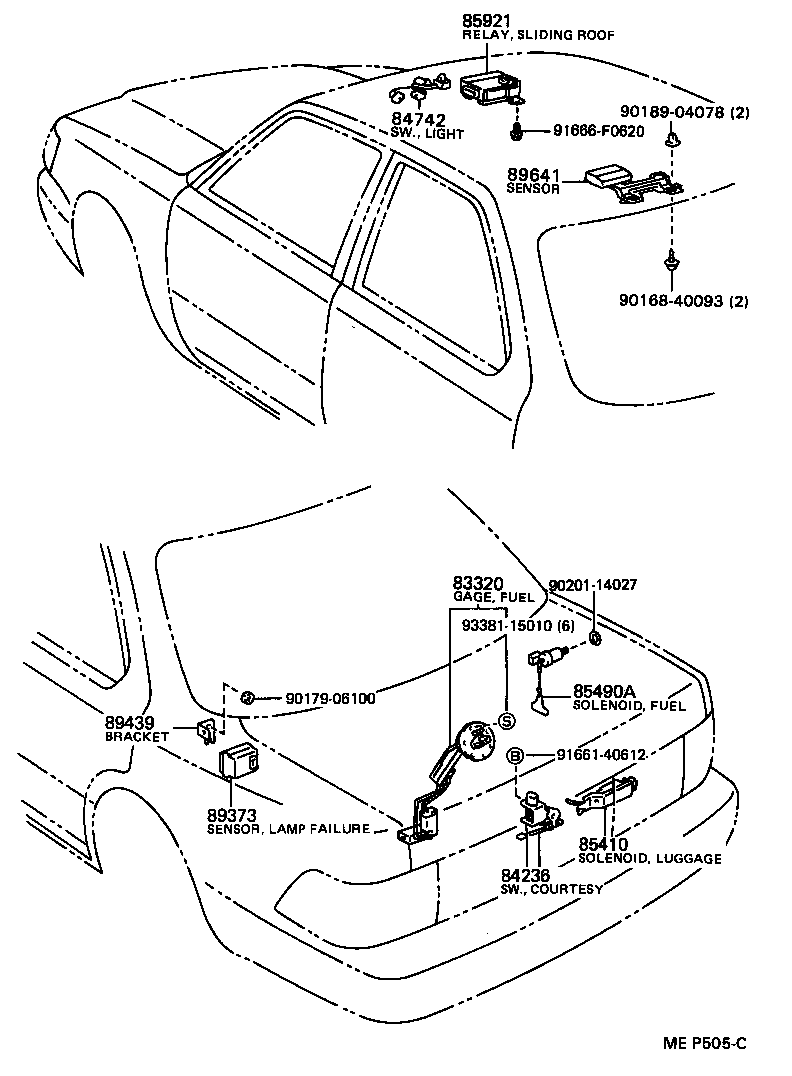

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-59045 |
UCF1# |
1 | ||
| 83320-59065 |
UCF1# |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-50020 |
UCF1# |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-30030 |
UCF1# |
1 | ||
| 85410 - SOLENOID ASSY, LUGGAGE DOOR LOCK | ||||
| 85410-50010 |
UCF1# |
1 | ||
| 85490A - SOLENOID ASSY, FUEL LID OPENER | ||||
| 85490-50020 |
UCF1# |
1 | ||
| 85490-50010 |
UCF1# |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-50010 |
UCF1#..B,C |
1 | ||
| 85921-30030 |
UCF1# |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-50020 |
UCF10..A |
1 | ||
| 89373-50020 |
UCF1# |
1 | ||
| 89373-50040 |
UCF10..A ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 89373-50020 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 89373-50040 |
UCF1#..B,C |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-50010 |
UCF1# |
1 | ||
| 89641 - SENSOR, MAGNETIC FIELD | ||||
| 89641-50010 |
UCF1#..B,C |
1 | ||
| Common parts | ||||
| 90168-40093 | ||||
| 90179-06100 | ||||
| 90189-04078 | ||||
| 90201-14027 | ||||
| 91661-40612 | ||||
| 91666-F0620 | ||||
| 93381-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
