UCF10-AEPNK (1989)
Toyota Celsior

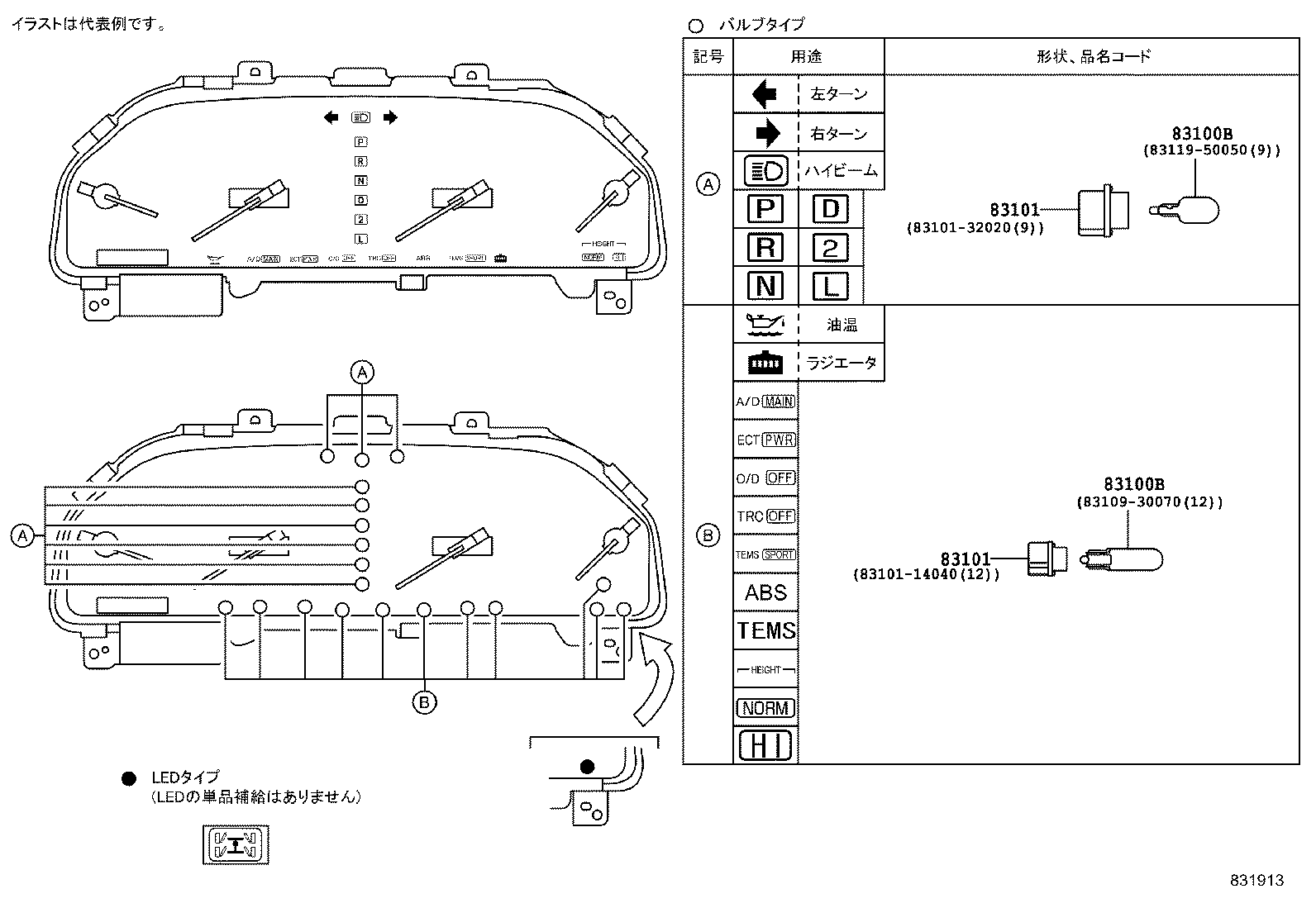

ILLUST NO. 2 OF 3(8911-9208)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-50050 |
UCF1# 14V 3.0W,LONG LIFE |
10 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
5 | ||
| 90981-11018 |
UCF1# 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
3 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
3 | ||
| 83109-30070 |
UCF1# 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-32010 |
UCF1# 14V 3.0W |
4 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
7 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
15 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66) |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-50050 |
UCF1# 14V 3.0W,LONG LIFE |
10 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
5 | ||
| 90981-11018 |
UCF1# 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
3 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
3 | ||
| 83109-30070 |
UCF1# 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-32010 |
UCF1# 14V 3.0W |
4 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
7 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
15 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66) |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
UCF1# 14V 3.0W |
10 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 14V 2.0W |
5 | ||
| 83101-14040 |
UCF1# 12V 1.4W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66),14V 2.0W |
12 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 12V 1.4W |
12 | ||
| 83101-30050 |
UCF10..A 14V 2.0W |
10 | ||
| 83101-32020 |
UCF1# 14V 3.0W |
4 | ||
| 83101-14040 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
7 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
15 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
13 | ||
| 83101-30050 |
UCF1# 14V 2.0W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
UCF1# 14V 3.0W |
10 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 14V 2.0W |
5 | ||
| 83101-14040 |
UCF1# 12V 1.4W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66),14V 2.0W |
12 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 12V 1.4W |
12 | ||
| 83101-30050 |
UCF10..A 14V 2.0W |
10 | ||
| 83101-32020 |
UCF1# 14V 3.0W |
4 | ||
| 83101-14040 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
7 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
15 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
13 | ||
| 83101-30050 |
UCF1# 14V 2.0W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
13 | ||

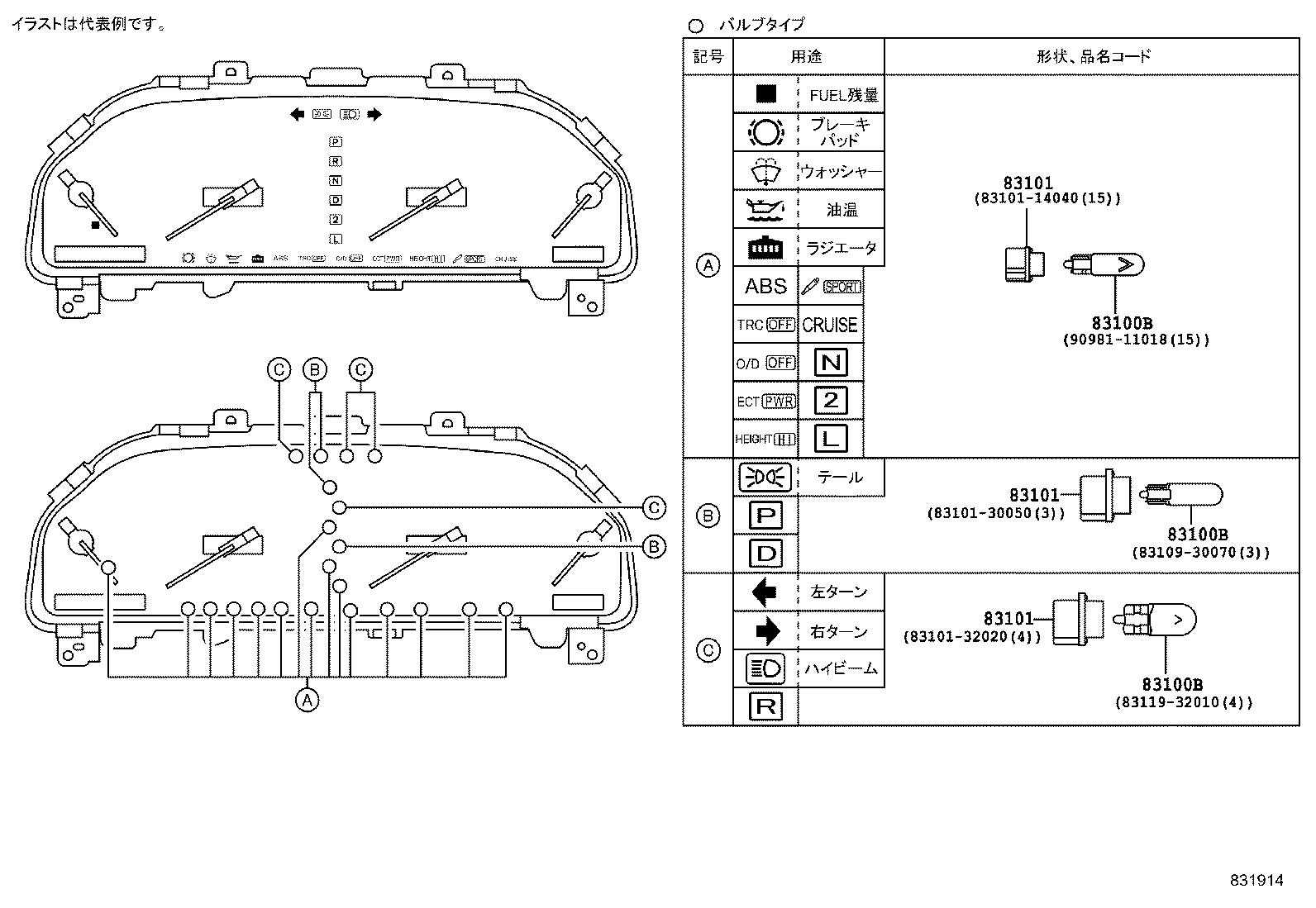

ILLUST NO. 2 OF 3(9208- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-50050 |
UCF1# 14V 3.0W,LONG LIFE |
10 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
5 | ||
| 90981-11018 |
UCF1# 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
3 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
3 | ||
| 83109-30070 |
UCF1# 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-32010 |
UCF1# 14V 3.0W |
4 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
7 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
15 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66) |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-50050 |
UCF1# 14V 3.0W,LONG LIFE |
10 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
5 | ||
| 90981-11018 |
UCF1# 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
3 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
3 | ||
| 83109-30070 |
UCF1# 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-32010 |
UCF1# 14V 3.0W |
4 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
7 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
15 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66) |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-50050 |
UCF1# 14V 3.0W,LONG LIFE |
10 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし |
5 | ||
| 90981-11018 |
UCF1# 12V 1.2W ｿｹｯﾄ無し |
15 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
6 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66) |
3 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
3 | ||
| 83109-30070 |
UCF1# 14V 2.0W,ｿｹｯﾄなし |
3 | ||
| 83119-32010 |
UCF1# 14V 3.0W |
4 | ||
| 83109-30070 |
UCF10..A 14V 2.0W,ｿｹｯﾄなし,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
7 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
15 | ||
| 90981-11018 |
UCF10..A 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*66) |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
UCF1# 14V 3.0W |
10 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 14V 2.0W |
5 | ||
| 83101-14040 |
UCF1# 12V 1.4W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66),14V 2.0W |
12 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 12V 1.4W |
12 | ||
| 83101-30050 |
UCF10..A 14V 2.0W |
10 | ||
| 83101-32020 |
UCF1# 14V 3.0W |
4 | ||
| 83101-14040 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
7 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
15 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
13 | ||
| 83101-30050 |
UCF1# 14V 2.0W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
UCF1# 14V 3.0W |
10 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 14V 2.0W |
5 | ||
| 83101-14040 |
UCF1# 12V 1.4W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66),14V 2.0W |
12 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 12V 1.4W |
12 | ||
| 83101-30050 |
UCF10..A 14V 2.0W |
10 | ||
| 83101-32020 |
UCF1# 14V 3.0W |
4 | ||
| 83101-14040 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
7 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
15 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
13 | ||
| 83101-30050 |
UCF1# 14V 2.0W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
UCF1# 14V 3.0W |
10 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 14V 2.0W |
5 | ||
| 83101-14040 |
UCF1# 12V 1.4W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66),14V 2.0W |
12 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
6 | ||
| 83101-14040 |
UCF10..A 12V 1.4W |
12 | ||
| 83101-30050 |
UCF10..A 14V 2.0W |
10 | ||
| 83101-32020 |
UCF1# 14V 3.0W |
4 | ||
| 83101-14040 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
7 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
15 | ||
| 83101-14040 |
UCF10..A ｱﾘ(*66),14V 2.0W |
13 | ||
| 83101-30050 |
UCF1# 14V 2.0W |
3 | ||
| 83101-30050 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),14V 2.0W |
13 | ||

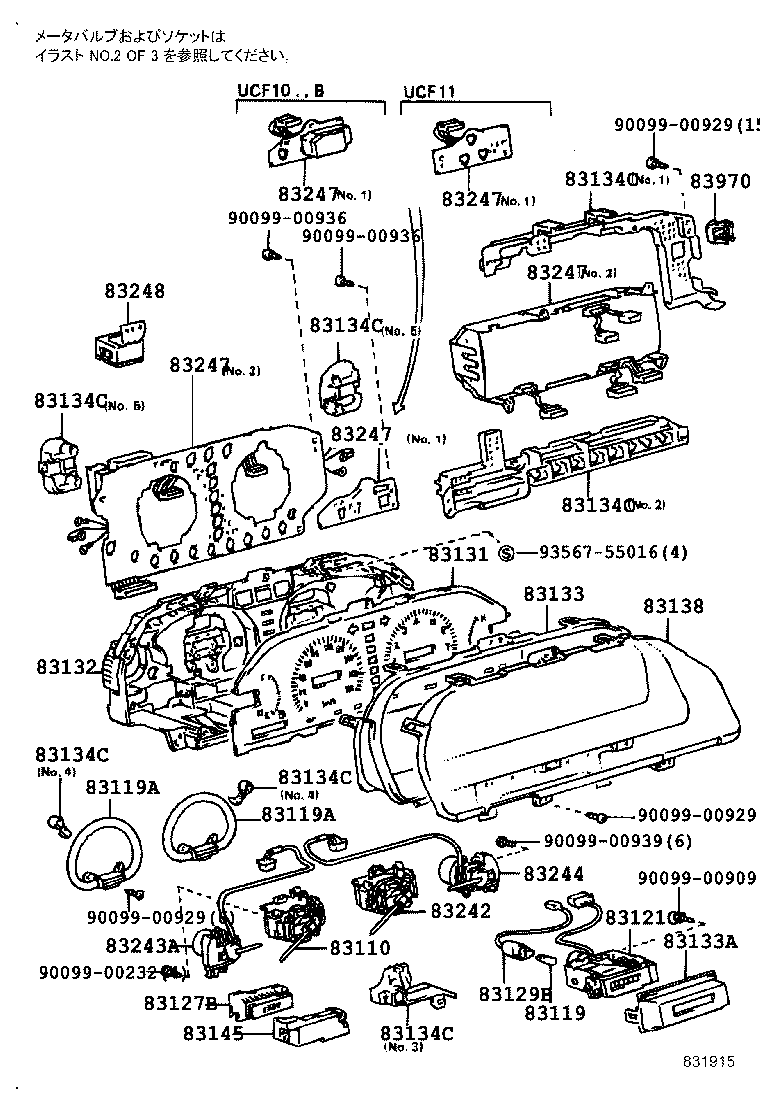

ILLUST NO. 1 OF 3(8911-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-50270 |
UCF1# |
1 | ||
| 83110-50090 |
UCF1# |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-50030 |
UCF1# 14V 3.0W,ｷｬｯﾌﾟ付き |
1 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50090 |
UCF1# |
2 | ||
| 83119-50010 |
UCF1# |
2 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50090 |
UCF1# |
2 | ||
| 83119-50010 |
UCF1# |
2 | ||
| 83121C - ODOMETER ASSY | ||||
| 83121-50070 |
UCF1# |
1 | ||
| 83127B - COMPUTER ASSY | ||||
| 83127-50050 |
UCF1# |
1 | ||
| 83129B - SOCKET SUB-ASSY, METER BULB | ||||
| 83129-50030 |
UCF1# |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-50690 |
UCF10..A |
1 | ||
| 83131-50390 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 83131-50710 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 83131-50730 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83131-50390 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83131-50370 |
UCF10..A |
1 | ||
| 83131-50610 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-50090 |
UCF10..A |
1 | ||
| 83132-50230 |
UCF10..A |
1 | ||
| 83132-50170 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 83132-50170 |
UCF1#..B,C |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-50090 |
UCF1# |
1 | ||
| 83133-50070 |
UCF1# |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-50050 |
UCF1# |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-50050 |
UCF1# |
1 | ||
| 83138-50030 |
UCF1# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-50050 |
UCF1# |
1 | ||
| 83145-50070 |
UCF1# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-50050 |
UCF1# |
1 | ||
| 83242-50030 |
UCF1# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-50050 |
UCF1# |
1 | ||
| 83243-50030 |
UCF1# |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-50070 |
UCF1# |
1 | ||
| 83244-50050 |
UCF1# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-50020 |
UCF1# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90099-00232 | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90099-00936 | ||||
| 90099-00939 | ||||
| 93567-55016 | ||||

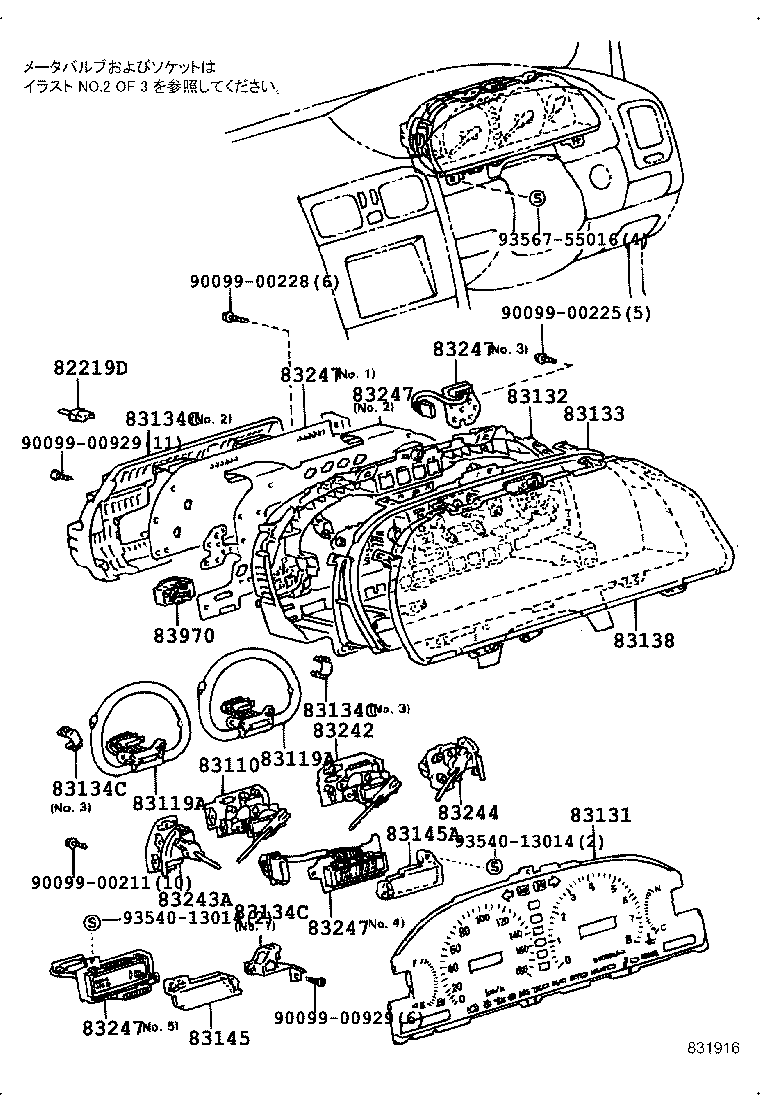

ILLUST NO. 1 OF 3(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82219D - WIRE, SENSOR | ||||
| 82219-24010 |
UCF1# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-50090 |
UCF1# |
1 | ||
| 83110-50270 |
UCF1# |
1 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50090 |
UCF1# |
2 | ||
| 83119-50010 |
UCF1# |
2 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50090 |
UCF1# |
2 | ||
| 83119-50010 |
UCF1# |
2 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-50690 |
UCF10..A |
1 | ||
| 83131-50710 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 83131-50390 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 83131-50730 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83131-50390 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83131-50370 |
UCF10..A |
1 | ||
| 83131-50610 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-50090 |
UCF10..A |
1 | ||
| 83132-50230 |
UCF10..A |
1 | ||
| 83132-50170 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 83132-50170 |
UCF1#..B,C |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-50090 |
UCF1# |
1 | ||
| 83133-50070 |
UCF1# |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50250 |
UCF1# NO.1 |
1 | ||
| 83134-50290 |
UCF1# NO.2 |
1 | ||
| 83134-50070 |
UCF1# NO.4 |
2 | ||
| 83134-50150 |
UCF1#..A,C NO.1 |
1 | ||
| 83134-50330 |
UCF1# NO.3 |
2 | ||
| 83134-50170 |
UCF1# NO.2 |
1 | ||
| 83134-50230 |
UCF1# NO.3 |
1 | ||
| 83134-50130 |
UCF1# NO.5 |
2 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-50050 |
UCF1# |
1 | ||
| 83138-50030 |
UCF1# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-50050 |
UCF1# |
1 | ||
| 83145-50070 |
UCF1# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-50090 |
UCF1# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-50050 |
UCF1# |
1 | ||
| 83242-50030 |
UCF1# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-50050 |
UCF1# |
1 | ||
| 83243-50030 |
UCF1# |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-50070 |
UCF1# |
1 | ||
| 83244-50050 |
UCF1# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50250 |
UCF1# NO.2 |
1 | ||
| 83247-50710 |
UCF1# NO.2 |
1 | ||
| 83134-50190 |
UCF10..A NO.1 |
1 | ||
| 83247-50730 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-5A190 |
UCF10..A NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66),NO.3 |
1 | ||
| 83247-50810 |
UCF1# NO.4 |
1 | ||
| 83247-50250 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50750 |
UCF1# NO.3 |
1 | ||
| 83247-5A210 |
UCF10..A ｱﾘ(*66),NO.2 |
1 | ||
| 83247-50470 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.3 |
1 | ||
| 83247-50790 |
UCF1# NO.5 |
1 | ||
| 83247-50850 |
UCF1# NO.1 |
1 | ||
| 83247-5A230 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ),NO.2 |
1 | ||
| 83247-50490 |
UCF10..A NO.3 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00228 | ||||
| 90099-00929 | ||||
| 93540-13014 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 3(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-50010 |
UCF1# |
1 | ||
| 83181-24040 |
UCF1# |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91651-40820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
