UCF10-AEPNK (1989)
Toyota Celsior

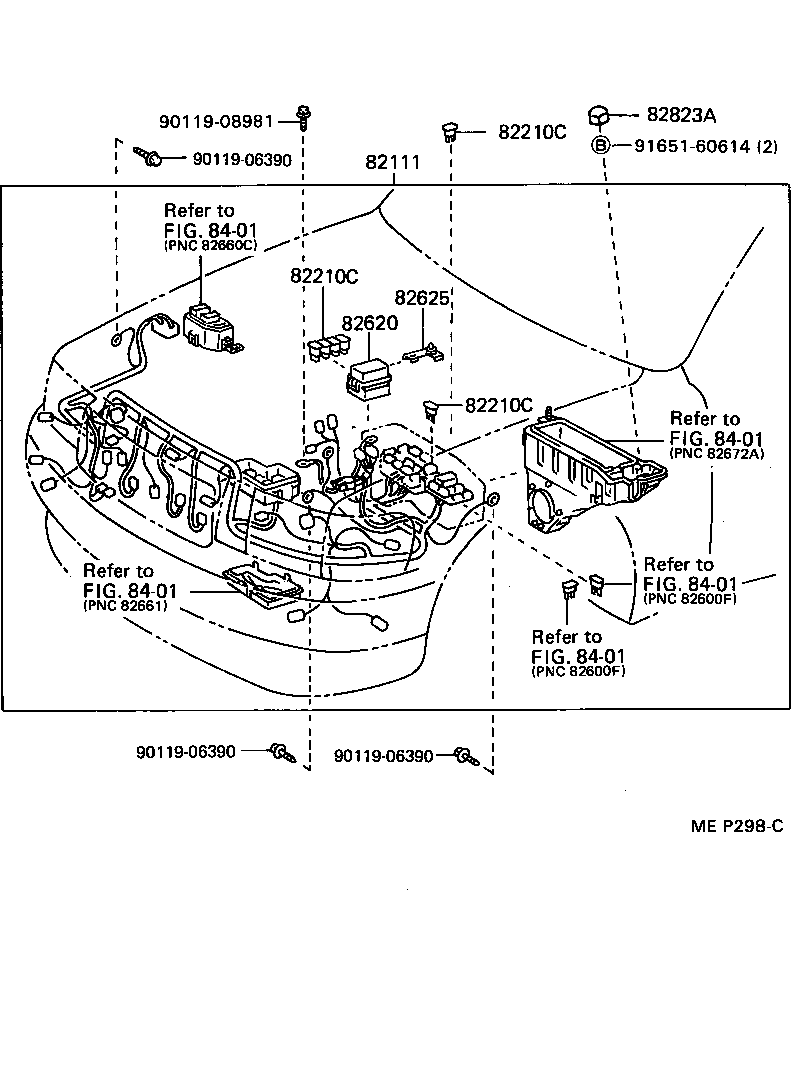

ILLUST NO. 3 OF 8(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-50110 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82111-50160 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 82111-50130 |
UCF10..A |
1 | ||
| 82111-50340 |
UCF1#..B,C |
1 | ||
| 82111-50350 |
UCF10..A |
1 | ||
| 82111-50110 |
UCF1#..B,C |
1 | ||
| 82111-50340 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
UCF10..A 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
UCF1#..B,C 60A,ｵｽ端子,黄 |
2 | ||
| 90982-08254 |
UCF1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08257 |
UCF1# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08189 |
UCF1#..B,C 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08189 |
UCF10..A 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
UCF10..A 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08202 |
UCF10..A 60A,ｵｽ端子,黄,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90982-08202 |
UCF10..A 60A,ｵｽ端子,黄,ｱﾘ(*66) |
2 | ||
| 90982-08188 |
UCF1# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08223 |
UCF1# 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
UCF10..A 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
UCF1#..B,C 60A,ｵｽ端子,黄 |
2 | ||
| 90982-08254 |
UCF1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08257 |
UCF1# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08189 |
UCF1#..B,C 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08189 |
UCF10..A 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
UCF10..A 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08202 |
UCF10..A 60A,ｵｽ端子,黄,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90982-08202 |
UCF10..A 60A,ｵｽ端子,黄,ｱﾘ(*66) |
2 | ||
| 90982-08188 |
UCF1# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08223 |
UCF1# 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
UCF10..A 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
UCF1#..B,C 60A,ｵｽ端子,黄 |
2 | ||
| 90982-08254 |
UCF1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08257 |
UCF1# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08189 |
UCF1#..B,C 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08189 |
UCF10..A 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
UCF10..A 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08202 |
UCF10..A 60A,ｵｽ端子,黄,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90982-08202 |
UCF10..A 60A,ｵｽ端子,黄,ｱﾘ(*66) |
2 | ||
| 90982-08188 |
UCF1# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08223 |
UCF1# 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50010 |
UCF1# |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-50010 |
UCF1# |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-50040 |
UCF1# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08981 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

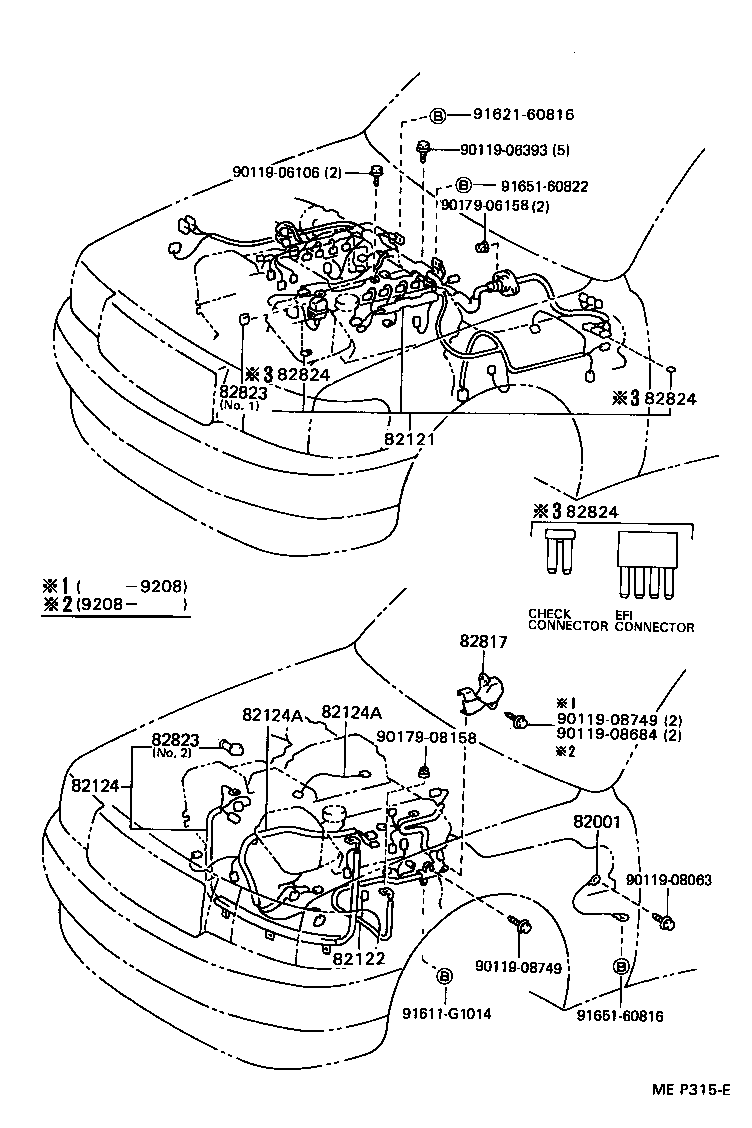

ILLUST NO. 1 OF 8(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07316 |
UCF1# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-50091 |
UCF10..A |
1 | ||
| 82121-50092 |
UCF10..A |
1 | ||
| 82121-50102 |
UCF1#..B,C |
1 | ||
| 82121-50220 |
UCF1#..B,C |
1 | ||
| 82121-50101 |
UCF1#..B,C |
1 | ||
| 82121-50100 |
UCF1#..B,C |
1 | ||
| 82121-50210 |
UCF10..A |
1 | ||
| 82121-50220 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82121-50101 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82121-50090 |
UCF10..A |
1 | ||
| 82121-50102 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-50022 |
UCF1# |
1 | ||
| 82122-50021 |
UCF1# |
1 | ||
| 82122-50020 |
UCF1# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-50052 |
UCF1# |
1 | ||
| 82124-50051 |
UCF1# |
1 | ||
| 82124-50050 |
UCF1# |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-50070 |
UCF1# TO AIR BAG SENSOR |
1 | ||
| 82124-50072 |
UCF1# TO AIR BAG SENSOR |
1 | ||
| 82124-50073 |
UCF1# |
1 | ||
| 82124-50071 |
UCF1# TO AIR BAG SENSOR |
1 | ||
| 82124-50020 |
UCF1# TO START INJECTOR |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-50070 |
UCF1# TO AIR BAG SENSOR |
1 | ||
| 82124-50072 |
UCF1# TO AIR BAG SENSOR |
1 | ||
| 82124-50073 |
UCF1# |
1 | ||
| 82124-50071 |
UCF1# TO AIR BAG SENSOR |
1 | ||
| 82124-50020 |
UCF1# TO START INJECTOR |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-50560 |
UCF1# |
1 | ||
| 82817-50561 |
UCF1# |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-50020 |
UCF1# NO.1 |
1 | ||
| 82823-22070 |
UCF1# NO.2 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-50020 |
UCF1# NO.1 |
1 | ||
| 82823-22070 |
UCF1# NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
UCF1# CHECK CONNECTOR |
1 | ||
| 82824-50010 |
UCF1# |
1 | ||
| 82824-30130 |
UCF1# EFI COMPUTER |
1 | ||
| 82824-24030 |
UCF1# 助手席ｴｱﾊﾞｯｸﾞ |
1 | ||
| 82824-50090 |
UCF1# REAR CROSSMEMBER |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
UCF1# CHECK CONNECTOR |
1 | ||
| 82824-50010 |
UCF1# |
1 | ||
| 82824-30130 |
UCF1# EFI COMPUTER |
1 | ||
| 82824-24030 |
UCF1# 助手席ｴｱﾊﾞｯｸﾞ |
1 | ||
| 82824-50090 |
UCF1# REAR CROSSMEMBER |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
UCF1# CHECK CONNECTOR |
1 | ||
| 82824-50010 |
UCF1# |
1 | ||
| 82824-30130 |
UCF1# EFI COMPUTER |
1 | ||
| 82824-24030 |
UCF1# 助手席ｴｱﾊﾞｯｸﾞ |
1 | ||
| 82824-50090 |
UCF1# REAR CROSSMEMBER |
1 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90119-06393 | ||||
| 90119-08063 | ||||
| 90119-08684 | ||||
| 90119-08749 | ||||
| 90179-06158 | ||||
| 90179-08158 | ||||
| 91611-G1014 | ||||
| 91621-60816 | ||||
| 91651-60816 | ||||
| 91651-60822 | ||||

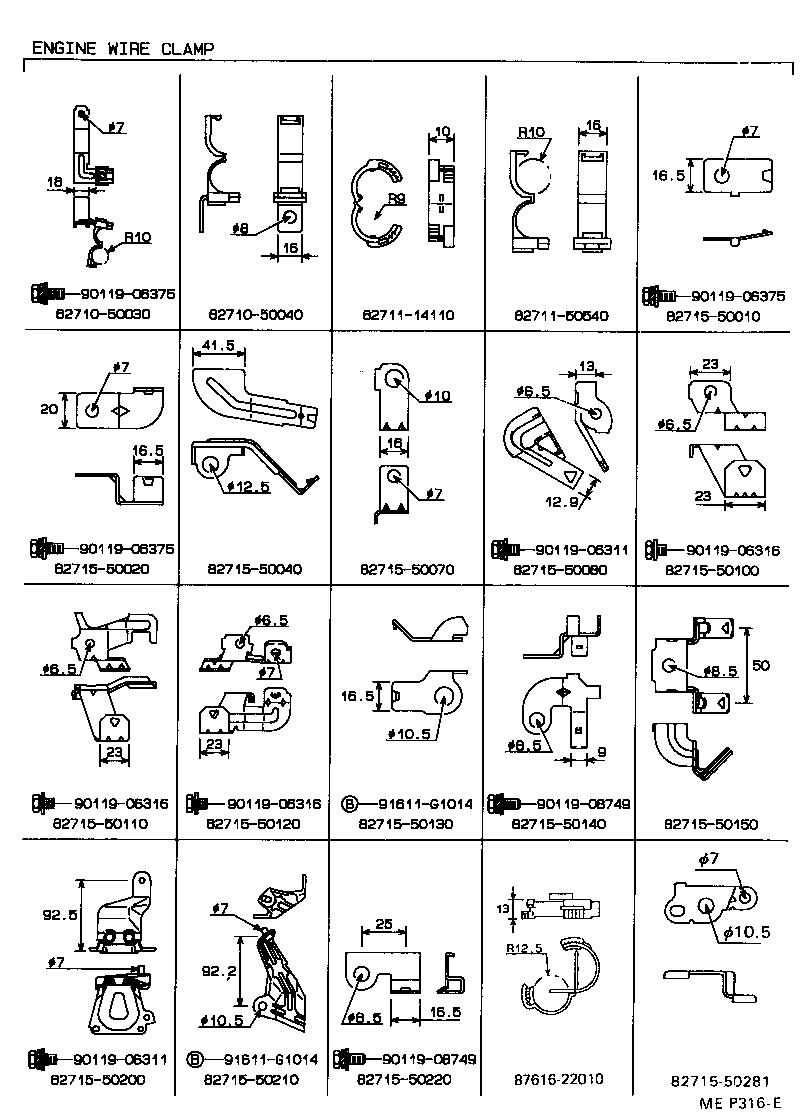

ILLUST NO. 2 OF 8(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-50030 | ||||
| 82710-50040 | ||||
| 82711-14110 | ||||
| 82711-50540 | ||||
| 82715-50010 | ||||
| 82715-50020 | ||||
| 82715-50040 | ||||
| 82715-50070 | ||||
| 82715-50080 | ||||
| 82715-50100 | ||||
| 82715-50110 | ||||
| 82715-50120 | ||||
| 82715-50130 | ||||
| 82715-50140 | ||||
| 82715-50150 | ||||
| 82715-50200 | ||||
| 82715-50210 | ||||
| 82715-50220 | ||||
| 82715-50281 | ||||
| 87616-22010 | ||||
| 90119-06311 | ||||
| 90119-06316 | ||||
| 90119-06375 | ||||
| 90119-08749 | ||||
| 91611-G1014 | ||||

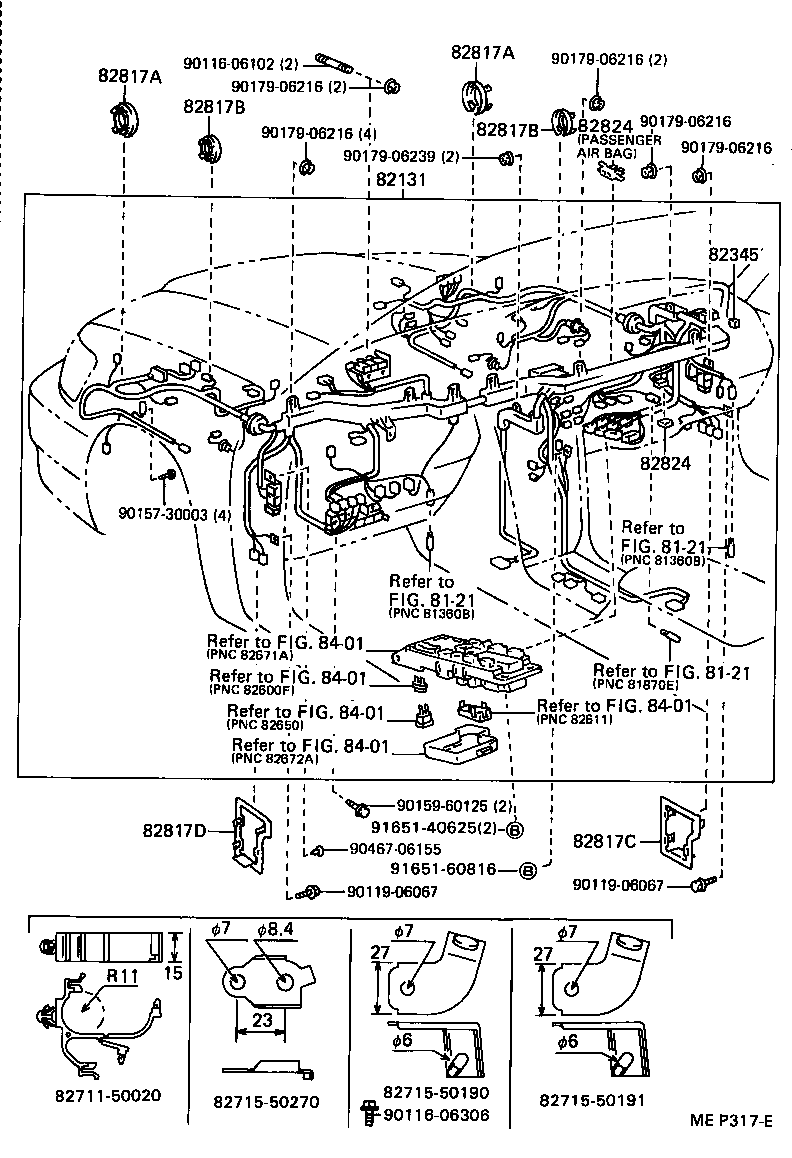

ILLUST NO. 4 OF 8(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-50570 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-50580 |
UCF10..A ｱﾘ(*66 & *FM) |
1 | ||
| 82131-50510 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 82131-50490 |
UCF10..A |
1 | ||
| 82131-50640 |
UCF10..A ｱﾘ(*66) & ﾅｼ(*80) |
1 | ||
| 82131-50630 |
UCF10..A ﾅｼ(*80) |
1 | ||
| 82131-50511 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 82131-50631 |
UCF10..A ﾅｼ(*80) |
1 | ||
| 82131-50690 |
UCF10..A ﾅｼ(*80) & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-50571 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-50700 |
UCF10..A ｱﾘ(*66 & ﾌｴﾝﾀﾞ ﾐﾗ-) & ﾅｼ(*80) |
1 | ||
| 82131-50581 |
UCF10..A ｱﾘ(*66 & *FM) |
1 | ||
| 82131-50491 |
UCF10..A |
1 | ||
| 82131-50492 |
UCF10..A |
1 | ||
| 82131-50701 |
UCF10..A ｱﾘ(*66 & ﾌｴﾝﾀﾞ ﾐﾗ-) & ﾅｼ(*80) |
1 | ||
| 82131-50691 |
UCF10..A ﾅｼ(*80) & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-50641 |
UCF10..A ｱﾘ(*66) & ﾅｼ(*80) |
1 | ||
| 82131-50512 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 82131-50572 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-5A320 |
UCF10..A ｱﾘ(*80---ｼﾞﾖｼﾕｾｷ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-50870 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) & ﾅｼ(*80) |
1 | ||
| 82131-50582 |
UCF10..A ｱﾘ(*66 & *FM) |
1 | ||
| 82131-50850 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82131-50860 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-5A330 |
UCF10..A ｱﾘ(*66 & *80---ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82131-50880 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ & *FM) & ﾅｼ(*80) |
1 | ||
| 82131-5A360 |
UCF10..A ｱﾘ(*66 & *TRC & *80---ｼﾞﾖｼﾕｾｷ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-5A420 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-5A350 |
UCF10..A ｱﾘ(*66 & *TRC & *80---ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82131-50702 |
UCF10..A ｱﾘ(*66 & ﾌｴﾝﾀﾞ ﾐﾗ-) & ﾅｼ(*80) |
1 | ||
| 82131-5A310 |
UCF10..A ｱﾘ(*80---ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82131-5A440 |
UCF10..A ｱﾘ(*66 & *FM) |
1 | ||
| 82131-5A460 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82131-5A410 |
UCF10..A |
1 | ||
| 82131-5A430 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 82131-5A450 |
UCF10..A ｱﾘ(*66 & ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82131-5A340 |
UCF10..A ｱﾘ(*66 & *80---ｼﾞﾖｼﾕｾｷ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
UCF1#..B,C |
3 | ||
| 82345-12050 |
UCF10..A |
2 | ||
| 82345-12050 |
UCF10..A |
3 | ||
| 82345-12050 |
UCF1# |
2 | ||
| 82345-12050 |
UCF10..A |
3 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-5A210 |
UCF1# |
2 | ||
| 82817-50650 |
UCF1# |
2 | ||
| 82817-5A211 |
UCF1# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-5A210 |
UCF1# |
2 | ||
| 82817-50650 |
UCF1# |
2 | ||
| 82817-5A211 |
UCF1# |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-50530 |
UCF1# |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-50530 |
UCF1# |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-50540 |
UCF1# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-50550 |
UCF1# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
UCF1# CHECK CONNECTOR |
1 | ||
| 82824-50010 |
UCF1# |
1 | ||
| 82824-30130 |
UCF1# EFI COMPUTER |
1 | ||
| 82824-24030 |
UCF1# 助手席ｴｱﾊﾞｯｸﾞ |
1 | ||
| 82824-50090 |
UCF1# REAR CROSSMEMBER |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
UCF1# CHECK CONNECTOR |
1 | ||
| 82824-50010 |
UCF1# |
1 | ||
| 82824-30130 |
UCF1# EFI COMPUTER |
1 | ||
| 82824-24030 |
UCF1# 助手席ｴｱﾊﾞｯｸﾞ |
1 | ||
| 82824-50090 |
UCF1# REAR CROSSMEMBER |
1 | ||
| Common parts | ||||
| 82711-50020 | ||||
| 82715-50190 | ||||
| 82715-50191 | ||||
| 82715-50270 | ||||
| 90116-06102 | ||||
| 90116-06306 | ||||
| 90119-06067 | ||||
| 90157-30003 | ||||
| 90159-60125 | ||||
| 90179-06216 | ||||
| 90179-06239 | ||||
| 90467-06155 | ||||
| 91651-40625 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

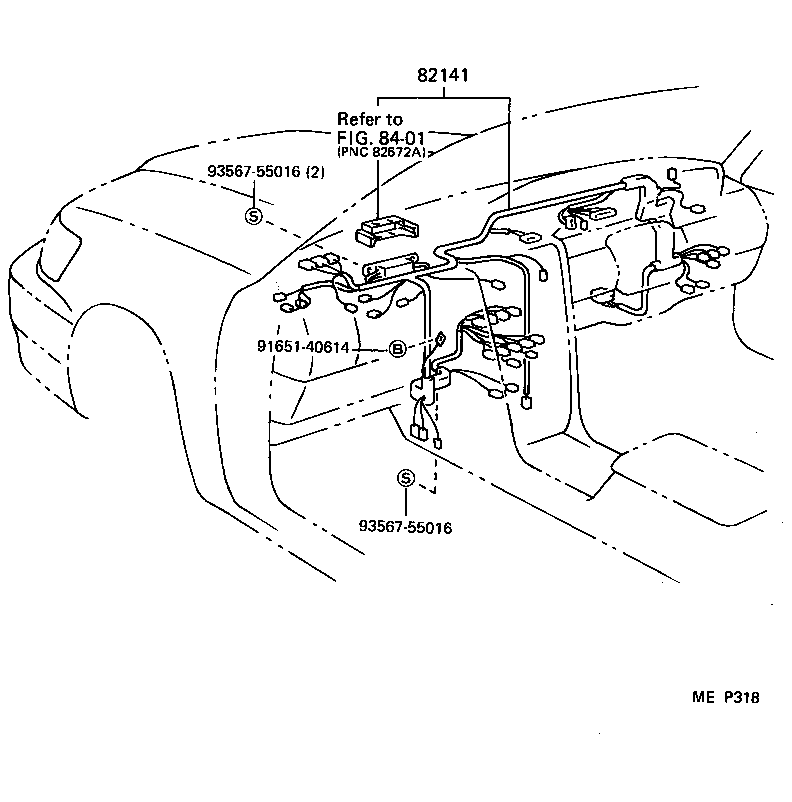

ILLUST NO. 5 OF 8(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-50260 |
UCF10..A |
1 | ||
| 82141-50310 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗｰ) |
1 | ||
| 82141-50311 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82141-50261 |
UCF10..A |
1 | ||
| 82141-50172 |
UCF1#..B,C ｱﾘ(*80---ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82141-50380 |
UCF1#..B,C ｱﾘ(*80---ｼﾞﾖｼﾕｾｷ & ﾗｼﾞｵ---ﾅｶﾐﾁ) |
1 | ||
| 82141-50262 |
UCF10..A ｱﾘ(*80---ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82141-50232 |
UCF1#..B,C ｱﾘ(*80---ｼﾞﾖｼﾕｾｷ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82141-50410 |
UCF1#..B,C ｱﾘ(*80---ｼﾞﾖｼﾕｾｷ & ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82141-50390 |
UCF1#..B,C ｱﾘ(*80---ｼﾞﾖｼﾕｾｷ & ﾗｼﾞｵ---ﾅｶﾐﾁ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82141-50470 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82141-50510 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82141-50480 |
UCF1#..B,C ｱﾘ(ﾗｼﾞｵ---ﾅｶﾐﾁ) |
1 | ||
| 82141-50500 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 82141-50490 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ﾗｼﾞｵ---ﾅｶﾐﾁ) |
1 | ||
| 82141-50580 |
UCF10..A |
1 | ||
| 82141-50400 |
UCF1#..B,C ｱﾘ(*80---ｼﾞﾖｼﾕｾｷ & ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 82141-50460 |
UCF1#..B,C |
1 | ||
| Common parts | ||||
| 91651-40614 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

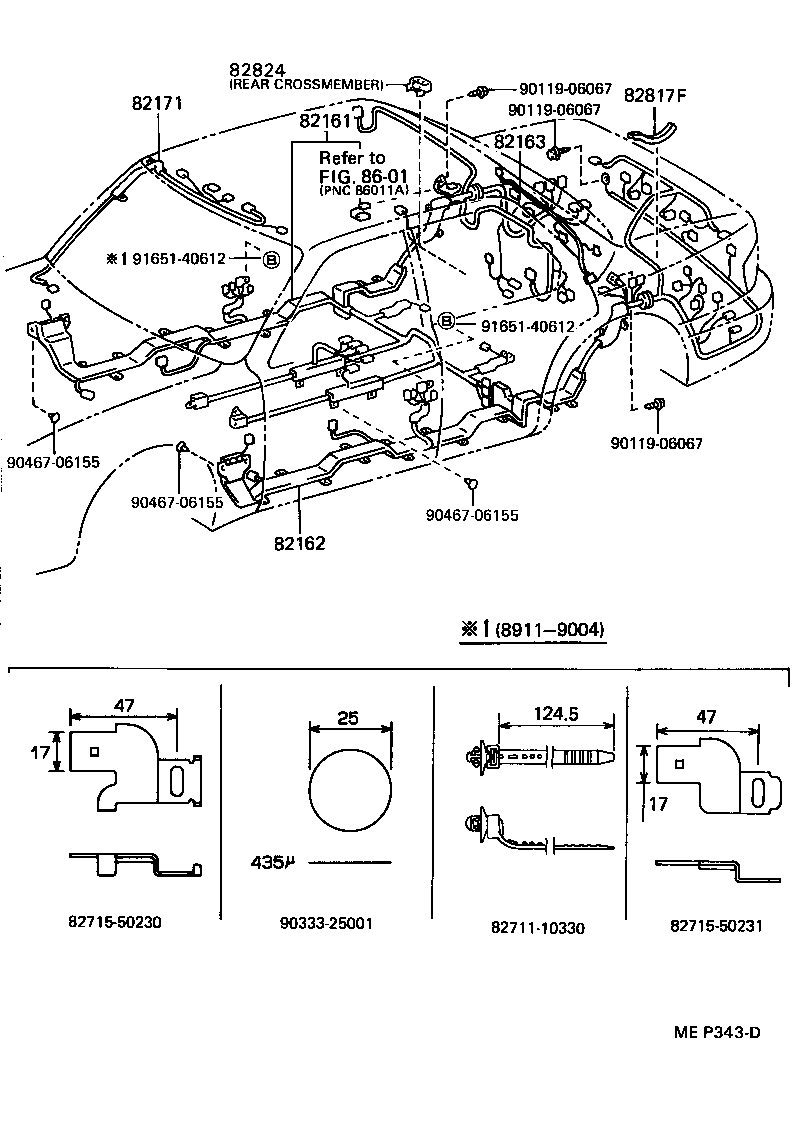

ILLUST NO. 6 OF 8(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-50250 |
UCF10..A |
1 | ||
| 82161-50251 |
UCF10..A |
1 | ||
| 82161-50252 |
UCF10..A |
1 | ||
| 82161-50570 |
UCF10..A |
1 | ||
| 82161-50571 |
UCF10..A |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-50250 |
UCF10..A |
1 | ||
| 82162-50251 |
UCF10..A |
1 | ||
| 82162-50252 |
UCF10..A |
1 | ||
| 82162-50550 |
UCF10..A |
1 | ||
| 82162-50551 |
UCF10..A |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-50030 |
UCF1# |
1 | ||
| 82163-50032 |
UCF1# |
1 | ||
| 82163-50060 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 82163-50031 |
UCF1# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-50100 |
UCF1#..B,C |
1 | ||
| 82171-50131 |
UCF1#..B,C ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-50072 |
UCF10..A ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-50141 |
UCF10..A |
1 | ||
| 82171-50101 |
UCF1#..B,C |
1 | ||
| 82171-50130 |
UCF1#..B,C ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-50140 |
UCF10..A |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-50520 |
UCF1# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
UCF1# CHECK CONNECTOR |
1 | ||
| 82824-50010 |
UCF1# |
1 | ||
| 82824-30130 |
UCF1# EFI COMPUTER |
1 | ||
| 82824-24030 |
UCF1# 助手席ｴｱﾊﾞｯｸﾞ |
1 | ||
| 82824-50090 |
UCF1# REAR CROSSMEMBER |
1 | ||
| Common parts | ||||
| 82711-10330 | ||||
| 82715-50230 | ||||
| 82715-50231 | ||||
| 90119-06067 | ||||
| 90333-25001 | ||||
| 90467-06155 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8601 | ||||

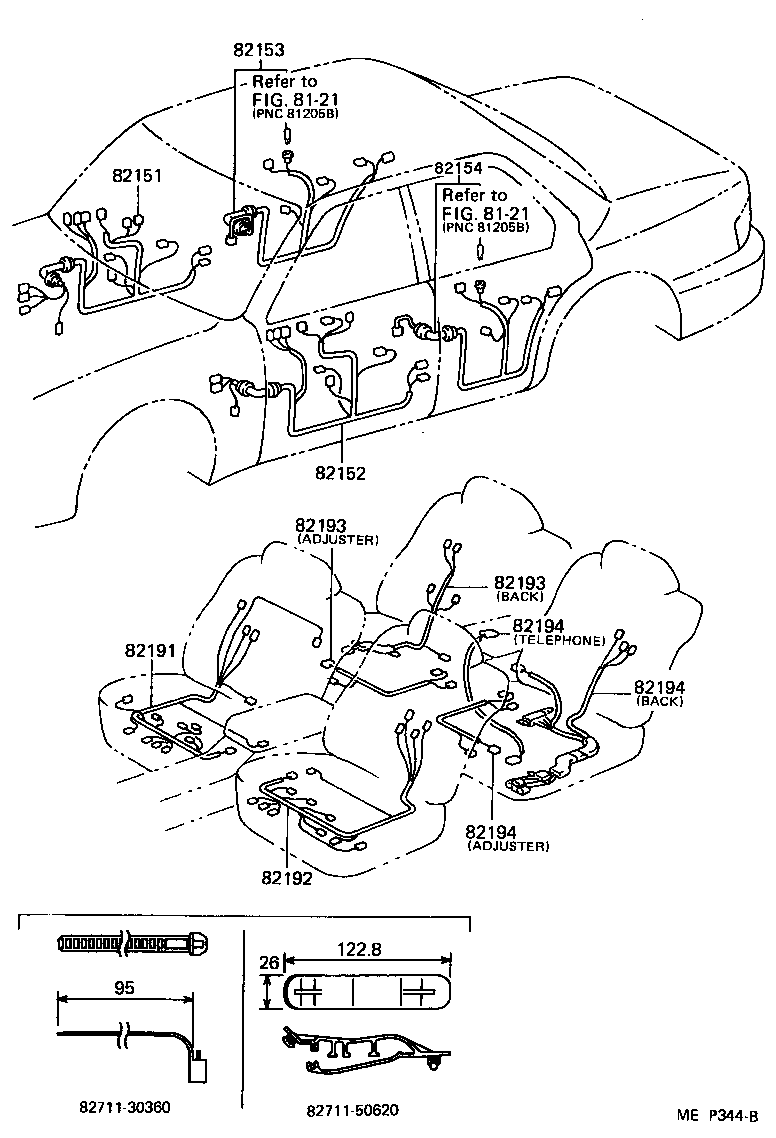

ILLUST NO. 7 OF 8(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-50090 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-50060 |
UCF1#..B,C |
1 | ||
| 82151-50061 |
UCF1#..B,C |
1 | ||
| 82151-50091 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-50081 |
UCF10..A |
1 | ||
| 82151-50080 |
UCF10..A |
1 | ||
| 82151-50101 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-50100 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-50080 |
UCF10..A |
1 | ||
| 82152-50091 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-50061 |
UCF1#..B,C |
1 | ||
| 82152-50100 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-50090 |
UCF1#..B,C ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-50101 |
UCF10..A ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-50060 |
UCF1#..B,C |
1 | ||
| 82152-50081 |
UCF10..A |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-50010 |
UCF1# |
1 | ||
| 82153-50011 |
UCF1# |
1 | ||
| 82153-50012 |
UCF1# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-50010 |
UCF1# |
1 | ||
| 82154-50011 |
UCF1# |
1 | ||
| 82154-50012 |
UCF1# |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-50040 |
UCF10 |
1 | ||
| 82191-50041 |
UCF10 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-50060 |
UCF1# |
1 | ||
| 82192-50061 |
UCF1# |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-50030 |
UCF1# REAR TELEPHONE |
1 | ||
| 82194-50041 |
UCF1# SEAT BACK |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-50030 |
UCF1# REAR TELEPHONE |
1 | ||
| 82194-50041 |
UCF1# SEAT BACK |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-50030 |
UCF1# REAR TELEPHONE |
1 | ||
| 82194-50041 |
UCF1# SEAT BACK |
1 | ||
| Common parts | ||||
| 82711-30360 | ||||
| 82711-50620 | ||||
| Linked diagrams | ||||
| 8121 | ||||

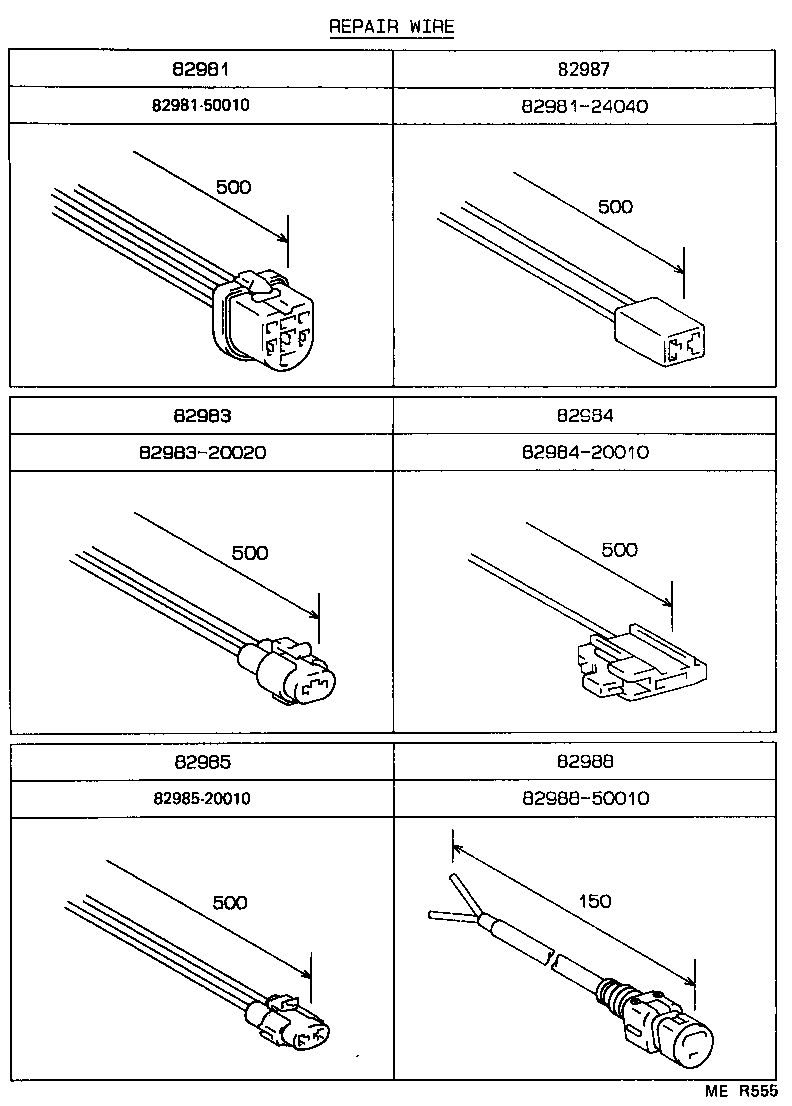

ILLUST NO. 8 OF 8(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-50010 |
UCF1# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20020 |
UCF1# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
UCF1# |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20010 |
UCF1# |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82981-24040 |
UCF1# |
1 | ||
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 82988-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 82981-24040 | ||||
| 82981-50010 | ||||
| 82983-20020 | ||||
| 82984-20010 | ||||
| 82985-20010 | ||||
| 82988-50010 | ||||
ILLUST NO. 2 OF 8(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 75847-14040 | ||||
| 82711-24070 | ||||
| 82711-50450 | ||||
| 82715-50160 | ||||
| 82715-50260 | ||||
| 90119-06375 | ||||
| 90119-08726 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
