UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

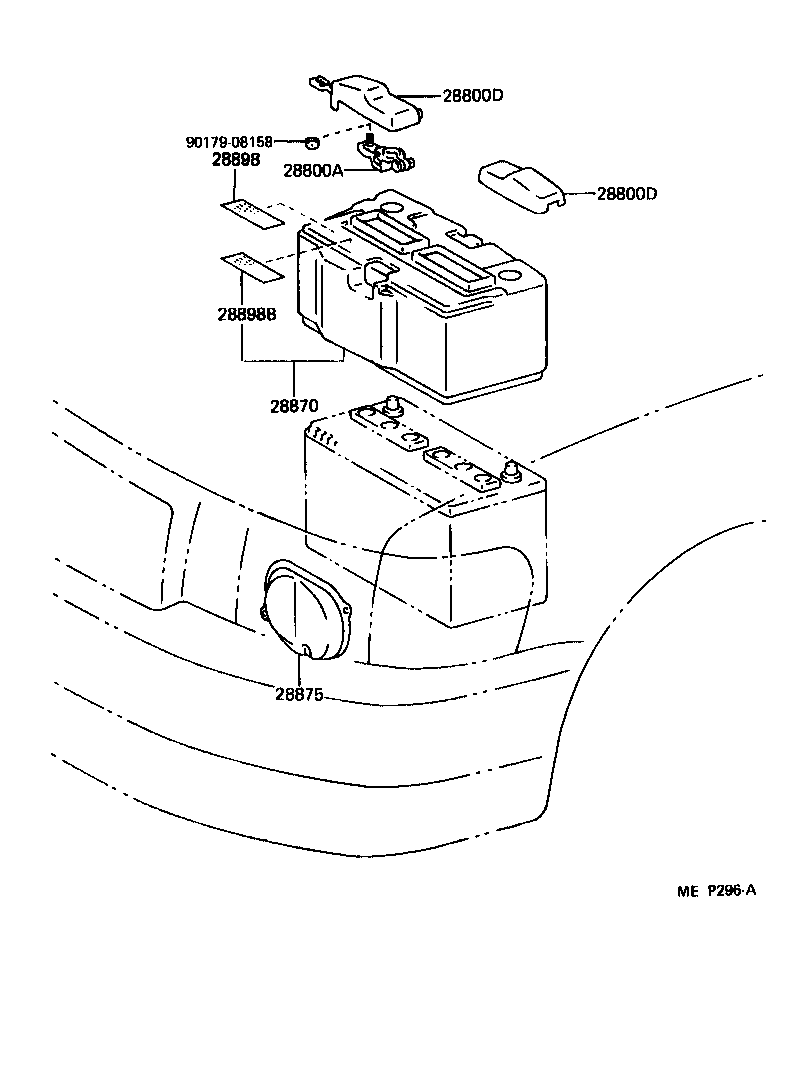

Click highlighted areas on diagram

diagram 28800A 28800D 28800D 28870 28875 28898 28898B 9017908158
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05037

1UZFE..UCF1#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-50060

1UZFE..UCF1#

NEGATIVE

 1
82821-50050

1UZFE..UCF1#

POSITIVE

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-50060

1UZFE..UCF1#

NEGATIVE

 1
82821-50050

1UZFE..UCF1#

POSITIVE

 1
28870 - INSULATOR ASSY, BATTERY
28870-50040

1UZFE..UCF1#

 1
28870-50010

1UZFE..UCF1#

 1
28875 - DUCT, BATTERY INSULATOR, NO.1
28875-50010

1UZFE..UCF1#

 1
28898 - PLATE, BATTERY
28898-50110

1UZFE..UCF1#

 1
28898-50030

1UZFE..UCF1#

 1
28898B - PLATE, BATTERY
28898-50010

1UZFE..UCF1#

 1
28898-50090

1UZFE..UCF1#

 1
Common parts
90179-08158
