UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

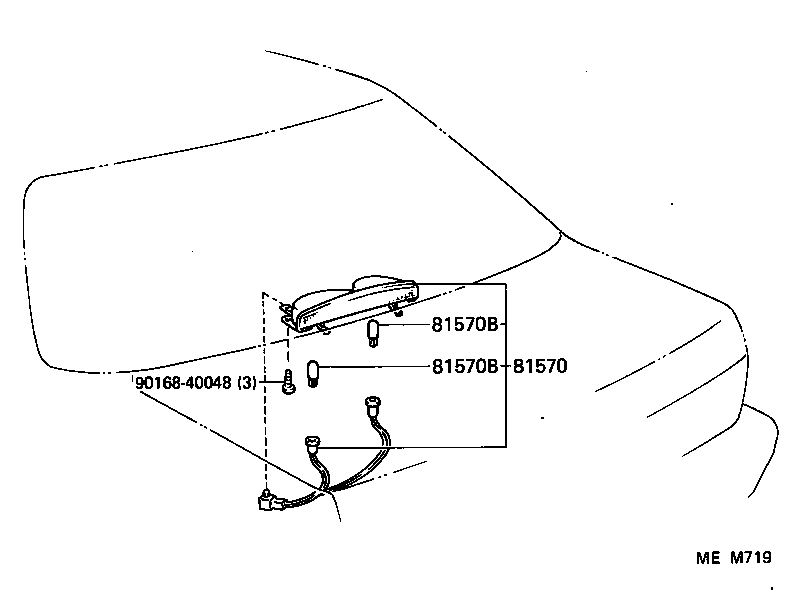

(8911-9208)

Click highlighted areas on diagram

diagram 81570 81570B 81570B 9016840048
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-50020

UCF1#

 1
81570-50011

UCF1#..B,C

 1
81570-50011

UCF1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11039

UCF1#..B,C

12V 16W

 2
90981-11039

UCF1#

12V 16W

 2
81570B - BULB (FOR CENTER STOP LAMP)
90981-11039

UCF1#..B,C

12V 16W

 2
90981-11039

UCF1#

12V 16W

 2
Common parts
90168-40048

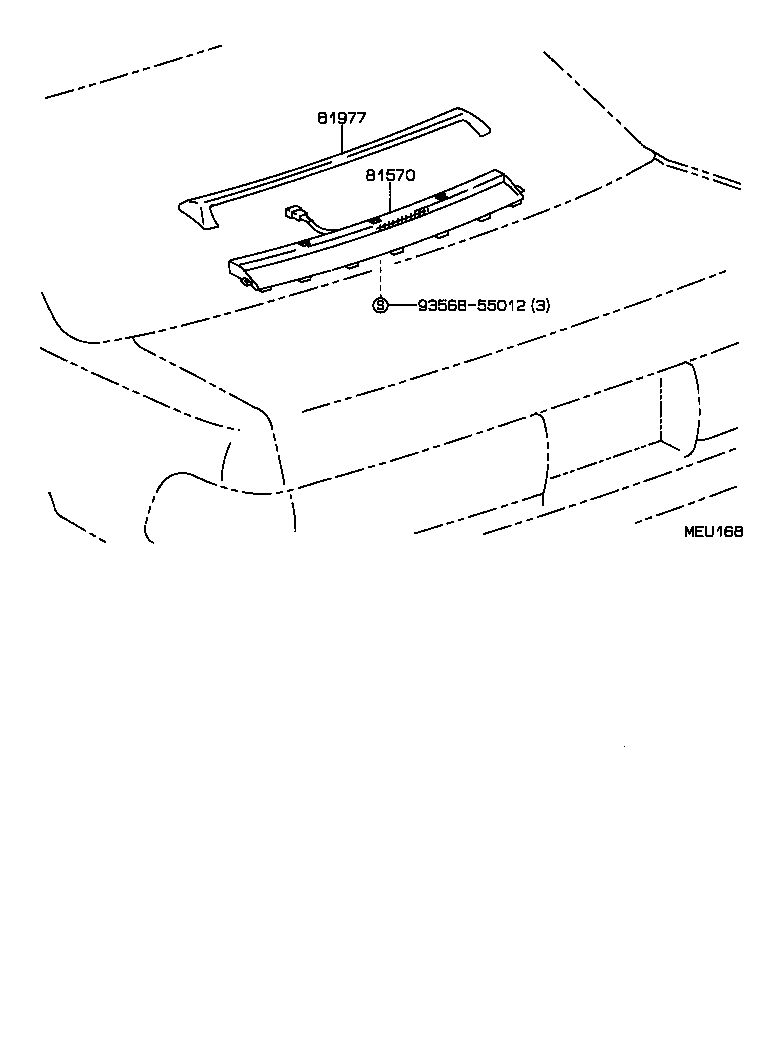

(9208- )

Click highlighted areas on diagram

diagram 81570 81977 9356855012
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-50020

UCF1#

 1
81570-50011

UCF1#..B,C

 1
81570-50011

UCF1#

 1
81977 - COVER, CENTER STOP LAMP
81977-50010K0

UCF1#..B,C

TAUPE,TRIM9#

 1
81977-50010B0

UCF1#

SHADOW GRAY,TRIM1#

 1
81977-50010E0

UCF1#..B,C

OAK,TRIM0#

 1
81977-50010J0

UCF1#

DK.BLUE,TRIM8#

 1
Common parts
93568-55012
