UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

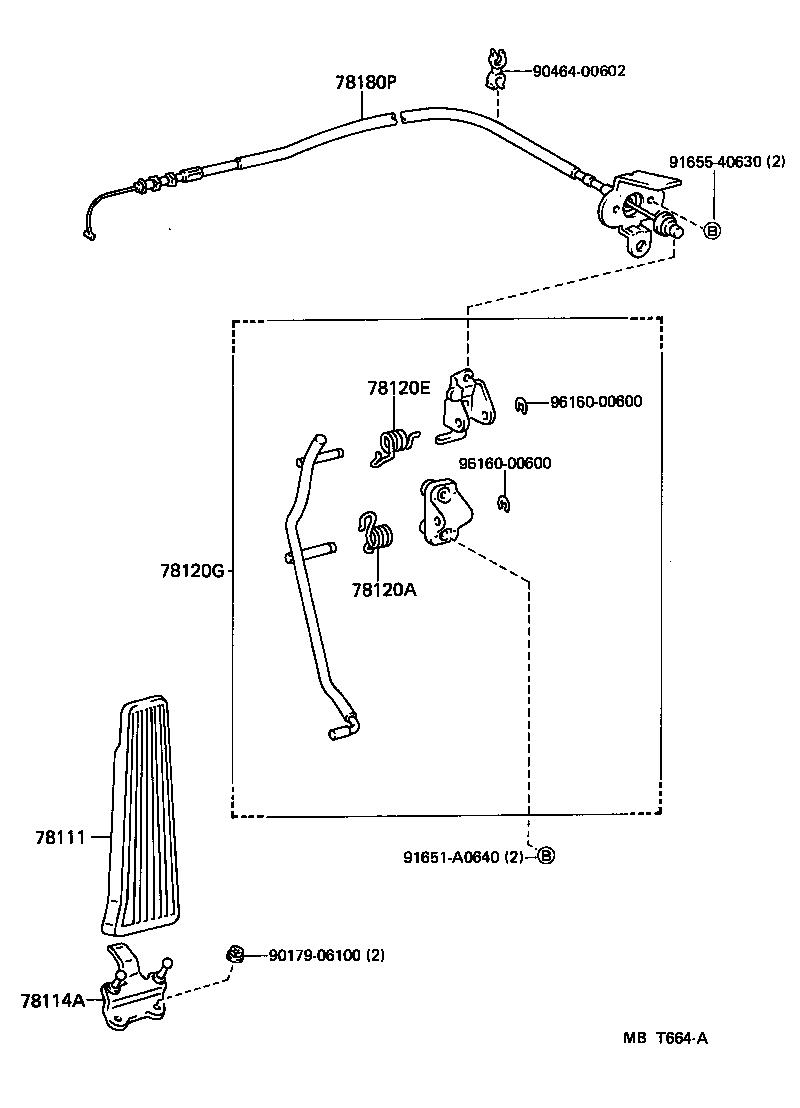

ILLUST NO. 1 OF 2(8911- )

Click highlighted areas on diagram

diagram 78111 78114A 78120A 78120E 78120G 78180P 9017906100 9046400602 91651A0640 9165540630 9616000600 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-12100

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
78111-50010

UCF1#

 1
78111-50020

UCF1#

 1
78111-50030

UCF1#

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-50020

UCF1#

 1
78114-50021

UCF1#

 1
78114-50010

UCF1#

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-18077

UCF1#

 1
78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD)
90508-23088

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
90508-29022

UCF1#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-50030

UCF1#

 1
78120-50020

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-50020

UCF1#

 1
78180-50022

UCF1#

 1
78180-50021

UCF1#

 1
Common parts
90179-06100
90464-00602
91651-A0640
91655-40630
96160-00600

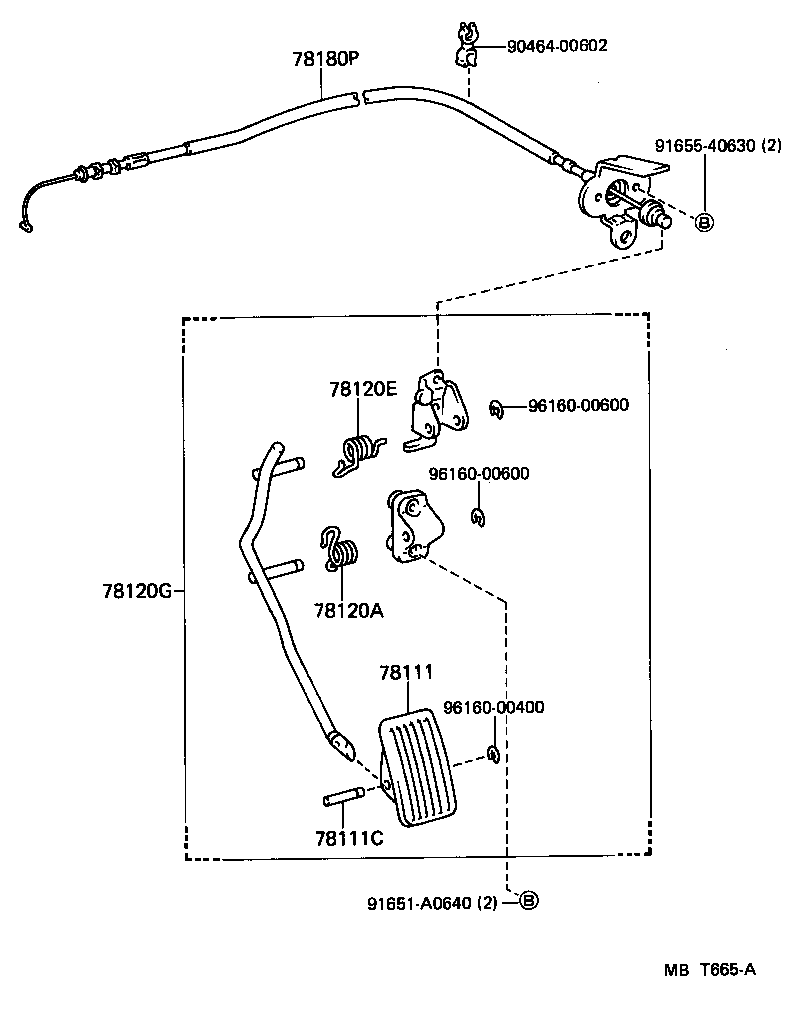

ILLUST NO. 2 OF 2(8911- )

Click highlighted areas on diagram

ｶﾝﾚｲﾁ ｼﾖｳ

diagram 78111 78111C 78120A 78120E 78120G 78180P 9046400602 91651A0640 9165540630 9616000400 9616000600 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-12100

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
78111-50010

UCF1#

 1
78111-50020

UCF1#

 1
78111-50030

UCF1#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-18077

UCF1#

 1
78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD)
90508-23088

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
90508-29022

UCF1#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-50030

UCF1#

 1
78120-50020

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-50020

UCF1#

 1
78180-50022

UCF1#

 1
78180-50021

UCF1#

 1
Common parts
90464-00602
91651-A0640
91655-40630
96160-00400
96160-00600
