UCF10-AEPNK (1989)
Toyota Celsior
Production
Nov 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8911- )

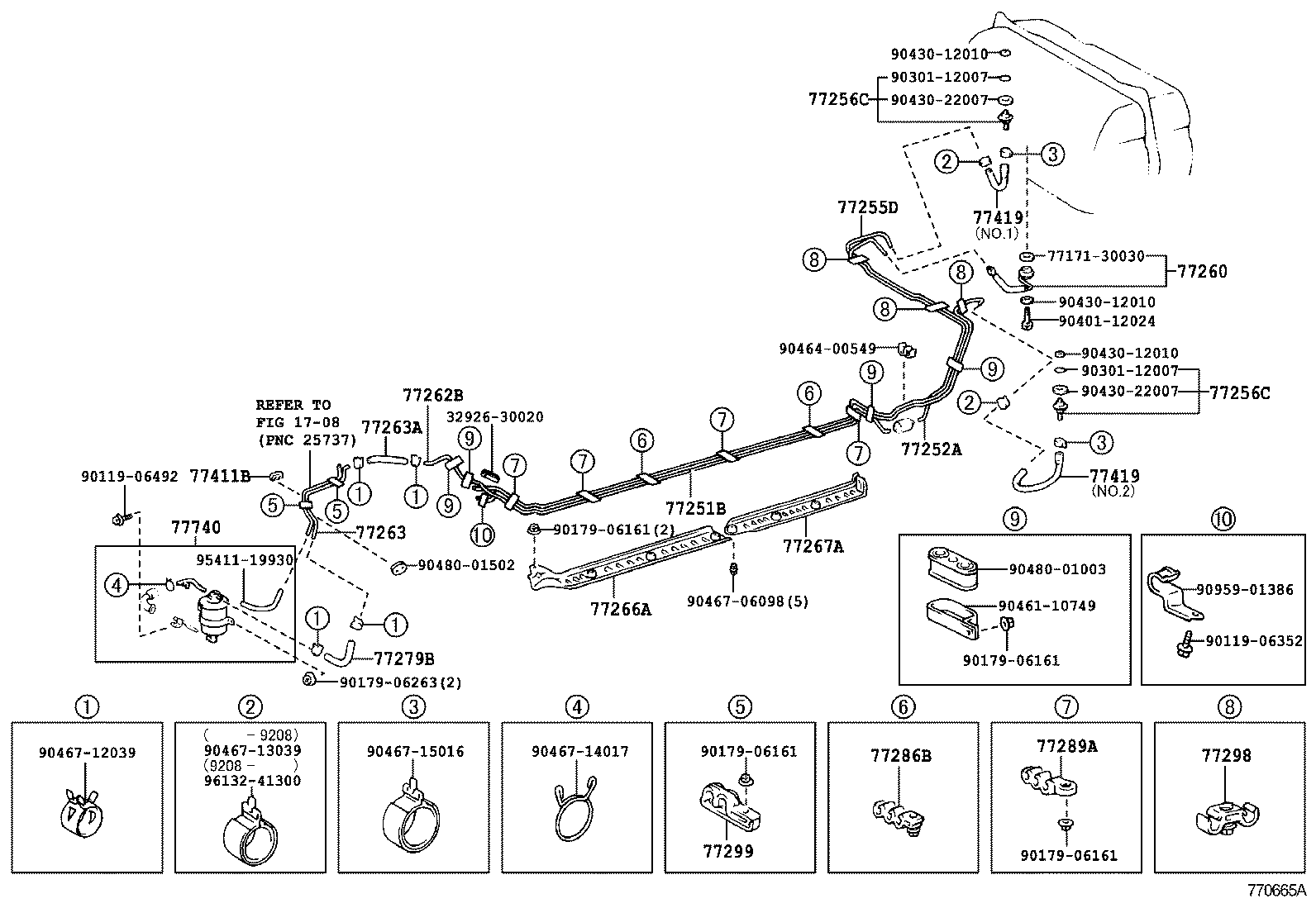

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-50020 |
UCF1# |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-50010 |
UCF1# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-50020 |
UCF1# |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77208-50010 |
UCF1# |
2 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77208-50010 |
UCF1# |
2 | ||
| 77260 - HOSE ASSY, FUEL MAIN | ||||
| 77260-50011 |
UCF1# |
1 | ||
| 77260-50010 |
UCF1# |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-50020 |
UCF1# |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-50010 |
UCF1# |
1 | ||
| 77263A - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE) | ||||
| 95333-06020 |
UCF1# |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-50010 |
UCF1# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-50010 |
UCF1# |
1 | ||
| 77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3) | ||||
| 77279-50010 |
UCF1# |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-50010 |
UCF1# |
2 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-50010 |
UCF1# |
6 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-50010 |
UCF1# |
3 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-50010 |
UCF1# |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-50010 |
UCF1# |
1 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 77249-50010 |
UCF1# NO.2 |
1 | ||
| 77419-50010 |
UCF1# NO.1 & NO.2 |
2 | ||
| 77419-50010 |
UCF1# NO.1 |
1 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 77249-50010 |
UCF1# NO.2 |
1 | ||
| 77419-50010 |
UCF1# NO.1 & NO.2 |
2 | ||
| 77419-50010 |
UCF1# NO.1 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-50022 |
UCF1# |
1 | ||
| 77740-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 32926-30020 | ||||
| 77171-30030 | ||||
| 90119-06352 | ||||
| 90119-06492 | ||||
| 90179-06161 | ||||
| 90179-06263 | ||||
| 90301-12007 | ||||
| 90401-12024 | ||||
| 90430-12010 | ||||
| 90430-22007 | ||||
| 90461-10749 | ||||
| 90464-00549 | ||||
| 90467-06098 | ||||
| 90467-12039 | ||||
| 90467-13039 | ||||
| 90467-14017 | ||||
| 90467-15016 | ||||
| 90480-01003 | ||||
| 90480-01502 | ||||
| 90959-01386 | ||||
| 95411-19930 | ||||
| 96132-41300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
(8911- )

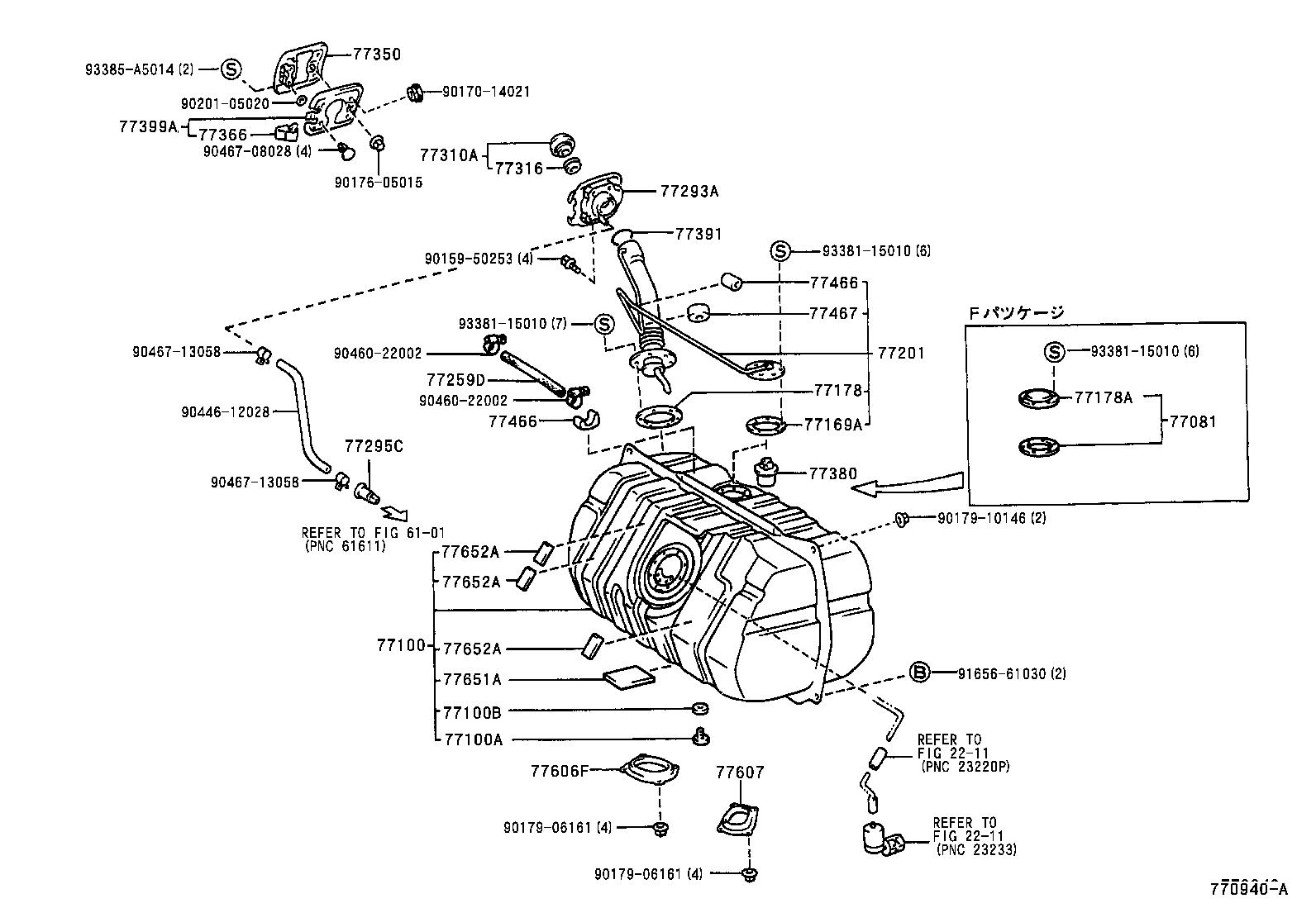

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-50020 |
UCF1# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
UCF1# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
UCF1# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-50010 |
UCF1# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77169-14010 |
UCF1# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-50020 |
UCF1# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-50011 |
UCF1# |
1 | ||
| 77293-50010 |
UCF1# |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-50010 |
UCF1# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
UCF1# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
UCF1# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-50010 |
UCF1# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-50010 |
UCF1# |
1 | ||
| 77366-50011 |
UCF1# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-50010 |
UCF1# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-24010 |
UCF1# |
1 | ||
| 77399A - COVER, FUEL FILLER OPENING LID | ||||
| 77399-50010 |
UCF1# |
1 | ||
| 77399-50011 |
UCF1# |
1 | ||
| 77466 - PROTECTOR, FUEL TUBE, NO.4 | ||||
| 77466-50010 |
UCF1# |
1 | ||
| 77466 - PROTECTOR, FUEL TUBE, NO.4 | ||||
| 77466-50010 |
UCF1# |
1 | ||
| 77467 - PROTECTOR, FUEL TUBE, NO.5 | ||||
| 77467-50010 |
UCF1# |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-50010 |
UCF1# |
1 | ||
| 77607 - CASE SUB-ASSY, FUEL TANK COVER VENT, LH | ||||
| 77607-50010 |
UCF1# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-50010 |
UCF1# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-50010 |
UCF1# |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-50010 |
UCF1# |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-50010 |
UCF1# |
3 | ||
| Common parts | ||||
| 90159-50253 | ||||
| 90170-14021 | ||||
| 90176-05015 | ||||
| 90179-06161 | ||||
| 90179-10146 | ||||
| 90201-05020 | ||||
| 90446-12028 | ||||
| 90460-22002 | ||||
| 90467-08028 | ||||
| 90467-13058 | ||||
| 91656-61030 | ||||
| 93381-15010 | ||||
| 93385-A5014 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6101 | ||||
