UCF10-AEPNK (1989)
Toyota Celsior
ILLUST NO. 2 OF 2(8911-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76081C - SPOILER, FRONT SIDE RH | ||||
| 76081-50010 |
UCF1# |
1 | ||
| 76081-50040C0 |
UCF1# SILVER M,051 |
1 | ||
| 76081-50040D1 |
UCF1#..A,C MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76081-50040F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 76081-50040E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76081-50040F1 |
UCF1#..A,C DARK STEEL BLUE M,8J5 |
1 | ||
| 76081-50040F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 76081-50040D0 |
UCF1#..A,C LIGHT GRAY,199 |
1 | ||
| 76081-50040D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 76081-50040D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76081-50040C0 |
UCF1#..A,C SILVER M,051 |
1 | ||
| 76083B - SPOILER, FRONT SIDE LH | ||||
| 76083-50020C0 |
UCF1# SILVER M,051 |
1 | ||
| 76083-50010 |
UCF1# |
1 | ||
| 76083-50020D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 76083-50020F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 76083-50020E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76083-50020D0 |
UCF1#..A,C LIGHT GRAY,199 |
1 | ||
| 76083-50020C0 |
UCF1#..A,C SILVER M,051 |
1 | ||
| 76083-50020D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76083-50020D1 |
UCF1#..A,C MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76083-50020F1 |
UCF1#..A,C DARK STEEL BLUE M,8J5 |
1 | ||
| 76083-50020F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 76853 - RETAINER, FRONT SPOILER, UPPER RH | ||||
| 76853-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76853-50010 |
UCF1# |
1 | ||
| 76853-50010 |
UCF1#..A,C |
1 | ||
| 76853-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76854 - RETAINER, FRONT SPOILER, UPPER LH | ||||
| 76854-50010 |
UCF1# |
1 | ||
| 76854-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76854-50010 |
UCF1#..A,C |
1 | ||
| 76854-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76971D - COVER, REAR UNDER | ||||
| 76971-50010 |
UCF1# |
1 | ||
| 76971-50020D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76971-50020D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 76971-50020E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76971-50020F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 76971-50020F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 76971-50020C0 |
UCF1# SILVER M,051 |
1 | ||
| 76971-50020D0 |
UCF1# LIGHT GRAY,199 |
1 | ||
| 76973D - COVER, REAR UNDER SIDE, RH | ||||
| 76973-50010 |
UCF1# |
1 | ||
| 52108-50011C0 |
UCF1# SILVER M,051 |
1 | ||
| 52108-50010D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 52108-50010D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 52108-50010C0 |
UCF1# SILVER M,051 |
1 | ||
| 52108-50010F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 52108-50010E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 52108-50010F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 52108-50011D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 52108-50011E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 52108-50011D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 52108-50011F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 52108-50011F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 52108-50011D0 |
UCF1# LIGHT GRAY,199 |
1 | ||
| 76974D - COVER, REAR UNDER SIDE, LH | ||||
| 52109-50010D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 52109-50011D0 |
UCF1# LIGHT GRAY,199 |
1 | ||
| 52109-50010F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 52109-50011C0 |
UCF1# SILVER M,051 |
1 | ||
| 52109-50011D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 52109-50010E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76974-50010 |
UCF1# |
1 | ||
| 52109-50011E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 52109-50011F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 52109-50010F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 52109-50011D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 52109-50010D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 52109-50010C0 |
UCF1# SILVER M,051 |
1 | ||
| 52109-50011F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| Common parts | ||||
| 90119-06456 | ||||
| 90158-60011 | ||||
| 90159-60393 | ||||
| 90179-05060 | ||||
| 90179-06007 | ||||
| 90179-06185 | ||||
| 90467-09093 | ||||
| 90467-09096 | ||||
| Linked diagrams | ||||
| 5302 | ||||

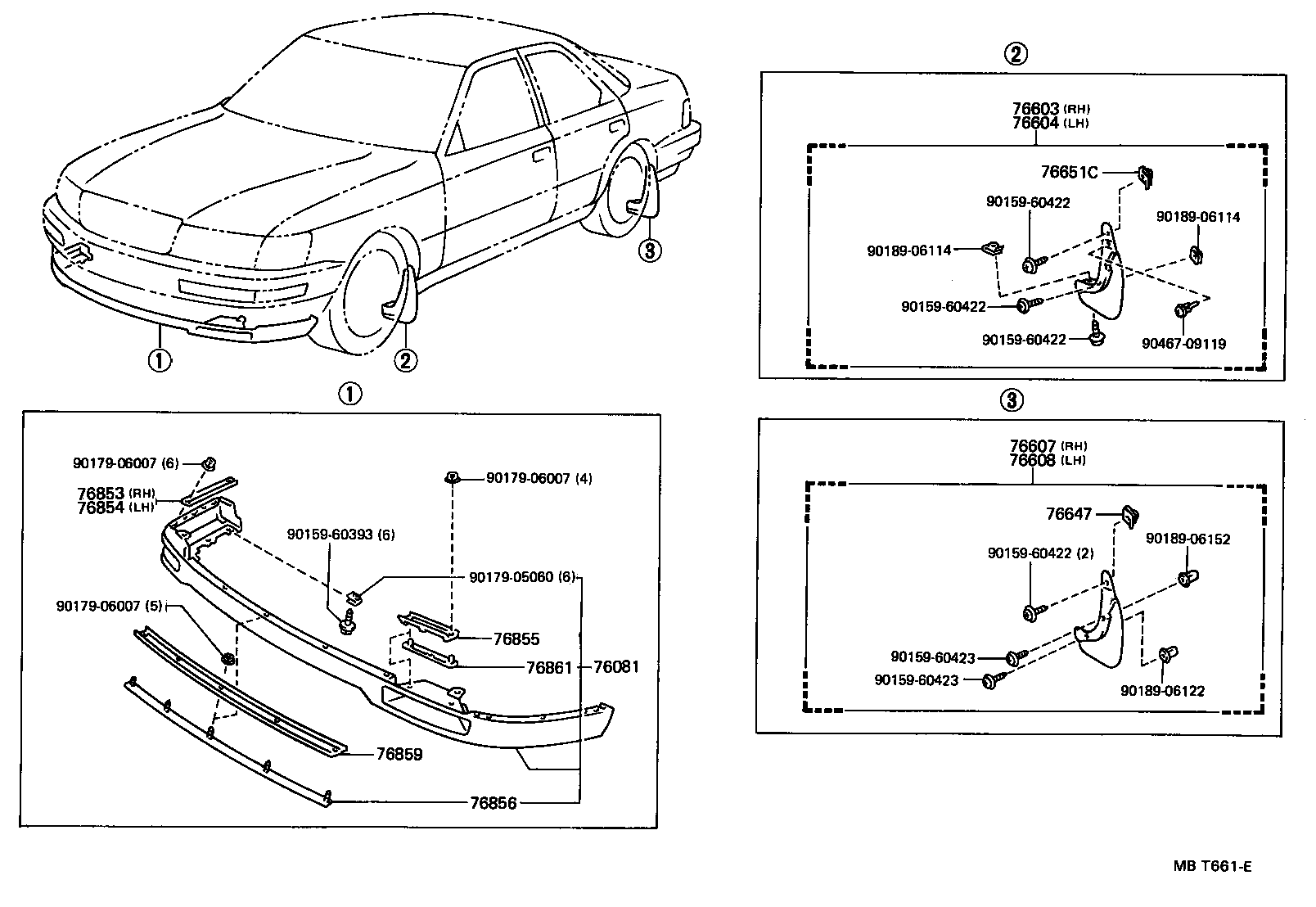

ILLUST NO. 1 OF 2(8911-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76081 - SPOILER SUB-ASSY, FRONT | ||||
| 76081-50050D1 |
UCF1#..B,C MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76081-50050D0 |
UCF1#..B,C LIGHT GRAY,176 |
1 | ||
| 76081-50050C0 |
UCF1#..B,C SILVER M,051 |
1 | ||
| 76081-50050D0 |
UCF1#..B,C LIGHT GRAY,199 |
1 | ||
| 76081-50050E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76081-50050F1 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 76081-50050F0 |
UCF1#..B,C DARK STEEL BLUE M,8J5 |
1 | ||
| 76081-50030 |
UCF1#..B,C |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-59025 |
UCF1# |
1 | ||
| 76621-59015 |
UCF1# |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-59015 |
UCF1# |
1 | ||
| 76622-59025 |
UCF1# |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-59025 |
UCF1# |
1 | ||
| 76625-59015 |
UCF1# |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-59025 |
UCF1# |
1 | ||
| 76626-59015 |
UCF1# |
1 | ||
| 76647 - RETAINER, QUARTER PANEL REAR MUDGUARD | ||||
| 76647-50010 |
UCF1# |
2 | ||
| 76647-50020 |
UCF1# |
2 | ||
| 76651C - RETAINER, FRONT MUDGUARD | ||||
| 76651-50010 |
UCF1# |
2 | ||
| 76651-50020 |
UCF1# |
2 | ||
| 76853 - RETAINER, FRONT SPOILER, UPPER RH | ||||
| 76853-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76853-50010 |
UCF1# |
1 | ||
| 76853-50010 |
UCF1#..A,C |
1 | ||
| 76853-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76854 - RETAINER, FRONT SPOILER, UPPER LH | ||||
| 76854-50010 |
UCF1# |
1 | ||
| 76854-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76854-50010 |
UCF1#..A,C |
1 | ||
| 76854-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76855 - RETAINER, FRONT SPOILER, LOWER NO.1 CENTER | ||||
| 76855-50010 |
UCF1#..B,C |
2 | ||
| 76856 - RETAINER, FRONT SPOILER, LOWER NO.2 CENTER | ||||
| 76856-50020 |
UCF1#..B,C |
1 | ||
| 76859 - RETAINER, FRONT SPOILER, UPPER NO.3 | ||||
| 76859-50020 |
UCF1#..B,C |
1 | ||
| 76861 - RETAINER, FRONT SPOILER, LOWER NO.1 | ||||
| 76861-50020 |
UCF1#..B,C |
2 | ||
| Common parts | ||||
| 90159-60393 | ||||
| 90159-60422 | ||||
| 90159-60423 | ||||
| 90179-05060 | ||||
| 90179-06007 | ||||
| 90189-06114 | ||||
| 90189-06122 | ||||
| 90189-06152 | ||||
| 90467-09119 | ||||

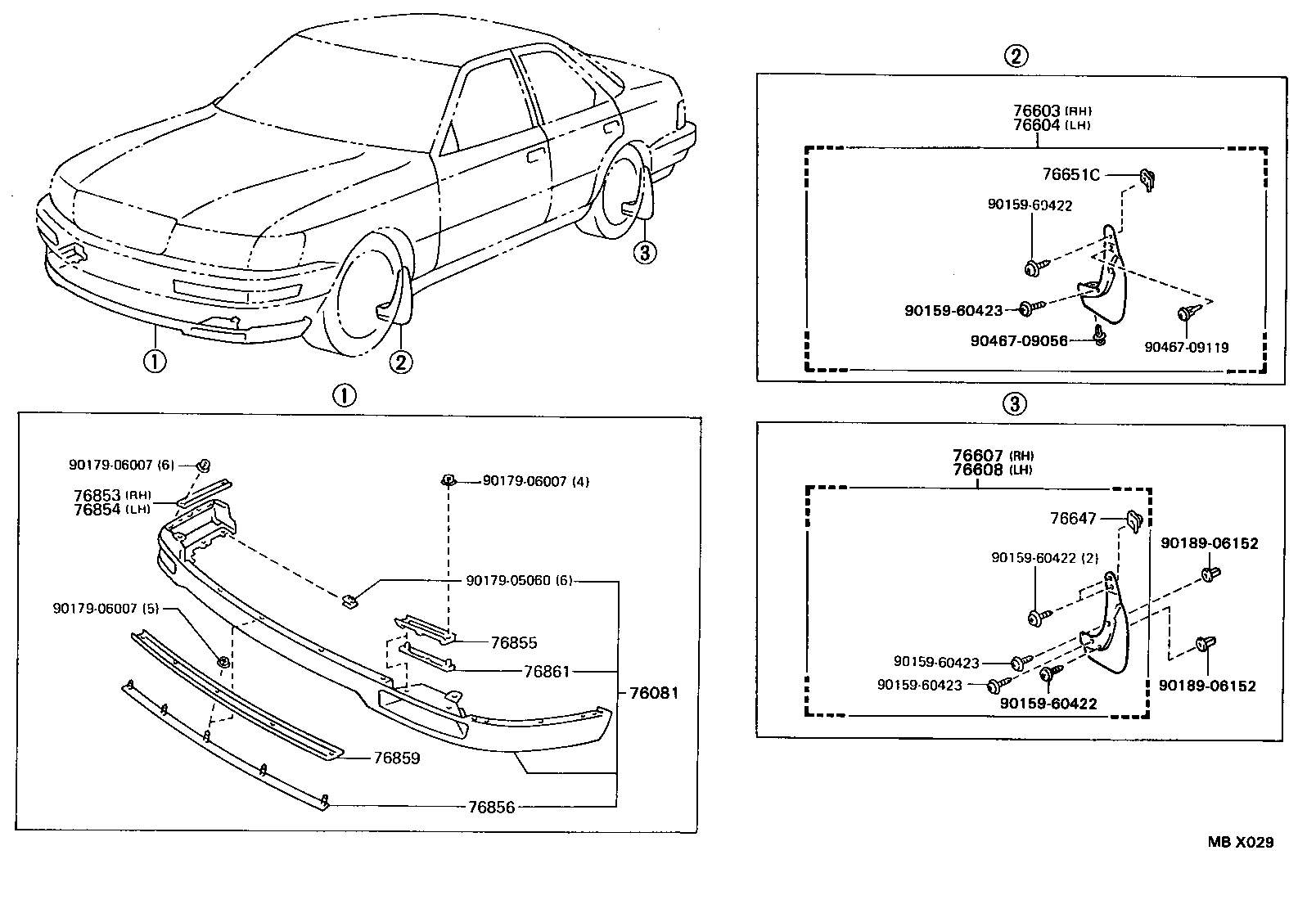

ILLUST NO. 1 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76081 - SPOILER SUB-ASSY, FRONT | ||||
| 76081-50050D1 |
UCF1#..B,C MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76081-50050D0 |
UCF1#..B,C LIGHT GRAY,176 |
1 | ||
| 76081-50050C0 |
UCF1#..B,C SILVER M,051 |
1 | ||
| 76081-50050D0 |
UCF1#..B,C LIGHT GRAY,199 |
1 | ||
| 76081-50050E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76081-50050F1 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 76081-50050F0 |
UCF1#..B,C DARK STEEL BLUE M,8J5 |
1 | ||
| 76081-50030 |
UCF1#..B,C |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-59025 |
UCF1# |
1 | ||
| 76621-59015 |
UCF1# |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-59015 |
UCF1# |
1 | ||
| 76622-59025 |
UCF1# |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-59025 |
UCF1# |
1 | ||
| 76625-59015 |
UCF1# |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-59025 |
UCF1# |
1 | ||
| 76626-59015 |
UCF1# |
1 | ||
| 76647 - RETAINER, QUARTER PANEL REAR MUDGUARD | ||||
| 76647-50010 |
UCF1# |
2 | ||
| 76647-50020 |
UCF1# |
2 | ||
| 76651C - RETAINER, FRONT MUDGUARD | ||||
| 76651-50010 |
UCF1# |
2 | ||
| 76651-50020 |
UCF1# |
2 | ||
| 76853 - RETAINER, FRONT SPOILER, UPPER RH | ||||
| 76853-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76853-50010 |
UCF1# |
1 | ||
| 76853-50010 |
UCF1#..A,C |
1 | ||
| 76853-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76854 - RETAINER, FRONT SPOILER, UPPER LH | ||||
| 76854-50010 |
UCF1# |
1 | ||
| 76854-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76854-50010 |
UCF1#..A,C |
1 | ||
| 76854-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76855 - RETAINER, FRONT SPOILER, LOWER NO.1 CENTER | ||||
| 76855-50010 |
UCF1#..B,C |
2 | ||
| 76856 - RETAINER, FRONT SPOILER, LOWER NO.2 CENTER | ||||
| 76856-50020 |
UCF1#..B,C |
1 | ||
| 76859 - RETAINER, FRONT SPOILER, UPPER NO.3 | ||||
| 76859-50020 |
UCF1#..B,C |
1 | ||
| 76861 - RETAINER, FRONT SPOILER, LOWER NO.1 | ||||
| 76861-50020 |
UCF1#..B,C |
2 | ||
| Common parts | ||||
| 90159-60422 | ||||
| 90159-60423 | ||||
| 90179-05060 | ||||
| 90179-06007 | ||||
| 90189-06152 | ||||
| 90467-09056 | ||||
| 90467-09119 | ||||
ILLUST NO. 2 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52565C - RETAINER, REAR BUMPER, LOWER RH | ||||
| 52565-50020 |
UCF1# |
1 | ||
| 52566B - RETAINER, REAR BUMPER, LOWER LH | ||||
| 52566-50010 |
UCF1# |
1 | ||
| 52589A - RETAINER, REAR BUMPER END, NO.2 | ||||
| 52589-50010 |
UCF1# |
2 | ||
| 52589A - RETAINER, REAR BUMPER END, NO.2 | ||||
| 52589-50010 |
UCF1# |
2 | ||
| 76081C - SPOILER, FRONT SIDE RH | ||||
| 76081-50010 |
UCF1# |
1 | ||
| 76081-50040C0 |
UCF1# SILVER M,051 |
1 | ||
| 76081-50040D1 |
UCF1#..A,C MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76081-50040F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 76081-50040E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76081-50040F1 |
UCF1#..A,C DARK STEEL BLUE M,8J5 |
1 | ||
| 76081-50040F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 76081-50040D0 |
UCF1#..A,C LIGHT GRAY,199 |
1 | ||
| 76081-50040D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 76081-50040D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76081-50040C0 |
UCF1#..A,C SILVER M,051 |
1 | ||
| 76083B - SPOILER, FRONT SIDE LH | ||||
| 76083-50020C0 |
UCF1# SILVER M,051 |
1 | ||
| 76083-50010 |
UCF1# |
1 | ||
| 76083-50020D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 76083-50020F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 76083-50020E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76083-50020D0 |
UCF1#..A,C LIGHT GRAY,199 |
1 | ||
| 76083-50020C0 |
UCF1#..A,C SILVER M,051 |
1 | ||
| 76083-50020D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76083-50020D1 |
UCF1#..A,C MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76083-50020F1 |
UCF1#..A,C DARK STEEL BLUE M,8J5 |
1 | ||
| 76083-50020F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 76853 - RETAINER, FRONT SPOILER, UPPER RH | ||||
| 76853-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76853-50010 |
UCF1# |
1 | ||
| 76853-50010 |
UCF1#..A,C |
1 | ||
| 76853-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76854 - RETAINER, FRONT SPOILER, UPPER LH | ||||
| 76854-50010 |
UCF1# |
1 | ||
| 76854-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76854-50010 |
UCF1#..A,C |
1 | ||
| 76854-50020 |
UCF1#..B,C ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) |
1 | ||
| 76971D - COVER, REAR UNDER | ||||
| 76971-50010 |
UCF1# |
1 | ||
| 76971-50020D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 76971-50020D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 76971-50020E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76971-50020F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 76971-50020F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 76971-50020C0 |
UCF1# SILVER M,051 |
1 | ||
| 76971-50020D0 |
UCF1# LIGHT GRAY,199 |
1 | ||
| 76973D - COVER, REAR UNDER SIDE, RH | ||||
| 76973-50010 |
UCF1# |
1 | ||
| 52108-50011C0 |
UCF1# SILVER M,051 |
1 | ||
| 52108-50010D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 52108-50010D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 52108-50010C0 |
UCF1# SILVER M,051 |
1 | ||
| 52108-50010F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 52108-50010E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 52108-50010F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 52108-50011D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 52108-50011E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 52108-50011D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 52108-50011F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 52108-50011F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 52108-50011D0 |
UCF1# LIGHT GRAY,199 |
1 | ||
| 76974D - COVER, REAR UNDER SIDE, LH | ||||
| 52109-50010D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 52109-50011D0 |
UCF1# LIGHT GRAY,199 |
1 | ||
| 52109-50010F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 52109-50011C0 |
UCF1# SILVER M,051 |
1 | ||
| 52109-50011D0 |
UCF1# LIGHT GRAY,176 |
1 | ||
| 52109-50010E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 76974-50010 |
UCF1# |
1 | ||
| 52109-50011E0 |
UCF1#..B,C CAMEL BEIGE,4K9 |
1 | ||
| 52109-50011F1 |
UCF1# DARK STEEL BLUE M,8J5 |
1 | ||
| 52109-50010F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| 52109-50011D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 52109-50010D1 |
UCF1# MEDIUM GRAY,180 ,202 ,6K4 |
1 | ||
| 52109-50010C0 |
UCF1# SILVER M,051 |
1 | ||
| 52109-50011F2 |
UCF1#..B,C TAUPE M,923 |
1 | ||
| Common parts | ||||
| 90109-06203 | ||||
| 90109-06221 | ||||
| 90159-60423 | ||||
| 90168-60023 | ||||
| 90179-06007 | ||||
| 90467-09093 | ||||
| 90467-09096 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
