UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

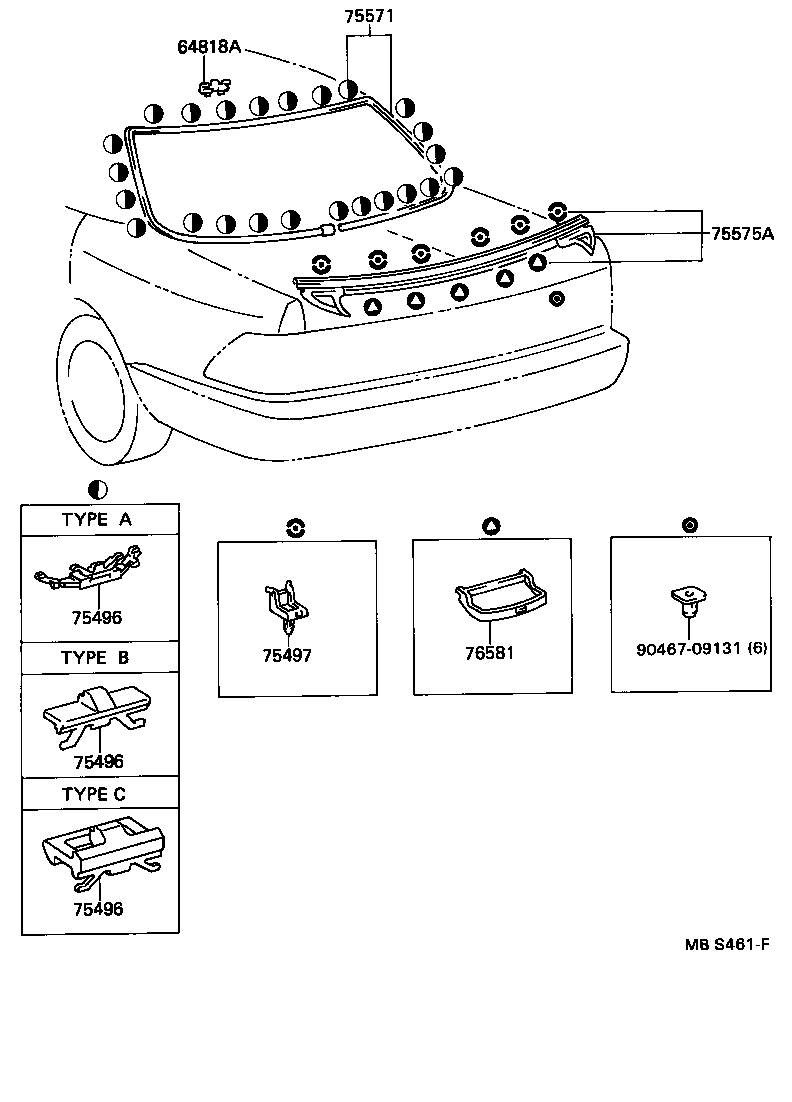

Click highlighted areas on diagram

diagram 64818A 75496 75496 75496 75497 75571 75575A 76581 9046709131
Part # Description Qty Price
64818A - SPACER, BACK WINDOW GLASS
64818-50080

UCF10..A

 16
64818-50090

UCF1#..B,C

 16
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-50010

UCF10..A

NATURAL,TYPE A

 13
75491-50010

UCF1#

NATURAL,TYPE B

 15
75496-50030

UCF1#..B,C

NATURAL,TYPE A

 14
75491-50010

UCF1#

NATURAL,TYPE B

 17
75496-50040

UCF1#..B,C

YELLOW,TYPE A

 3
75491-50030

UCF1#..B,C

BLUE,TYPE C

 42
75491-50030

UCF1#..B,C

BLUE,TYPE C

 44
75496-50010

UCF10..A

NATURAL,TYPE A

 14
75496-50030

UCF1#..B,C

NATURAL,TYPE A

 13
75496-50010

UCF10..A

NATURAL,TYPE A

 11
75496-50040

UCF1#..B,C

BLUE,TYPE A

 3
75491-50020

UCF10..A

NATURAL,TYPE C

 42
75496-50030

UCF1#..B,C

ORANGE,TYPE A

 14
75496-50020

UCF10..A

YELLOW,TYPE A

 3
75491-50010

UCF1#

NATURAL,TYPE B

 4
75496-50030

UCF1#..B,C

NATURAL,TYPE A

 11
75491-50020

UCF10..A

NATURAL,TYPE C

 44
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-50010

UCF10..A

NATURAL,TYPE A

 13
75491-50010

UCF1#

NATURAL,TYPE B

 15
75496-50030

UCF1#..B,C

NATURAL,TYPE A

 14
75491-50010

UCF1#

NATURAL,TYPE B

 17
75496-50040

UCF1#..B,C

YELLOW,TYPE A

 3
75491-50030

UCF1#..B,C

BLUE,TYPE C

 42
75491-50030

UCF1#..B,C

BLUE,TYPE C

 44
75496-50010

UCF10..A

NATURAL,TYPE A

 14
75496-50030

UCF1#..B,C

NATURAL,TYPE A

 13
75496-50010

UCF10..A

NATURAL,TYPE A

 11
75496-50040

UCF1#..B,C

BLUE,TYPE A

 3
75491-50020

UCF10..A

NATURAL,TYPE C

 42
75496-50030

UCF1#..B,C

ORANGE,TYPE A

 14
75496-50020

UCF10..A

YELLOW,TYPE A

 3
75491-50010

UCF1#

NATURAL,TYPE B

 4
75496-50030

UCF1#..B,C

NATURAL,TYPE A

 11
75491-50020

UCF10..A

NATURAL,TYPE C

 44
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-50010

UCF10..A

NATURAL,TYPE A

 13
75491-50010

UCF1#

NATURAL,TYPE B

 15
75496-50030

UCF1#..B,C

NATURAL,TYPE A

 14
75491-50010

UCF1#

NATURAL,TYPE B

 17
75496-50040

UCF1#..B,C

YELLOW,TYPE A

 3
75491-50030

UCF1#..B,C

BLUE,TYPE C

 42
75491-50030

UCF1#..B,C

BLUE,TYPE C

 44
75496-50010

UCF10..A

NATURAL,TYPE A

 14
75496-50030

UCF1#..B,C

NATURAL,TYPE A

 13
75496-50010

UCF10..A

NATURAL,TYPE A

 11
75496-50040

UCF1#..B,C

BLUE,TYPE A

 3
75491-50020

UCF10..A

NATURAL,TYPE C

 42
75496-50030

UCF1#..B,C

ORANGE,TYPE A

 14
75496-50020

UCF10..A

YELLOW,TYPE A

 3
75491-50010

UCF1#

NATURAL,TYPE B

 4
75496-50030

UCF1#..B,C

NATURAL,TYPE A

 11
75491-50020

UCF10..A

NATURAL,TYPE C

 44
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-50010

UCF1#

NATURAL

 3
75497-50020

UCF1#

ﾌﾞﾗｯｸ

 1
75497-50030

UCF1#

GRAY

 2
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75501-50010

UCF10..A

 1
75501-50020

UCF1#..B,C

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75507-50010

UCF1#

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-50010

UCF1#

 5
Common parts
90467-09131
