UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

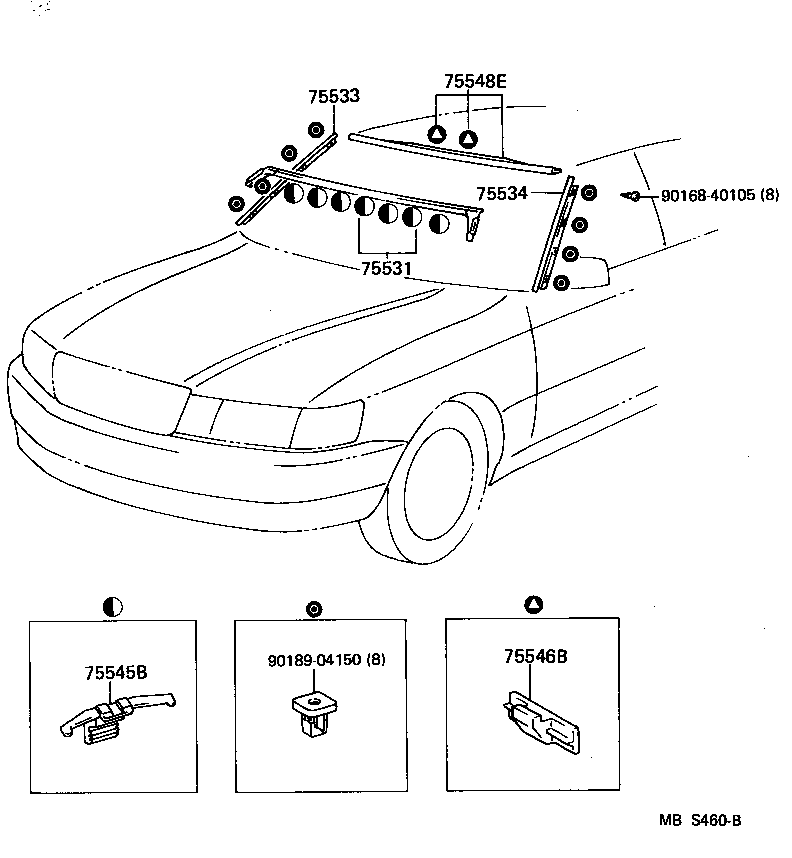

Click highlighted areas on diagram

diagram 75531 75533 75534 75545B 75546B 75548E 9016840105 9018904150
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-50010

UCF1#

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-50010

UCF1#

 1
76503-50010

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
76503-50020

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-50010

UCF1#

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-50021

UCF1#

 15
75545-50020

UCF1#

 15
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-50010

UCF1#

 2
75548E - FASTENER, WINDSHIELD OUTSIDE MOULDING
75548-50031

UCF1#

 1
75548-50032

UCF1#

 1
Common parts
90168-40105
90189-04150
