UCF10-AEPNK (1989)
Toyota Celsior
(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63351D - PAD, ROOF HEADLINING | ||||
| 63351-50010 |
UCF1# |
2 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 74210-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 74210-50020S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 74210-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 74210-50020W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 74210-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 74210-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 74210-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 74220-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 74220-50020S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 74220-50020W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 74220-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 74220-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 74220-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 74220-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 74250-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 74250-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 74250-50010S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 74250-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 74250-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 74250-50010W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 74250-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74230-50020 |
UCF1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 74260-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 74260-50010S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 74260-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 74260-50010W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 74260-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 74260-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 74260-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74240-50020 |
UCF1# |
1 | ||
| 74270 - PANEL ASSY, REAR DOOR ARMREST BASE, RH | ||||
| 74270-50010 |
UCF1# |
1 | ||
| 74280 - PANEL ASSY, REAR DOOR ARMREST BASE, LH | ||||
| 74280-50010 |
UCF1# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-59035J0 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 74310-59045B0 |
UCF1# ï¾…ï½¼(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 74310-59035E0 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 74310-59035B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 74310-59035E1 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 74310-59045J0 |
UCF1# ï¾…ï½¼(*80),DARK BLUE,TRIM8# |
1 | ||
| 74310-59045E0 |
UCF1#..B,C ï¾…ï½¼(*80),GREIGE,TRIM0# |
1 | ||
| 74310-59045E1 |
UCF1#..B,C ï¾…ï½¼(*80),DARK ROSE,TRIM4# |
1 | ||
| 74310-59065B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 74310-59065J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 74310-59065E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 74310-59065K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-59035B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 74320-59035E1 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 74320-59045E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 74320-59045B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 74320-59045J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 74320-59035E0 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 74320-59035J0 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 74320-59045K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 74330A - VISOR ASSY, CENTER | ||||
| 74330-50020E1 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 74330-50020B1 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 74330-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 74330-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 74330-50020K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 74330-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 74330-50020J1 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 74330-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 74348-5001004 |
UCF1# DARK BLUE,TRIM8# |
2 | ||
| 74348-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 74348-50010E0 |
UCF1#..B,C OAK,TRIM0# |
2 | ||
| 74348-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
2 | ||
| 74348-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
2 | ||
| 74348-50010W3 |
UCF1# DK. BLUE,TRIM8# |
2 | ||
| 74348-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-5001005 |
UCF1#..B,C GREIGE,TRIM0#,FRONT |
1 | ||
| 74610-5001004 |
UCF1# DARK BLUE,TRIM8#,FRONT |
1 | ||
| 74610-5001003 |
UCF1# SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 74620-5001003 |
UCF1# SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 74620-5001005 |
UCF1#..B,C GREIGE,TRIM0#,REAR |
2 | ||
| 74620-5001004 |
UCF1# DARK BLUE,TRIM8#,REAR |
2 | ||
| 74610-5001006 |
UCF1#..B,C DARK ROSE,TRIM4#,FRONT |
1 | ||
| 74610-50010E0 |
UCF1#..B,C OAK,TRIM0#,FRONT |
1 | ||
| 74620-50010K0 |
UCF1#..B,C TAUPE,TRIM9#,REAR |
2 | ||
| 74620-50010E0 |
UCF1#..B,C OAK,TRIM0#,REAR |
2 | ||
| 74620-50010P0 |
UCF1# SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 74610-50010W3 |
UCF1# DK. BLUE,TRIM8#,FRONT |
1 | ||
| 74620-5001006 |
UCF1#..B,C DARK ROSE,TRIM4#,REAR |
2 | ||
| 74610-50010K0 |
UCF1#..B,C TAUPE,TRIM9#,FRONT |
1 | ||
| 74620-50010W3 |
UCF1# DK. BLUE,TRIM8#,REAR |
2 | ||
| 74610-50010P0 |
UCF1# SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-5001005 |
UCF1#..B,C GREIGE,TRIM0#,FRONT |
1 | ||
| 74610-5001004 |
UCF1# DARK BLUE,TRIM8#,FRONT |
1 | ||
| 74610-5001003 |
UCF1# SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 74620-5001003 |
UCF1# SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 74620-5001005 |
UCF1#..B,C GREIGE,TRIM0#,REAR |
2 | ||
| 74620-5001004 |
UCF1# DARK BLUE,TRIM8#,REAR |
2 | ||
| 74610-5001006 |
UCF1#..B,C DARK ROSE,TRIM4#,FRONT |
1 | ||
| 74610-50010E0 |
UCF1#..B,C OAK,TRIM0#,FRONT |
1 | ||
| 74620-50010K0 |
UCF1#..B,C TAUPE,TRIM9#,REAR |
2 | ||
| 74620-50010E0 |
UCF1#..B,C OAK,TRIM0#,REAR |
2 | ||
| 74620-50010P0 |
UCF1# SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 74610-50010W3 |
UCF1# DK. BLUE,TRIM8#,FRONT |
1 | ||
| 74620-5001006 |
UCF1#..B,C DARK ROSE,TRIM4#,REAR |
2 | ||
| 74610-50010K0 |
UCF1#..B,C TAUPE,TRIM9#,FRONT |
1 | ||
| 74620-50010W3 |
UCF1# DK. BLUE,TRIM8#,REAR |
2 | ||
| 74610-50010P0 |
UCF1# SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 74611C - COVER, ASSIST GRIP, LH | ||||
| 74611-5001004 |
UCF1# DARK BLUE,TRIM8# |
3 | ||
| 74611-50010W3 |
UCF1# DK. BLUE,TRIM8# |
3 | ||
| 74611-50010E0 |
UCF1#..B,C OAK,TRIM0# |
3 | ||
| 74611-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
3 | ||
| 74611-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
3 | ||
| 74611-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
3 | ||
| 74611-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
3 | ||
| 74611-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
3 | ||
| 74611C - COVER, ASSIST GRIP, LH | ||||
| 74611-5001004 |
UCF1# DARK BLUE,TRIM8# |
3 | ||
| 74611-50010W3 |
UCF1# DK. BLUE,TRIM8# |
3 | ||
| 74611-50010E0 |
UCF1#..B,C OAK,TRIM0# |
3 | ||
| 74611-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
3 | ||
| 74611-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
3 | ||
| 74611-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
3 | ||
| 74611-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
3 | ||
| 74611-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
3 | ||
| 74612C - COVER, ASSIST GRIP, RH | ||||
| 74612-5001004 |
UCF1# DARK BLUE,TRIM8# |
3 | ||
| 74612-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
3 | ||
| 74612-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
3 | ||
| 74612-50010E0 |
UCF1#..B,C OAK,TRIM0# |
3 | ||
| 74612-50010W3 |
UCF1# DK. BLUE,TRIM8# |
3 | ||
| 74612-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
3 | ||
| 74612-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
3 | ||
| 74612-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
3 | ||
| 74612C - COVER, ASSIST GRIP, RH | ||||
| 74612-5001004 |
UCF1# DARK BLUE,TRIM8# |
3 | ||
| 74612-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
3 | ||
| 74612-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
3 | ||
| 74612-50010E0 |
UCF1#..B,C OAK,TRIM0# |
3 | ||
| 74612-50010W3 |
UCF1# DK. BLUE,TRIM8# |
3 | ||
| 74612-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
3 | ||
| 74612-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
3 | ||
| 74612-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
3 | ||
| 74631B - HOOK, COAT | ||||
| 74631-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
2 | ||
| 74631-5001004 |
UCF1# DARK BLUE,TRIM8# |
2 | ||
| 74631-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 74631-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 74631-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
2 | ||
| 74631-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 74631-50010W3 |
UCF1# DK. BLUE,TRIM8# |
2 | ||
| 74631-50010E0 |
UCF1#..B,C OAK,TRIM0# |
2 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90168-40081 | ||||
| 90189-06126 | ||||
| 90189-06127 | ||||
| 90467-10012 | ||||
| 90468-05091 | ||||
| 90523-06007 | ||||
| 93530-45020 | ||||

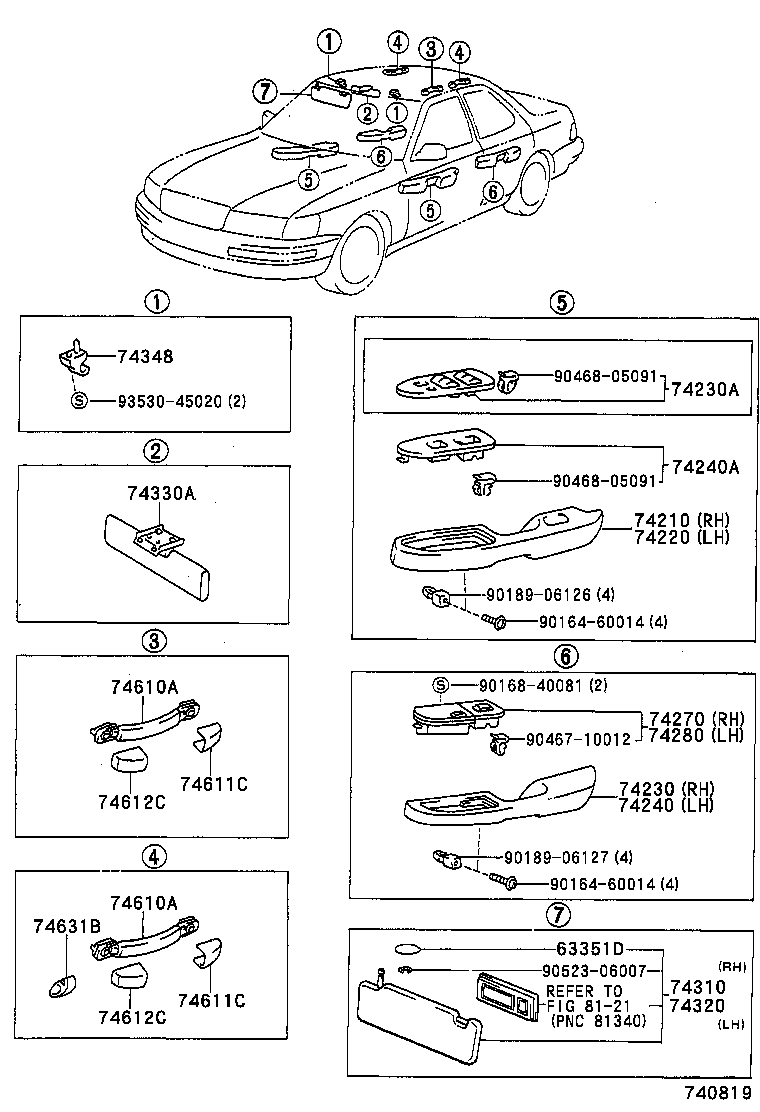

| Linked diagrams | ||||
| 8121 | ||||
