UCF10-AEPNK (1989)
Toyota Celsior

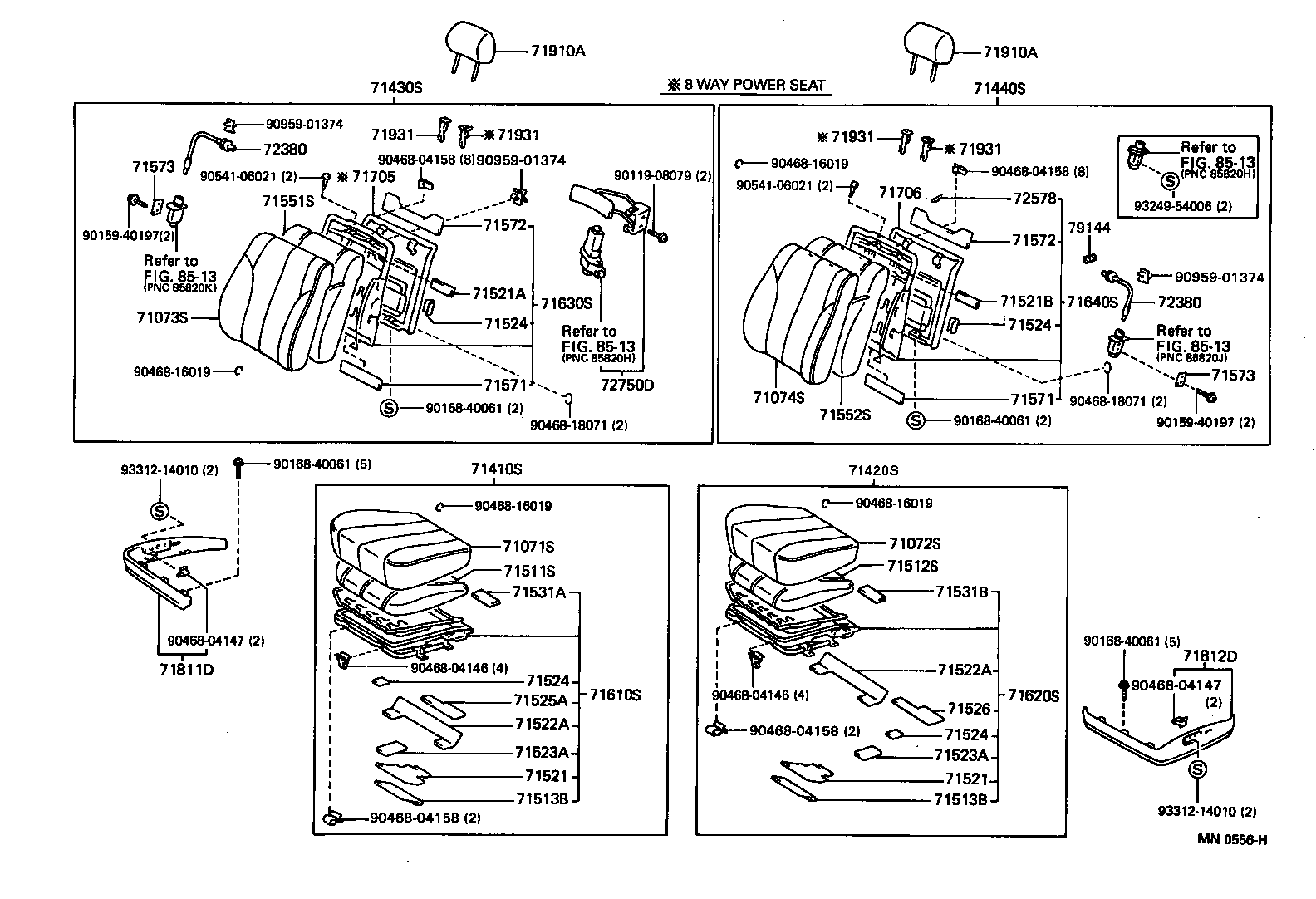

ILLUST NO. 1 OF 2(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71071-5007006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71071-5007003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71071-5007004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71071-5002006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71071-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71071-5003003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71071-5003004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71071-5007008 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71071-50090J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71071-50090B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71071-50030B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 71071-50080B1 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 71071-50080J1 |
UCF1#..B,C DK. BLUE,TRIM8# |
1 | ||
| 71071-50090E0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71071-50030J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 71071-50090A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71071-50140B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-50150K0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),TAUPE,TRIM9# |
1 | ||
| 71071-50150A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71071-50150J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DK. BLUE,TRIM8# |
1 | ||
| 71071-50080K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71072-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71072-5002006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71072-5007004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71072-5007008 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71072-5007003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71072-50030J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 71072-5007006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71072-50090E0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71072-5003003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71072-50090B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71072-50090J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71072-50080J1 |
UCF1#..B,C DK. BLUE,TRIM8# |
1 | ||
| 71072-50080B1 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 71072-50150A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71072-50080K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 71072-50030B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 71072-50090A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71072-50150K0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),TAUPE,TRIM9# |
1 | ||
| 71072-50140B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-50150J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DK. BLUE,TRIM8# |
1 | ||
| 71072-5003004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-5015003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71073-5015006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71073-5015008 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71073-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71073-5015004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71073-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71073-50160J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 71073-50160B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-5015006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71073-5015003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71073-5015008 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71073-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71073-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71073-5015004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71073-50160J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 71073-50160B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-5007006 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71410-5010008 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71410-5001004 |
UCF10..A ***,BLUE,TRIM8# |
1 | ||
| 71410-5010004 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71410-5010003 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71410-5010006 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71410-50150A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71410-50150B0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71410-50150J0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71410-50400A0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71410-5001003 |
UCF10..A ***,GRAY,TRIM1# |
1 | ||
| 71410-50150E0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71410-50380B1 |
UCF1#..B,C ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-50400J0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),DK. BLUE,TRIM8# |
1 | ||
| 71410-50160J0 |
UCF10..A ***,BLUE,TRIM8# |
1 | ||
| 71410-50380K1 |
UCF1#..B,C ***,TAUPE,TRIM9# |
1 | ||
| 71410-50160B0 |
UCF10..A ***,GRAY,TRIM1# |
1 | ||
| 71410-50390B0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-50420B0 |
UCF10..A ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-50420J0 |
UCF10..A ***,DK. BLUE,TRIM8# |
1 | ||
| 71410-50400K0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),TAUPE,TRIM9# |
1 | ||
| 71410-50380J1 |
UCF1#..B,C ***,DK. BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-5007008 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71420-5007006 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71420-5010006 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71420-5007003 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71420-5007004 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71420-5005003 |
UCF10..A ***,GRAY,TRIM1# |
1 | ||
| 71420-5005004 |
UCF10..A ***,BLUE,TRIM8# |
1 | ||
| 71420-50130B0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71420-50170J0 |
UCF10..A ***,BLUE,TRIM8# |
1 | ||
| 71420-50130A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71420-50130E0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71420-50130J0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71420-50390B0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-50380K1 |
UCF1#..B,C ***,TAUPE,TRIM9# |
1 | ||
| 71420-50400K0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),TAUPE,TRIM9# |
1 | ||
| 71420-50420J0 |
UCF10..A ***,DK. BLUE,TRIM8# |
1 | ||
| 71420-50420B0 |
UCF10..A ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-50400J0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),DK. BLUE,TRIM8# |
1 | ||
| 71420-50380J1 |
UCF1#..B,C ***,DK. BLUE,TRIM8# |
1 | ||
| 71420-50380B1 |
UCF1#..B,C ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-50400A0 |
UCF1#..B,C ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) OR F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71420-50170B0 |
UCF10..A ***,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-5011003 |
UCF10..A ***,GRAY,TRIM1# |
1 | ||
| 71430-5011004 |
UCF10..A ***,BLUE,TRIM8# |
1 | ||
| 71430-50250J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 71430-50250B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-5009004 |
UCF10..A ***,BLUE,TRIM8# |
1 | ||
| 71440-5009003 |
UCF10..A ***,GRAY,TRIM1# |
1 | ||
| 71440-50490B0 |
UCF10..A ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-50490J0 |
UCF10..A ***,DK. BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-50040 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
1 | ||
| 71511-50020 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
1 | ||
| 71511-50010 |
UCF1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-50020 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
1 | ||
| 71512-50010 |
UCF1# |
1 | ||
| 71512-50040 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
1 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71671-22090 |
UCF10..A 左側 |
1 | ||
| 71671-22090 |
UCF1#..B,C |
1 | ||
| 71513-50010 |
UCF1# |
1 | ||
| 71513-50010 |
UCF10..A 右側 |
1 | ||
| 71513-50010 |
UCF10..A |
2 | ||
| 71513-50010 |
UCF1#..B,C |
1 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71671-22090 |
UCF10..A 左側 |
1 | ||
| 71671-22090 |
UCF1#..B,C |
1 | ||
| 71513-50010 |
UCF1# |
1 | ||
| 71513-50010 |
UCF10..A 右側 |
1 | ||
| 71513-50010 |
UCF10..A |
2 | ||
| 71513-50010 |
UCF1#..B,C |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-50010 |
UCF10..A |
2 | ||
| 71521-50010 |
UCF1# |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-50010 |
UCF10..A |
2 | ||
| 71521-50010 |
UCF1# |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-50011 |
UCF10..A |
2 | ||
| 71522-50010 |
UCF1# |
1 | ||
| 71522-50011 |
UCF1# |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-50011 |
UCF10..A |
2 | ||
| 71522-50010 |
UCF1# |
1 | ||
| 71522-50011 |
UCF1# |
1 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-50010 |
UCF10..A |
2 | ||
| 71523-50010 |
UCF1# |
1 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-50010 |
UCF10..A |
2 | ||
| 71523-50010 |
UCF1# |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-50010 |
UCF1# |
6 | ||
| 71524-50010 |
UCF1# |
4 | ||
| 71524-50010 |
UCF10..A |
3 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-50010 |
UCF1# |
6 | ||
| 71524-50010 |
UCF1# |
4 | ||
| 71524-50010 |
UCF10..A |
3 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-50010 |
UCF1# |
6 | ||
| 71524-50010 |
UCF1# |
4 | ||
| 71524-50010 |
UCF10..A |
3 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-50010 |
UCF1# |
6 | ||
| 71524-50010 |
UCF1# |
4 | ||
| 71524-50010 |
UCF10..A |
3 | ||
| 71525A - PAD, FRONT SEAT CUSHION COVER, CENTER RH | ||||
| 71526-50010 |
UCF1#..B,C |
1 | ||
| 71526-50010 |
UCF1# |
1 | ||
| 71526 - PAD,FRONT SEAT CUSHION COVER,CENTER LH | ||||
| 71525-50020 |
UCF1# |
1 | ||
| 71531A - PAD, FRONT SEAT CUSHION CORNER, A RH | ||||
| 71531-50010 |
UCF1# |
2 | ||
| 71531-50010 |
UCF1# |
1 | ||
| 71531B - PAD, FRONT SEAT CUSHION CORNER, A LH | ||||
| 71531-50010 |
UCF1# |
2 | ||
| 71531-50010 |
UCF1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-50020 |
UCF1# |
1 | ||
| 71551-50070 |
UCF1# |
1 | ||
| 71551-50030 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-50010 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
1 | ||
| 71551-50070 |
UCF1# |
1 | ||
| 71551-50080 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
1 | ||
| 71551-50020 |
UCF1# |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-50010 |
UCF1# |
2 | ||
| 71571-50010 |
UCF1# |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-50010 |
UCF1# |
2 | ||
| 71571-50010 |
UCF1# |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-50010 |
UCF1# |
1 | ||
| 71572-50010 |
UCF1# |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-50010 |
UCF1# |
1 | ||
| 71572-50010 |
UCF1# |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-50030 |
UCF10..A |
1 | ||
| 71610-50080 |
UCF1# |
1 | ||
| 71610-50060 |
UCF1# |
1 | ||
| 71610-50010 |
UCF10..A |
1 | ||
| 71610-50040 |
UCF1#..B,C |
1 | ||
| 71610-50020 |
UCF1#..B,C |
1 | ||
| 71610-50060 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-50040 |
UCF1# |
1 | ||
| 71620-50060 |
UCF1# |
1 | ||
| 71620-50020 |
UCF1# |
1 | ||
| 71620-50060 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ-ｼ-ﾄ) |
1 | ||
| 71620-50080 |
UCF1# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-50070 |
UCF10 |
1 | ||
| 71630-50120 |
UCF10 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-50010 |
UCF10 |
1 | ||
| 71630-50030 |
UCF10 |
1 | ||
| 71630-50110 |
UCF10 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71705-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71705-5002006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71705-5002003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71705-5002008 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71705-5002004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71705-50010J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 71705-50020B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SLATE GRAY,TRIM1# |
1 | ||
| 71705-50020A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71705-50010B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 71705-50090B0 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 71705-50090J0 |
UCF1#..B,C DK. BLUE,TRIM8# |
1 | ||
| 71705-50020K0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ME. TAUPE,TRIM9# |
1 | ||
| 71705-50020J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),EISEN BLUE,TRIM8# |
1 | ||
| 71705-50090K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71705-5002004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 71705-5002003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71705-5002008 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71705-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71705-50010B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 71705-50010J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 71705-50090J0 |
UCF1#..B,C DK. BLUE,TRIM8# |
1 | ||
| 71705-5002006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 71705-50020K0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ME. TAUPE,TRIM9# |
1 | ||
| 71705-50090K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 71705-50090B0 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 71705-50020B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SLATE GRAY,TRIM1# |
1 | ||
| 71705-50020A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71705-50020J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),EISEN BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 71811-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 71811-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 71811-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 71811-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 71811-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 71811-50020B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 71811-50020J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-50020B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 71812-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 71812-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 71812-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 71812-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 71812-50020J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 71812-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 71812-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-5004004 |
UCF10..A BLUE,TRIM8# |
2 | ||
| 71910-5004003 |
UCF10..A GRAY,TRIM1# |
2 | ||
| 71910-50040B0 |
UCF10..A SHADOW GRAY,TRIM1# |
2 | ||
| 71910-50040J1 |
UCF10..A DK. BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-5004004 |
UCF10..A BLUE,TRIM8# |
2 | ||
| 71910-5004003 |
UCF10..A GRAY,TRIM1# |
2 | ||
| 71910-50040B0 |
UCF10..A SHADOW GRAY,TRIM1# |
2 | ||
| 71910-50040J1 |
UCF10..A DK. BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-5002003 |
UCF10 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-5002003 |
UCF10 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-5002004 |
UCF10 ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71931-5002004 |
UCF10 ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 71931-50020J0 |
UCF10 ﾛｯｸ無,EISEN BLUE,TRIM8# |
2 | ||
| 71930-50020J0 |
UCF10 ﾛｯｸ付,EISEN BLUE,TRIM8# |
2 | ||
| 71930-50020K0 |
UCF10 ﾛｯｸ付,ME. TAUPE |
2 | ||
| 71930-50020B0 |
UCF10 ﾛｯｸ付,SLATE GRAY,TRIM1# |
2 | ||
| 71931-50020B0 |
UCF10 ﾛｯｸ無,SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-5002003 |
UCF10 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-5002003 |
UCF10 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-5002004 |
UCF10 ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71931-5002004 |
UCF10 ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 71931-50020J0 |
UCF10 ﾛｯｸ無,EISEN BLUE,TRIM8# |
2 | ||
| 71930-50020J0 |
UCF10 ﾛｯｸ付,EISEN BLUE,TRIM8# |
2 | ||
| 71930-50020K0 |
UCF10 ﾛｯｸ付,ME. TAUPE |
2 | ||
| 71930-50020B0 |
UCF10 ﾛｯｸ付,SLATE GRAY,TRIM1# |
2 | ||
| 71931-50020B0 |
UCF10 ﾛｯｸ無,SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-5002003 |
UCF10 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-5002003 |
UCF10 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-5002004 |
UCF10 ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71931-5002004 |
UCF10 ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 71931-50020J0 |
UCF10 ﾛｯｸ無,EISEN BLUE,TRIM8# |
2 | ||
| 71930-50020J0 |
UCF10 ﾛｯｸ付,EISEN BLUE,TRIM8# |
2 | ||
| 71930-50020K0 |
UCF10 ﾛｯｸ付,ME. TAUPE |
2 | ||
| 71930-50020B0 |
UCF10 ﾛｯｸ付,SLATE GRAY,TRIM1# |
2 | ||
| 71931-50020B0 |
UCF10 ﾛｯｸ無,SLATE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-5002003 |
UCF10 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-5002003 |
UCF10 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-5002004 |
UCF10 ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71931-5002004 |
UCF10 ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 71931-50020J0 |
UCF10 ﾛｯｸ無,EISEN BLUE,TRIM8# |
2 | ||
| 71930-50020J0 |
UCF10 ﾛｯｸ付,EISEN BLUE,TRIM8# |
2 | ||
| 71930-50020K0 |
UCF10 ﾛｯｸ付,ME. TAUPE |
2 | ||
| 71930-50020B0 |
UCF10 ﾛｯｸ付,SLATE GRAY,TRIM1# |
2 | ||
| 71931-50020B0 |
UCF10 ﾛｯｸ無,SLATE GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50010 |
UCF1# |
1 | ||
| 72750-50020 |
UCF1# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90159-40197 | ||||
| 90168-40061 | ||||
| 90468-04146 | ||||
| 90468-04147 | ||||
| 90468-04158 | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
| 90541-06021 | ||||
| 90959-01374 | ||||
| 93249-54006 | ||||
| 93312-14010 | ||||
| Linked diagrams | ||||
| 8513 | ||||

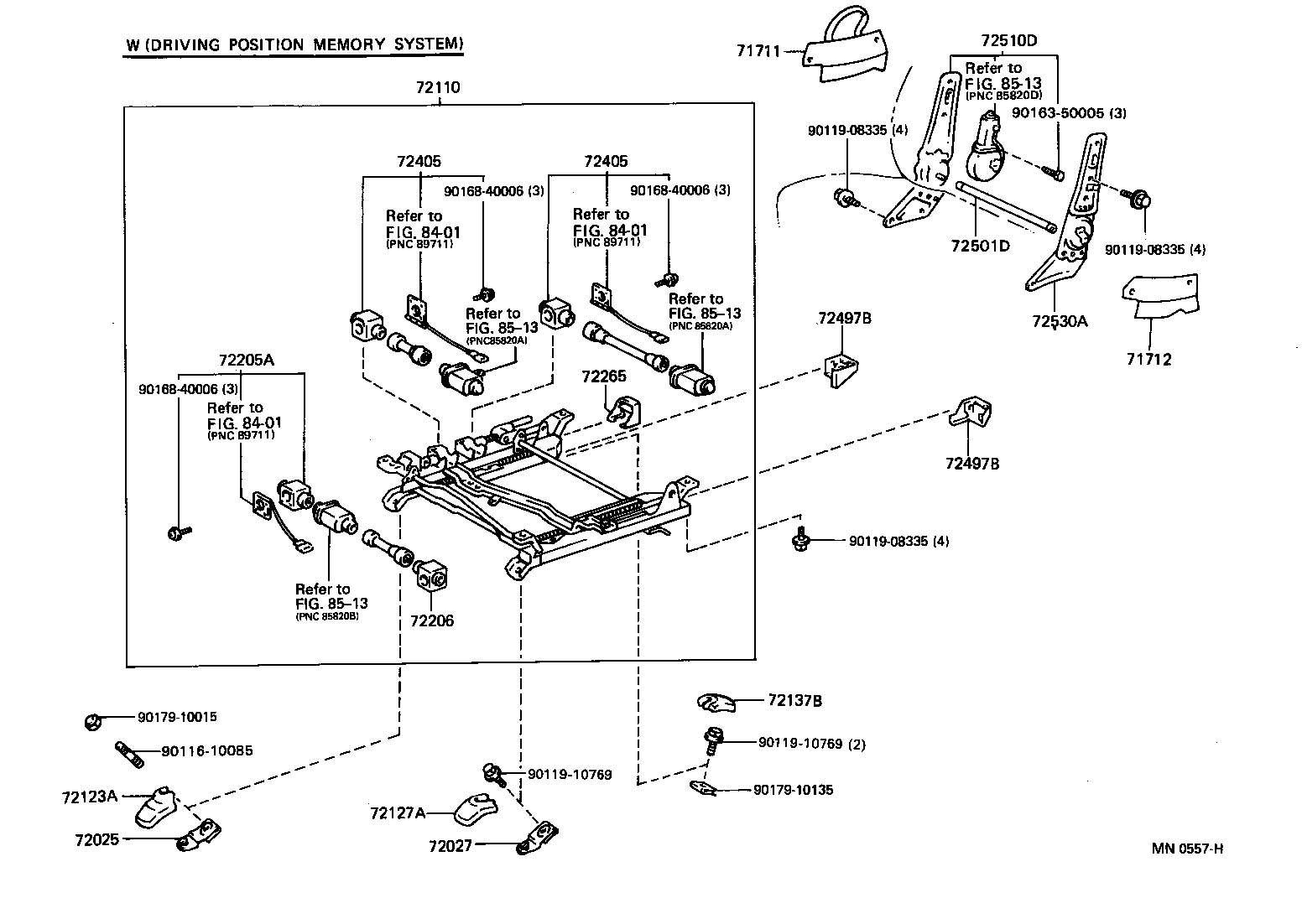

ILLUST NO. 2 OF 2(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71711 - LEATHER, FOR SEAT, A RH | ||||
| 71711-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71711-5001003 |
UCF1#..B,C GRAY,TRIM1# |
2 | ||
| 71711-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71711-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 71711-50010K2 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 71711-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 71711-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 71711-5001004 |
UCF1#..B,C BLUE,TRIM8# |
2 | ||
| 71711-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 71712 - LEATHER, FOR SEAT, B RH | ||||
| 71712-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71712-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 71712-50010K2 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 71712-5001003 |
UCF1#..B,C GRAY,TRIM1# |
2 | ||
| 71712-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 71712-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71712-5001004 |
UCF1#..B,C BLUE,TRIM8# |
2 | ||
| 71712-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 71712-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72025 - NUT SUB-ASSY, FRONT SEAT ANCHOR, OUTER FRONT | ||||
| 72025-50010 |
UCF1# |
2 | ||
| 72027 - NUT SUB-ASSY, FRONT SEAT ANCHOR, INNER FRONT RH | ||||
| 72027-50010 |
UCF1# |
1 | ||
| 72110 - REGULATOR ASSY, POWER SEAT, RH | ||||
| 72110-5002003 |
UCF10 GRAY,TRIM1# |
1 | ||
| 72110-50070J0 |
UCF10 EISEN BLUE,TRIM8# |
1 | ||
| 72110-50070B0 |
UCF10 SLATE GRAY,TRIM1# |
1 | ||
| 72110-5002004 |
UCF10 BLUE,TRIM8# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72137-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72137-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72137-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72137-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72137-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72137-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72127-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72127-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72127-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72127-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72127-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72127-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72127-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72137-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72137-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72137-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72137-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72137-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72205A - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-50020 |
UCF10 |
1 | ||
| 72205-50020 |
UCF10 |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-22020 |
UCF1# |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72265-50020J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72265-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72265-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72265-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72265-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72265-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72265-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72265-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72265-50020B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72265-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72265-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-30080 |
UCF1# |
2 | ||
| 72405-50030 |
UCF10 |
2 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-30080 |
UCF1# |
2 | ||
| 72405-50030 |
UCF10 |
2 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72497-5002003 |
UCF1# GRAY,TRIM1#,外側 |
1 | ||
| 72498-5002004 |
UCF1# BLUE,TRIM8#,内側 |
1 | ||
| 72497-5002006 |
UCF1#..B,C ROSE,TRIM4#,外側 |
1 | ||
| 72498-5002006 |
UCF1#..B,C ROSE,TRIM4#,内側 |
1 | ||
| 72497-5002008 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72498-5002008 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-5002003 |
UCF1# GRAY,TRIM1#,内側 |
1 | ||
| 72497-50020S7 |
UCF1# SLATE GRAY,TRIM1#,外側 |
1 | ||
| 72497-50020W4 |
UCF1# EISEN BLUE,TRIM8#,外側 |
1 | ||
| 72498-50020S7 |
UCF1# SLATE GRAY,TRIM1#,内側 |
1 | ||
| 72498-50020W4 |
UCF1# EISEN BLUE,TRIM8#,内側 |
1 | ||
| 72497-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,外側 |
1 | ||
| 72498-50020A0 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,内側 |
1 | ||
| 72497-5002004 |
UCF1# BLUE,TRIM8#,外側 |
1 | ||
| 72497-50020A0 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72497-5002003 |
UCF1# GRAY,TRIM1#,外側 |
1 | ||
| 72498-5002004 |
UCF1# BLUE,TRIM8#,内側 |
1 | ||
| 72497-5002006 |
UCF1#..B,C ROSE,TRIM4#,外側 |
1 | ||
| 72498-5002006 |
UCF1#..B,C ROSE,TRIM4#,内側 |
1 | ||
| 72497-5002008 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72498-5002008 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-5002003 |
UCF1# GRAY,TRIM1#,内側 |
1 | ||
| 72497-50020S7 |
UCF1# SLATE GRAY,TRIM1#,外側 |
1 | ||
| 72497-50020W4 |
UCF1# EISEN BLUE,TRIM8#,外側 |
1 | ||
| 72498-50020S7 |
UCF1# SLATE GRAY,TRIM1#,内側 |
1 | ||
| 72498-50020W4 |
UCF1# EISEN BLUE,TRIM8#,内側 |
1 | ||
| 72497-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,外側 |
1 | ||
| 72498-50020A0 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,内側 |
1 | ||
| 72497-5002004 |
UCF1# BLUE,TRIM8#,外側 |
1 | ||
| 72497-50020A0 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-50010 |
UCF1# |
1 | ||
| 72501-30050 |
UCF1# |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-50010 |
UCF10 |
1 | ||
| 72530A - ADJUSTER ASSY, RECLINING SEAT, INNER RH | ||||
| 72530-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08335 | ||||
| 90119-10769 | ||||
| 90163-50005 | ||||
| 90168-40006 | ||||
| 90179-10015 | ||||
| 90179-10135 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71711 - LEATHER, FOR SEAT, A RH | ||||
| 71711-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71711-5001003 |
UCF1#..B,C GRAY,TRIM1# |
2 | ||
| 71711-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71711-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 71711-50010K2 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 71711-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 71711-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 71711-5001004 |
UCF1#..B,C BLUE,TRIM8# |
2 | ||
| 71711-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 71711A - LEATHER, FOR SEAT, A LH | ||||
| 71711-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 71711-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 71711-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 71711-5002004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71711-5002003 |
UCF1#..B,C GRAY,TRIM1# |
2 | ||
| 71711-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 71711-5002003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71711-50020K2 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 71711-5002003 |
UCF10..A GRAY,TRIM1# |
2 | ||
| 71711-5002004 |
UCF1#..B,C BLUE,TRIM8# |
2 | ||
| 71712 - LEATHER, FOR SEAT, B RH | ||||
| 71712-5001004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71712-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 71712-50010K2 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 71712-5001003 |
UCF1#..B,C GRAY,TRIM1# |
2 | ||
| 71712-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 71712-5001003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71712-5001004 |
UCF1#..B,C BLUE,TRIM8# |
2 | ||
| 71712-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 71712-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 71712A - LEATHER, FOR SEAT, B LH | ||||
| 71712-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 71712-5002003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 71712-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 71712-50020K2 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 71712-5002004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 71712-5002003 |
UCF1#..B,C GRAY,TRIM1# |
2 | ||
| 71712-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 71712-5002004 |
UCF1#..B,C BLUE,TRIM8# |
2 | ||
| 71712-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72025 - NUT SUB-ASSY, FRONT SEAT ANCHOR, OUTER FRONT | ||||
| 72025-50010 |
UCF1# |
2 | ||
| 72025 - NUT SUB-ASSY, FRONT SEAT ANCHOR, OUTER FRONT | ||||
| 72025-50010 |
UCF1# |
2 | ||
| 72027 - NUT SUB-ASSY, FRONT SEAT ANCHOR, INNER FRONT RH | ||||
| 72027-50010 |
UCF1# |
1 | ||
| 72028 - NUT SUB-ASSY, FRONT SEAT ANCHOR, INNER FRONT LH | ||||
| 72028-50010 |
UCF1# |
1 | ||
| 72110 - REGULATOR ASSY, POWER SEAT, RH | ||||
| 72110-5002003 |
UCF10 GRAY,TRIM1# |
1 | ||
| 72110-50070J0 |
UCF10 EISEN BLUE,TRIM8# |
1 | ||
| 72110-50070B0 |
UCF10 SLATE GRAY,TRIM1# |
1 | ||
| 72110-5002004 |
UCF10 BLUE,TRIM8# |
1 | ||
| 72120A - REGULATOR ASSY, POWER SEAT, LH | ||||
| 72120-50100B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72120-5004008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72120-50100A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72120-5004006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72120-50100J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72120-5004004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72120-50100K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72120-5004003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72137-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72137-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72137-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72137-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72137-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72137-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72137-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72137-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72137-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72137-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72137-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72137-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72127-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72127-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72127-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72127-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72127-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72127-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72127-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72128-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72128-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72128-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72128-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72128-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72128-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72128-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72137-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72137-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72137-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72137-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72137-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72137-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72137-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72137-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72137-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72137-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72137-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72157-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72157-50020B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72157-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72157-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72157-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72157-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72157-50020J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72158-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72158-50020J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72158-50020B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72158-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72158-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72158-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72158-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72205A - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-50020 |
UCF10 |
1 | ||
| 72205-50020 |
UCF10 |
1 | ||
| 72205E - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-50020 |
UCF1# |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-22020 |
UCF1# |
1 | ||
| 72206C - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-22020 |
UCF1# |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72265-50020J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72265-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72265-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72265-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72265-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72265-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72265-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72265-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72265-50020B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72265-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72265-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72266-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72266-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 72266-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 72266-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72266-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72266-50020J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 72266-50020B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 72266-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 72266-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 72266-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72266-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-30080 |
UCF1# |
2 | ||
| 72405-50030 |
UCF10 |
2 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-30080 |
UCF1# |
2 | ||
| 72405-50030 |
UCF10 |
2 | ||
| 72405A - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-50030 |
UCF1# |
2 | ||
| 72405A - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-50030 |
UCF1# |
2 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72497-5002003 |
UCF1# GRAY,TRIM1#,外側 |
1 | ||
| 72498-5002004 |
UCF1# BLUE,TRIM8#,内側 |
1 | ||
| 72497-5002006 |
UCF1#..B,C ROSE,TRIM4#,外側 |
1 | ||
| 72498-5002006 |
UCF1#..B,C ROSE,TRIM4#,内側 |
1 | ||
| 72497-5002008 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72498-5002008 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-5002003 |
UCF1# GRAY,TRIM1#,内側 |
1 | ||
| 72497-50020S7 |
UCF1# SLATE GRAY,TRIM1#,外側 |
1 | ||
| 72497-50020W4 |
UCF1# EISEN BLUE,TRIM8#,外側 |
1 | ||
| 72498-50020S7 |
UCF1# SLATE GRAY,TRIM1#,内側 |
1 | ||
| 72498-50020W4 |
UCF1# EISEN BLUE,TRIM8#,内側 |
1 | ||
| 72497-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,外側 |
1 | ||
| 72498-50020A0 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,内側 |
1 | ||
| 72497-5002004 |
UCF1# BLUE,TRIM8#,外側 |
1 | ||
| 72497-50020A0 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72497-5002003 |
UCF1# GRAY,TRIM1#,外側 |
1 | ||
| 72498-5002004 |
UCF1# BLUE,TRIM8#,内側 |
1 | ||
| 72497-5002006 |
UCF1#..B,C ROSE,TRIM4#,外側 |
1 | ||
| 72498-5002006 |
UCF1#..B,C ROSE,TRIM4#,内側 |
1 | ||
| 72497-5002008 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72498-5002008 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-5002003 |
UCF1# GRAY,TRIM1#,内側 |
1 | ||
| 72497-50020S7 |
UCF1# SLATE GRAY,TRIM1#,外側 |
1 | ||
| 72497-50020W4 |
UCF1# EISEN BLUE,TRIM8#,外側 |
1 | ||
| 72498-50020S7 |
UCF1# SLATE GRAY,TRIM1#,内側 |
1 | ||
| 72498-50020W4 |
UCF1# EISEN BLUE,TRIM8#,内側 |
1 | ||
| 72497-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,外側 |
1 | ||
| 72498-50020A0 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,内側 |
1 | ||
| 72497-5002004 |
UCF1# BLUE,TRIM8#,外側 |
1 | ||
| 72497-50020A0 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72498A - COVER, VERTICAL ADJUSTER BRACKET, LH | ||||
| 72497-5001004 |
UCF1# BLUE,TRIM8#,外側 |
1 | ||
| 72498-5001004 |
UCF1# BLUE,TRIM8#,内側 |
1 | ||
| 72497-5001006 |
UCF1#..B,C ROSE,TRIM4#,外側 |
1 | ||
| 72497-50010A0 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72498-5001006 |
UCF1#..B,C ROSE,TRIM4#,内側 |
1 | ||
| 72497-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,外側 |
1 | ||
| 72497-50010W4 |
UCF1# EISEN BLUE,TRIM8#,外側 |
1 | ||
| 72497-5001003 |
UCF1# GRAY,TRIM1#,外側 |
1 | ||
| 72498-5001008 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-50010W4 |
UCF1# EISEN BLUE,TRIM8#,内側 |
1 | ||
| 72497-5001008 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72498-5001003 |
UCF1# GRAY,TRIM1#,内側 |
1 | ||
| 72497-50010S7 |
UCF1# SLATE GRAY,TRIM1#,外側 |
1 | ||
| 72498-50010A0 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-50010S7 |
UCF1# SLATE GRAY,TRIM1#,内側 |
1 | ||
| 72498-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,内側 |
1 | ||
| 72498A - COVER, VERTICAL ADJUSTER BRACKET, LH | ||||
| 72497-5001004 |
UCF1# BLUE,TRIM8#,外側 |
1 | ||
| 72498-5001004 |
UCF1# BLUE,TRIM8#,内側 |
1 | ||
| 72497-5001006 |
UCF1#..B,C ROSE,TRIM4#,外側 |
1 | ||
| 72497-50010A0 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72498-5001006 |
UCF1#..B,C ROSE,TRIM4#,内側 |
1 | ||
| 72497-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,外側 |
1 | ||
| 72497-50010W4 |
UCF1# EISEN BLUE,TRIM8#,外側 |
1 | ||
| 72497-5001003 |
UCF1# GRAY,TRIM1#,外側 |
1 | ||
| 72498-5001008 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-50010W4 |
UCF1# EISEN BLUE,TRIM8#,内側 |
1 | ||
| 72497-5001008 |
UCF1#..B,C IVORY,TRIM0#,外側 |
1 | ||
| 72498-5001003 |
UCF1# GRAY,TRIM1#,内側 |
1 | ||
| 72497-50010S7 |
UCF1# SLATE GRAY,TRIM1#,外側 |
1 | ||
| 72498-50010A0 |
UCF1#..B,C IVORY,TRIM0#,内側 |
1 | ||
| 72498-50010S7 |
UCF1# SLATE GRAY,TRIM1#,内側 |
1 | ||
| 72498-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9#,内側 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-50010 |
UCF1# |
1 | ||
| 72501-30050 |
UCF1# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-50010 |
UCF1# |
1 | ||
| 72501-30050 |
UCF1# |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-50010 |
UCF10 |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-50010 |
UCF1# |
1 | ||
| 72530A - ADJUSTER ASSY, RECLINING SEAT, INNER RH | ||||
| 72530-50010 |
UCF1# |
1 | ||
| 72540A - ADJUSTER ASSY, RECLINING SEAT, INNER LH | ||||
| 72540-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08335 | ||||
| 90119-10769 | ||||
| 90179-10015 | ||||
| 90179-10135 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
