UCF10-AEPNK (1989)
Toyota Celsior

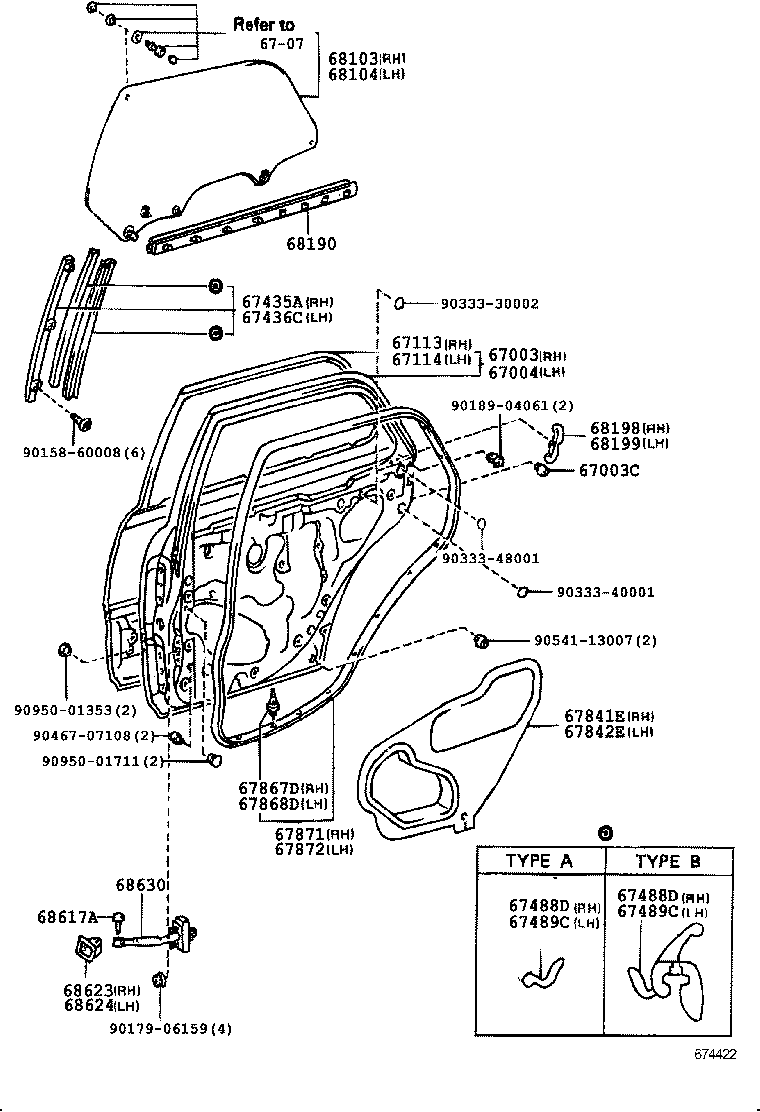

ILLUST NO. 1 OF 3(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-50011 |
UCF1# |
1 | ||
| 67003-50903 |
UCF1# |
1 | ||
| 67003-50902 |
UCF1# |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-10020 |
UCF1# |
2 | ||
| 90541-10022 |
UCF1# 左側 |
1 | ||
| 90541-10020 |
UCF1# 右側 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-50902 |
UCF1# |
1 | ||
| 67004-50011 |
UCF1# |
1 | ||
| 67004-50903 |
UCF1# |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-50901 |
UCF1# |
1 | ||
| 67113-50011 |
UCF1# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-50011 |
UCF1# |
1 | ||
| 67114-50901 |
UCF1# |
1 | ||
| 67435A - GUIDE, REAR DOOR WINDOW, FRONT RH | ||||
| 67435-50010 |
UCF1# |
1 | ||
| 67436C - GUIDE, REAR DOOR WINDOW, FRONT LH | ||||
| 67436-50010 |
UCF1# |
1 | ||
| 67488D - WEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.4 | ||||
| 67488-50010 |
UCF1# ﾀｲﾌﾟ A |
1 | ||
| 67488-50020 |
UCF1# ﾀｲﾌﾟ B |
1 | ||
| 67488D - WEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.4 | ||||
| 67488-50010 |
UCF1# ﾀｲﾌﾟ A |
1 | ||
| 67488-50020 |
UCF1# ﾀｲﾌﾟ B |
1 | ||
| 67489C - WEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.5 | ||||
| 67489-50020 |
UCF1# ﾀｲﾌﾟ B |
1 | ||
| 67489-50010 |
UCF1# ﾀｲﾌﾟ A |
1 | ||
| 67489C - WEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.5 | ||||
| 67489-50020 |
UCF1# ﾀｲﾌﾟ B |
1 | ||
| 67489-50010 |
UCF1# ﾀｲﾌﾟ A |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67805-50010 |
UCF1# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67806-50010 |
UCF1# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-50010 |
UCF1# |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-50010 |
UCF1# |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-50011 |
UCF1# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-50011 |
UCF1# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-50020 |
UCF10..A *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68103-50021 |
UCF10..A *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68103-50030 |
UCF10 *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68103-50070 |
UCF1#..B,C *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68103-50031 |
UCF10 *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68103-50022 |
UCF10..A *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68103-50042 |
UCF1#..B,C *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-50032 |
UCF10..A *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-50020 |
UCF10..A *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68104-50030 |
UCF10 *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68104-50021 |
UCF10..A *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68104-50070 |
UCF1#..B,C *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104-50022 |
UCF10..A *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68104-50042 |
UCF1#..B,C *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-50032 |
UCF10..A *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68104-50031 |
UCF10 *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68240-50010 |
UCF1# 左側 |
1 | ||
| 68190-50010 |
UCF1# 右側 |
1 | ||
| 68198 - SEAL, REAR DOOR BELT, REAR RH | ||||
| 68198-50010 |
UCF1# |
1 | ||
| 68198-50010 |
UCF1# |
1 | ||
| 68199 - SEAL, REAR DOOR BELT, REAR LH | ||||
| 68199-50010 |
UCF1# |
1 | ||
| 68199-50010 |
UCF1# |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-50010 |
UCF1# |
2 | ||
| 68623 - COVER, DOOR CHECK, RH | ||||
| 68623-50010 |
UCF1# |
1 | ||
| 68624 - COVER, DOOR CHECK, LH | ||||
| 68624-50010 |
UCF1# |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-50010 |
UCF1# 右側 |
1 | ||
| 68630-50011 |
UCF1# 右側 |
1 | ||
| 68640-50011 |
UCF1# 左側 |
1 | ||
| 68630-50012 |
UCF1# 右側 |
1 | ||
| 68640-50010 |
UCF1# 左側 |
1 | ||
| 68640-50012 |
UCF1# 左側 |
1 | ||
| Common parts | ||||
| 90158-60008 | ||||
| 90179-06159 | ||||
| 90189-04061 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90333-48001 | ||||
| 90467-07108 | ||||
| 90541-13007 | ||||
| 90950-01353 | ||||
| 90950-01711 | ||||
| Linked diagrams | ||||
| 6707 | ||||

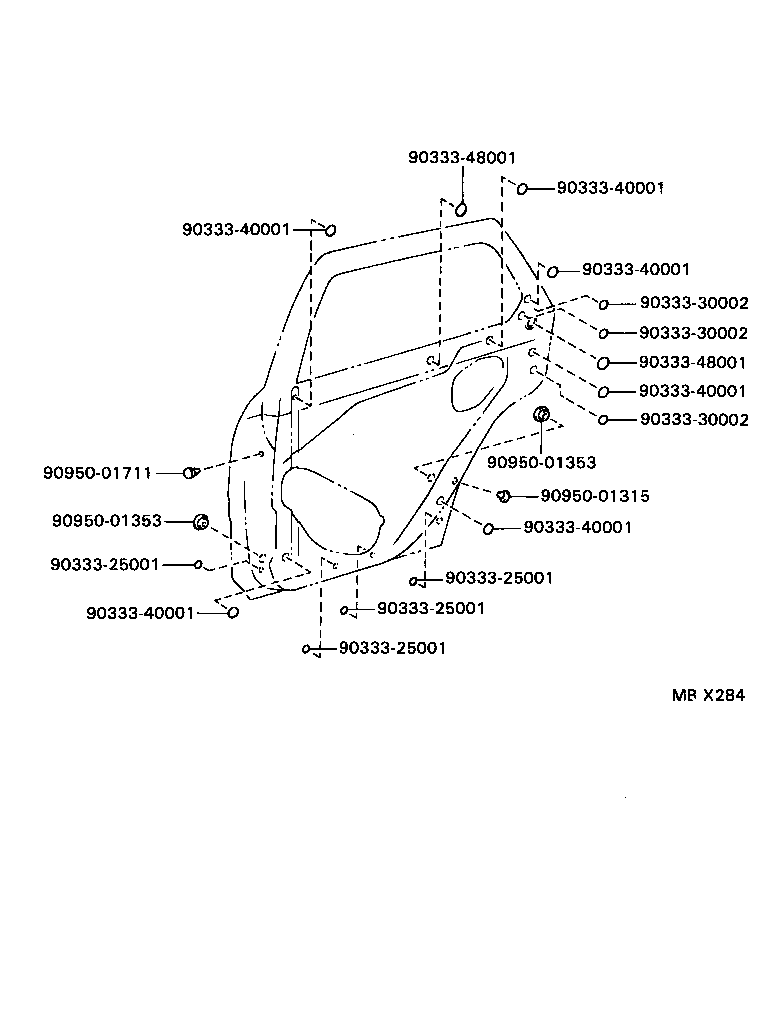

ILLUST NO. 2 OF 3(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90333-48001 | ||||
| 90950-01315 | ||||
| 90950-01353 | ||||
| 90950-01711 | ||||

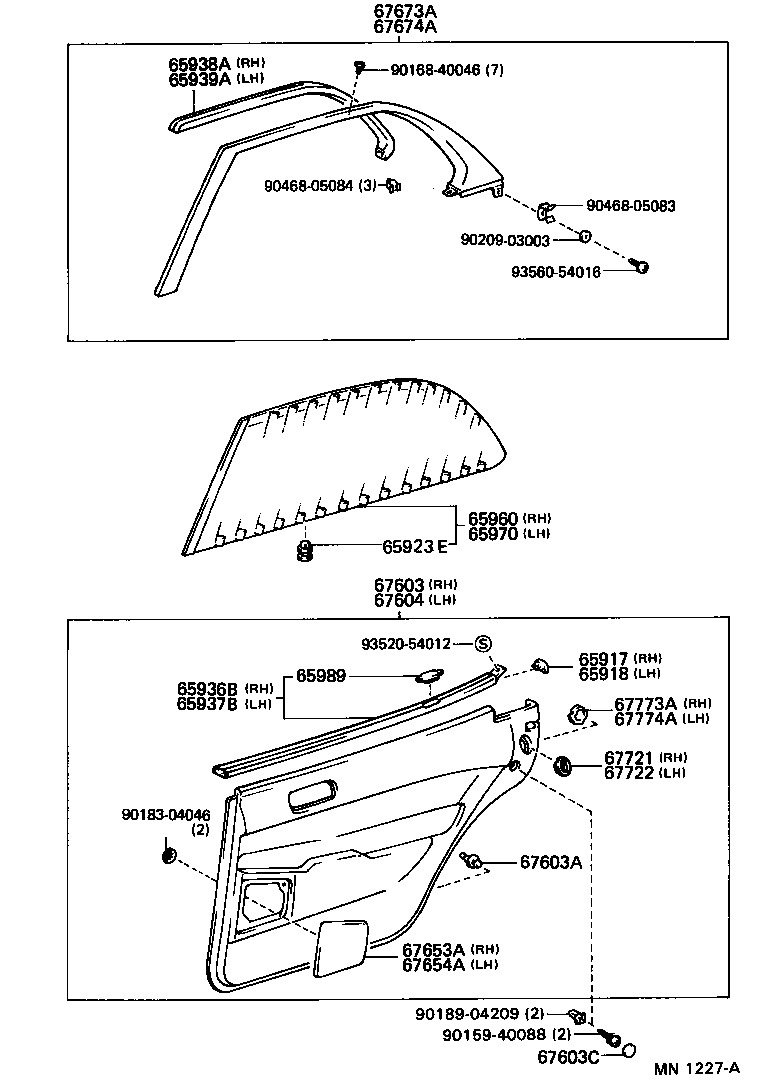

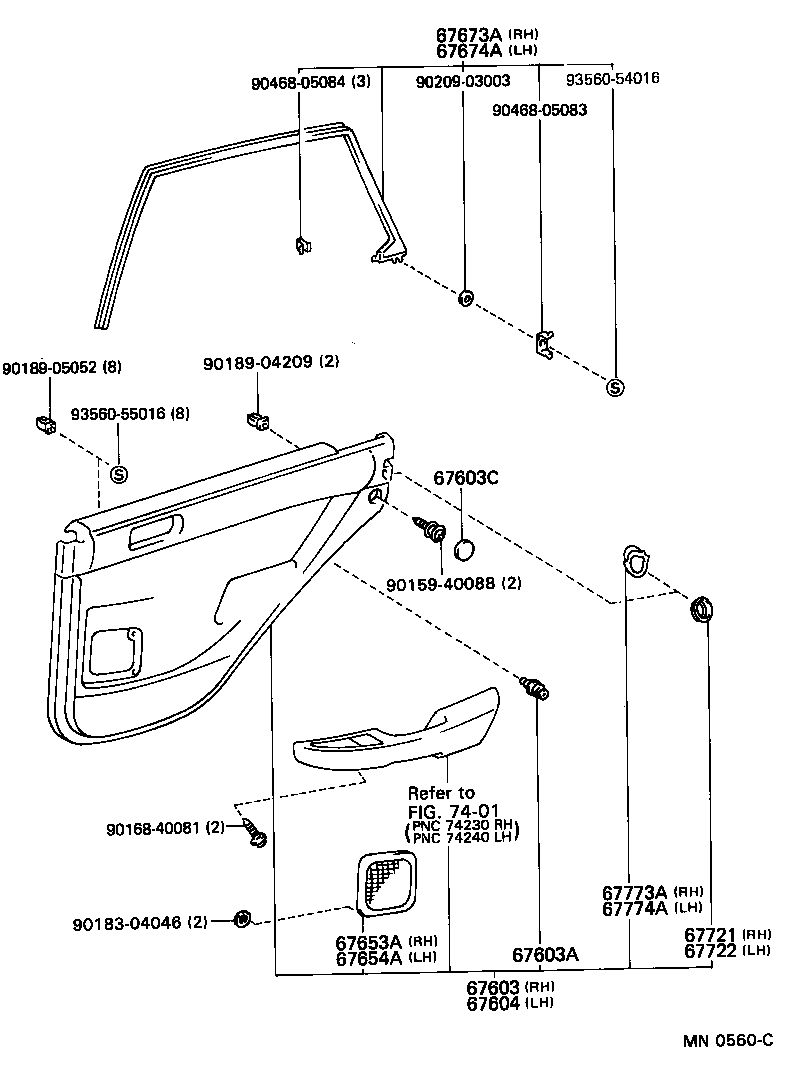

ILLUST NO. 3 OF 3(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-5008005 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM0# |
1 | ||
| 67630-5008004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 67630-5013003 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 67630-5008003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-5016005 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM0# |
1 | ||
| 67630-5013004 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 67630-5008006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK ROSE,TRIM4# |
1 | ||
| 67630-5016006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK ROSE,TRIM4# |
1 | ||
| 67630-50160B2 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-50160B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-50160J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 67630-50160A1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 67630-50160J2 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DK. BLUE,TRIM8# |
1 | ||
| 67630-50130B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 67630-50130J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 67630-50160K1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞｰ ｼｰﾄ),TAUPE,TRIM9# |
1 | ||
| 67630-50200J1 |
UCF1#..B,C DK. BLUE,TRIM8# |
1 | ||
| 67630-50080B1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-50200K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67630-50200B1 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-14040 |
UCF1# |
16 | ||
| 67771-32060 |
UCF1# ﾌﾞﾗｳﾝ |
12 | ||
| 67771-12050 |
UCF1# ﾚｯﾄﾞ |
12 | ||
| 67603C - CAP(FOR REAR DOOR TRIM BOARD) | ||||
| 90339-1000603 |
UCF1# GRAY,TRIM1# |
2 | ||
| 90339-1000604 |
UCF1# BLUE,TRIM8# |
2 | ||
| 90339-1000606 |
UCF1#..B,C ROSE,TRIM4# |
2 | ||
| 90339-1000608 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 90339-10006K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
2 | ||
| 90339-10006B0 |
UCF1# SLATE GRAY,TRIM1# |
2 | ||
| 90339-10006A0 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 90339-10006J0 |
UCF1# EISEN BLUE,TRIM8# |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-5008005 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM0# |
1 | ||
| 67640-5008006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK ROSE,TRIM4# |
1 | ||
| 67640-5008004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM8# |
1 | ||
| 67640-5013004 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 67640-5008003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-5013003 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 67640-5016006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK ROSE,TRIM4# |
1 | ||
| 67640-5016005 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM0# |
1 | ||
| 67640-50160B2 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50160B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50160J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 67640-50130J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 67640-50130B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50160A1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 67640-50160J2 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DK. BLUE,TRIM8# |
1 | ||
| 67640-50200K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67640-50160K1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),TAUPE,TRIM9# |
1 | ||
| 67640-50200B1 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50080B1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50200J1 |
UCF1#..B,C DK. BLUE,TRIM8# |
1 | ||
| 67653A - GRILLE, SPEAKER REAR DOOR, RH | ||||
| 67071-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 67071-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 67071-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 67071-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 67071-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 67071-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 67071-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 67071-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 67654A - GRILLE, SPEAKER REAR DOOR, LH | ||||
| 67072-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 67072-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 67072-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 67072-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 67072-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 67072-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 67072-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 67072-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67673-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 67673-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 67673-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 67673-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67673-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 67673-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67673-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67674-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 67674-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 67674-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 67674-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67674-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 67674-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67674-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 67721 - COVER, REAR DOOR TRIM, RH | ||||
| 67721-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 67721-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 67721-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 67721-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67721-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67721-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67721-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 67721-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 67722 - COVER, REAR DOOR TRIM, LH | ||||
| 67722-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67722-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 67722-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 67722-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 67722-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 67722-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 67722-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67722-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67773A - CLIP, REAR DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-50010 |
UCF1# |
1 | ||
| 67774A - CLIP, REAR DOOR TRIM UPPER RETAINER, NO.2 | ||||
| 67774-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90159-40088 | ||||
| 90168-40081 | ||||
| 90183-04046 | ||||
| 90189-04209 | ||||
| 90189-05052 | ||||
| 90209-03003 | ||||
| 90468-05083 | ||||
| 90468-05084 | ||||
| 93560-54016 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 3 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-5008005 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM0# |
1 | ||
| 67630-5008004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 67630-5013003 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 67630-5008003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-5016005 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM0# |
1 | ||
| 67630-5013004 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 67630-5008006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK ROSE,TRIM4# |
1 | ||
| 67630-5016006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK ROSE,TRIM4# |
1 | ||
| 67630-50160B2 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-50160B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-50160J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 67630-50160A1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 67630-50160J2 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DK. BLUE,TRIM8# |
1 | ||
| 67630-50130B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 67630-50130J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 67630-50160K1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞｰ ｼｰﾄ),TAUPE,TRIM9# |
1 | ||
| 67630-50200J1 |
UCF1#..B,C DK. BLUE,TRIM8# |
1 | ||
| 67630-50080B1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-50200K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67630-50200B1 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-14040 |
UCF1# |
16 | ||
| 67771-32060 |
UCF1# ﾌﾞﾗｳﾝ |
12 | ||
| 67771-12050 |
UCF1# ﾚｯﾄﾞ |
12 | ||
| 67603C - CAP(FOR REAR DOOR TRIM BOARD) | ||||
| 90339-1000603 |
UCF1# GRAY,TRIM1# |
2 | ||
| 90339-1000604 |
UCF1# BLUE,TRIM8# |
2 | ||
| 90339-1000606 |
UCF1#..B,C ROSE,TRIM4# |
2 | ||
| 90339-1000608 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 90339-10006K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
2 | ||
| 90339-10006B0 |
UCF1# SLATE GRAY,TRIM1# |
2 | ||
| 90339-10006A0 |
UCF1#..B,C IVORY,TRIM0# |
2 | ||
| 90339-10006J0 |
UCF1# EISEN BLUE,TRIM8# |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-5008005 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM0# |
1 | ||
| 67640-5008006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK ROSE,TRIM4# |
1 | ||
| 67640-5008004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM8# |
1 | ||
| 67640-5013004 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 67640-5008003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-5013003 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 67640-5016006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK ROSE,TRIM4# |
1 | ||
| 67640-5016005 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GREIGE,TRIM0# |
1 | ||
| 67640-50160B2 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50160B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50160J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 67640-50130J0 |
UCF10..A DK. BLUE,TRIM8# |
1 | ||
| 67640-50130B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50160A1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 67640-50160J2 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),DK. BLUE,TRIM8# |
1 | ||
| 67640-50200K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67640-50160K1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),TAUPE,TRIM9# |
1 | ||
| 67640-50200B1 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50080B1 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-50200J1 |
UCF1#..B,C DK. BLUE,TRIM8# |
1 | ||
| 67653A - GRILLE, SPEAKER REAR DOOR, RH | ||||
| 67071-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 67071-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 67071-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 67071-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 67071-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 67071-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 67071-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 67071-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 67654A - GRILLE, SPEAKER REAR DOOR, LH | ||||
| 67072-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 67072-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 67072-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 67072-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 67072-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 67072-50010J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 67072-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 67072-50010B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67673-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 67673-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 67673-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 67673-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67673-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 67673-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67673-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67674-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 67674-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 67674-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 67674-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67674-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 67674-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67674-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 67721 - COVER, REAR DOOR TRIM, RH | ||||
| 67721-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 67721-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 67721-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 67721-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67721-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67721-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67721-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 67721-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 67722 - COVER, REAR DOOR TRIM, LH | ||||
| 67722-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67722-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 67722-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 67722-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 67722-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 67722-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 67722-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 67722-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 67773A - CLIP, REAR DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-50010 |
UCF1# |
1 | ||
| 67774A - CLIP, REAR DOOR TRIM UPPER RETAINER, NO.2 | ||||
| 67774-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90159-40088 | ||||
| 90168-40046 | ||||
| 90183-04046 | ||||
| 90189-04209 | ||||
| 90209-03003 | ||||
| 90468-05083 | ||||
| 90468-05084 | ||||
| 93520-54012 | ||||
| 93560-54016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
