UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

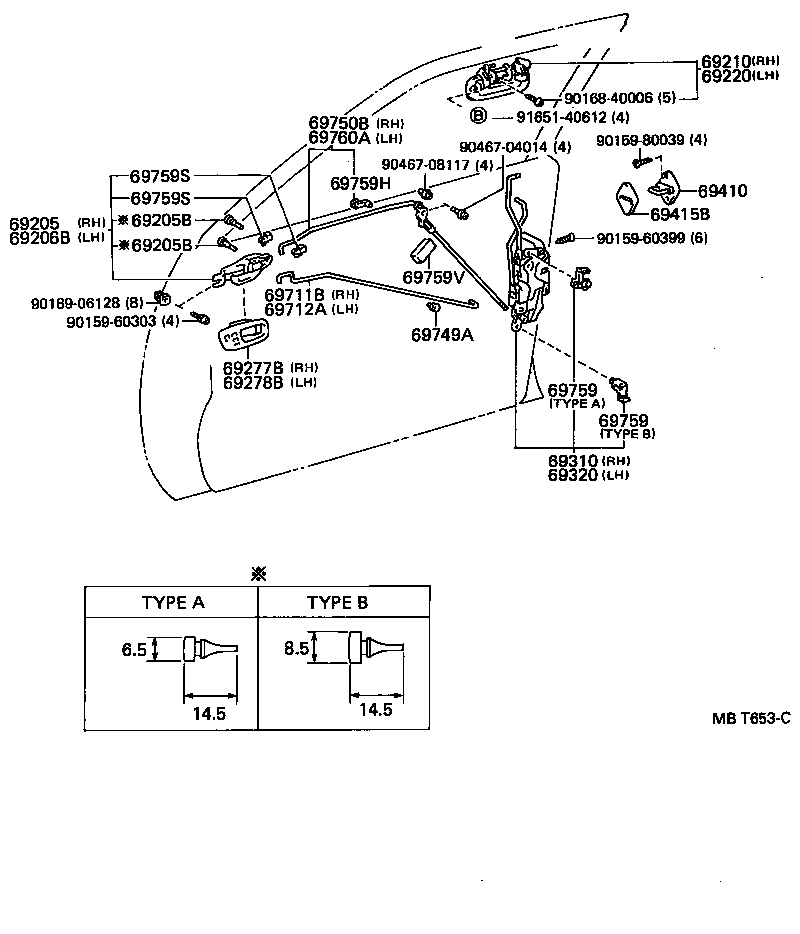

Click highlighted areas on diagram

diagram 69205 69205B 69205B 69206B 69210 69220 69277B 69278B 69310 69320 69410 69415B 69711B 69712A 69749A 69750B 69759 69759 69759H 69759S 69759S 69759V 69760A 9015960303 9015960399 9015980039 9016840006 9018906128 9046704014 9046708117 9165140612
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-5001003

UCF1#

SHADOW GRAY,TRIM1#

 1
69205-5001004

UCF1#

DARK BLUE,TRIM8#

 1
69205-5001005

UCF1#..B,C

GREIGE,TRIM0#

 1
69205-50010W3

UCF1#

DARK BLUE,TRIM8#

 1
69205-5001015

UCF1#..B,C

DARK ROSE,TRIM4#

 1
69205-50010K0

UCF1#..B,C

TUAPE,TRIM9#

 1
69205-50010P0

UCF1#

SHADOW GRAY,TRIM1#

 1
69205-50010E0

UCF1#..B,C

ORK,TRIM0#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04018

UCF1#

ﾀｲﾌﾟ B

 4
90541-04018

UCF1#

ﾀｲﾌﾟ B

 2
90541-04014

UCF1#

ﾀｲﾌﾟ A

 4
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04018

UCF1#

ﾀｲﾌﾟ B

 4
90541-04018

UCF1#

ﾀｲﾌﾟ B

 2
90541-04014

UCF1#

ﾀｲﾌﾟ A

 4
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-50010P0

UCF1#

SHADOW GRAY,TRIM1#

 1
69206-5001003

UCF1#

SHADOW GRAY,TRIM1#

 1
69206-50010W3

UCF1#

DARK BLUE,TRIM8#

 1
69206-50010E0

UCF1#..B,C

OAK,TRIM0#

 1
69206-5001015

UCF1#..B,C

DARK ROSE,TRIM4#

 1
69206-50010K0

UCF1#..B,C

TUAPE,TRIM9#

 1
69206-5001004

UCF1#

DARK BLUE,TRIM8#

 1
69206-5001005

UCF1#..B,C

GREIGE,TRIM0#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-5002005

UCF1#..B,C

BEIGE M, TONING,4K9

 1
69210-5002002

UCF1#

DARK RED MICA,3H8

 1
69210-5002006

UCF1#..B,C

DARK B/MC TONING,4K8

 1
69210-5002018

UCF1#

WHITE P/MC TORNING G,051

 1
69210-5002012

UCF1#..B,C

GRAYISH ROSE MICA M,3H9

 1
69210-5002007

UCF1#

D,GREEN M,I,Q TONING,6K4

 1
69210-5002001

UCF1#

BLACK TONING G,202

 1
69210-50020J0

UCF1#

DARK BLUE MICA,8J5

 1
69210-5002003

UCF1#

BULUISH G/MC TONING,172

 1
69210-5002022

UCF1#

BLACK,202

 1
69210-5002010

UCF1#

GRAY MICA M,180

 1
69210-5002023

UCF1#

GRAY MICA M, TORNING,180

 1
69210-50020K0

UCF1#..B,C

GRAYISH PURPLE M,923

 1
69210-50020A0

UCF1#

WHITE PEARL MICA,051

 1
69210-5002049

UCF1#..B,C

BEIGE M,4K9

 1
69210-5002013

UCF1#

SPR SLVR 3 M, TORNIN,176

 1
69210-5002016

UCF1#

SUPER SILVER M,176

 1
69210-50020B0

UCF1#

SILVER ME,SILVER ME,199

 1
69210-50020G0

UCF1#

DARK GREEN MIO,6K4

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-5002001

UCF1#

BLACK TORNING G,202

 1
69220-5002005

UCF1#..B,C

BEIGE M, TONING G,4K9

 1
69220-5002007

UCF1#

D,GREEN M,I,Q TONING,6K4

 1
69220-5002002

UCF1#

DARK RED MICA,3H8

 1
69220-5002003

UCF1#

BLUISH G/MC TONING M,172

 1
69220-5002012

UCF1#..B,C

GLAYISH ROSE MICA M.,3H9

 1
69220-50020J0

UCF1#

DARK BLUE MICA,8J5

 1
69220-5002018

UCF1#

WHITE P/MC TONING M,051

 1
69220-5002049

UCF1#..B,C

BEIGE M,4K9

 1
69220-5002013

UCF1#

SUPER SILV 3 M,TONIN,176

 1
69220-5002023

UCF1#

GRAY MICA M,TONING M,180

 1
69220-5002006

UCF1#..B,C

DARK B/MC TONING G,4K8

 1
69220-50020A0

UCF1#

WHITE PEARL MICA,051

 1
69220-5002010

UCF1#

GRAY MICA M,180

 1
69220-5002022

UCF1#

BLACK,202

 1
69220-50020G0

UCF1#

DARK GREEN MIO,6K4

 1
69220-50020K0

UCF1#..B,C

GRAYISH PURPLE M,923

 1
69220-50020B0

UCF1#

SILVER ME,199

 1
69220-5002016

UCF1#

SUPER SILVER M,176

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-5003004

UCF10..A

DARK BLUE,TRIM8#

 1
69277-50030W3

UCF10..A

DARK BLUE,TRIM8#

 1
69277-5003003

UCF10..A

SHADOW GRAY,TRIM1#

 1
69277-50030P0

UCF10..A

SHADOW GRAY,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-5002004

UCF10..A

DARK BLUE,TRIM8#

 1
69278-5003005

UCF1#..B,C

GREIGE,TRIM0#

 1
69278-5003004

UCF1#..B,C

DARK BLUE,TRIM8#

 1
69278-5003003

UCF1#..B,C

SHADOW GRAY,TRIM1#

 1
69278-50020W3

UCF10..A

DARK BLUE,TRIM8#

 1
69278-5002003

UCF10..A

SHADOW GRAY,TRIM1#

 1
69278-5003015

UCF1#..B,C

DARK ROSE,TRIM4#

 1
69278-50020P0

UCF10..A

SHADOW GRAY,TRIM1#

 1
69278-50030P0

UCF1#..B,C

SHADOW GRAY,TRIM1#

 1
69278-50030E0

UCF1#..B,C

OAK,TRIM0#

 1
69278-50030W3

UCF1#..B,C

DARK BLUE,TRIM8#

 1
69278-50030K0

UCF1#..B,C

TUAPE,TRIM9#

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-50060

UCF1#

 1
69030-50051

UCF1#

 1
69030-50110

UCF1#

 1
69030-50050

UCF1#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-50050

UCF1#

 1
69040-50060

UCF1#

 1
69040-50051

UCF1#

 1
69040-50110

UCF1#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-50010

UCF1#

 2
69415B - COVER, DOOR LOCK STRIKER, FRONT
69415-50010

UCF1#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-50010

UCF1#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-50010

UCF1#

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-50010

UCF1#

 2
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-50010

UCF1#

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-50030

UCF1#

ﾀｲﾌﾟ A

 2
69759-50040

UCF1#

ﾀｲﾌﾟ B

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-50030

UCF1#

ﾀｲﾌﾟ A

 2
69759-50040

UCF1#

ﾀｲﾌﾟ B

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20030

UCF1#

ﾌﾞﾙｰ

 2
69759-20020

UCF1#

NATURAL

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-20070

UCF1#

GREEN

 2
69759-24020

UCF1#

ﾌﾞﾙｰ

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-20070

UCF1#

GREEN

 2
69759-24020

UCF1#

ﾌﾞﾙｰ

 2
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-50050

UCF1#

 2
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-50010

UCF1#

 1
Common parts
90159-60303
90159-60399
90159-80039
90168-40006
90189-06128
90467-04014
90467-08117
91651-40612
