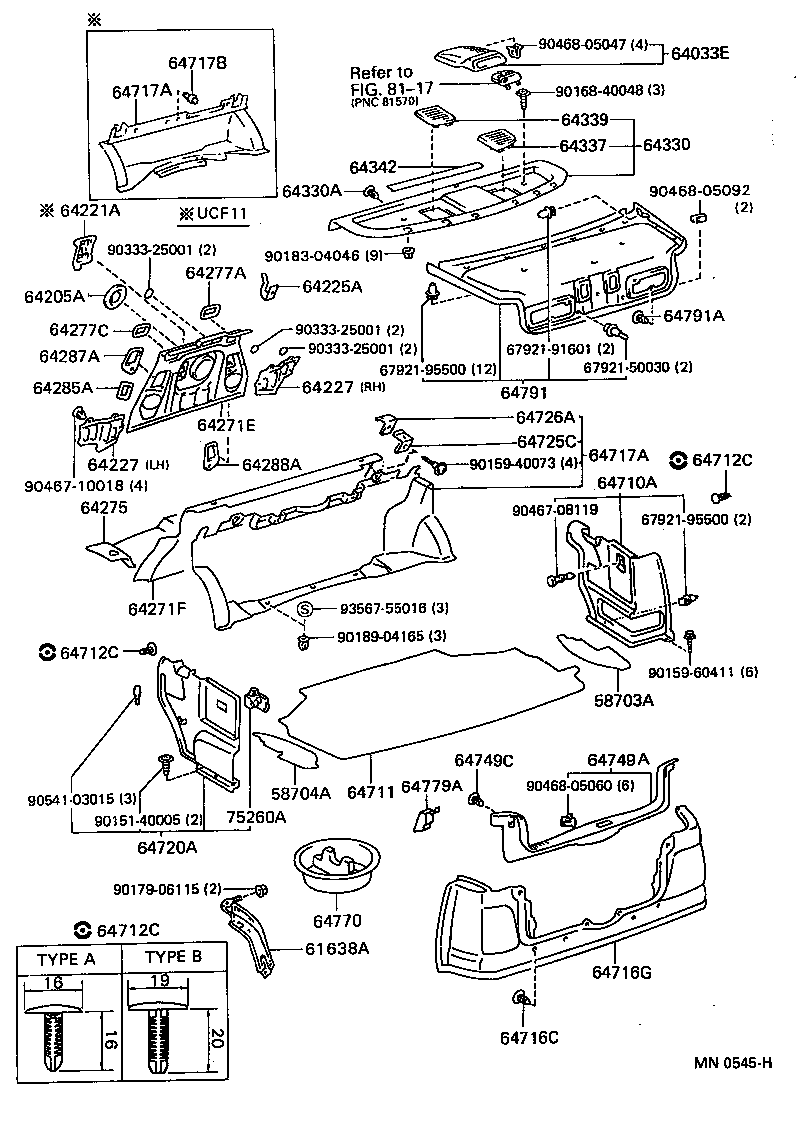

UCF10-AEPNK (1989)
Toyota Celsior
(8911-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58773-50020 |
UCF1#..B,C |
1 | ||
| 58773-50010 |
UCF10..A |
1 | ||
| 58773-50021 |
UCF1#..B,C |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58774-50010 |
UCF1# |
1 | ||
| 58774-50011 |
UCF1# |
1 | ||
| 61638A - BRACE, QUARTER PANEL, LH | ||||
| 61638-50010 |
UCF1# |
1 | ||
| 61638-50011 |
UCF1# |
1 | ||
| 64033E - GRILLE SUB-ASSY, REAR SPEAKER | ||||
| 64033-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64033-5002003 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5003006 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK ROSE,TRIM4# |
1 | ||
| 64033-5003003 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5003005 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),GREIGE,TRIM0# |
1 | ||
| 64033-5002105 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64033-5003003 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5002004 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 64033-5002103 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64033-5003004 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK BLUE,TRIM8# |
1 | ||
| 64033-5002104 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 64033-50050B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5002104 |
UCF10..A ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK BLUE,TRIM8# |
1 | ||
| 64033-5003004 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 64033-5002106 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64033-50050E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 64033-50060K1 |
UCF1#..B,C ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),TAUPE,TRIM9# |
1 | ||
| 64033-50060B1 |
UCF1# ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5002103 |
UCF10..A ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1# |
1 | ||
| 64033-50060J1 |
UCF1# ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),DK. BLUE,TRIM8# |
1 | ||
| 64033-50060E1 |
UCF1#..B,C ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),OAK,TRIM0# |
1 | ||
| 64033-50050K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 64033-50050J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 64205A - COVER SUB-ASSY, ROOM PARTITION | ||||
| 64275-50010 |
UCF1# |
1 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-50010 |
UCF1# |
2 | ||
| 64227 - EXTENSION, CENTER FLOOR TO BRACE | ||||
| 64227-50010 |
UCF1# 右側 |
1 | ||
| 64228-50010 |
UCF1# 左側 |
1 | ||
| 64227 - EXTENSION, CENTER FLOOR TO BRACE | ||||
| 64227-50010 |
UCF1# 右側 |
1 | ||
| 64228-50010 |
UCF1# 左側 |
1 | ||
| 64271E - PANEL, ROOM PARTITION | ||||
| 64271-50010 |
UCF1# |
1 | ||
| 64271-50011 |
UCF1# |
1 | ||
| 64271F - TRIM, ROOM PARTITION | ||||
| 64271-50020 |
UCF1# |
1 | ||
| 64271-50030 |
UCF1# |
1 | ||
| 64275 - PAD, ROOM PARTITION TRIM, NO.2 | ||||
| 64274-50010 |
UCF1# |
1 | ||
| 64277A - MOULDING, ROOM PARTITION TRIM | ||||
| 64277-50010 |
UCF1# |
1 | ||
| 64277C - COVER, ROOM PARTITION, NO.2 | ||||
| 64277-50010 |
UCF1# |
1 | ||
| 64285A - COVER, ROOM PARTITION, NO.3 | ||||
| 64285-50010 |
UCF1# |
2 | ||
| 64287A - COVER, ROOM PARTITION, NO.4 RH | ||||
| 64287-50010 |
UCF1# |
1 | ||
| 64288A - COVER, ROOM PARTITION, NO.4 LH | ||||
| 64288-50010 |
UCF1# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-5002004 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 64330-5002003 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 64330-5006004 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 64330-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64330-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64330-5006003 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1# |
1 | ||
| 64330-5006004 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK BLUE,TRIM8# |
1 | ||
| 64330-50090E1 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 64330-5006003 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 64330-5006005 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),GREIGE,TRIM0# |
1 | ||
| 64330-50090K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 64330-50090J1 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 64330-5002004 |
UCF10..A ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK BLUE,TRIM8# |
1 | ||
| 64330-5006006 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK ROSE,TRIM4# |
1 | ||
| 64330-5002003 |
UCF10..A ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1# |
1 | ||
| 64330-50090B1 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-0605501 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
2 | ||
| 90467-0605522 |
UCF10..A BLACK,TRIM1#,8# |
2 | ||
| 90467-0605522 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
2 | ||
| 90467-0605501 |
UCF10..A BLACK,TRIM1#,8# |
2 | ||
| 64337 - GARNISH, PACKAGE TRAY TRIM, RH | ||||
| 64337-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64337-50010K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 64337-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 64337-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64337-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64337-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64337-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 64337-50010E1 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 64339 - GARNISH, PACKAGE TRAY TRIM, LH | ||||
| 64339-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 64339-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64339-50010E1 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 64339-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64339-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64339-50010K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 64339-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64339-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 64342 - COVER, PACKAGE TRAY TRIM, UNDER | ||||
| 64342-50010 |
UCF1# |
2 | ||
| 64342-50010 |
UCF10 |
1 | ||
| 64710A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64710-50070C0 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64710-5005001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64710-50051C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64710-5004001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64710-50041C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64710-50051C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64710-50070C2 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64710-50041C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-5002001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64711-50080C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64711-50070C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64711-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64711-50080C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64711-50070C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
4 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-06114C0 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ B |
2 | ||
| 90467-06114C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ B |
2 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
4 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-06114C0 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ B |
2 | ||
| 90467-06114C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ B |
2 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
4 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-06114C0 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ B |
2 | ||
| 90467-06114C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ B |
2 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
6 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8# |
6 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
6 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
6 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9# |
6 | ||
| 64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-50011C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64716-50011C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64716-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64716-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64716-50011C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64716-50011C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64717-50011C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50011C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50030C0 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-50011C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-50011C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50030C2 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64717-50011C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50011C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50030C0 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-50011C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-50011C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50030C2 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64720A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64720-50014C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64720-5001301 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64720-50014C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64720-5001301 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64720-5001201 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64720-5001201 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64720-50014C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64720-50014C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64725C - RETAINER, LUGGAGE COMPARTMENT COVER | ||||
| 64725-50060 |
UCF1# |
4 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-50010 |
UCF1# |
4 | ||
| 64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-50010C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64749-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64749-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64749-50010C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64749C - CLIP(FOR LUGGAGE DOOR STRIKER COVER) | ||||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
2 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
2 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8# |
2 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9# |
2 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
2 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-50010 |
UCF1# |
1 | ||
| 64771-24030 |
UCF1# |
1 | ||
| 64771-50010 |
UCF1# ｽﾍﾟｱﾀｲﾔ=ｱﾙﾐ ﾎｲ-ﾙ |
1 | ||
| 64771-24020 |
UCF1# ｽﾍﾟｱﾀｲﾔ=ｱﾙﾐ ﾎｲ-ﾙ |
1 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-50010 |
UCF1# |
1 | ||
| 64791 - COVER, BACK DOOR TRIM | ||||
| 64791-50031C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64791-50031C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64791-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64791-50030C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64791-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64791-50030C0 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64791-50031C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64791-50031C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64791A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
3 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9# |
3 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8# |
3 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
3 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
3 | ||
| 75260A - LOCK ASSY, TOOL BOX | ||||
| 75260-5001101 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 75260-50011C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 75260-50011C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 75260-5001101 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| Common parts | ||||
| 67921-50030 | ||||
| 67921-91601 | ||||
| 67921-95500 | ||||
| 90151-40005 | ||||
| 90159-40073 | ||||
| 90159-60411 | ||||
| 90168-40048 | ||||
| 90179-06115 | ||||
| 90183-04046 | ||||
| 90189-04165 | ||||
| 90333-25001 | ||||
| 90467-08119 | ||||
| 90467-10018 | ||||
| 90468-05047 | ||||
| 90468-05060 | ||||
| 90468-05092 | ||||
| 90541-03015 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8117 | ||||
(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58773-50020 |
UCF1#..B,C |
1 | ||
| 58773-50010 |
UCF10..A |
1 | ||
| 58773-50021 |
UCF1#..B,C |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58774-50010 |
UCF1# |
1 | ||
| 58774-50011 |
UCF1# |
1 | ||
| 61638A - BRACE, QUARTER PANEL, LH | ||||
| 61638-50010 |
UCF1# |
1 | ||
| 61638-50011 |
UCF1# |
1 | ||
| 64033E - GRILLE SUB-ASSY, REAR SPEAKER | ||||
| 64033-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64033-5002003 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5003006 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK ROSE,TRIM4# |
1 | ||
| 64033-5003003 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5003005 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),GREIGE,TRIM0# |
1 | ||
| 64033-5002105 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64033-5003003 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5002004 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 64033-5002103 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64033-5003004 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK BLUE,TRIM8# |
1 | ||
| 64033-5002104 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 64033-50050B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5002104 |
UCF10..A ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK BLUE,TRIM8# |
1 | ||
| 64033-5003004 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 64033-5002106 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64033-50050E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 64033-50060K1 |
UCF1#..B,C ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),TAUPE,TRIM9# |
1 | ||
| 64033-50060B1 |
UCF1# ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 64033-5002103 |
UCF10..A ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1# |
1 | ||
| 64033-50060J1 |
UCF1# ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),DK. BLUE,TRIM8# |
1 | ||
| 64033-50060E1 |
UCF1#..B,C ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),OAK,TRIM0# |
1 | ||
| 64033-50050K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 64033-50050J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 64205A - COVER SUB-ASSY, ROOM PARTITION | ||||
| 64275-50010 |
UCF1# |
1 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-50010 |
UCF1# |
2 | ||
| 64227 - EXTENSION, CENTER FLOOR TO BRACE | ||||
| 64227-50010 |
UCF1# 右側 |
1 | ||
| 64228-50010 |
UCF1# 左側 |
1 | ||
| 64227 - EXTENSION, CENTER FLOOR TO BRACE | ||||
| 64227-50010 |
UCF1# 右側 |
1 | ||
| 64228-50010 |
UCF1# 左側 |
1 | ||
| 64271E - PANEL, ROOM PARTITION | ||||
| 64271-50010 |
UCF1# |
1 | ||
| 64271-50011 |
UCF1# |
1 | ||
| 64271F - TRIM, ROOM PARTITION | ||||
| 64271-50020 |
UCF1# |
1 | ||
| 64271-50030 |
UCF1# |
1 | ||
| 64275 - PAD, ROOM PARTITION TRIM, NO.2 | ||||
| 64274-50010 |
UCF1# |
1 | ||
| 64277A - MOULDING, ROOM PARTITION TRIM | ||||
| 64277-50010 |
UCF1# |
1 | ||
| 64277C - COVER, ROOM PARTITION, NO.2 | ||||
| 64277-50010 |
UCF1# |
1 | ||
| 64285A - COVER, ROOM PARTITION, NO.3 | ||||
| 64285-50010 |
UCF1# |
2 | ||
| 64287A - COVER, ROOM PARTITION, NO.4 RH | ||||
| 64287-50010 |
UCF1# |
1 | ||
| 64288A - COVER, ROOM PARTITION, NO.4 LH | ||||
| 64288-50010 |
UCF1# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-5002004 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 64330-5002003 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 64330-5006004 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 64330-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64330-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64330-5006003 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1# |
1 | ||
| 64330-5006004 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK BLUE,TRIM8# |
1 | ||
| 64330-50090E1 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 64330-5006003 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 64330-5006005 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),GREIGE,TRIM0# |
1 | ||
| 64330-50090K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 64330-50090J1 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 64330-5002004 |
UCF10..A ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK BLUE,TRIM8# |
1 | ||
| 64330-5006006 |
UCF1#..B,C ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),DARK ROSE,TRIM4# |
1 | ||
| 64330-5002003 |
UCF10..A ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1# |
1 | ||
| 64330-50090B1 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-0605501 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
2 | ||
| 90467-0605522 |
UCF10..A BLACK,TRIM1#,8# |
2 | ||
| 90467-0605522 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
2 | ||
| 90467-0605501 |
UCF10..A BLACK,TRIM1#,8# |
2 | ||
| 64337 - GARNISH, PACKAGE TRAY TRIM, RH | ||||
| 64337-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64337-50010K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 64337-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 64337-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64337-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64337-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64337-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 64337-50010E1 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 64339 - GARNISH, PACKAGE TRAY TRIM, LH | ||||
| 64339-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 64339-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 64339-50010E1 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 64339-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64339-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 64339-50010K1 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 64339-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 64339-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 64342 - COVER, PACKAGE TRAY TRIM, UNDER | ||||
| 64342-50010 |
UCF1# |
2 | ||
| 64342-50010 |
UCF10 |
1 | ||
| 64710A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64710-50070C0 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64710-5005001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64710-50051C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64710-5004001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64710-50041C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64710-50051C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64710-50070C2 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64710-50041C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-5002001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64711-50080C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64711-50070C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64711-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64711-50080C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64711-50070C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
4 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-06114C0 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ B |
2 | ||
| 90467-06114C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ B |
2 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
4 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-06114C0 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ B |
2 | ||
| 90467-06114C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ B |
2 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
4 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-06114C0 |
UCF10..A BLACK,TRIM1#,8#,ﾀｲﾌﾟ B |
2 | ||
| 90467-06114C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ B |
2 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9#,ﾀｲﾌﾟ A |
4 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
6 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8# |
6 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
6 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
6 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9# |
6 | ||
| 64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-50011C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64716-50011C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64716-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64716-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64716-50011C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64716-50011C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64717-50011C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50011C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50030C0 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-50011C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-50011C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50030C2 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64717-50011C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50011C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50030C0 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-50011C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64717-50011C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64717-50030C2 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ),BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64720A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64720-50014C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64720-5001301 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64720-50014C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64720-5001301 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64720-5001201 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64720-5001201 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64720-50014C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64720-50014C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64725C - RETAINER, LUGGAGE COMPARTMENT COVER | ||||
| 64725-50060 |
UCF1# |
4 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-50010 |
UCF1# |
4 | ||
| 64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-50010C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64749-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64749-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64749-50010C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64749C - CLIP(FOR LUGGAGE DOOR STRIKER COVER) | ||||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
2 | ||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
2 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8# |
2 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9# |
2 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
2 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-50010 |
UCF1# |
1 | ||
| 64771-24030 |
UCF1# |
1 | ||
| 64771-50010 |
UCF1# ｽﾍﾟｱﾀｲﾔ=ｱﾙﾐ ﾎｲ-ﾙ |
1 | ||
| 64771-24020 |
UCF1# ｽﾍﾟｱﾀｲﾔ=ｱﾙﾐ ﾎｲ-ﾙ |
1 | ||
| 64776C - GUARD, SPARE WHEEL, NO.2 | ||||
| 64776-50010 |
UCF1# |
1 | ||
| 64791 - COVER, BACK DOOR TRIM | ||||
| 64791-50031C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64791-50031C2 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64791-5001001 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64791-50030C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64791-5001001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64791-50030C0 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| 64791-50031C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 64791-50031C2 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 64791A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-0502001 |
UCF10..A BLACK,TRIM1#,8# |
3 | ||
| 90467-0502022 |
UCF1#..B,C GRAPHITE,TRIM0#,1#,8#,9# |
3 | ||
| 90467-0502022 |
UCF10..A GRAPHITE,TRIM1#,8# |
3 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
3 | ||
| 90467-0502001 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
3 | ||
| 75260A - LOCK ASSY, TOOL BOX | ||||
| 75260-5001101 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 75260-50011C0 |
UCF10..A BLACK,TRIM1#,8# |
1 | ||
| 75260-50011C0 |
UCF1#..B,C BLACK,TRIM0#,1#,8#,9# |
1 | ||
| 75260-5001101 |
UCF1#..B,C BLACK,TRIM0#,1#,4#,8# |
1 | ||
| Common parts | ||||
| 67921-50030 | ||||
| 67921-91601 | ||||
| 67921-95500 | ||||
| 90151-40005 | ||||
| 90159-40073 | ||||
| 90159-60411 | ||||
| 90168-40048 | ||||
| 90179-06115 | ||||
| 90183-04046 | ||||
| 90189-04165 | ||||
| 90333-25001 | ||||
| 90467-08119 | ||||
| 90467-10018 | ||||
| 90468-05047 | ||||
| 90468-05060 | ||||
| 90468-05092 | ||||
| 90541-03015 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8117 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
