UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

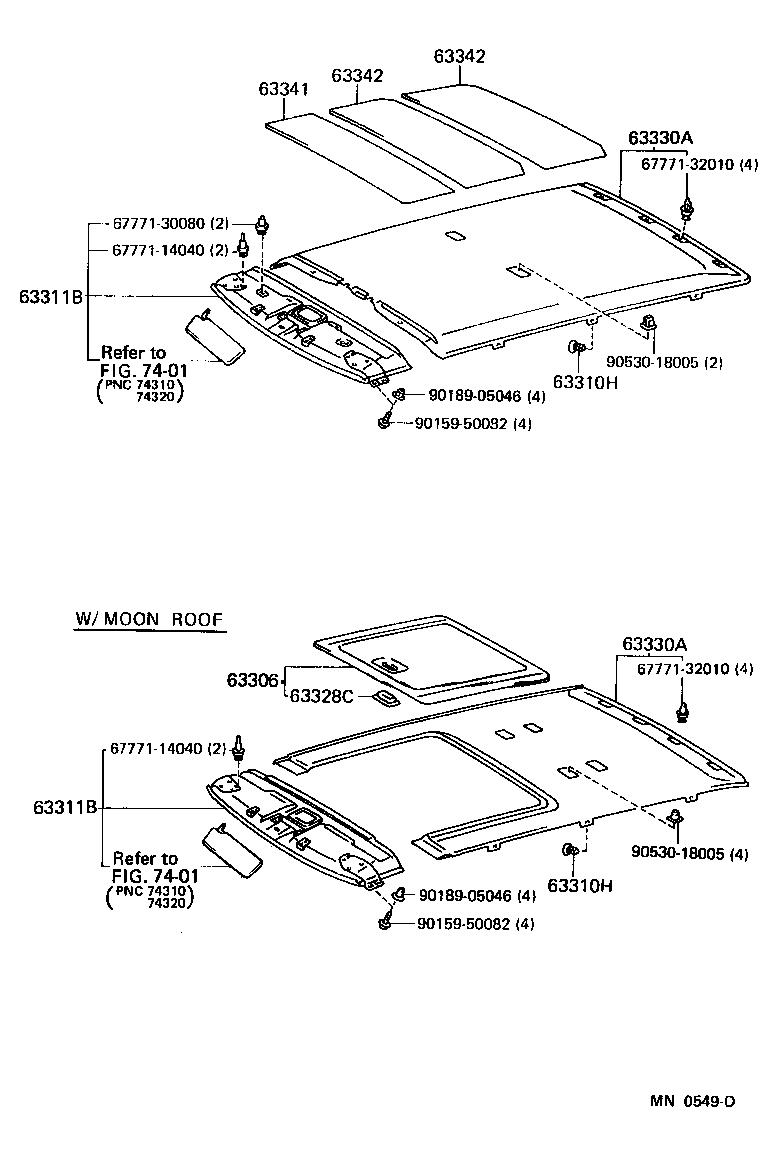

Click highlighted areas on diagram

diagram 63306 63310H 63310H 63311B 63311B 63328C 63330A 63330A 63341 63342 63342 6777114040 6777114040 6777130080 6777132010 6777132010 7401 7401 9015950082 9015950082 9018905046 9018905046 9053018005 9053018005
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-50010B0

UCF10

SHADOW GRAY,TRIM1#

 1
63306-50010J0

UCF10

DK. BLUE,TRIM8#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-0604801

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLACK,TRIM0#,1#,4#,8#

 6
90467-06070J0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM0#,1#,4#,8#

 6
90467-06070J0

UCF1#..B,C

LIGHT BLUE,TRIM0#,1#,4#,8#

 9
90467-0604801

UCF1#..B,C

BLACK,TRIM0#,1#,4#,8#

 9
90467-06070J0

UCF1#..B,C

LIGHT BLUE,TRIM0#,1#,8#,9#

 9
90467-0604801

UCF10..A

BLACK,TRIM1#,8#

 9
90467-06070J0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM0#,1#,8#,9#

 6
90467-06070J0

UCF10..A

LIGHT BLUE,TRIM1#,8#

 9
90467-06070J0

UCF10..A

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM1#,8#

 6
63310H - CLIP(FOR ROOF HEADLINING)
90467-0604801

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLACK,TRIM0#,1#,4#,8#

 6
90467-06070J0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM0#,1#,4#,8#

 6
90467-06070J0

UCF1#..B,C

LIGHT BLUE,TRIM0#,1#,4#,8#

 9
90467-0604801

UCF1#..B,C

BLACK,TRIM0#,1#,4#,8#

 9
90467-06070J0

UCF1#..B,C

LIGHT BLUE,TRIM0#,1#,8#,9#

 9
90467-0604801

UCF10..A

BLACK,TRIM1#,8#

 9
90467-06070J0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM0#,1#,8#,9#

 6
90467-06070J0

UCF10..A

LIGHT BLUE,TRIM1#,8#

 9
90467-06070J0

UCF10..A

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM1#,8#

 6
63311B - HEADLINING, ROOF, FRONT
63311-5005003

UCF1#

SHADOW GRAY,TRIM1#

 1
63311-5006003

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63311-5006004

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DARK BLUE,TRIM8#

 1
63311-5010005

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) & ﾅｼ(ｴｱﾊﾞﾂｸ),GREIGE,TRIM0#

 1
63311-5005005

UCF1#..B,C

GREIGE,TRIM0#

 1
63311-5005006

UCF1#..B,C

DARK ROSE,TRIM4#

 1
63311-5009005

UCF1#..B,C

ﾅｼ(ｴｱﾊﾞﾂｸ),GREIGE,TRIM0#

 1
63311-5006006

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DARK ROSE,TRIM4#

 1
63311-5009004

UCF1#

ﾅｼ(ｴｱﾊﾞﾂｸ),DARK BLUE,TRIM8#

 1
63311-5010003

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) & ﾅｼ(ｴｱﾊﾞﾂｸ),SHADOW GRAY,TRIM1#

 1
63311-5009003

UCF1#

ﾅｼ(ｴｱﾊﾞﾂｸ),SHADOW GRAY,TRIM1#

 1
63311-5010004

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) & ﾅｼ(ｴｱﾊﾞﾂｸ),DARK BLUE,TRIM8#

 1
63311-50150E0

UCF1#..B,C

ｱﾘ(*80 (Dｾｷ&Pｾｷ)),OAK,TRIM0#

 1
63311-50160J0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *80 (Dｾｷ & Pｾｷ)),DK. BLUE,TRIM8#

 1
63311-5010006

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) & ﾅｼ(ｴｱﾊﾞﾂｸ),DARK ROSE,TRIM4#

 1
63311-50160B0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *80 (Dｾｷ & Pｾｷ)),SHADOW GRAY,TRIM1#

 1
63311-50150J0

UCF1#

ｱﾘ(*80 (Dｾｷ&Pｾｷ)),DK. BLUE,TRIM8#

 1
63311-5005004

UCF1#

DARK BLUE,TRIM8#

 1
63311-50150K0

UCF1#..B,C

ｱﾘ(*80 (Dｾｷ&Pｾｷ)),TAUPE,TRIM9#

 1
63311-50160K0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *80 (Dｾｷ & Pｾｷ)),TAUPE,TRIM9#

 1
63311-50260B0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63311-50250B0

UCF1#

SHADOW GRAY,TRIM1#

 1
63311-5006005

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GREIGE,TRIM0#

 1
63311-50250J0

UCF1#

DK. BLUE,TRIM8#

 1
63311-50260K0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),TAUPE,TRIM9#

 1
63311-50250K0

UCF1#..B,C

TAUPE,TRIM9#

 1
63311-50150B0

UCF1#

ｱﾘ(*80 (Dｾｷ&Pｾｷ)),SHADOW GRAY,TRIM1#

 1
63311-50250E0

UCF1#..B,C

OAK,TRIM0#

 1
63311-50260E0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),OAK,TRIM0#

 1
63311-50260J0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DK. BLUE,TRIM8#

 1
63311-5009006

UCF1#..B,C

ﾅｼ(ｴｱﾊﾞﾂｸ),DARK ROSE,TRIM4#

 1
63311-50160E0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *80 (Dｾｷ & Pｾｷ)),OAK,TRIM0#

 1
63311B - HEADLINING, ROOF, FRONT
63311-5005003

UCF1#

SHADOW GRAY,TRIM1#

 1
63311-5006003

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63311-5006004

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DARK BLUE,TRIM8#

 1
63311-5010005

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) & ﾅｼ(ｴｱﾊﾞﾂｸ),GREIGE,TRIM0#

 1
63311-5005005

UCF1#..B,C

GREIGE,TRIM0#

 1
63311-5005006

UCF1#..B,C

DARK ROSE,TRIM4#

 1
63311-5009005

UCF1#..B,C

ﾅｼ(ｴｱﾊﾞﾂｸ),GREIGE,TRIM0#

 1
63311-5006006

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DARK ROSE,TRIM4#

 1
63311-5009004

UCF1#

ﾅｼ(ｴｱﾊﾞﾂｸ),DARK BLUE,TRIM8#

 1
63311-5010003

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) & ﾅｼ(ｴｱﾊﾞﾂｸ),SHADOW GRAY,TRIM1#

 1
63311-5009003

UCF1#

ﾅｼ(ｴｱﾊﾞﾂｸ),SHADOW GRAY,TRIM1#

 1
63311-5010004

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) & ﾅｼ(ｴｱﾊﾞﾂｸ),DARK BLUE,TRIM8#

 1
63311-50150E0

UCF1#..B,C

ｱﾘ(*80 (Dｾｷ&Pｾｷ)),OAK,TRIM0#

 1
63311-50160J0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *80 (Dｾｷ & Pｾｷ)),DK. BLUE,TRIM8#

 1
63311-5010006

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) & ﾅｼ(ｴｱﾊﾞﾂｸ),DARK ROSE,TRIM4#

 1
63311-50160B0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *80 (Dｾｷ & Pｾｷ)),SHADOW GRAY,TRIM1#

 1
63311-50150J0

UCF1#

ｱﾘ(*80 (Dｾｷ&Pｾｷ)),DK. BLUE,TRIM8#

 1
63311-5005004

UCF1#

DARK BLUE,TRIM8#

 1
63311-50150K0

UCF1#..B,C

ｱﾘ(*80 (Dｾｷ&Pｾｷ)),TAUPE,TRIM9#

 1
63311-50160K0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *80 (Dｾｷ & Pｾｷ)),TAUPE,TRIM9#

 1
63311-50260B0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63311-50250B0

UCF1#

SHADOW GRAY,TRIM1#

 1
63311-5006005

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GREIGE,TRIM0#

 1
63311-50250J0

UCF1#

DK. BLUE,TRIM8#

 1
63311-50260K0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),TAUPE,TRIM9#

 1
63311-50250K0

UCF1#..B,C

TAUPE,TRIM9#

 1
63311-50150B0

UCF1#

ｱﾘ(*80 (Dｾｷ&Pｾｷ)),SHADOW GRAY,TRIM1#

 1
63311-50250E0

UCF1#..B,C

OAK,TRIM0#

 1
63311-50260E0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),OAK,TRIM0#

 1
63311-50260J0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DK. BLUE,TRIM8#

 1
63311-5009006

UCF1#..B,C

ﾅｼ(ｴｱﾊﾞﾂｸ),DARK ROSE,TRIM4#

 1
63311-50160E0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *80 (Dｾｷ & Pｾｷ)),OAK,TRIM0#

 1
63328C - KNOB, SUNSHADE TRIM
63328-50010B0

UCF10

SHADOW GRAY,TRIM1#

 1
63328-50010J0

UCF10

DARK BLUE,TRIM8#

 1
63330A - HEADLINING ASSY, ROOF, REAR
63312-5001005

UCF1#..B,C

GREIGE,TRIM0#

 1
63312-5002003

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63312-5001003

UCF1#

SHADOW GRAY,TRIM1#

 1
63312-5002004

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DARK BLUE,TRIM8#

 1
63312-5001006

UCF1#..B,C

DARK ROSE,TRIM4#

 1
63312-5001004

UCF1#

DARK BLUE,TRIM8#

 1
63312-5002005

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GREIGE,TRIM0#

 1
63312-5002006

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DARK ROSE,TRIM4#

 1
63312-50020J0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DK. BLUE,TRIM8#

 1
63312-50020K0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),TAUPE,TRIM9#

 1
63312-50010E0

UCF1#..B,C

OAK,TRIM0#

 1
63312-50010B0

UCF1#

SHADOW GRAY,TRIM1#

 1
63312-50010K0

UCF1#..B,C

TAUPE,TRIM9#

 1
63312-50020E0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),OAK,TRIM0#

 1
63312-50010J0

UCF1#

DK. BLUE,TRIM8#

 1
63312-50020B0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63330A - HEADLINING ASSY, ROOF, REAR
63312-5001005

UCF1#..B,C

GREIGE,TRIM0#

 1
63312-5002003

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63312-5001003

UCF1#

SHADOW GRAY,TRIM1#

 1
63312-5002004

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DARK BLUE,TRIM8#

 1
63312-5001006

UCF1#..B,C

DARK ROSE,TRIM4#

 1
63312-5001004

UCF1#

DARK BLUE,TRIM8#

 1
63312-5002005

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GREIGE,TRIM0#

 1
63312-5002006

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DARK ROSE,TRIM4#

 1
63312-50020J0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DK. BLUE,TRIM8#

 1
63312-50020K0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),TAUPE,TRIM9#

 1
63312-50010E0

UCF1#..B,C

OAK,TRIM0#

 1
63312-50010B0

UCF1#

SHADOW GRAY,TRIM1#

 1
63312-50010K0

UCF1#..B,C

TAUPE,TRIM9#

 1
63312-50020E0

UCF1#..B,C

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),OAK,TRIM0#

 1
63312-50010J0

UCF1#

DK. BLUE,TRIM8#

 1
63312-50020B0

UCF1#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-50020

UCF1#

 1
63342 - PAD, ROOF SILENCER, NO.2
63341-50030

UCF1#

 2
63342 - PAD, ROOF SILENCER, NO.2
63341-50030

UCF1#

 2
Common parts
67771-14040
67771-30080
67771-32010
90159-50082
90189-05046
90530-18005
Linked diagrams
7401
