UCF10-AEPNK (1989)
Toyota Celsior
(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-50010 |
UCF1# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-50010 |
UCF1# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-5001106 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55620-5001103 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55620-50012W3 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55620-5001104 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55620-50012E2 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55620-50012P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55620-5001105 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55620-50012E4 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55620-50012K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55620-50012E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55620A - CUSHION(FOR CUP HOLDER) | ||||
| 90541-0200803 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 90541-02008K0 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 90541-0200804 |
UCF1# DARK BLUE,TRIM8# |
2 | ||
| 90541-02008J0 |
UCF1# DK. BLUE,TRIM8# |
2 | ||
| 90541-02008B0 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 90541-02008E0 |
UCF1#..B,C OAK,TRIM0# |
2 | ||
| 90541-0200806 |
UCF1#..B,C DARK ROSE,TRIM4# |
2 | ||
| 90541-0200805 |
UCF1#..B,C GREIGE,TRIM0# |
2 | ||
| 58086B - DUCT SUB-ASSY, CONSOLE BOX | ||||
| 58086-50010 |
UCF1# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-50010 |
UCF1# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58801-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 58801-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 58801-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 58801-50011E4 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 58801-50012E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 58801-50011K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 58801-50012W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 58801-50011P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 58801-50011E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 58801-50012K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 58801-50012P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 58801-50011W3 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 58801-50011E2 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 58801-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-50010 |
UCF1# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 58860-50010A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
2 | ||
| 58860-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 58860-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 58860-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 58860-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 58860-50010W4 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),EISEN BLUE,TRIM8# |
2 | ||
| 58860-50010S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 58860-50010S7 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SLATE GRAY,TRIM1# |
2 | ||
| 58860-50010W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 58860-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 58860-50010K0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ME. TAUPE,TRIM9# |
2 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-50010 |
UCF1# |
2 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-50010 |
UCF1# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 58904-50010 |
UCF1# |
1 | ||
| 58903-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 58903-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 58903-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 58904-50010 |
UCF1# |
1 | ||
| 58903-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 58903-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 58903-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-5007006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 58905-5007004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 58905-5007008 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 58905-5001003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 58905-5002004 |
UCF10..A BLUE,TRIM8# |
1 | ||
| 58905-5002003 |
UCF10..A GRAY,TRIM1# |
1 | ||
| 58905-50010B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),SLATE GRAY,TRIM1# |
1 | ||
| 58905-5001008 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 58905-50010A0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 58905-50080J0 |
UCF1#..B,C EISEN BLUE,TRIM8# |
1 | ||
| 58905-5001006 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ROSE,TRIM4# |
1 | ||
| 58905-5007003 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 58905-50010J0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),EISEN BLUE,TRIM8# |
1 | ||
| 58905-50070B0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 58905-50020J0 |
UCF10..A EISEN BLUE,TRIM8# |
1 | ||
| 58905-5001004 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),BLUE,TRIM8# |
1 | ||
| 58905-50020B0 |
UCF10..A SLATE GRAY,TRIM1# |
1 | ||
| 58905-50080K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 58905-50080B0 |
UCF1#..B,C SLATE GRAY,TRIM1# |
1 | ||
| 58905-50010K0 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),ME. TAUPE,TRIM9# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-50010 |
UCF1# |
1 | ||
| 58907-50010 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
2 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50010 |
UCF1#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
2 | ||
| 58908-50010 |
UCF1# |
1 | ||
| 58912B - BOX, REAR CONSOLE, LOWER | ||||
| 58912-50020 |
UCF1# |
1 | ||
| 58932A - GARNISH, REAR CONSOLE BOX | ||||
| 58932-50010 |
UCF1# |
1 | ||
| 58987A - RETAINER, CONSOLE BOX, NO.2 | ||||
| 58987-50010 |
UCF1# |
2 | ||
| 58987-50010 |
UCF1# |
4 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-50011 |
UCF1# |
1 | ||
| 58995-50010 |
UCF1# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90159-50314 | ||||
| 90161-26007 | ||||
| 90468-04157 | ||||
| 90468-06080 | ||||
| 90541-03078 | ||||
| 91665-40616 | ||||
| 93540-54012 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||

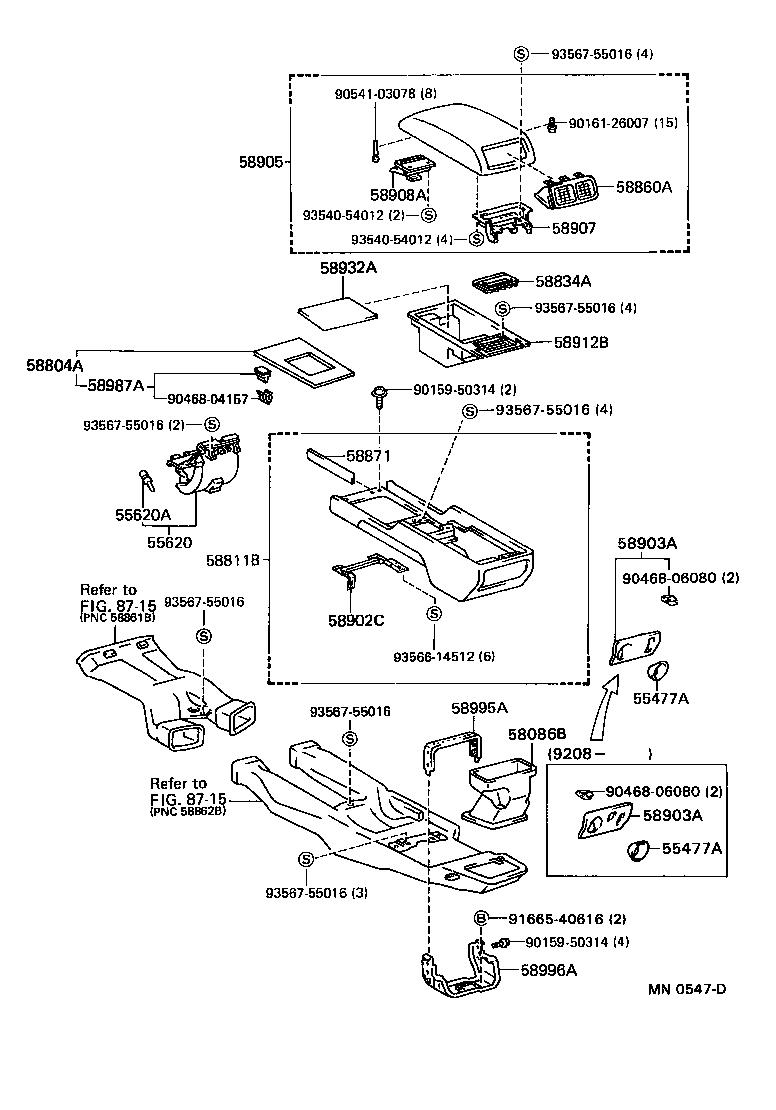

| Linked diagrams | ||||
| 8715 | ||||
