UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

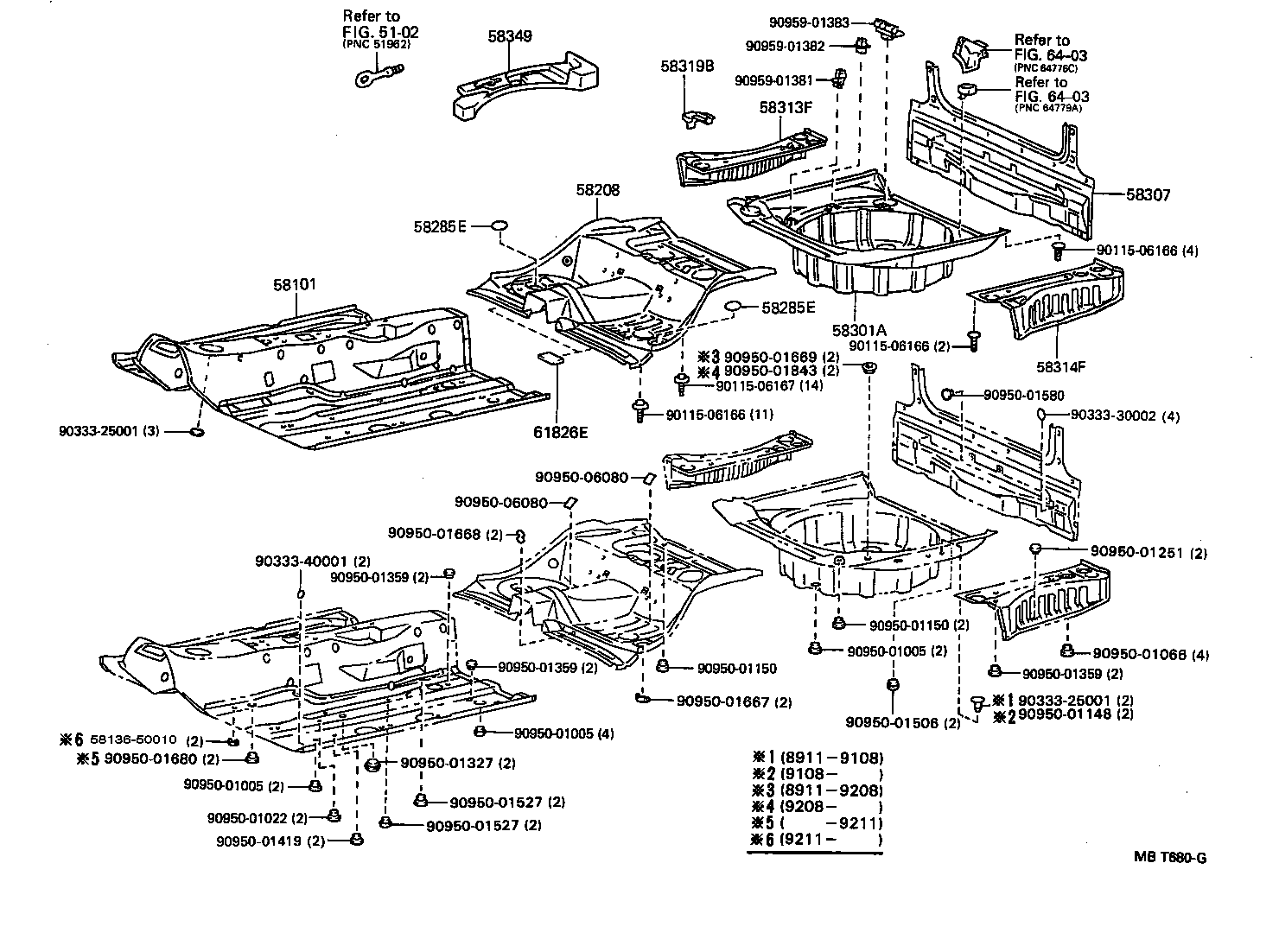

Click highlighted areas on diagram

diagram 5102 58101 5813650010 58208 58285E 58285E 58301A 58307 58313F 58314F 58319B 58349 61826E 6403 6403 9011506166 9011506166 9011506166 9011506167 9033325001 9033325001 9033330002 9033340001 9095001005 9095001005 9095001005 9095001022 9095001066 9095001148 9095001150 9095001150 9095001251 9095001327 9095001359 9095001359 9095001359 9095001419 9095001506 9095001527 9095001527 9095001580 9095001667 9095001668 9095001669 9095001680 9095001843 9095006080 9095006080 9095901381 9095901382 9095901383
Part # Description Qty Price
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-50023

UCF1#

 1
58101-50020

UCF1#

 1
58101-50021

UCF1#

 1
58101-50022

UCF1#

 1
58208 - PAN, CENTER FLOOR
58201-50902

UCF1#

 1
58285E - COVER, CENTER FLOOR HOLE
58285-50010

UCF1#

 2
58285E - COVER, CENTER FLOOR HOLE
58285-50010

UCF1#

 2
58301A - PANEL SUB-ASSY, REAR FLOOR
58301-50902

UCF1#

 1
58301-50900

UCF1#

 1
58301-50903

UCF1#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-50011

UCF1#

 1
58307-50010

UCF1#

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-50010

UCF1#

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-50010

UCF1#

 1
58314-50011

UCF1#

 1
58319B - BRACKET, REAR FLOOR SIDE PANEL
58319-50011

UCF1#..B,C

 1
58319-50010

UCF1#..B,C

 2
58349 - CUSHION, REAR FLOOR SIDE
58349-50010

UCF1#

 1
58349-50011

UCF1#

 1
Common parts
58136-50010
90115-06166
90115-06167
90333-25001
90333-30002
90333-40001
90950-01005
90950-01022
90950-01066
90950-01148
90950-01150
90950-01251
90950-01327
90950-01359
90950-01419
90950-01506
90950-01527
90950-01580
90950-01667
90950-01668
90950-01669
90950-01680
90950-01843
90950-06080
90959-01381
90959-01382
90959-01383
Linked diagrams
5102
6403
