UCF10-AEPNK (1989)
Toyota Celsior
(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-50020 |
UCF1# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-50020 |
UCF1# |
1 | ||
| 55307-50040 |
UCF1# |
1 | ||
| 55307-50050 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-50010 |
UCF1# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-50040 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55330-50020 |
UCF1# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-50020 |
UCF1# |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-50020 |
UCF1# |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-50020 |
UCF1# |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-50030 |
UCF1# |
1 | ||
| 55375-50020 |
UCF1# |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-50010 |
UCF1# |
1 | ||
| 55383 - BRACKET, FINISH PANEL MOUNTING, NO.3 | ||||
| 55383-50020 |
UCF1# |
1 | ||
| 55383-50021 |
UCF1# |
1 | ||
| 55384C - BRACKET, FINISH PANEL MOUNTING, NO.4 | ||||
| 55384-50020 |
UCF1# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55401-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55401-50020P0 |
UCF1# ｱﾘ(*80(Dｾｷ)),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55401-50020E0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ)),OAK,OAK,TRIM0# |
1 | ||
| 55401-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55401-50040B0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),SHADOW GRAY,TRIM1# |
1 | ||
| 55401-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55401-50020K0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ)),TAUPE,TAUPE,TRIM9# |
1 | ||
| 55401-50040E0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),OAK,TRIM0# |
1 | ||
| 55401-50040J0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),DK. BLUE,TRIM8# |
1 | ||
| 55401-50020W3 |
UCF1# ｱﾘ(*80(Dｾｷ)),DK. BLUE,DK. BLUE,TRIM8# |
1 | ||
| 55401-50040K0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),TAUPE,TRIM9# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55402-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55402-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55402-50020S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 55402-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55402-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55402-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55402-50020J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55403-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55403-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55403-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55403-50030B0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),SLATE GRAY,TRIM1# |
1 | ||
| 55403-50020W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 55403-50030K0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),ME. TAUPE,TRIM9# |
1 | ||
| 55403-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55403-50020S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 55403-50030J0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),EISEN BLUE,TRIM8# |
1 | ||
| 55403-50030A0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),IVORY,TRIM0# |
1 | ||
| 55403-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-50090 |
UCF1# |
1 | ||
| 55404-50040 |
UCF1#..A,C |
1 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-50020 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼｽﾃﾑ) |
1 | ||
| 55407-50020 |
UCF1#..B,C |
1 | ||
| 55407-50010 |
UCF10..A |
1 | ||
| 55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN | ||||
| 55408-5005005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55408-50060K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55408-5005003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55408-50060J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55408-50060B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55408-5005004 |
UCF1# DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55408-5005006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55408-50060E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55408H - PAD SUB-ASSY, INSTRUMENT PANEL CYLINDER | ||||
| 55408-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55408-50020W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55408-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55408-50020E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55408-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55408-50020P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55408-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55408-50020K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-50010 |
UCF1# |
2 | ||
| 55437B - RETAINER, INSTR PANEL FINISH PANEL, NO.2 | ||||
| 55437-50010 |
UCF1# |
1 | ||
| 55437-50010 |
UCF1# |
2 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55447-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55447-50010B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55447-50010J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55447-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55447-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55447-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55447-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55450-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55450-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55450-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55450-50030B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55450-50030J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55450-50030K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55450-50030E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55488-50010 |
UCF1# |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
UCF1# |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-50020 |
UCF1# |
1 | ||
| 55506-50040 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-50020 |
UCF1# |
1 | ||
| 55505-50040 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55550-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55503-50020J0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),DK. BLUE,TRIM8# |
1 | ||
| 55550-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55503-50020E0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),OAK,TRIM0# |
1 | ||
| 55550-50020E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55503-50020B0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),SHADOW GRAY,TRIM1# |
1 | ||
| 55550-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55503-50020K0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),TAUPE,TRIM9# |
1 | ||
| 55550-50020P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55550-50020K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55550-50020W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-50020 |
UCF1# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55524-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55524-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55524-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55524-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55524-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55524-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55524-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-50020 |
UCF1# |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-50020 |
UCF1# |
1 | ||
| 55533B - PANEL, GLOVE COMPARTMENT SIDE, RH | ||||
| 55533-50010 |
UCF1# |
1 | ||
| 55534B - PANEL, GLOVE COMPARTMENT SIDE, LH | ||||
| 55534-50010 |
UCF1# |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55538-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55538-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55538-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55538-50010J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55538-50010B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55538-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55538-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-50010B0 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 55539-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 55539-5001004 |
UCF1# DARK BLUE,TRIM8# |
2 | ||
| 55539-50010J0 |
UCF1# DK. BLUE,TRIM8# |
2 | ||
| 55539-50010E0 |
UCF1#..B,C OAK,TRIM0# |
2 | ||
| 55539-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 55539-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
2 | ||
| 55539-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 55539-5001004 |
UCF1# DARK BLUE,TRIM8# |
2 | ||
| 55539-50010J0 |
UCF1# DK. BLUE,TRIM8# |
2 | ||
| 55539-50010E0 |
UCF1#..B,C OAK,TRIM0# |
2 | ||
| 55539-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 55539-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
2 | ||
| 55539-50010B0 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 55539-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-50010 |
UCF1# |
1 | ||
| 55556-50050 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55556-50040 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50040 |
UCF1# ｱﾘ(ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸ ｼｽﾃﾑ) |
1 | ||
| 55560-50030 |
UCF1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55565-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55565-50010K0 |
UCF1#..B,C TUAPE,TRIM9# |
1 | ||
| 55565-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55565-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55565-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55565-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55565-50010W3 |
UCF1# DK.BLUE,TRIM8# |
1 | ||
| 55568 - PLATE, GLOVE COMPARTMENT DOOR PAD | ||||
| 55568-50010 |
UCF1# |
2 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55569-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55569-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55569-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55569-50010K0 |
UCF1#..B,C TUAPE,TRIM9# |
1 | ||
| 55569-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55569-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55569-50010W3 |
UCF1# DK.BLUE,TRIM8# |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-50030 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55590-50020 |
UCF1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55606-5002106 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55606-5002103 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55606-50040B0 |
UCF1#..B,C SLATE GRAY,TRIM1# |
1 | ||
| 55606-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55606-5002108 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55606-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55606-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55606-5002104 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55606-50050J0 |
UCF10..A EISEN BLUE,TRIM8# |
1 | ||
| 55606-50040A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55606-50040K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55606-50050B0 |
UCF10..A SLATE GRAY,TRIM1# |
1 | ||
| 55606-50040J0 |
UCF1#..B,C EISEN BLUE,TRIM8# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55607-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55607-5003004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55607-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55607-50060B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 55607-5003003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55607-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55607-5003008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55607-5003006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55607-50060J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 55607-50060A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55607-50060K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-50020E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55650-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-50020P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-50020W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55650-50020K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55650-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55650-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55650-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-50010 |
UCF1# |
1 | ||
| 55660-50020 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55670-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55670-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55670-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55670-50020K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55670-50020P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55670-50020W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55670-50020E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55680B - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55680-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55680-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55680-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55680-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55680-50010W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 55680-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55680-50010S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55961-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55961-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55961-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55961-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55961-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55961-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55961-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55962-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55962-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55962-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55962-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55962-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55962-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55962-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55981-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55981-50040J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55981-50040B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55981-50040E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55981-50040K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55981-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55981-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55982-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55982-50040B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55982-50040E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55982-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55982-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55982-50040J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55982-50040K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 62199-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90119-06251 | ||||
| 90161-40016 | ||||
| 90168-40036 | ||||
| 90168-40054 | ||||
| 90168-50038 | ||||
| 90179-04017 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90333-25001 | ||||
| 90467-09101 | ||||
| 90467-11055 | ||||
| 90467-14022 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14026 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 90468-04087 | ||||
| 90468-04157 | ||||
| 90541-05020 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 91655-60820 | ||||
| 93520-53014 | ||||
| 93560-14010 | ||||
| 93567-55016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

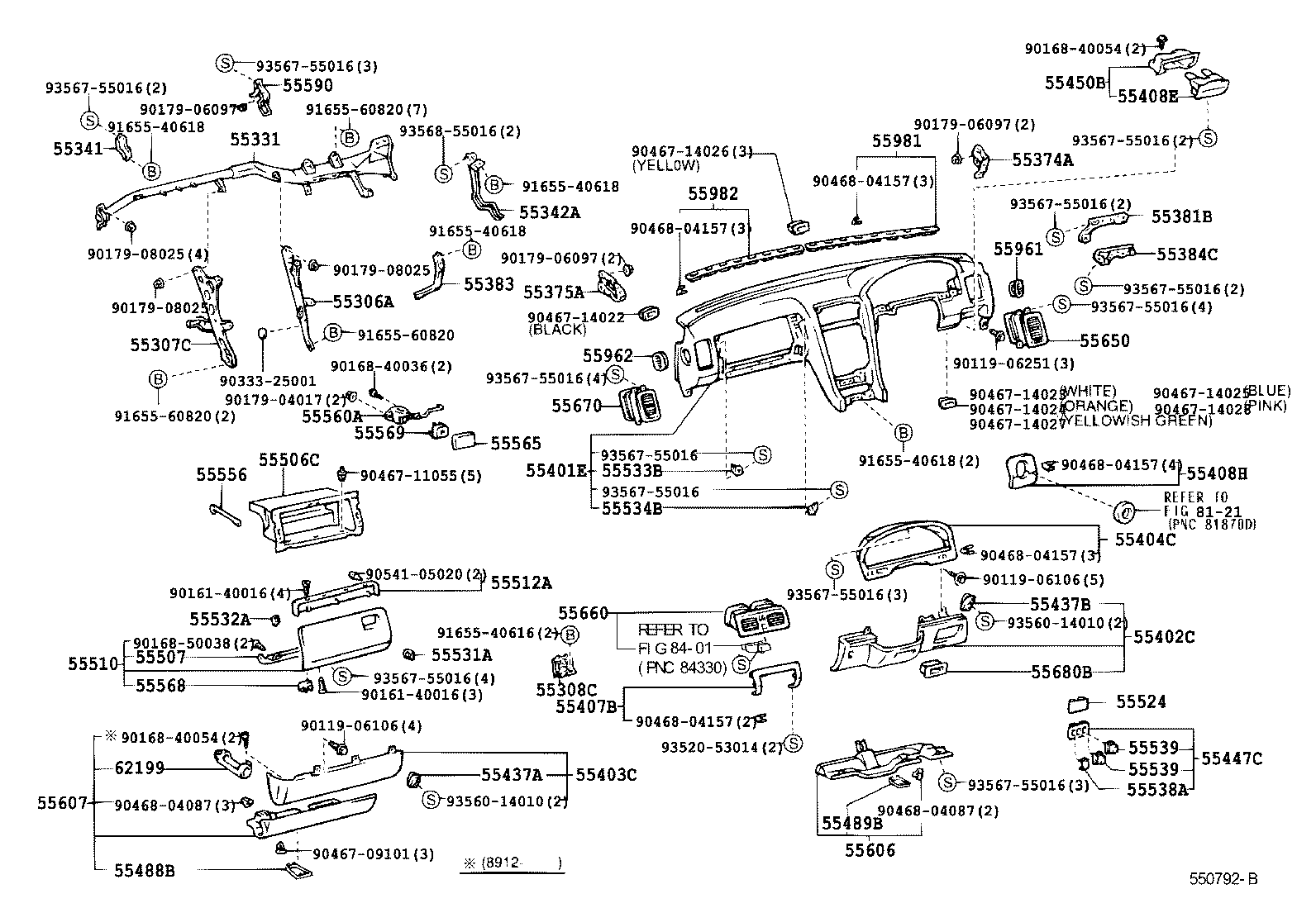

(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-50020 |
UCF1# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-50020 |
UCF1# |
1 | ||
| 55307-50040 |
UCF1# |
1 | ||
| 55307-50050 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-50010 |
UCF1# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-50040 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55330-50020 |
UCF1# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-50020 |
UCF1# |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-50020 |
UCF1# |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-50020 |
UCF1# |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-50030 |
UCF1# |
1 | ||
| 55375-50020 |
UCF1# |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-50010 |
UCF1# |
1 | ||
| 55383 - BRACKET, FINISH PANEL MOUNTING, NO.3 | ||||
| 55383-50020 |
UCF1# |
1 | ||
| 55383-50021 |
UCF1# |
1 | ||
| 55384C - BRACKET, FINISH PANEL MOUNTING, NO.4 | ||||
| 55384-50020 |
UCF1# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55401-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55401-50020P0 |
UCF1# ｱﾘ(*80(Dｾｷ)),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55401-50020E0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ)),OAK,OAK,TRIM0# |
1 | ||
| 55401-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55401-50040B0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),SHADOW GRAY,TRIM1# |
1 | ||
| 55401-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55401-50020K0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ)),TAUPE,TAUPE,TRIM9# |
1 | ||
| 55401-50040E0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),OAK,TRIM0# |
1 | ||
| 55401-50040J0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),DK. BLUE,TRIM8# |
1 | ||
| 55401-50020W3 |
UCF1# ｱﾘ(*80(Dｾｷ)),DK. BLUE,DK. BLUE,TRIM8# |
1 | ||
| 55401-50040K0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),TAUPE,TRIM9# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55402-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55402-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55402-50020S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 55402-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55402-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55402-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55402-50020J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55403-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55403-50020K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55403-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55403-50030B0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),SLATE GRAY,TRIM1# |
1 | ||
| 55403-50020W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 55403-50030K0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),ME. TAUPE,TRIM9# |
1 | ||
| 55403-50020A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55403-50020S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 55403-50030J0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),EISEN BLUE,TRIM8# |
1 | ||
| 55403-50030A0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),IVORY,TRIM0# |
1 | ||
| 55403-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-50090 |
UCF1# |
1 | ||
| 55404-50040 |
UCF1#..A,C |
1 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-50020 |
UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼｽﾃﾑ) |
1 | ||
| 55407-50020 |
UCF1#..B,C |
1 | ||
| 55407-50010 |
UCF10..A |
1 | ||
| 55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN | ||||
| 55408-5005005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55408-50060K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55408-5005003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55408-50060J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55408-50060B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55408-5005004 |
UCF1# DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55408-5005006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55408-50060E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55408H - PAD SUB-ASSY, INSTRUMENT PANEL CYLINDER | ||||
| 55408-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55408-50020W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55408-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55408-50020E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55408-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55408-50020P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55408-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55408-50020K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-50010 |
UCF1# |
2 | ||
| 55437B - RETAINER, INSTR PANEL FINISH PANEL, NO.2 | ||||
| 55437-50010 |
UCF1# |
1 | ||
| 55437-50010 |
UCF1# |
2 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55447-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55447-50010B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55447-50010J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55447-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55447-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55447-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55447-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55450-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55450-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55450-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55450-50030B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55450-50030J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55450-50030K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55450-50030E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55488-50010 |
UCF1# |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
UCF1# |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-50020 |
UCF1# |
1 | ||
| 55506-50040 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-50020 |
UCF1# |
1 | ||
| 55505-50040 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55550-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55503-50020J0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),DK. BLUE,TRIM8# |
1 | ||
| 55550-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55503-50020E0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),OAK,TRIM0# |
1 | ||
| 55550-50020E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55503-50020B0 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)),SHADOW GRAY,TRIM1# |
1 | ||
| 55550-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55503-50020K0 |
UCF1#..B,C ｱﾘ(*80(Dｾｷ & Pｾｷ)),TAUPE,TRIM9# |
1 | ||
| 55550-50020P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55550-50020K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55550-50020W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55524-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55524-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55524-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55524-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55524-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55524-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55524-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-50020 |
UCF1# |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-50020 |
UCF1# |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55538-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55538-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55538-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55538-50010J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55538-50010B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55538-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55538-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-50010B0 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 55539-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
2 | ||
| 55539-5001004 |
UCF1# DARK BLUE,TRIM8# |
2 | ||
| 55539-50010J0 |
UCF1# DK. BLUE,TRIM8# |
2 | ||
| 55539-50010E0 |
UCF1#..B,C OAK,TRIM0# |
2 | ||
| 55539-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
2 | ||
| 55539-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
2 | ||
| 55539-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
2 | ||
| 55552B - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55552-50040 |
UCF1# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-50010 |
UCF1# |
1 | ||
| 55556-50050 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55556-50040 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50040 |
UCF1# ｱﾘ(ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸ ｼｽﾃﾑ) |
1 | ||
| 55560-50030 |
UCF1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55565-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55565-50010K0 |
UCF1#..B,C TUAPE,TRIM9# |
1 | ||
| 55565-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55565-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55565-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55565-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55565-50010W3 |
UCF1# DK.BLUE,TRIM8# |
1 | ||
| 55568 - PLATE, GLOVE COMPARTMENT DOOR PAD | ||||
| 55568-50010 |
UCF1# |
2 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-50030 |
UCF1# |
1 | ||
| 55568-50020 |
UCF1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55569-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55569-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55569-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55569-50010K0 |
UCF1#..B,C TUAPE,TRIM9# |
1 | ||
| 55569-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55569-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55569-50010W3 |
UCF1# DK.BLUE,TRIM8# |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-50030 |
UCF1# ｱﾘ(*80(Dｾｷ & Pｾｷ)) |
1 | ||
| 55590-50020 |
UCF1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55606-5002106 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55606-5002103 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55606-50040B0 |
UCF1#..B,C SLATE GRAY,TRIM1# |
1 | ||
| 55606-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55606-5002108 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55606-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55606-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55606-5002104 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55606-50050J0 |
UCF10..A EISEN BLUE,TRIM8# |
1 | ||
| 55606-50040A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55606-50040K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55606-50050B0 |
UCF10..A SLATE GRAY,TRIM1# |
1 | ||
| 55606-50040J0 |
UCF1#..B,C EISEN BLUE,TRIM8# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-5002004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55607-5002003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55607-5003004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55607-5002008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55607-50060B0 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 55607-5003003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55607-5002006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55607-5003008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55607-5003006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55607-50060J0 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 55607-50060A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55607-50060K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-50020E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55650-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-50020P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-50020W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55650-50020K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55650-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55650-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55650-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-50010 |
UCF1# |
1 | ||
| 55660-50020 |
UCF1#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55670-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55670-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55670-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55670-50020K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55670-50020P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55670-50020W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55670-50020E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55680B - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 55680-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55680-50010K0 |
UCF1#..B,C ME. TAUPE,TRIM9# |
1 | ||
| 55680-50010A0 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 55680-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 55680-50010W4 |
UCF1# EISEN BLUE,TRIM8# |
1 | ||
| 55680-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 55680-50010S7 |
UCF1# SLATE GRAY,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55961-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55961-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55961-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55961-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55961-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55961-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55961-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-5001004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55962-5001003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55962-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55962-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55962-5001006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55962-5001005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55962-50010P0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55962-50010W3 |
UCF1# DK. BLUE,TRIM8# |
1 | ||

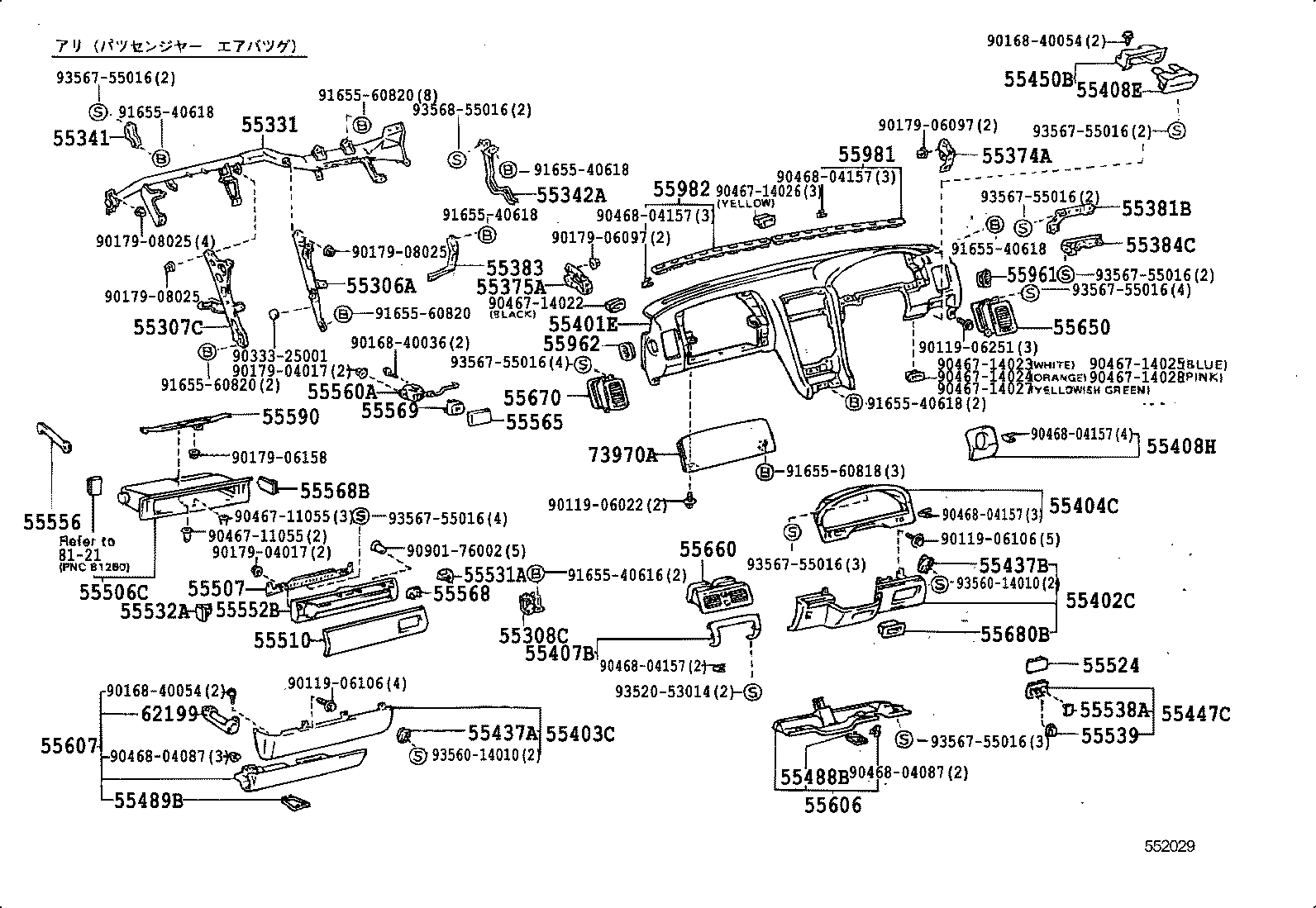

| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55981-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55981-50040J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55981-50040B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55981-50040E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55981-50040K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 55981-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55981-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-5002004 |
UCF1# DARK BLUE,TRIM8# |
1 | ||
| 55982-5002005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 55982-50040B0 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55982-50040E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 55982-5002006 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 55982-5002003 |
UCF1# SHADOW GRAY,TRIM1# |
1 | ||
| 55982-50040J0 |
UCF1# DK. BLUE,TRIM8# |
1 | ||
| 55982-50040K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 62199-50010 |
UCF1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-50020E0 |
UCF1# OAK,TRIM00 |
1 | ||
| 73970-50020B0 |
UCF1# SHADOW GRY,TRIM1# |
1 | ||
| 73970-50020K0 |
UCF1# TAUPE,TRIM09 |
1 | ||
| 73970-50021E0 |
UCF1# OAK,TRIM00 |
1 | ||
| 73970-50021B0 |
UCF1# SHADOW GRY,TRIM01 |
1 | ||
| 73970-50021K0 |
UCF1# TAUPE,TRIM09 |
1 | ||
| 73970-50020J0 |
UCF1# DK.BLUE,TRIM08 |
1 | ||
| 73970-50021J0 |
UCF1# DK.BLUE,TRIM08 |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90119-06106 | ||||
| 90119-06251 | ||||
| 90168-40036 | ||||
| 90168-40054 | ||||
| 90179-04017 | ||||
| 90179-06097 | ||||
| 90179-06158 | ||||
| 90179-08025 | ||||
| 90333-25001 | ||||
| 90467-11055 | ||||
| 90467-14022 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14026 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 90468-04087 | ||||
| 90468-04157 | ||||
| 90901-76002 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 91655-60818 | ||||
| 91655-60820 | ||||
| 93520-53014 | ||||
| 93560-14010 | ||||
| 93567-55016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
