UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

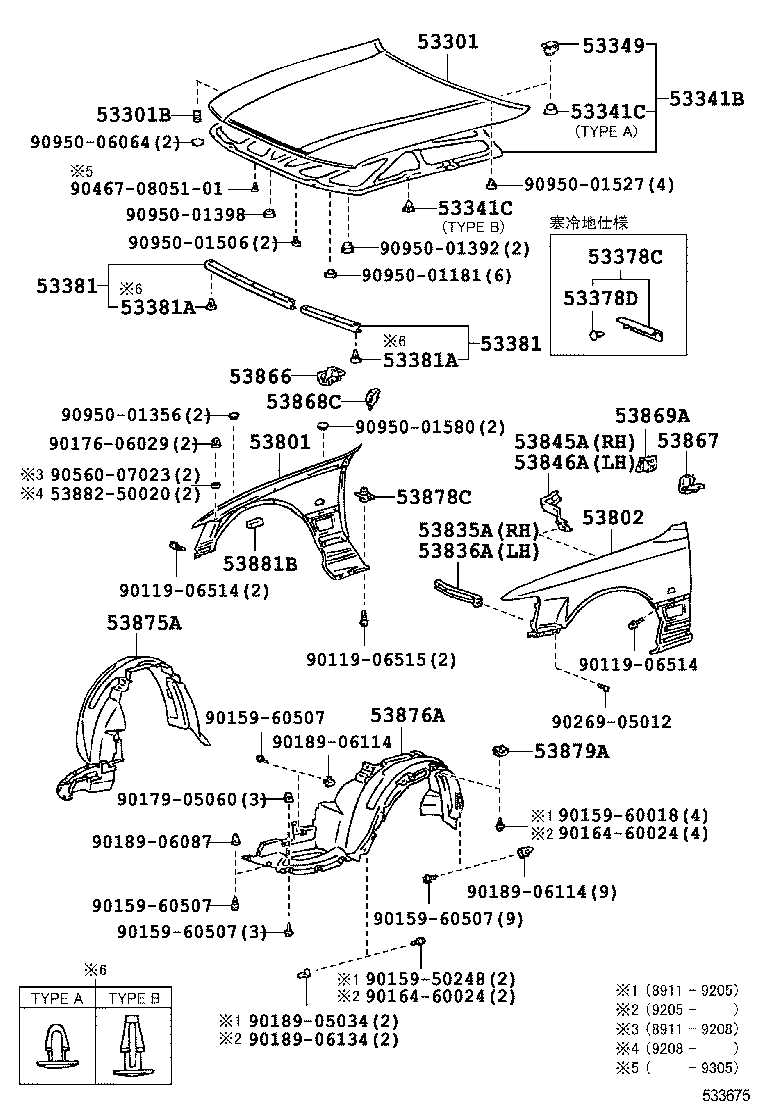

Click highlighted areas on diagram

diagram 53301 53301B 53341B 53341C 53341C 53349 53378C 53378D 53381 53381 53381A 53381A 53801 53802 53835A 53836A 53845A 53846A 53866 53867 53868C 53869A 53875A 53876A 53878C 53879A 53881B 5388250020 9011906514 9011906514 9011906515 9015950248 9015960018 9015960507 9015960507 9015960507 9015960507 9016460024 9016460024 9017606029 9017905060 9018905034 9018906087 9018906114 9018906114 9018906134 9026905012 904670805101 9056007023 9095001181 9095001356 9095001392 9095001398 9095001506 9095001527 9095001580 9095006064
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-50010

UCF1#

 1
53301B - CUSHION, HOOD BUMPER
90541-15014

UCF1#

 2
53341B - INSULATOR, HOOD
53341-50011

UCF1#

 1
53341-50013

UCF1#

 1
53341-50012

UCF1#

 1
53341-50010

UCF1#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-07091

UCF1#

ﾀｲﾌﾟ A

 2
90467-08124

UCF1#

ﾀｲﾌﾟ B

 17
53341C - CLIP(FOR HOOD INSULATOR)
90467-07091

UCF1#

ﾀｲﾌﾟ A

 2
90467-08124

UCF1#

ﾀｲﾌﾟ B

 17
53349 - RETAINER, HOOD SILENCER
53349-50010

UCF1#

 2
53378C - SEAL, HOOD AIR INTAKE DUCT
53378-50010

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
53378D - CLIP(FOR HOOD AIR INTAKE DUCT SEAL)
90467-08011

UCF1#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53382-50010

UCF1#

左側

 1
53382-50020

UCF1#

左側

 1
53381-50010

UCF1#

右側

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53382-50010

UCF1#

左側

 1
53382-50020

UCF1#

左側

 1
53381-50010

UCF1#

右側

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

UCF1#

ﾀｲﾌﾟ A

 7
90467-08011

UCF1#

ﾀｲﾌﾟ A

 8
90467-08156

UCF1#

ﾀｲﾌﾟ B

 2
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

UCF1#

ﾀｲﾌﾟ A

 7
90467-08011

UCF1#

ﾀｲﾌﾟ A

 8
90467-08156

UCF1#

ﾀｲﾌﾟ B

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-50030

UCF1#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-50031

UCF1#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-50032

UCF1#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-50012

UCF1#

 1
53801-50011

UCF1#

 1
53801-50010

UCF1#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-50030

UCF1#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-50031

UCF1#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-50032

UCF1#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-50011

UCF1#

 1
53802-50012

UCF1#

 1
53802-50010

UCF1#

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53835-50010

UCF1#

 1
53835-50020

UCF1#

 1
53835-50012

UCF1#

 1
53835-50011

UCF1#

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53836-50010

UCF1#

 1
53836-50011

UCF1#

 1
53836-50020

UCF1#

 1
53836-50012

UCF1#

 1
53845A - BRACE, FRONT WHEEL OPENING APRON, RH
53845-50020

UCF1#

 1
53845-50010

UCF1#

 1
53846A - BRACE, FRONT WHEEL OPENING APRON, LH
53846-50010

UCF1#

 1
53846-50020

UCF1#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-50010

UCF1#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-50010

UCF1#

 1
53868C - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53868-50010

UCF1#

 1
53869A - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
53869-50010

UCF1#

 1
53875A - LINER, FRONT FENDER, RH
53875-50010

UCF1#

 1
53875-50011

UCF1#

 1
53875-50020

UCF1#

 1
53876A - LINER, FRONT FENDER, LH
53876-50011

UCF1#

 1
53876-50010

UCF1#

 1
53876-50020

UCF1#

 1
53878C - SPACER, FRONT FENDER
53878-50010

UCF1#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-22030

UCF1#

 8
53881B - SEAL, COOLING FAN AIR DUCT, NO.1
53881-50010

UCF1#

 2
Common parts
53882-50020
90119-06514
90119-06515
90159-50248
90159-60018
90159-60507
90164-60024
90176-06029
90179-05060
90189-05034
90189-06087
90189-06114
90189-06134
90269-05012
90467-0805101
90560-07023
90950-01181
90950-01356
90950-01392
90950-01398
90950-01506
90950-01527
90950-01580
90950-06064
