UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

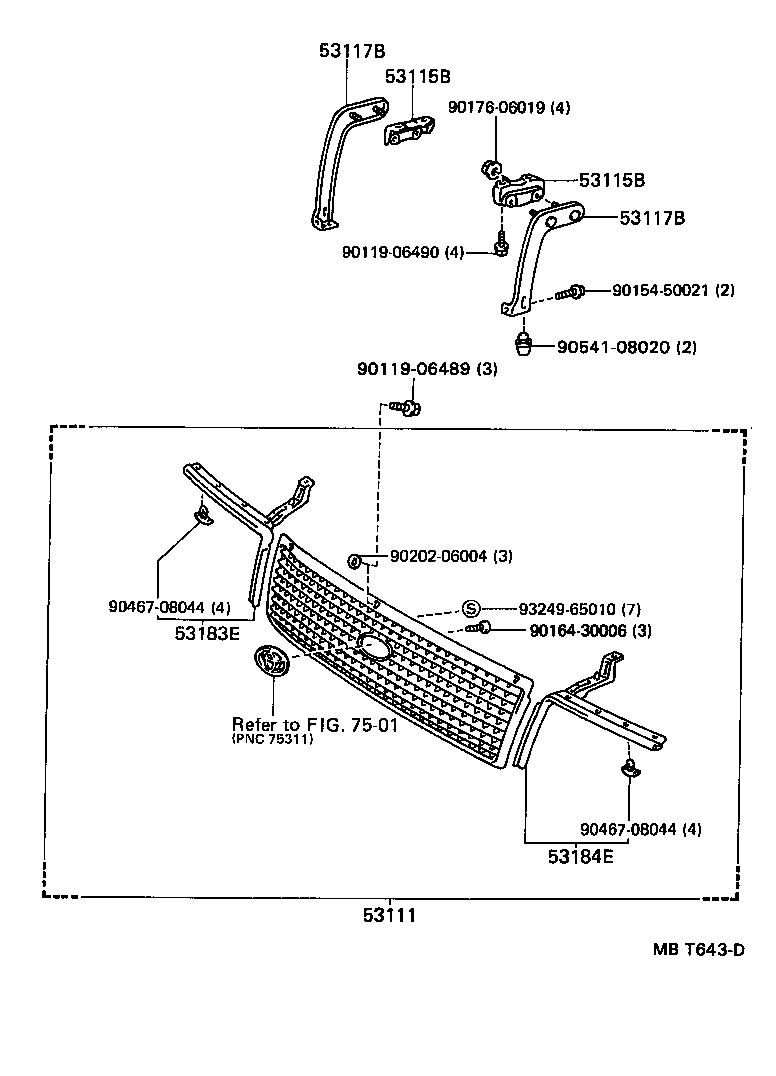

Click highlighted areas on diagram

diagram 53111 53115B 53115B 53117B 53117B 53183E 53184E 7501 9011906489 9011906490 9015450021 9016430006 9017606019 9020206004 9046708044 9046708044 9054108020 9324965010
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-50050

UCF1#

 1
53100-50020

UCF1#

 1
53115B - BRACKET, RADIATOR GRILLE
53115-50010

UCF1#

 2
53115B - BRACKET, RADIATOR GRILLE
53115-50010

UCF1#

 2
53117B - BRACKET, RADIATOR GRILLE, LOWER
53118-50010

UCF1#

左側

 1
53117-50010

UCF1#

右側

 1
53117B - BRACKET, RADIATOR GRILLE, LOWER
53118-50010

UCF1#

左側

 1
53117-50010

UCF1#

右側

 1
53183E - SEAL, HEADLAMP COVER, RH
53183-50010

UCF1#

 1
53184E - SEAL, HEADLAMP COVER, LH
53184-50010

UCF1#

 1
Common parts
90119-06489
90119-06490
90154-50021
90164-30006
90176-06019
90202-06004
90467-08044
90541-08020
93249-65010
Linked diagrams
7501
