UCF10-AEPNK (1989)
Toyota Celsior
Production
Nov 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8911- )

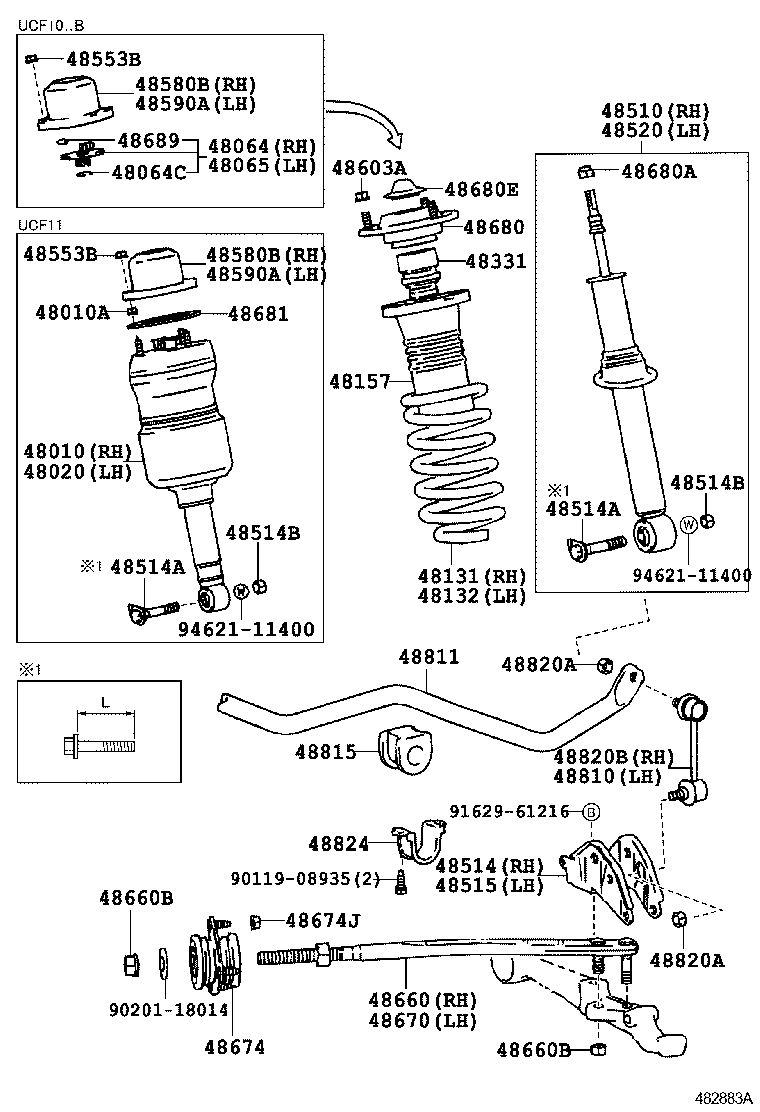

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-50040 |
UCF10 |
1 | ||
| 48131-50050 |
UCF10 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-50050 |
UCF10 |
1 | ||
| 48131-50040 |
UCF10 |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-50010 |
UCF10 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-50030 |
UCF10..A |
2 | ||
| 48331-50010 |
UCF10..A |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-59015 |
UCF10..A ﾏｰｸ 48510−59015 |
1 | ||
| 48510-59016 |
UCF10..A ﾏｰｸ 48510−59016 |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-50010 |
UCF1# |
1 | ||
| 48514-50011 |
UCF1# |
1 | ||
| 48514A - BOLT(FOR FRONT SHOCK ABSORBER BRACKET LOWER) | ||||
| 90105-14087 |
UCF1# 長さ=70 |
2 | ||
| 90105-14034 |
UCF1# L=77 |
2 | ||
| 48514A - BOLT(FOR FRONT SHOCK ABSORBER BRACKET LOWER) | ||||
| 90105-14087 |
UCF1# 長さ=70 |
2 | ||
| 90105-14034 |
UCF1# L=77 |
2 | ||
| 48514B - NUT(FOR FRONT SHOCK ABSORBER BRACKET LOWER) | ||||
| 90170-14006 |
UCF1# |
2 | ||
| 90179-14045 |
UCF1# |
2 | ||
| 48514B - NUT(FOR FRONT SHOCK ABSORBER BRACKET LOWER) | ||||
| 90170-14006 |
UCF1# |
2 | ||
| 90179-14045 |
UCF1# |
2 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-50011 |
UCF1# |
1 | ||
| 48515-50010 |
UCF1# |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-59015 |
UCF10..A ﾏｰｸ 48510−59015 |
1 | ||
| 48510-59016 |
UCF10..A ﾏｰｸ 48510−59016 |
1 | ||
| 48553B - NUT(FOR FRONT SHOCK ABSORBER CAP) | ||||
| 90179-10174 |
UCF1#..B,C |
6 | ||
| 90179-10136 |
UCF1#..B,C |
6 | ||
| 48553B - NUT(FOR FRONT SHOCK ABSORBER CAP) | ||||
| 90179-10174 |
UCF1#..B,C |
6 | ||
| 90179-10136 |
UCF1#..B,C |
6 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10174 |
UCF10 |
6 | ||
| 90179-10174 |
UCF1# |
6 | ||
| 90179-10137 |
UCF10 |
6 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-50030 |
UCF1# |
1 | ||
| 48660-50010 |
UCF1# |
1 | ||
| 48660B - NUT(FOR STRUT BAR) | ||||
| 90179-14025 |
UCF1# LOWER ARM SIDE |
4 | ||
| 90179-18014 |
UCF1# CUSHION SIDE |
2 | ||
| 48660B - NUT(FOR STRUT BAR) | ||||
| 90179-14025 |
UCF1# LOWER ARM SIDE |
4 | ||
| 90179-18014 |
UCF1# CUSHION SIDE |
2 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-50030 |
UCF1# |
1 | ||
| 48670-50010 |
UCF1# |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-50030 |
UCF1# |
2 | ||
| 48674-50010 |
UCF1# |
2 | ||
| 48674J - NUT(FOR STRUT BAR CUSHION) | ||||
| 90179-10145 |
UCF1# |
6 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-50010 |
UCF10..A |
2 | ||
| 48680-50040 |
UCF10..A |
2 | ||
| 48680-50060 |
UCF10..A |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94187-11200 |
UCF10..A |
2 | ||
| 48680E - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90950-01659 |
UCF10..A |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-50010 |
UCF1# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-50030 |
UCF1#..A,C |
1 | ||
| 48811-50010 |
UCF1#..A,C |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-50010 |
UCF1#..A,C |
2 | ||
| 48815-50011 |
UCF1#..A,C |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
UCF1# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
UCF1# |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-50010 |
UCF1# |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-50020 |
UCF1# |
2 | ||
| Common parts | ||||
| 90119-08935 | ||||
| 90201-18014 | ||||
| 91629-61216 | ||||
| 94621-11400 | ||||
