UCF10-AEPNK (1989)
Toyota Celsior

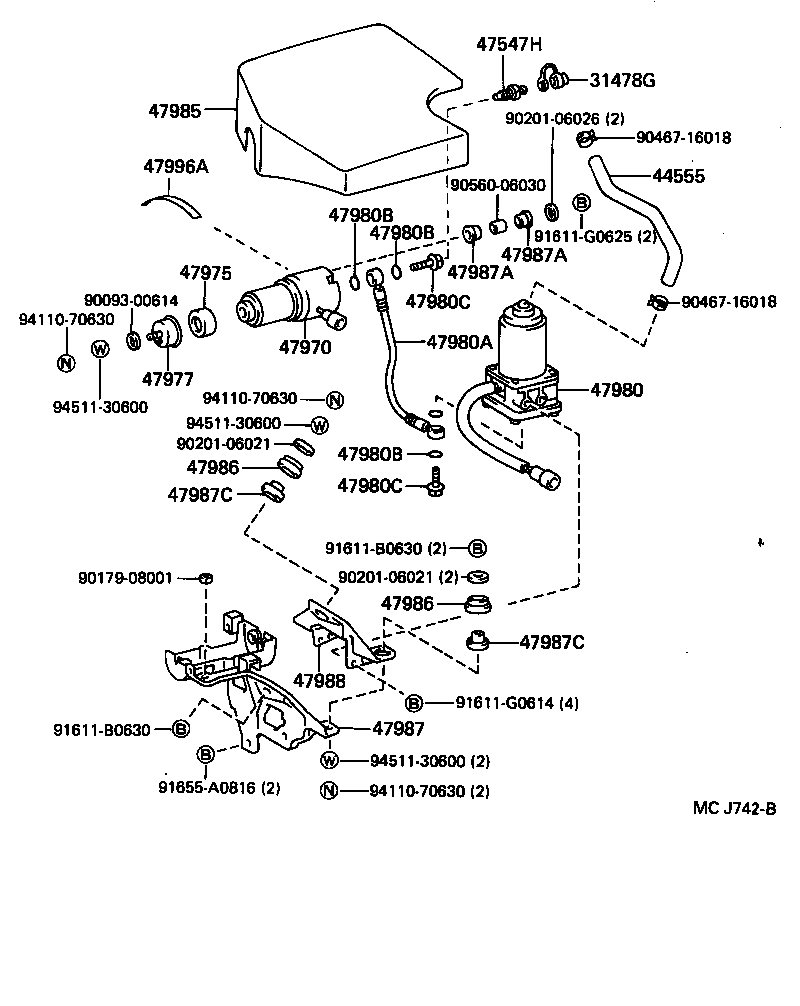

ILLUST NO. 2 OF 3(8911- )B,C ; (9101- )A
ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478G - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACCUMULATOR) | ||||
| 31478-50010 |
UCF1#..B,C |
1 | ||
| 31478-50010 |
UCF1# |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-50020 |
UCF1#..B,C |
1 | ||
| 44555-50020 |
UCF1# |
1 | ||
| 47547H - PLUG, BLEEDER(FOR BRAKE TRACTION ACCUMULATOR) | ||||
| 47547-27030 |
UCF1#..B,C |
1 | ||
| 47547-27030 |
UCF1# |
1 | ||
| 47970 - ACCUMULATOR ASSY, BRAKE TRACTION | ||||
| 47970-50020 |
UCF1#..B,C |
1 | ||
| 47970-50020 |
UCF1# |
1 | ||
| 47975 - BUSH, BRAKE TRACTION ACCUMULATOR | ||||
| 47975-50010 |
UCF1# |
1 | ||
| 47975-50010 |
UCF1#..B,C |
1 | ||
| 47977 - BRACKET, BRAKE TRACTION ACCUMULATOR, NO.1 | ||||
| 47977-50020 |
UCF1# |
1 | ||
| 47977-50020 |
UCF1#..B,C |
1 | ||
| 47980 - PUMP ASSY, BRAKE TRACTION | ||||
| 47980-50040 |
UCF1# |
1 | ||
| 47980-50020 |
UCF1#..B,C |
1 | ||
| 47980-50020 |
UCF1# |
1 | ||
| 47980A - HOSE, PRESSURE(FOR BRAKE TRACTION PUMP) | ||||
| 90947-06004 |
UCF1#..B,C |
1 | ||
| 90947-06004 |
UCF1# |
1 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13011 |
UCF1# |
4 | ||
| 90301-13006 |
UCF1#..B,C |
4 | ||
| 90301-13006 |
UCF1# |
4 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13011 |
UCF1# |
4 | ||
| 90301-13006 |
UCF1#..B,C |
4 | ||
| 90301-13006 |
UCF1# |
4 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13011 |
UCF1# |
4 | ||
| 90301-13006 |
UCF1#..B,C |
4 | ||
| 90301-13006 |
UCF1# |
4 | ||
| 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90401-10041 |
UCF1#..B,C ACCUMULATOR SIDE |
1 | ||
| 90401-10039 |
UCF1#..B,C PUMP SIDE |
1 | ||
| 90401-10039 |
UCF1# PUMP SIDE |
1 | ||
| 90401-10041 |
UCF1# ACCUMULATOR SIDE |
1 | ||
| 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90401-10041 |
UCF1#..B,C ACCUMULATOR SIDE |
1 | ||
| 90401-10039 |
UCF1#..B,C PUMP SIDE |
1 | ||
| 90401-10039 |
UCF1# PUMP SIDE |
1 | ||
| 90401-10041 |
UCF1# ACCUMULATOR SIDE |
1 | ||
| 47985 - COVER, BRAKE TRACTION PUMP, NO.1 | ||||
| 47985-50020 |
UCF1#..B,C |
1 | ||
| 47985-50020 |
UCF1# |
1 | ||
| 47986 - COVER, BRAKE TRACTION PUMP, NO.2 | ||||
| 47986-50010 |
UCF1#..B,C |
3 | ||
| 47986-50010 |
UCF1# |
3 | ||
| 47986 - COVER, BRAKE TRACTION PUMP, NO.2 | ||||
| 47986-50010 |
UCF1#..B,C |
3 | ||
| 47986-50010 |
UCF1# |
3 | ||
| 47987 - BRACKET, BRAKE TRACTION PUMP, NO.1 | ||||
| 47987-50020 |
UCF1# |
1 | ||
| 47987-50020 |
UCF1#..B,C |
1 | ||
| 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90385-08011 |
UCF1# |
4 | ||
| 90385-08011 |
UCF1#..B,C |
4 | ||
| 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90385-08011 |
UCF1# |
4 | ||
| 90385-08011 |
UCF1#..B,C |
4 | ||
| 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90389-06034 |
UCF1# |
3 | ||
| 90389-06034 |
UCF1#..B,C |
3 | ||
| 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90389-06034 |
UCF1# |
3 | ||
| 90389-06034 |
UCF1#..B,C |
3 | ||
| 47988 - BRACKET, BRAKE TRACTION PUMP, NO.2 | ||||
| 47988-50020 |
UCF1#..B,C |
1 | ||
| 47988-50020 |
UCF1# |
1 | ||
| 47996A - LABEL, BRAKE BLEED NOTICE | ||||
| 47996-50020 |
UCF1# |
1 | ||
| Common parts | ||||
| 90093-00614 | ||||
| 90179-08001 | ||||
| 90201-06021 | ||||
| 90201-06026 | ||||
| 90467-16018 | ||||
| 90560-06030 | ||||
| 91611-B0630 | ||||
| 91611-G0614 | ||||
| 91611-G0625 | ||||
| 91655-A0816 | ||||
| 94110-70630 | ||||
| 94511-30600 | ||||

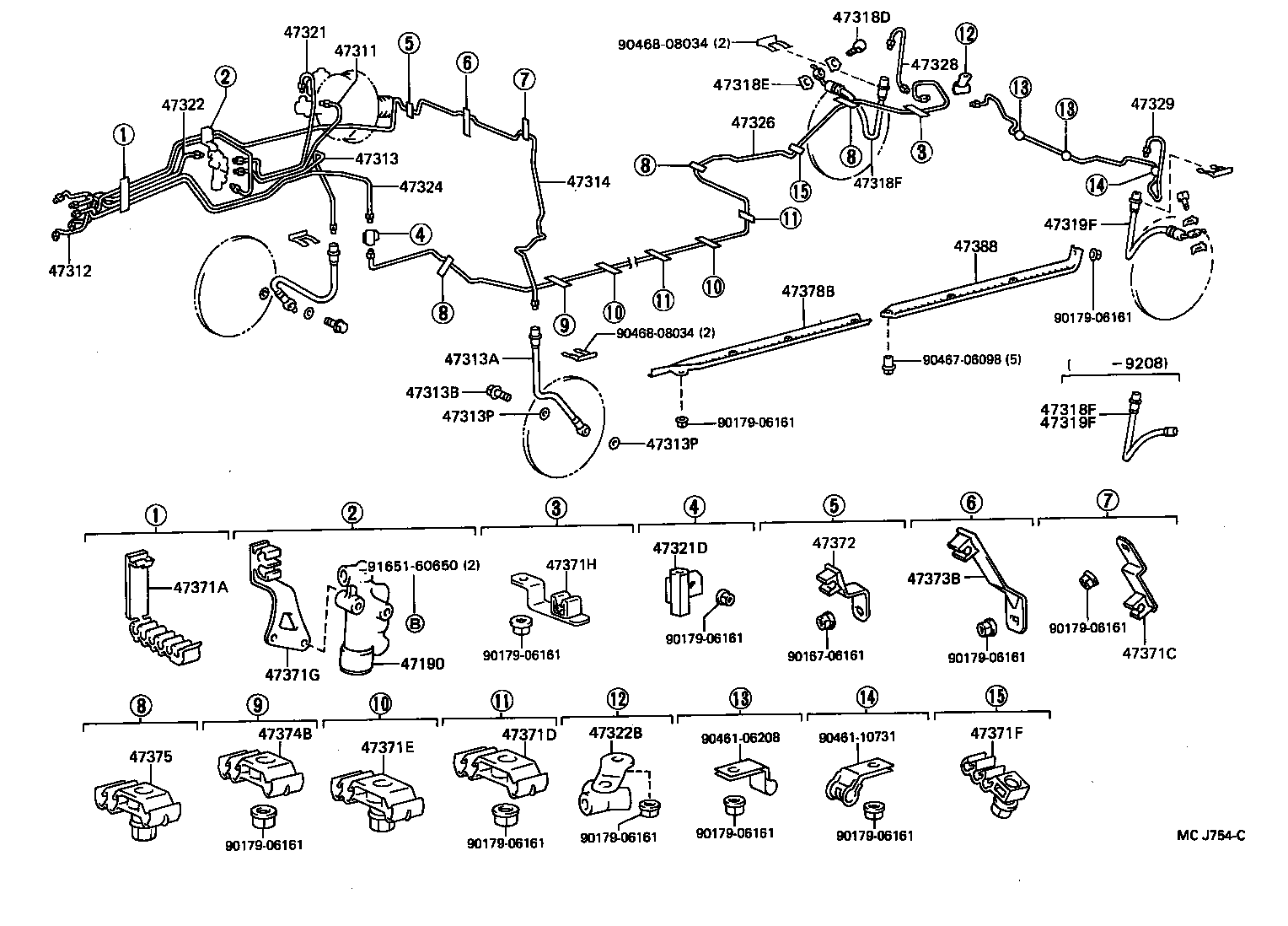

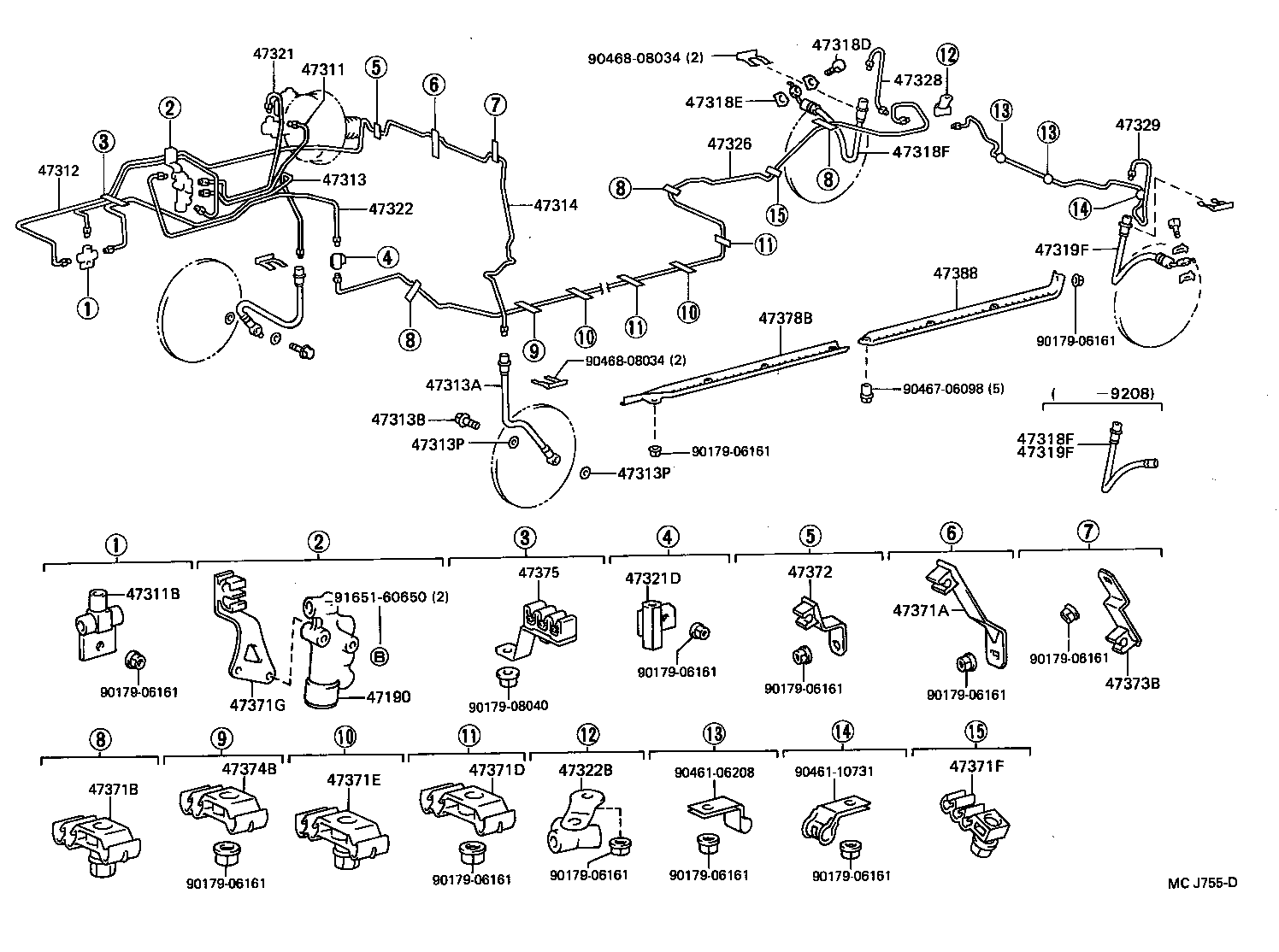

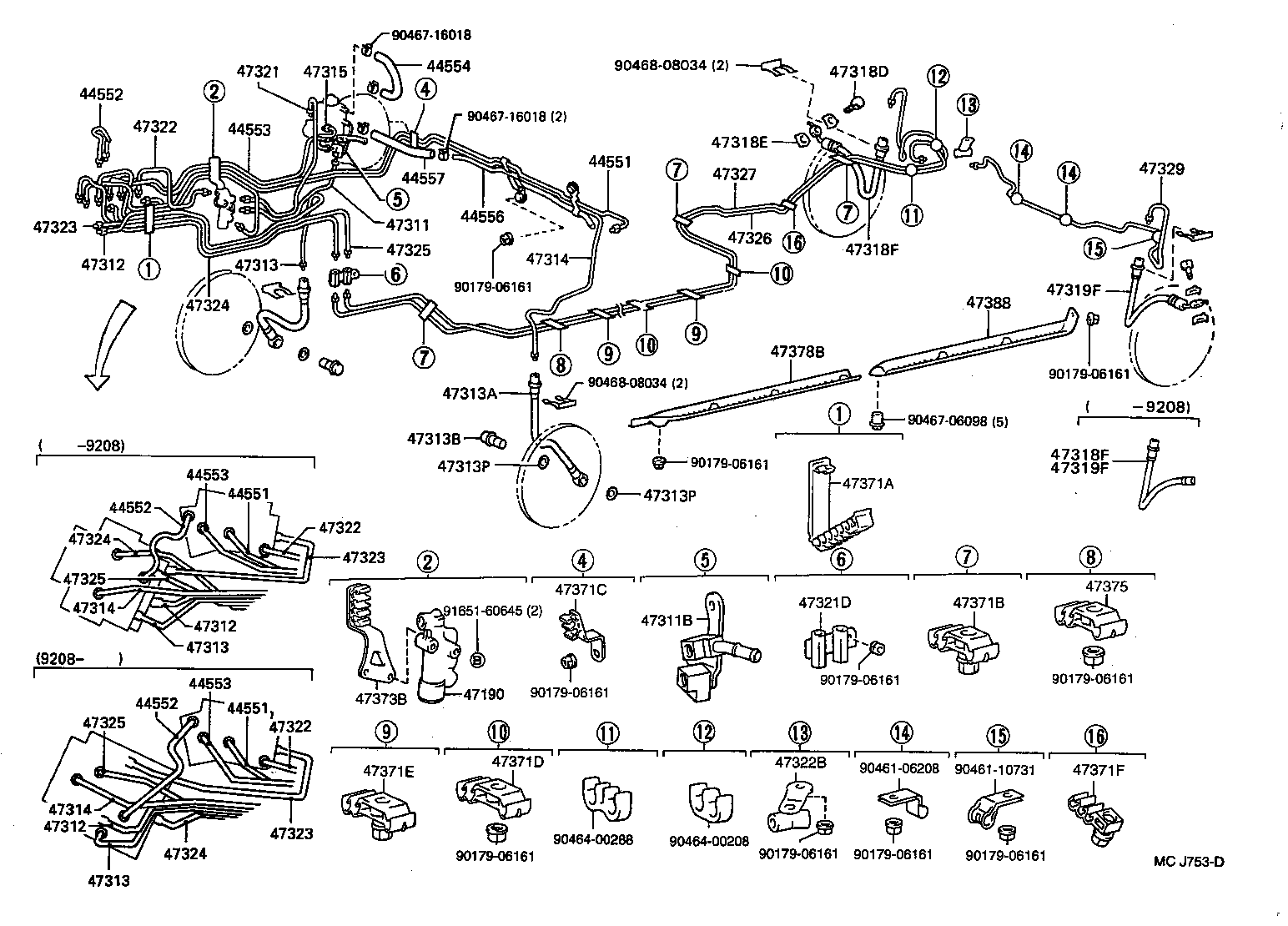

ILLUST NO. 1 OF 3(8911- )B,C ; (9101- )A
ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-50040 |
UCF1# |
1 | ||
| 44551-50020 |
UCF1#..B,C |
1 | ||
| 44551-50020 |
UCF1# |
1 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-50040 |
UCF1# |
1 | ||
| 44551-50020 |
UCF1#..B,C |
1 | ||
| 44551-50020 |
UCF1# |
1 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-50040 |
UCF1# |
1 | ||
| 44551-50020 |
UCF1#..B,C |
1 | ||
| 44551-50020 |
UCF1# |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-50010 |
UCF1#..B,C |
1 | ||
| 44552-50020 |
UCF1# |
1 | ||
| 44552-50010 |
UCF1# |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-50010 |
UCF1#..B,C |
1 | ||
| 44552-50020 |
UCF1# |
1 | ||
| 44552-50010 |
UCF1# |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-50010 |
UCF1#..B,C |
1 | ||
| 44552-50020 |
UCF1# |
1 | ||
| 44552-50010 |
UCF1# |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-50030 |
UCF1# |
1 | ||
| 44553-50020 |
UCF1# |
1 | ||
| 44553-50020 |
UCF1#..B,C |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-50030 |
UCF1# |
1 | ||
| 44553-50020 |
UCF1# |
1 | ||
| 44553-50020 |
UCF1#..B,C |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-50030 |
UCF1# |
1 | ||
| 44553-50020 |
UCF1# |
1 | ||
| 44553-50020 |
UCF1#..B,C |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-50020 |
UCF1#..B,C |
1 | ||
| 44554-50020 |
UCF1# |
1 | ||
| 44556 - TUBE, BRAKE ACTUATOR, NO.6 | ||||
| 44556-50010 |
UCF1#..B,C |
1 | ||
| 44556-50010 |
UCF1# |
1 | ||
| 44557 - TUBE, BRAKE ACTUATOR, NO.7 | ||||
| 44557-50010 |
UCF1#..B,C |
1 | ||
| 44557-50010 |
UCF1# |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-50040 |
UCF1# |
1 | ||
| 47190-50040 |
UCF10..A |
1 | ||
| 47190-50050 |
UCF1#..B,C |
1 | ||
| 47190-50050 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47311-50040 |
UCF10..A |
1 | ||
| 47311-50030 |
UCF1#..B,C |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10251 |
UCF10..A |
1 | ||
| 90412-12032 |
UCF1#..B,C |
1 | ||
| 90412-12032 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-50100 |
UCF1#..B,C |
1 | ||
| 47312-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50050 |
UCF10..A |
1 | ||
| 47312-50040 |
UCF1#..B,C |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-50100 |
UCF1#..B,C |
1 | ||
| 47312-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50050 |
UCF10..A |
1 | ||
| 47312-50040 |
UCF1#..B,C |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-50100 |
UCF1#..B,C |
1 | ||
| 47312-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50050 |
UCF10..A |
1 | ||
| 47312-50040 |
UCF1#..B,C |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-50050 |
UCF10..A |
1 | ||
| 47313-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50110 |
UCF10..A |
1 | ||
| 47313-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313-50030 |
UCF1#..B,C |
1 | ||
| 47313-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50100 |
UCF1#..B,C |
1 | ||
| 47313-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-50050 |
UCF10..A |
1 | ||
| 47313-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50110 |
UCF10..A |
1 | ||
| 47313-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313-50030 |
UCF1#..B,C |
1 | ||
| 47313-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50100 |
UCF1#..B,C |
1 | ||
| 47313-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-50050 |
UCF10..A |
1 | ||
| 47313-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50110 |
UCF10..A |
1 | ||
| 47313-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313-50030 |
UCF1#..B,C |
1 | ||
| 47313-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50100 |
UCF1#..B,C |
1 | ||
| 47313-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02585 |
UCF1# |
2 | ||
| 90947-02738 |
UCF1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10044 |
UCF1# |
2 | ||
| 90401-10015 |
UCF1# |
2 | ||
| 90401-10042 |
UCF1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF1# |
4 | ||
| 47389-24010 |
UCF1# |
4 | ||
| 90430-10074 |
UCF1# |
4 | ||
| 47389-30010 |
UCF1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF1# |
4 | ||
| 47389-24010 |
UCF1# |
4 | ||
| 90430-10074 |
UCF1# |
4 | ||
| 47389-30010 |
UCF1# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47314-50110 |
UCF10..A |
1 | ||
| 47314-50100 |
UCF1#..B,C |
1 | ||
| 47314-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50030 |
UCF1#..B,C |
1 | ||
| 47314-50050 |
UCF10..A |
1 | ||
| 47314-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47314-50110 |
UCF10..A |
1 | ||
| 47314-50100 |
UCF1#..B,C |
1 | ||
| 47314-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50030 |
UCF1#..B,C |
1 | ||
| 47314-50050 |
UCF10..A |
1 | ||
| 47314-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47314-50110 |
UCF10..A |
1 | ||
| 47314-50100 |
UCF1#..B,C |
1 | ||
| 47314-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50030 |
UCF1#..B,C |
1 | ||
| 47314-50050 |
UCF10..A |
1 | ||
| 47314-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-50020 |
UCF1# |
1 | ||
| 47315-50020 |
UCF1#..B,C |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10044 |
UCF1# |
2 | ||
| 90401-10042 |
UCF1# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF1# |
4 | ||
| 47389-24010 |
UCF1# |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02739 |
UCF1# |
1 | ||
| 96940-33906 |
UCF1# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02739 |
UCF1# |
1 | ||
| 96940-33906 |
UCF1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-33906 |
UCF1# |
1 | ||
| 90947-02739 |
UCF1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-33906 |
UCF1# |
1 | ||
| 90947-02739 |
UCF1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-50020 |
UCF1# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10158 |
UCF1#..B,C |
1 | ||
| 90412-10167 |
UCF10..A |
1 | ||
| 90412-10158 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50040 |
UCF1#..B,C |
1 | ||
| 47322-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50050 |
UCF10..A |
1 | ||
| 47322-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50100 |
UCF1#..B,C |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50040 |
UCF1#..B,C |
1 | ||
| 47322-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50050 |
UCF10..A |
1 | ||
| 47322-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50100 |
UCF1#..B,C |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50040 |
UCF1#..B,C |
1 | ||
| 47322-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50050 |
UCF10..A |
1 | ||
| 47322-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50100 |
UCF1#..B,C |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-10164 |
UCF1#..B,C |
1 | ||
| 90412-10164 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 90413-10234 |
UCF10..A |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-50010 |
UCF1#..B,C |
1 | ||
| 47323-50010 |
UCF1# |
1 | ||
| 47323-50020 |
UCF1# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-50010 |
UCF1#..B,C |
1 | ||
| 47323-50010 |
UCF1# |
1 | ||
| 47323-50020 |
UCF1# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-50010 |
UCF1#..B,C |
1 | ||
| 47323-50010 |
UCF1# |
1 | ||
| 47323-50020 |
UCF1# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47324-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47324-50090 |
UCF1#..B,C |
1 | ||
| 47324-50040 |
UCF10..A |
1 | ||
| 47324-50080 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47324-50030 |
UCF1#..B,C |
1 | ||
| 47324-50090 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47324-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47324-50090 |
UCF1#..B,C |
1 | ||
| 47324-50040 |
UCF10..A |
1 | ||
| 47324-50080 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47324-50030 |
UCF1#..B,C |
1 | ||
| 47324-50090 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47324-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47324-50090 |
UCF1#..B,C |
1 | ||
| 47324-50040 |
UCF10..A |
1 | ||
| 47324-50080 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47324-50030 |
UCF1#..B,C |
1 | ||
| 47324-50090 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-50040 |
UCF1# |
1 | ||
| 47325-50020 |
UCF1# |
1 | ||
| 47325-50020 |
UCF1#..B,C |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-50040 |
UCF1# |
1 | ||
| 47325-50020 |
UCF1# |
1 | ||
| 47325-50020 |
UCF1#..B,C |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-50040 |
UCF1# |
1 | ||
| 47325-50020 |
UCF1# |
1 | ||
| 47325-50020 |
UCF1#..B,C |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-50010 |
UCF1# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-50010 |
UCF1#..B,C |
1 | ||
| 47327-50010 |
UCF1# |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-50010 |
UCF1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-50050 |
UCF1#..B,C |
1 | ||
| 47371-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47371-50050 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371-50070 |
UCF10..A |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47372-50050 |
UCF1#..B,C |
3 | ||
| 47372-50050 |
UCF1#..B,C |
3 | ||
| 47372-50050 |
UCF10..A ｱﾘ(*66 & *TRC) |
3 | ||
| 47375-50030 |
UCF10..A |
1 | ||
| 47372-50050 |
UCF1# |
3 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-50080 |
UCF10..A |
1 | ||
| 47372-50120 |
UCF1#..B,C |
1 | ||
| 47371-50080 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47371-50110 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47372-50120 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47372-50090 |
UCF1#..B,C |
1 | ||
| 47372-50090 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-50060 |
UCF1# |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47372-50070 |
UCF1# |
2 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 47372-50110 |
UCF1# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47375-50020 |
UCF1#..B,C |
1 | ||
| 47375-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371-50070 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47371-50080 |
UCF10..A |
1 | ||
| 47371-50100 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-50050 |
UCF10..A |
3 | ||
| 47371-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371-50030 |
UCF1#..B,C |
1 | ||
| 47378B - PROTECTOR, TUBE, UPPER | ||||
| 47378-50010 |
UCF1# |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 47388-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90461-06208 | ||||
| 90461-10731 | ||||
| 90464-00208 | ||||
| 90464-00288 | ||||
| 90467-06098 | ||||
| 90467-16018 | ||||
| 90468-08034 | ||||
| 91651-60645 | ||||
ILLUST NO. 1 OF 2(8911- )
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-50040 |
UCF1# |
1 | ||
| 47190-50040 |
UCF10..A |
1 | ||
| 47190-50050 |
UCF1#..B,C |
1 | ||
| 47190-50050 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47311-50040 |
UCF10..A |
1 | ||
| 47311-50030 |
UCF1#..B,C |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-50100 |
UCF1#..B,C |
1 | ||
| 47312-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50050 |
UCF10..A |
1 | ||
| 47312-50040 |
UCF1#..B,C |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-50050 |
UCF10..A |
1 | ||
| 47313-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50110 |
UCF10..A |
1 | ||
| 47313-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313-50030 |
UCF1#..B,C |
1 | ||
| 47313-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50100 |
UCF1#..B,C |
1 | ||
| 47313-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02585 |
UCF1# |
2 | ||
| 90947-02738 |
UCF1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10044 |
UCF1# |
2 | ||
| 90401-10015 |
UCF1# |
2 | ||
| 90401-10042 |
UCF1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF1# |
4 | ||
| 47389-24010 |
UCF1# |
4 | ||
| 90430-10074 |
UCF1# |
4 | ||
| 47389-30010 |
UCF1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF1# |
4 | ||
| 47389-24010 |
UCF1# |
4 | ||
| 90430-10074 |
UCF1# |
4 | ||
| 47389-30010 |
UCF1# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47314-50110 |
UCF10..A |
1 | ||
| 47314-50100 |
UCF1#..B,C |
1 | ||
| 47314-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50030 |
UCF1#..B,C |
1 | ||
| 47314-50050 |
UCF10..A |
1 | ||
| 47314-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10044 |
UCF1# |
2 | ||
| 90401-10042 |
UCF1# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF1# |
4 | ||
| 47389-24010 |
UCF1# |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02739 |
UCF1# |
1 | ||
| 96940-33906 |
UCF1# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02739 |
UCF1# |
1 | ||
| 96940-33906 |
UCF1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-33906 |
UCF1# |
1 | ||
| 90947-02739 |
UCF1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-33906 |
UCF1# |
1 | ||
| 90947-02739 |
UCF1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-50020 |
UCF1# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10158 |
UCF1#..B,C |
1 | ||
| 90412-10167 |
UCF10..A |
1 | ||
| 90412-10158 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50040 |
UCF1#..B,C |
1 | ||
| 47322-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50050 |
UCF10..A |
1 | ||
| 47322-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50100 |
UCF1#..B,C |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-10164 |
UCF1#..B,C |
1 | ||
| 90412-10164 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 90413-10234 |
UCF10..A |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47324-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47324-50090 |
UCF1#..B,C |
1 | ||
| 47324-50040 |
UCF10..A |
1 | ||
| 47324-50080 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47324-50030 |
UCF1#..B,C |
1 | ||
| 47324-50090 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-50010 |
UCF1# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-50010 |
UCF10..A |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-50010 |
UCF1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-50050 |
UCF1#..B,C |
1 | ||
| 47371-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47371-50050 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371-50070 |
UCF10..A |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-50080 |
UCF10..A |
1 | ||
| 47372-50120 |
UCF1#..B,C |
1 | ||
| 47371-50080 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47371-50110 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47372-50120 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47372-50090 |
UCF1#..B,C |
1 | ||
| 47372-50090 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-50060 |
UCF1# |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47372-50070 |
UCF1# |
2 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 47372-50110 |
UCF1# |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 47375-50010 |
UCF10..A |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 47372-50180 |
UCF10..A |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-50080 |
UCF10..A |
1 | ||
| 47372-50170 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47375-50020 |
UCF1#..B,C |
1 | ||
| 47375-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371-50070 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47371-50080 |
UCF10..A |
1 | ||
| 47371-50100 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-50030 |
UCF10..A |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-50050 |
UCF10..A |
3 | ||
| 47371-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371-50030 |
UCF1#..B,C |
1 | ||
| 47378B - PROTECTOR, TUBE, UPPER | ||||
| 47378-50010 |
UCF1# |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 47388-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90167-06161 | ||||
| 90179-06161 | ||||
| 90461-06208 | ||||
| 90461-10731 | ||||
| 90467-06098 | ||||
| 90468-08034 | ||||
| 91651-60650 | ||||
(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-50040 |
UCF1# |
1 | ||
| 47190-50040 |
UCF10..A |
1 | ||
| 47190-50050 |
UCF1#..B,C |
1 | ||
| 47190-50050 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47311-50040 |
UCF10..A |
1 | ||
| 47311-50030 |
UCF1#..B,C |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10251 |
UCF10..A |
1 | ||
| 90412-12032 |
UCF1#..B,C |
1 | ||
| 90412-12032 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-50100 |
UCF1#..B,C |
1 | ||
| 47312-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47312-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47312-50050 |
UCF10..A |
1 | ||
| 47312-50040 |
UCF1#..B,C |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-50050 |
UCF10..A |
1 | ||
| 47313-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50110 |
UCF10..A |
1 | ||
| 47313-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313-50030 |
UCF1#..B,C |
1 | ||
| 47313-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47313-50100 |
UCF1#..B,C |
1 | ||
| 47313-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02585 |
UCF1# |
2 | ||
| 90947-02738 |
UCF1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10044 |
UCF1# |
2 | ||
| 90401-10015 |
UCF1# |
2 | ||
| 90401-10042 |
UCF1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF1# |
4 | ||
| 47389-24010 |
UCF1# |
4 | ||
| 90430-10074 |
UCF1# |
4 | ||
| 47389-30010 |
UCF1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF1# |
4 | ||
| 47389-24010 |
UCF1# |
4 | ||
| 90430-10074 |
UCF1# |
4 | ||
| 47389-30010 |
UCF1# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47314-50110 |
UCF10..A |
1 | ||
| 47314-50100 |
UCF1#..B,C |
1 | ||
| 47314-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50030 |
UCF1#..B,C |
1 | ||
| 47314-50050 |
UCF10..A |
1 | ||
| 47314-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47314-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10044 |
UCF1# |
2 | ||
| 90401-10042 |
UCF1# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF1# |
4 | ||
| 47389-24010 |
UCF1# |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02739 |
UCF1# |
1 | ||
| 96940-33906 |
UCF1# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02739 |
UCF1# |
1 | ||
| 96940-33906 |
UCF1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-33906 |
UCF1# |
1 | ||
| 90947-02739 |
UCF1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-33906 |
UCF1# |
1 | ||
| 90947-02739 |
UCF1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-50020 |
UCF1# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10158 |
UCF1#..B,C |
1 | ||
| 90412-10167 |
UCF10..A |
1 | ||
| 90412-10158 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50090 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50040 |
UCF1#..B,C |
1 | ||
| 47322-50100 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47322-50050 |
UCF10..A |
1 | ||
| 47322-50030 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47322-50100 |
UCF1#..B,C |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-10164 |
UCF1#..B,C |
1 | ||
| 90412-10164 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 90413-10234 |
UCF10..A |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-50010 |
UCF1# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-50010 |
UCF10..A |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-50010 |
UCF1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-50050 |
UCF1#..B,C |
1 | ||
| 47371-50040 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47371-50050 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371-50070 |
UCF10..A |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47372-50050 |
UCF1#..B,C |
3 | ||
| 47372-50050 |
UCF1#..B,C |
3 | ||
| 47372-50050 |
UCF10..A ｱﾘ(*66 & *TRC) |
3 | ||
| 47375-50030 |
UCF10..A |
1 | ||
| 47372-50050 |
UCF1# |
3 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-50060 |
UCF1# |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47372-50070 |
UCF1# |
2 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 47372-50110 |
UCF1# |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 47375-50010 |
UCF10..A |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-50080 |
UCF10..A |
1 | ||
| 47372-50170 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47375-50020 |
UCF1#..B,C |
1 | ||
| 47375-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371-50070 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47371-50080 |
UCF10..A |
1 | ||
| 47371-50100 |
UCF10..A ｱﾘ(*66) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-50030 |
UCF10..A |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-50050 |
UCF10..A |
3 | ||
| 47371-50030 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 47371-50030 |
UCF1#..B,C |
1 | ||
| 47378B - PROTECTOR, TUBE, UPPER | ||||
| 47378-50010 |
UCF1# |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 47388-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-08040 | ||||
| 90461-06208 | ||||
| 90461-10731 | ||||
| 90467-06098 | ||||
| 90468-08034 | ||||
| 91651-60650 | ||||
ILLUST NO. 2 OF 2(9208- )A
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-50010 |
UCF10..A |
1 | ||
| 44510-50010 |
UCF10..A |
1 | ||
| 44510-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44510-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44510-50030 |
UCF10..A |
1 | ||
| 44510-50020 |
UCF1#..B,C |
1 | ||
| 44510-50040 |
UCF1#..B,C |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10212 |
UCF1# |
1 | ||
| 44558 - TUBE, BRAKE ACTUATOR, NO.8 | ||||
| 44558-50010 |
UCF1# |
1 | ||
| 44559 - TUBE, BRAKE ACTUATOR, NO.9 | ||||
| 44559-50010 |
UCF1# |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-50030 |
UCF10..A |
1 | ||
| 44591-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44591-50010 |
UCF10..A |
1 | ||
| 44591-50040 |
UCF1#..B,C |
1 | ||
| 44591-50010 |
UCF10..A |
1 | ||
| 44591-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44591-50020 |
UCF1#..B,C |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-50050 |
UCF1# |
1 | ||
| 44597-50010 |
UCF1# |
1 | ||
| Common parts | ||||
| 90091-40617 | ||||
| 90179-06009 | ||||
| 90179-08177 | ||||
| 90950-01422 | ||||
| 90950-01510 | ||||
| 91656-F0822 | ||||
ILLUST NO. 3 OF 3(9208- )
ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) | ||||
| 31478-50010 |
UCF1#..B,C |
1 | ||
| 31478-50010 |
UCF1# |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-50010 |
UCF10..A |
1 | ||
| 44510-50010 |
UCF10..A |
1 | ||
| 44510-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44510-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44510-50030 |
UCF10..A |
1 | ||
| 44510-50020 |
UCF1#..B,C |
1 | ||
| 44510-50040 |
UCF1#..B,C |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44547 - CASE, RELAY(FOR BRAKE ACTUATOR) | ||||
| 44547-50020 |
UCF1#..B,C |
1 | ||
| 44547-50010 |
UCF10..A |
1 | ||
| 44547-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44547-50030 |
UCF1# |
1 | ||
| 44547-50010 |
UCF10..A |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10212 |
UCF1# |
1 | ||
| 44558 - TUBE, BRAKE ACTUATOR, NO.8 | ||||
| 44558-50010 |
UCF1# |
1 | ||
| 44559 - TUBE, BRAKE ACTUATOR, NO.9 | ||||
| 44559-50010 |
UCF1# |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-50030 |
UCF10..A |
1 | ||
| 44591-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44591-50010 |
UCF10..A |
1 | ||
| 44591-50040 |
UCF1#..B,C |
1 | ||
| 44591-50010 |
UCF10..A |
1 | ||
| 44591-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44591-50020 |
UCF1#..B,C |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-50050 |
UCF1# |
1 | ||
| 44597-50010 |
UCF1# |
1 | ||
| 44597B - CLAMP, BRAKE TRACTION ACTUATOR CONNECTOR | ||||
| 44597-50041 |
UCF1#..B,C |
1 | ||
| 44597-50060 |
UCF1# |
1 | ||
| 44597-50040 |
UCF1#..B,C |
1 | ||
| 44597-50041 |
UCF1# |
1 | ||
| 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) | ||||
| 47547-27030 |
UCF1#..B,C |
1 | ||
| 47547-27030 |
UCF1# |
1 | ||
| 47990 - ACTUATOR ASSY, BRAKE TRACTION | ||||
| 47990-50020 |
UCF1#..B,C |
1 | ||
| 47990-50020 |
UCF1# |
1 | ||
| 47990-50030 |
UCF1# |
1 | ||
| 47999 - BRACKET, BRAKE TRACTION ACTUATOR, NO.2 | ||||
| 47999-50010 |
UCF1# |
1 | ||
| 47999-50010 |
UCF1#..B,C |
1 | ||
| 47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 90385-10002 |
UCF1# |
3 | ||
| 90385-10002 |
UCF1#..B,C |
3 | ||
| 47999B - SPACER(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 90561-08002 |
UCF1# |
3 | ||
| 90561-08002 |
UCF1#..B,C |
3 | ||
| Common parts | ||||
| 90091-40617 | ||||
| 90179-06009 | ||||
| 90179-08177 | ||||
| 91651-40610 | ||||
| 91651-40814 | ||||
| 91656-F0822 | ||||
| 91661-F0828 | ||||
ILLUST NO. 2 OF 2(8911-9208)A
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-50010 |
UCF10..A |
1 | ||
| 44510-50010 |
UCF10..A |
1 | ||
| 44510-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44510-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44510-50030 |
UCF10..A |
1 | ||
| 44510-50020 |
UCF1#..B,C |
1 | ||
| 44510-50040 |
UCF1#..B,C |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
UCF1# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44547 - CASE, RELAY(FOR BRAKE ACTUATOR) | ||||
| 44547-50020 |
UCF1#..B,C |
1 | ||
| 44547-50010 |
UCF10..A |
1 | ||
| 44547-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44547-50030 |
UCF1# |
1 | ||
| 44547-50010 |
UCF10..A |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-50030 |
UCF10..A |
1 | ||
| 44591-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44591-50010 |
UCF10..A |
1 | ||
| 44591-50040 |
UCF1#..B,C |
1 | ||
| 44591-50010 |
UCF10..A |
1 | ||
| 44591-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44591-50020 |
UCF1#..B,C |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-50050 |
UCF1# |
1 | ||
| 44597-50010 |
UCF1# |
1 | ||
| 44597A - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.2 | ||||
| 44597-50030 |
UCF1# |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90119-08157 | ||||
| 90179-08177 | ||||
| 93269-15008 | ||||
| 93315-15025 | ||||
| 94110-40600 | ||||
| 94511-00800 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
(8911-9208)B,C ; (9101-9208)A
ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) | ||||
| 31478-50010 |
UCF1#..B,C |
1 | ||
| 31478-50010 |
UCF1# |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-50010 |
UCF10..A |
1 | ||
| 44510-50010 |
UCF10..A |
1 | ||
| 44510-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44510-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44510-50030 |
UCF10..A |
1 | ||
| 44510-50020 |
UCF1#..B,C |
1 | ||
| 44510-50040 |
UCF1#..B,C |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
UCF1# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF1# |
4 | ||
| 44545-22070 |
UCF1# |
3 | ||
| 44545-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44545E - BOLT, CUSHION, NO.1(FOR BRAKE ACTUATOR) | ||||
| 44545-50010 |
UCF1# |
1 | ||
| 44545F - BOLT, CUSHION, NO.2(FOR BRAKE ACTUATOR) | ||||
| 44545-50020 |
UCF1# |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF1# |
4 | ||
| 44546-22070 |
UCF1# |
3 | ||
| 44546-33010 |
UCF10..A ｱﾘ(*66) |
3 | ||
| 44547 - CASE, RELAY(FOR BRAKE ACTUATOR) | ||||
| 44547-50020 |
UCF1#..B,C |
1 | ||
| 44547-50010 |
UCF10..A |
1 | ||
| 44547-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44547-50030 |
UCF1# |
1 | ||
| 44547-50010 |
UCF10..A |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-50030 |
UCF10..A |
1 | ||
| 44591-50020 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44591-50010 |
UCF10..A |
1 | ||
| 44591-50040 |
UCF1#..B,C |
1 | ||
| 44591-50010 |
UCF10..A |
1 | ||
| 44591-50040 |
UCF10..A ｱﾘ(*66 & *TRC) |
1 | ||
| 44591-50020 |
UCF1#..B,C |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-50010 |
UCF1#..B,C |
1 | ||
| 44592-50010 |
UCF1# |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-50050 |
UCF1# |
1 | ||
| 44597-50010 |
UCF1# |
1 | ||
| 44597A - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.2 | ||||
| 44597-50030 |
UCF1# |
1 | ||
| 44597B - CLAMP, BRAKE TRACTION ACTUATOR CONNECTOR | ||||
| 44597-50041 |
UCF1#..B,C |
1 | ||
| 44597-50060 |
UCF1# |
1 | ||
| 44597-50040 |
UCF1#..B,C |
1 | ||
| 44597-50041 |
UCF1# |
1 | ||
| 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) | ||||
| 47547-27030 |
UCF1#..B,C |
1 | ||
| 47547-27030 |
UCF1# |
1 | ||
| 47990 - ACTUATOR ASSY, BRAKE TRACTION | ||||
| 47990-50020 |
UCF1#..B,C |
1 | ||
| 47990-50020 |
UCF1# |
1 | ||
| 47990-50030 |
UCF1# |
1 | ||
| 47999 - BRACKET, BRAKE TRACTION ACTUATOR, NO.2 | ||||
| 47999-50010 |
UCF1# |
1 | ||
| 47999-50010 |
UCF1#..B,C |
1 | ||
| 47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 90385-10002 |
UCF1# |
3 | ||
| 90385-10002 |
UCF1#..B,C |
3 | ||
| 47999B - SPACER(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 90561-08002 |
UCF1# |
3 | ||
| 90561-08002 |
UCF1#..B,C |
3 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90119-08157 | ||||
| 90179-08177 | ||||
| 91651-40610 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91661-F0828 | ||||
| 93269-15008 | ||||
| 93315-15025 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
