UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

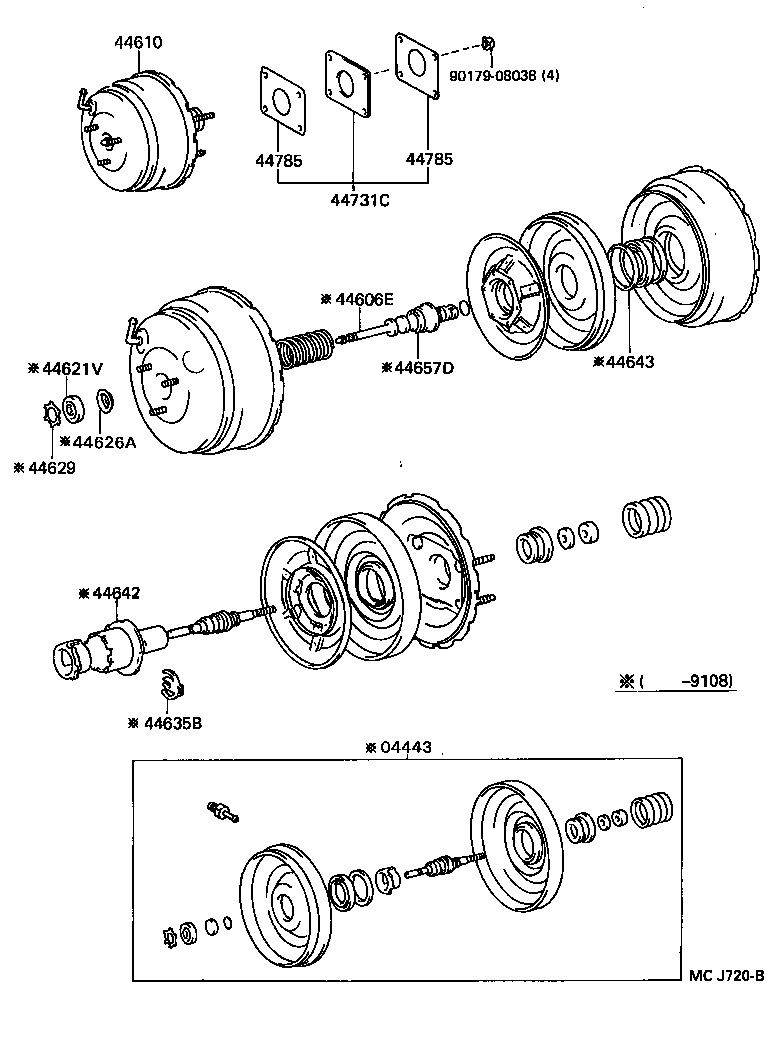

ILLUST NO. 1 OF 2(8911- )

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44626A 44629 44635B 44642 44643 44657D 44731C 44785 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-50010

UCF1#

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800

UCF1#

 1
44610 - BOOSTER ASSY, BRAKE
44610-50040

UCF1#..B,C

 1
44610-50080

UCF10..A

 1
44610-50030

UCF10..A

 1
44610-50160

UCF1#..B,C

 1
44610-50090

UCF10..A

ｱﾘ(*TRC)

 1
44610-50040

UCF10..A

ｱﾘ(*TRC)

 1
44610-50160

UCF10..A

ｱﾘ(*TRC)

 1
44610-50090

UCF1#..B,C

 1
44610-50161

UCF1#..B,C

 1
44610-50161

UCF10..A

ｱﾘ(*TRC)

 1
44610-50150

UCF10..A

 1
44610-50151

UCF10..A

 1
44621V - SEAL, BOOSTER BODY
44621-14030

UCF1#

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

UCF1#

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

UCF1#

 1
44635B - KEY, VALVE STOPPER
44635-20800

UCF1#

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

UCF1#

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

UCF1#

 1
44657D - CASE, REACTION DISC
44657-50010

UCF1#

 1
44731C - BRACKET, BRAKE BOOSTER
44731-50010

UCF1#

 1
44731-50011

UCF1#

 1
44785 - GASKET, BRAKE BOOSTER
44785-50010

UCF1#

 2
44785 - GASKET, BRAKE BOOSTER
44785-50010

UCF1#

 2
Common parts
90179-08038

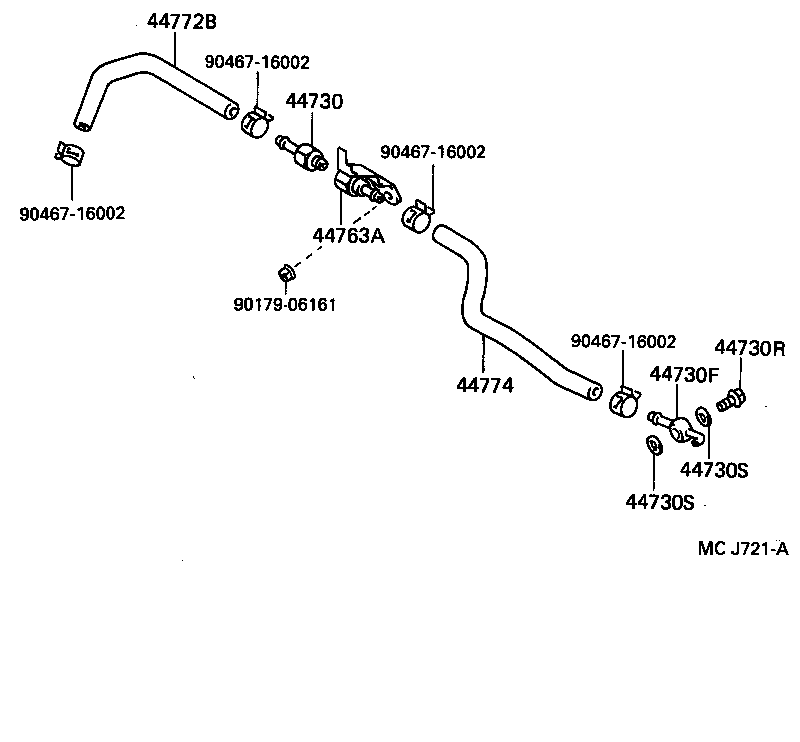

ILLUST NO. 2 OF 2(8911- )

Click highlighted areas on diagram

diagram 44730 44730F 44730R 44730S 44730S 44763A 44772B 44774 9017906161 9046716002 9046716002 9046716002 9046716002
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22120

UCF1#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09138

UCF1#

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

UCF1#

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

UCF1#

 2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

UCF1#

 2
44763A - TUBE, HOSE TO HOSE, NO.1
44763-50030

UCF1#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-50030

UCF10..A

ｱﾘ(*TRC)

 1
44772-50020

UCF10..A

 1
44772-50030

UCF1#..B,C

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-50020

UCF1#

 1
Common parts
90179-06161
90467-16002
