UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

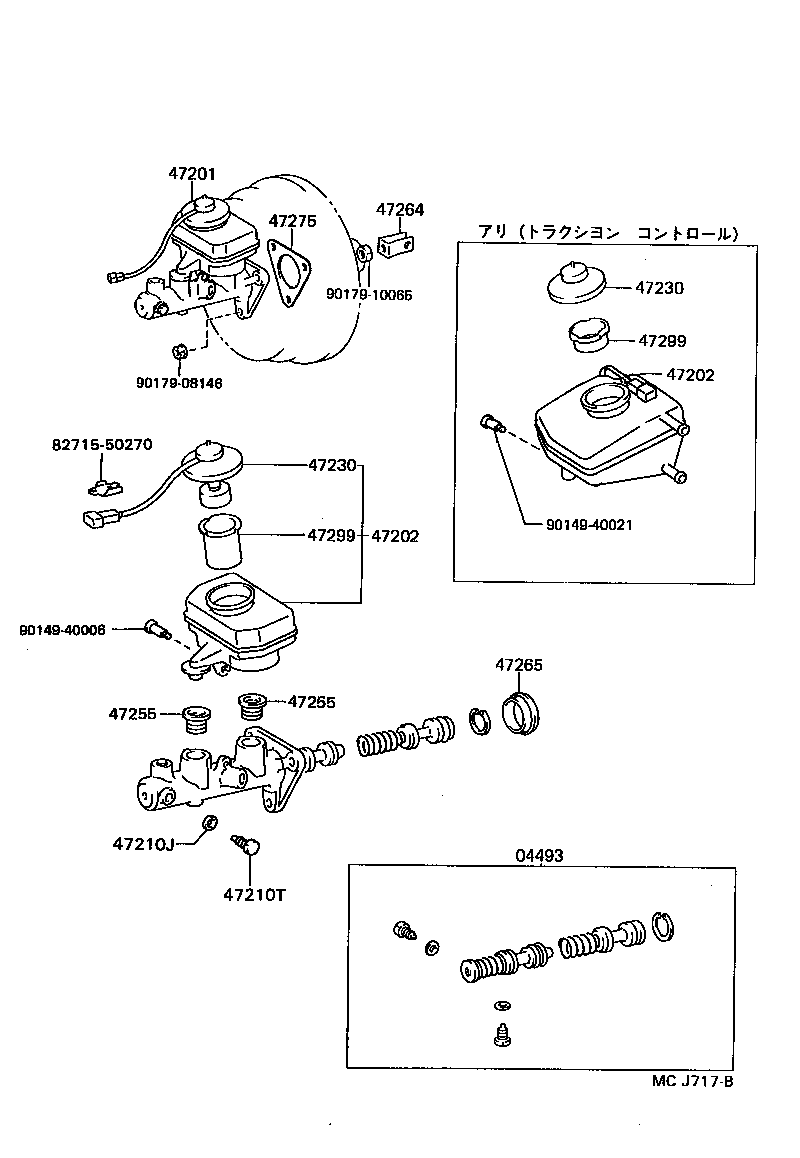

Click highlighted areas on diagram

diagram 04493 47201 47202 47202 47210J 47210T 47230 47230 47255 47255 47264 47265 47275 47299 47299 8271550270 9014940006 9014940021 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-50010

UCF1#

 1
04493-22220

UCF1#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-50120

UCF1#..B,C

 1
47201-50110

UCF10..A

 1
47201-50030

UCF10..A

 1
47201-50120

UCF10..A

ｱﾘ(*TRC)

 1
47201-50040

UCF10..A

ｱﾘ(*TRC)

 1
47201-50040

UCF1#..B,C

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47203-50020

UCF1#..B,C

 1
47203-50020

UCF10..A

ｱﾘ(*TRC)

 1
47202-50020

UCF10..A

 1
47202-50010

UCF10..A

 1
47203-50040

UCF10..A

ｱﾘ(*TRC)

 1
47203-50040

UCF1#..B,C

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47203-50020

UCF1#..B,C

 1
47203-50020

UCF10..A

ｱﾘ(*TRC)

 1
47202-50020

UCF10..A

 1
47202-50010

UCF10..A

 1
47203-50040

UCF10..A

ｱﾘ(*TRC)

 1
47203-50040

UCF1#..B,C

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

UCF10..A

ｱﾘ(*TRC)

 2
90430-06104

UCF1#..B,C

 2
90430-06104

UCF10..A

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

UCF10..A

 1
90109-06077

UCF10..A

ｱﾘ(*TRC)

 2
90109-06077

UCF1#..B,C

 2
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040

UCF1#..B,C

 1
47230-20100

UCF1#

 1
47230-12040

UCF10..A

ｱﾘ(*TRC)

 1
84460-50010

UCF10..A

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040

UCF1#..B,C

 1
47230-20100

UCF1#

 1
47230-12040

UCF10..A

ｱﾘ(*TRC)

 1
84460-50010

UCF10..A

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

UCF1#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

UCF1#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-50010

UCF1#

 1
47265 - BOOT, MASTER CYLINDER
47265-22030

UCF1#

 1
47265-20050

UCF1#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010

UCF1#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-25010

UCF1#..B,C

 1
47299-25010

UCF10..A

ｱﾘ(*TRC)

 1
47299-32010

UCF10..A

 1
47299-24010

UCF10..A

 1
47299-17010

UCF10..A

ｱﾘ(*TRC)

 1
47299-17010

UCF1#..B,C

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-25010

UCF1#..B,C

 1
47299-25010

UCF10..A

ｱﾘ(*TRC)

 1
47299-32010

UCF10..A

 1
47299-24010

UCF10..A

 1
47299-17010

UCF10..A

ｱﾘ(*TRC)

 1
47299-17010

UCF1#..B,C

 1
Common parts
82715-50270
90149-40006
90149-40021
90179-08146
90179-10065
