UCF10-AEPNK (1989)
Toyota Celsior
Production
Nov 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8911- )

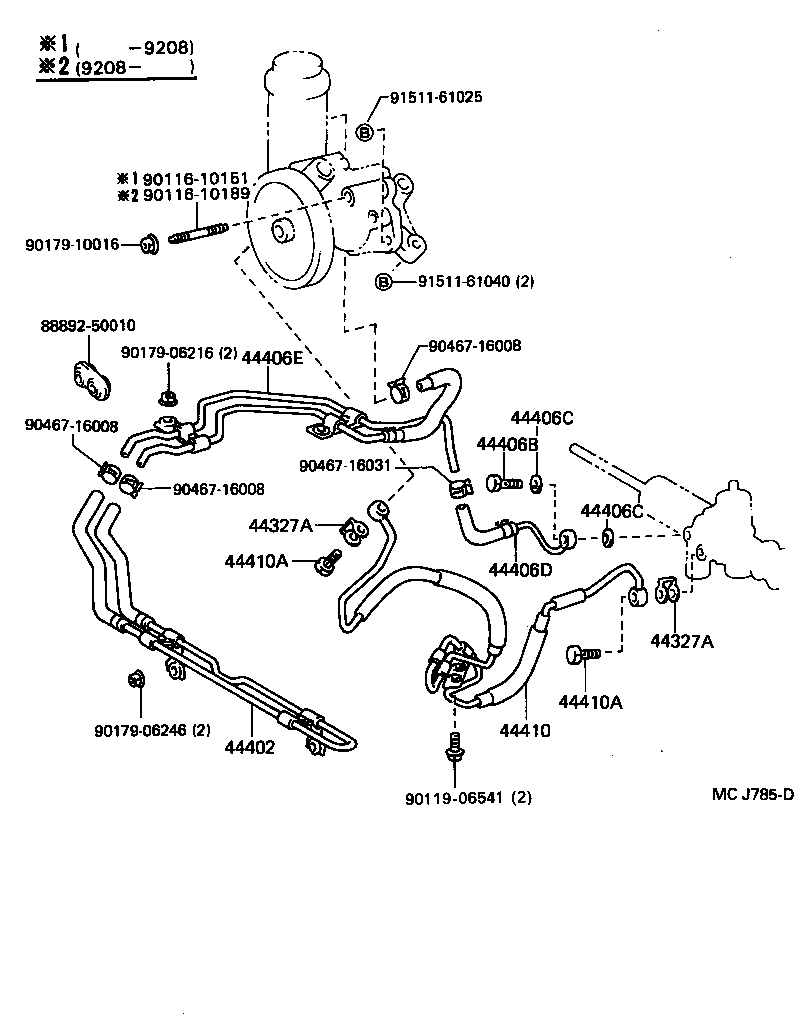

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
UCF1# |
2 | ||
| 44327-12010 |
UCF1# |
2 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
UCF1# |
2 | ||
| 44327-12010 |
UCF1# |
2 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-50030 |
UCF1# |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-17002 |
UCF1# |
1 | ||
| 96341-11703 |
UCF1# |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
UCF1# |
2 | ||
| 90430-17006 |
UCF1# |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
UCF1# |
2 | ||
| 90430-17006 |
UCF1# |
2 | ||
| 44406D - TUBE SUB-ASSY, RETURN, NO.1 | ||||
| 44406-50040 |
UCF1# |
1 | ||
| 44406-50042 |
UCF1# |
1 | ||
| 44406-50080 |
UCF1# |
1 | ||
| 44406-50041 |
UCF1# |
1 | ||
| 44406E - TUBE SUB-ASSY, RETURN, NO.2 | ||||
| 44406-50090 |
UCF1# |
1 | ||
| 44406-50051 |
UCF1# |
1 | ||
| 44406-50050 |
UCF1# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-50020 |
UCF1# |
1 | ||
| 44410-50021 |
UCF1# |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16013 |
UCF1# |
2 | ||
| 96341-41603 |
UCF1# |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16013 |
UCF1# |
2 | ||
| 96341-41603 |
UCF1# |
2 | ||
| Common parts | ||||
| 88892-50010 | ||||
| 90116-10151 | ||||
| 90116-10189 | ||||
| 90119-06541 | ||||
| 90179-06216 | ||||
| 90179-06246 | ||||
| 90179-10016 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 91511-61025 | ||||
| 91511-61040 | ||||
