UCF10-AEPNK (1989)
Toyota Celsior

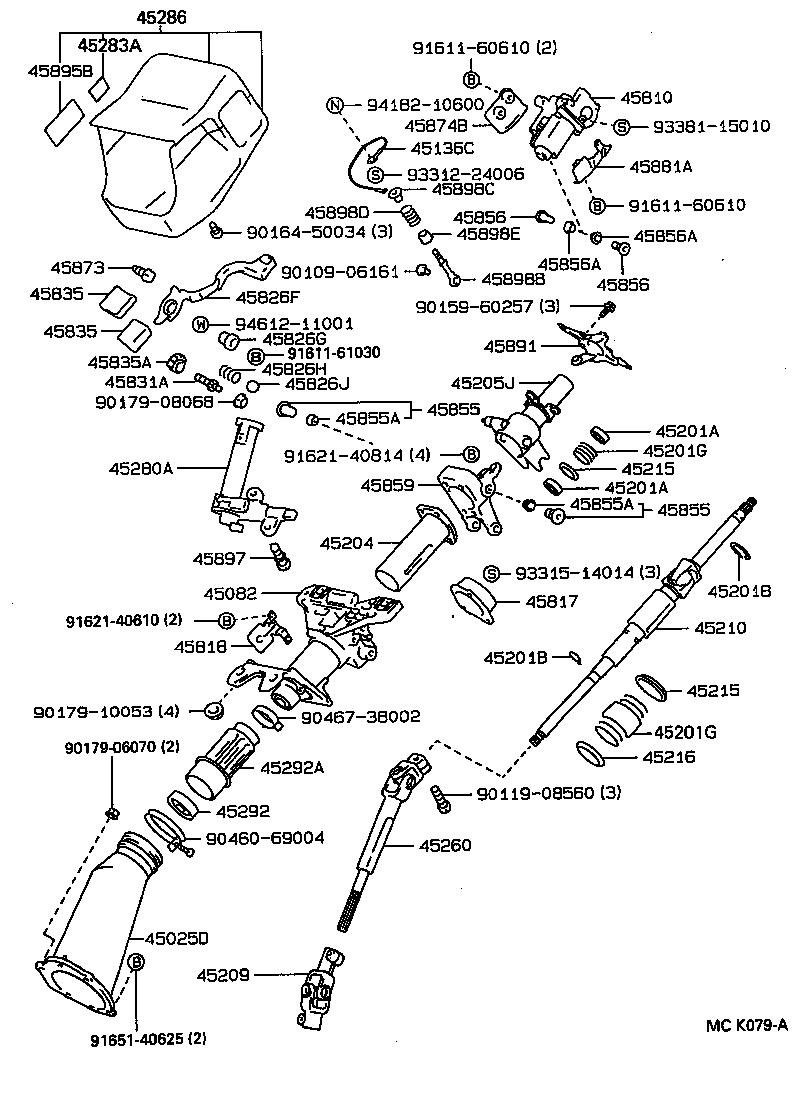

(8911- )A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-50020 |
UCF1# |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-50050 |
UCF10..A |
1 | ||
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07312 |
UCF1# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UCF1# |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UCF1# |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-16002 |
UCF1# 厚さ=2.00,内径=15.3 |
1 | ||
| 90520-17042 |
UCF1# 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-16002 |
UCF1# 厚さ=2.00,内径=15.3 |
1 | ||
| 90520-17042 |
UCF1# 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-20098 |
UCF10..A 下側 |
1 | ||
| 90501-40017 |
UCF1#..B,C |
1 | ||
| 90501-40017 |
UCF10..A 上側 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-20098 |
UCF10..A 下側 |
1 | ||
| 90501-40017 |
UCF1#..B,C |
1 | ||
| 90501-40017 |
UCF10..A 上側 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-50021 |
UCF10..A |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-50010 |
UCF1# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-50010 |
UCF1# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-50010 |
UCF1# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
UCF1#..B,C |
1 | ||
| 45215-22020 |
UCF10..A 下側 |
1 | ||
| 45215-12010 |
UCF10..A 上側 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
UCF1#..B,C |
1 | ||
| 45215-22020 |
UCF10..A 下側 |
1 | ||
| 45215-12010 |
UCF10..A 上側 |
1 | ||
| 45216 - SHAFT, STEERING SLIDING | ||||
| 45216-22010 |
UCF10..A |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-50020 |
UCF1# |
1 | ||
| 45260-50030 |
UCF1# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-50032 |
UCF1# |
1 | ||
| 45280-50031 |
UCF1# |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 45283-50010B0 |
UCF1# SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45283-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 45283-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 45283-50010J0 |
UCF10..A DK.BLUE,TRIM8# |
1 | ||
| 45283-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 45283-50010B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 45283-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 45283-50010B0 |
UCF1#..B,C SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45283-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-5090405 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 45286-5090403 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 45286-5090406 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 45286-5090504 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 45286-5090503 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 45286-5090604 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 45286-50906P0 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 45286-50906W3 |
UCF1#..B,C DK.BLUE,TRIM8# |
1 | ||
| 45286-50906K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 45286-5090603 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 45286-50905P0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 45286-5090606 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 45286-5090605 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 45286-50906E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 45286-50905W3 |
UCF10..A DK.BLUE,TRIM8# |
1 | ||
| 45286-5090404 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22130 |
UCF1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-50020 |
UCF10..A |
1 | ||
| 45292-50030 |
UCF1#..B,C |
1 | ||
| 45810 - GEAR ASSY, TILT STEERING, W/MOTOR | ||||
| 45810-50010 |
UCF1# |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-50011 |
UCF10..A |
1 | ||
| 45818 - BRACKET, CONNECTOR | ||||
| 45818-50010 |
UCF1# |
1 | ||
| 45826F - LEVER, STEERING TELESCOPIC | ||||
| 45826-50020 |
UCF10..A |
1 | ||
| 45826G - COLLAR(FOR STEERING TELESCOPIC LEVER) | ||||
| 90389-10022 |
UCF10..A |
1 | ||
| 45826H - SPRING, COMPRESSION(FOR STEERING TELESCOPIC LEVER) | ||||
| 90501-12014 |
UCF10..A |
1 | ||
| 45826J - BALL(FOR STEERING TELESCOPIC LEVER) | ||||
| 90360-06001 |
UCF10..A |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-22010 |
UCF10..A |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-22040 |
UCF10..A BOLT SIDE |
1 | ||
| 45835-22030 |
UCF10..A TUBE SIDE |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-22040 |
UCF10..A BOLT SIDE |
1 | ||
| 45835-22030 |
UCF10..A TUBE SIDE |
1 | ||
| 45835A - ATTACHMENT, TILT LEVER SERRATION | ||||
| 45835-22010 |
UCF10..A |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45086-50010 |
UCF1# 外径=20 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45086-50010 |
UCF1# 外径=20 |
2 | ||
| 45855A - BUSH(FOR TILT STEERING BOLT NO.1) | ||||
| 90389-10024 |
UCF1# |
2 | ||
| 45855A - BUSH(FOR TILT STEERING BOLT NO.1) | ||||
| 90389-10024 |
UCF1# |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-50010 |
UCF1# 外径=16.2 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-50010 |
UCF1# 外径=16.2 |
2 | ||
| 45856A - BUSH(FOR TILT STEERING BOLT NO.2) | ||||
| 90389-08081 |
UCF1# |
2 | ||
| 45856A - BUSH(FOR TILT STEERING BOLT NO.2) | ||||
| 90389-08081 |
UCF1# |
2 | ||
| 45859 - SUPPORT, TILT STEERING HOUSING | ||||
| 45859-50010 |
UCF1# |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-50020 |
UCF10..A |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-50010 |
UCF1# |
1 | ||
| 45881A - PROTECTOR, STEERING COLUMN, NO.2 | ||||
| 45881-50010 |
UCF1# |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-50010 |
UCF1# |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-5003003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 45895-50030E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 45895-5003006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 45895-5003005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 45895-50030P0 |
UCF1# SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45895-50030K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 45895-5003004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
UCF1# |
2 | ||
| 45898B - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-50011 |
UCF1# |
2 | ||
| 45898-50010 |
UCF1# |
2 | ||
| 45898C - SPACER(FOR TILT STEERING SUPPORT STOPPER BOLT) | ||||
| 90561-06010 |
UCF1# |
2 | ||
| 45898D - SPRING(FOR TILT STEERING SUPPORT STOPPER BOLT) | ||||
| 90501-18082 |
UCF1# |
2 | ||
| 90501-18096 |
UCF1# |
2 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-11010 |
UCF1# |
2 | ||
| Common parts | ||||
| 90109-06161 | ||||
| 90119-08560 | ||||
| 90159-60257 | ||||
| 90164-50034 | ||||
| 90179-06070 | ||||
| 90179-08068 | ||||
| 90179-10053 | ||||
| 90460-69004 | ||||
| 90467-38002 | ||||
| 91611-60610 | ||||
| 91611-61030 | ||||
| 91621-40610 | ||||
| 91621-40814 | ||||
| 91651-40625 | ||||
| 93312-24006 | ||||
| 93315-14014 | ||||
| 93381-15010 | ||||
| 94182-10600 | ||||
| 94612-11001 | ||||

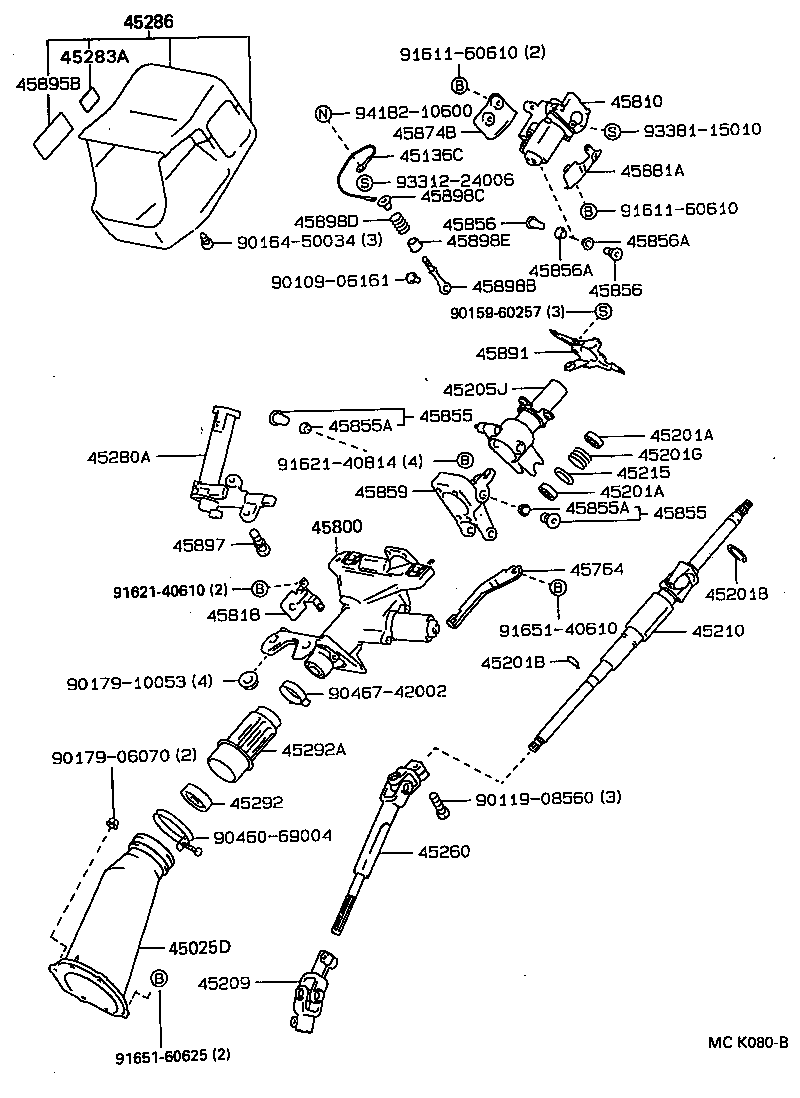

(8911- )B,C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-50020 |
UCF1# |
1 | ||
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07312 |
UCF1# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UCF1# |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UCF1# |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-16002 |
UCF1# 厚さ=2.00,内径=15.3 |
1 | ||
| 90520-17042 |
UCF1# 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-16002 |
UCF1# 厚さ=2.00,内径=15.3 |
1 | ||
| 90520-17042 |
UCF1# 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-20098 |
UCF10..A 下側 |
1 | ||
| 90501-40017 |
UCF1#..B,C |
1 | ||
| 90501-40017 |
UCF10..A 上側 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-50010 |
UCF1# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-50010 |
UCF1# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-50010 |
UCF1# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
UCF1#..B,C |
1 | ||
| 45215-22020 |
UCF10..A 下側 |
1 | ||
| 45215-12010 |
UCF10..A 上側 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-50020 |
UCF1# |
1 | ||
| 45260-50030 |
UCF1# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-50032 |
UCF1# |
1 | ||
| 45280-50031 |
UCF1# |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-5001003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 45283-50010B0 |
UCF1# SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45283-50010K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 45283-5001008 |
UCF1#..B,C IVORY,TRIM0# |
1 | ||
| 45283-50010J0 |
UCF10..A DK.BLUE,TRIM8# |
1 | ||
| 45283-5001006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 45283-50010B0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 45283-5001004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 45283-50010B0 |
UCF1#..B,C SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45283-50010E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-5090405 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 45286-5090403 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 45286-5090406 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 45286-5090504 |
UCF10..A DARK BLUE,TRIM8# |
1 | ||
| 45286-5090503 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 45286-5090604 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 45286-50906P0 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 45286-50906W3 |
UCF1#..B,C DK.BLUE,TRIM8# |
1 | ||
| 45286-50906K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 45286-5090603 |
UCF1#..B,C SHADOW GRAY,TRIM1# |
1 | ||
| 45286-50905P0 |
UCF10..A SHADOW GRAY,TRIM1# |
1 | ||
| 45286-5090606 |
UCF1#..B,C DARK ROSE,TRIM4# |
1 | ||
| 45286-5090605 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 45286-50906E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 45286-50905W3 |
UCF10..A DK.BLUE,TRIM8# |
1 | ||
| 45286-5090404 |
UCF1#..B,C DARK BLUE,TRIM8# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22130 |
UCF1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-50020 |
UCF10..A |
1 | ||
| 45292-50030 |
UCF1#..B,C |
1 | ||
| 45764 - PLATE, TELESCOPIC POSITION SENSOR | ||||
| 45764-50010 |
UCF1#..B,C |
1 | ||
| 45800 - GEAR ASSY, TELESCOPIC STEERING, W/MOTOR | ||||
| 45800-50030 |
UCF1#..B,C |
1 | ||
| 45810 - GEAR ASSY, TILT STEERING, W/MOTOR | ||||
| 45810-50010 |
UCF1# |
1 | ||
| 45818 - BRACKET, CONNECTOR | ||||
| 45818-50010 |
UCF1# |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45086-50010 |
UCF1# 外径=20 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45086-50010 |
UCF1# 外径=20 |
2 | ||
| 45855A - BUSH(FOR TILT STEERING BOLT NO.1) | ||||
| 90389-10024 |
UCF1# |
2 | ||
| 45855A - BUSH(FOR TILT STEERING BOLT NO.1) | ||||
| 90389-10024 |
UCF1# |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-50010 |
UCF1# 外径=16.2 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-50010 |
UCF1# 外径=16.2 |
2 | ||
| 45856A - BUSH(FOR TILT STEERING BOLT NO.2) | ||||
| 90389-08081 |
UCF1# |
2 | ||
| 45856A - BUSH(FOR TILT STEERING BOLT NO.2) | ||||
| 90389-08081 |
UCF1# |
2 | ||
| 45859 - SUPPORT, TILT STEERING HOUSING | ||||
| 45859-50010 |
UCF1# |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-50010 |
UCF1# |
1 | ||
| 45881A - PROTECTOR, STEERING COLUMN, NO.2 | ||||
| 45881-50010 |
UCF1# |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-50010 |
UCF1# |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-5003003 |
UCF1# GRAY,TRIM1# |
1 | ||
| 45895-50030E0 |
UCF1#..B,C OAK,TRIM0# |
1 | ||
| 45895-5003006 |
UCF1#..B,C ROSE,TRIM4# |
1 | ||
| 45895-5003005 |
UCF1#..B,C GREIGE,TRIM0# |
1 | ||
| 45895-50030P0 |
UCF1# SHADOW GRAY,TRIM1#,8# |
1 | ||
| 45895-50030K0 |
UCF1#..B,C TAUPE,TRIM9# |
1 | ||
| 45895-5003004 |
UCF1# BLUE,TRIM8# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
UCF1# |
2 | ||
| 45898B - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-50011 |
UCF1# |
2 | ||
| 45898-50010 |
UCF1# |
2 | ||
| 45898C - SPACER(FOR TILT STEERING SUPPORT STOPPER BOLT) | ||||
| 90561-06010 |
UCF1# |
2 | ||
| 45898D - SPRING(FOR TILT STEERING SUPPORT STOPPER BOLT) | ||||
| 90501-18082 |
UCF1# |
2 | ||
| 90501-18096 |
UCF1# |
2 | ||
| 45898E - BUSH(FOR TILT STEERING SUPPORT BOLT) | ||||
| 90389-11010 |
UCF1# |
2 | ||
| Common parts | ||||
| 90109-06161 | ||||
| 90119-08560 | ||||
| 90159-60257 | ||||
| 90164-50034 | ||||
| 90179-06070 | ||||
| 90179-10053 | ||||
| 90460-69004 | ||||
| 90467-42002 | ||||
| 91611-60610 | ||||
| 91621-40610 | ||||
| 91621-40814 | ||||
| 91651-40610 | ||||
| 91651-60625 | ||||
| 93312-24006 | ||||
| 93381-15010 | ||||
| 94182-10600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
