UCF10-AEPNK (1989)
Toyota Celsior

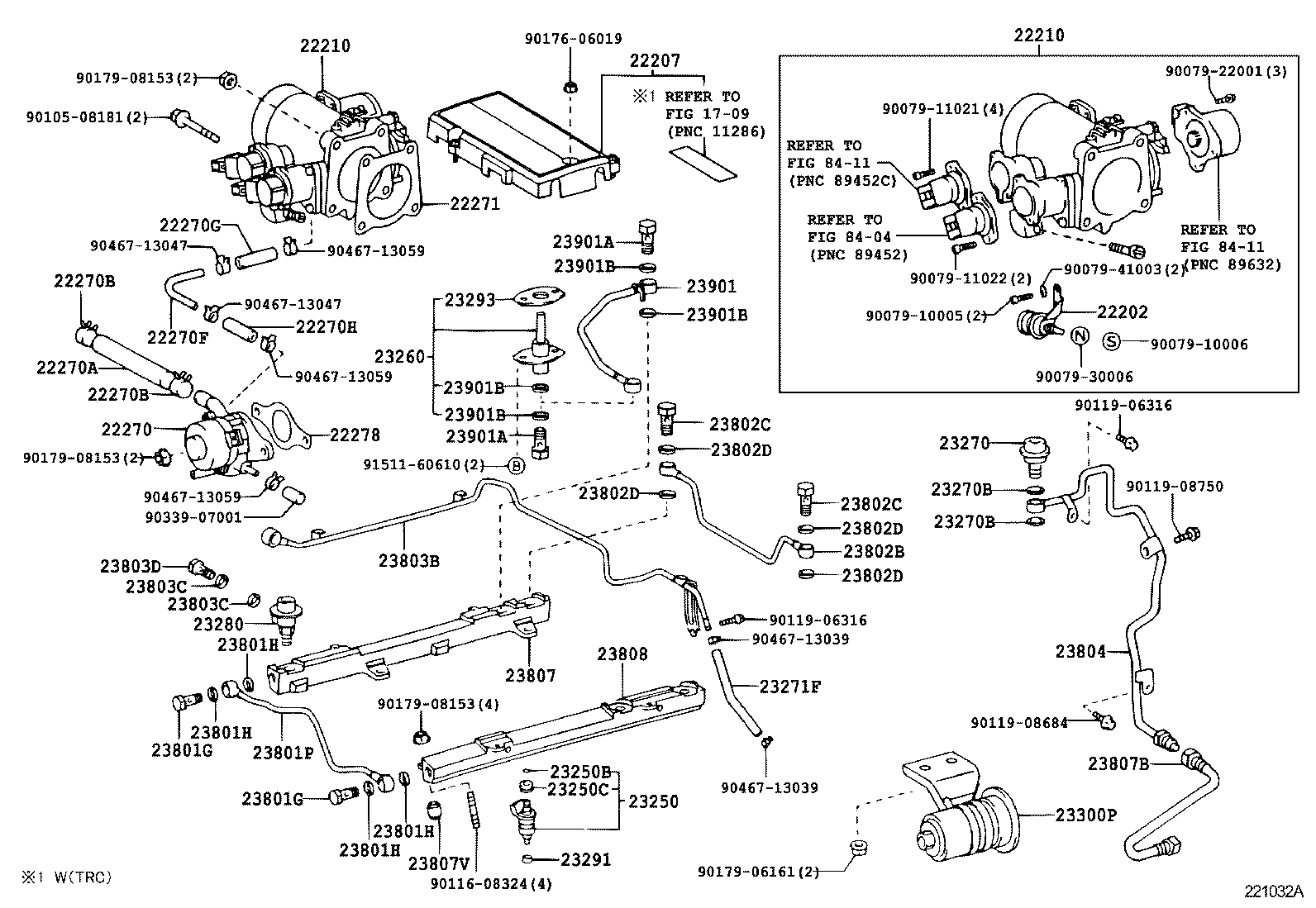

ILLUST NO. 1 OF 2(8911-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22202 - DASH POT SUB-ASSY | ||||
| 22202-50070 |
1UZFE..UCF1# |
1 | ||
| 22202-50011 |
1UZFE..UCF1# |
1 | ||
| 22207 - COVER SUB-ASSY, THROTTLE BODY | ||||
| 22207-50030 |
1UZFE..UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 22207-50010 |
1UZFE..UCF10..A |
1 | ||
| 22207-50030 |
1UZFE..UCF1#..B,C |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-50030 |
1UZFE..UCF10..A |
1 | ||
| 22030-50041 |
1UZFE..UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 22030-50040 |
1UZFE..UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 22210-50033 |
1UZFE..UCF10..A |
1 | ||
| 22030-50041 |
1UZFE..UCF1#..B,C |
1 | ||
| 22210-50031 |
1UZFE..UCF10..A |
1 | ||
| 22030-50040 |
1UZFE..UCF1#..B,C |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-50030 |
1UZFE..UCF10..A |
1 | ||
| 22030-50041 |
1UZFE..UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 22030-50040 |
1UZFE..UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 22210-50033 |
1UZFE..UCF10..A |
1 | ||
| 22030-50041 |
1UZFE..UCF1#..B,C |
1 | ||
| 22210-50031 |
1UZFE..UCF10..A |
1 | ||
| 22030-50040 |
1UZFE..UCF1#..B,C |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-50020 |
1UZFE..UCF1# |
1 | ||
| 22270-50010 |
1UZFE..UCF1# |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17341-50040 |
1UZFE..UCF1# |
1 | ||
| 17341-50010 |
1UZFE..UCF1# |
1 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-22007 |
1UZFE..UCF1# |
2 | ||
| 90467-26006 |
1UZFE..UCF1# |
2 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-22007 |
1UZFE..UCF1# |
2 | ||
| 90467-26006 |
1UZFE..UCF1# |
2 | ||
| 22270F - PIPE, WATER, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 16289-50010 |
1UZFE..UCF1# |
1 | ||
| 22270G - HOSE, WATER, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 90910-05204 |
1UZFE..UCF1# |
1 | ||
| 22270H - HOSE, WATER, NO.2(FOR IDLE SPEED CONTROL VALVE) | ||||
| 90910-05205 |
1UZFE..UCF1# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-50010 |
1UZFE..UCF1# |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-50011 |
1UZFE..UCF1# |
1 | ||
| 22278-50010 |
1UZFE..UCF1# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-50020 |
1UZFE..UCF1# |
8 | ||
| 23209-50010 |
1UZFE..UCF1# |
8 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1UZFE..UCF1# |
8 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1UZFE..UCF1# |
8 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-59035 |
1UZFE..UCF1# |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-50010 |
1UZFE..UCF1# |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
1UZFE..UCF1# DELIVERRY PIPE SIDE |
1 | ||
| 23232-41081 |
1UZFE..UCF1# DAMPER SIDE |
1 | ||
| 90430-12026 |
1UZFE..UCF1# DELIVERY PIPE SIDE |
1 | ||
| 90430-12026 |
1UZFE..UCF1# DELIVERRY PIPE SIDE |
1 | ||
| 23232-28010 |
1UZFE..UCF1# DAMPER SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
1UZFE..UCF1# DELIVERRY PIPE SIDE |
1 | ||
| 23232-41081 |
1UZFE..UCF1# DAMPER SIDE |
1 | ||
| 90430-12026 |
1UZFE..UCF1# DELIVERY PIPE SIDE |
1 | ||
| 90430-12026 |
1UZFE..UCF1# DELIVERRY PIPE SIDE |
1 | ||
| 23232-28010 |
1UZFE..UCF1# DAMPER SIDE |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-50031 |
1UZFE..UCF1# |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-50010 |
1UZFE..UCF1# |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1UZFE..UCF1# |
8 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-50010 |
1UZFE..UCF1# |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-50020 |
1UZFE..UCF1# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12023 |
1UZFE..UCF1# |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12023 |
1UZFE..UCF1# |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-50010 |
1UZFE..UCF1# |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-50010 |
1UZFE..UCF1# |
1 | ||
| 23802-50011 |
1UZFE..UCF1# |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12023 |
1UZFE..UCF1# |
2 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12023 |
1UZFE..UCF1# |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-50020 |
1UZFE..UCF1# |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-10012 |
1UZFE..UCF1# |
2 | ||
| 90430-10204 |
1UZFE..UCF1# |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-10012 |
1UZFE..UCF1# |
2 | ||
| 90430-10204 |
1UZFE..UCF1# |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-10038 |
1UZFE..UCF1# |
1 | ||
| 23804 - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23804-50010 |
1UZFE..UCF1# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-50020 |
1UZFE..UCF1# |
1 | ||
| 23807-50010 |
1UZFE..UCF1# |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 90923-01371 |
1UZFE..UCF1# |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08029 |
1UZFE..UCF1# |
4 | ||
| 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 | ||||
| 23808-50010 |
1UZFE..UCF1# |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-50010 |
1UZFE..UCF1# |
1 | ||
| 23901A - BOLT, UNION(FOR FUEL TUBE) | ||||
| 90401-08007 |
1UZFE..UCF1# |
2 | ||
| 23901A - BOLT, UNION(FOR FUEL TUBE) | ||||
| 90401-08007 |
1UZFE..UCF1# |
2 | ||
| 23901B - GASKET(FOR FUEL TUBE) | ||||
| 90430-08005 |
1UZFE..UCF1# |
4 | ||
| 90430-08012 |
1UZFE..UCF1# |
4 | ||
| 23901B - GASKET(FOR FUEL TUBE) | ||||
| 90430-08005 |
1UZFE..UCF1# |
4 | ||
| 90430-08012 |
1UZFE..UCF1# |
4 | ||
| 23901B - GASKET(FOR FUEL TUBE) | ||||
| 90430-08005 |
1UZFE..UCF1# |
4 | ||
| 90430-08012 |
1UZFE..UCF1# |
4 | ||
| 23901B - GASKET(FOR FUEL TUBE) | ||||
| 90430-08005 |
1UZFE..UCF1# |
4 | ||
| 90430-08012 |
1UZFE..UCF1# |
4 | ||
| Common parts | ||||
| 90079-10005 | ||||
| 90079-10006 | ||||
| 90079-11021 | ||||
| 90079-11022 | ||||
| 90079-22001 | ||||
| 90079-30006 | ||||
| 90079-41003 | ||||
| 90105-08181 | ||||
| 90116-08324 | ||||
| 90119-06316 | ||||
| 90119-08684 | ||||
| 90119-08750 | ||||
| 90176-06019 | ||||
| 90179-06161 | ||||
| 90179-08153 | ||||
| 90339-07001 | ||||
| 90467-13039 | ||||
| 90467-13047 | ||||
| 90467-13059 | ||||
| 91511-60610 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8404 | ||||
| 8411 | ||||

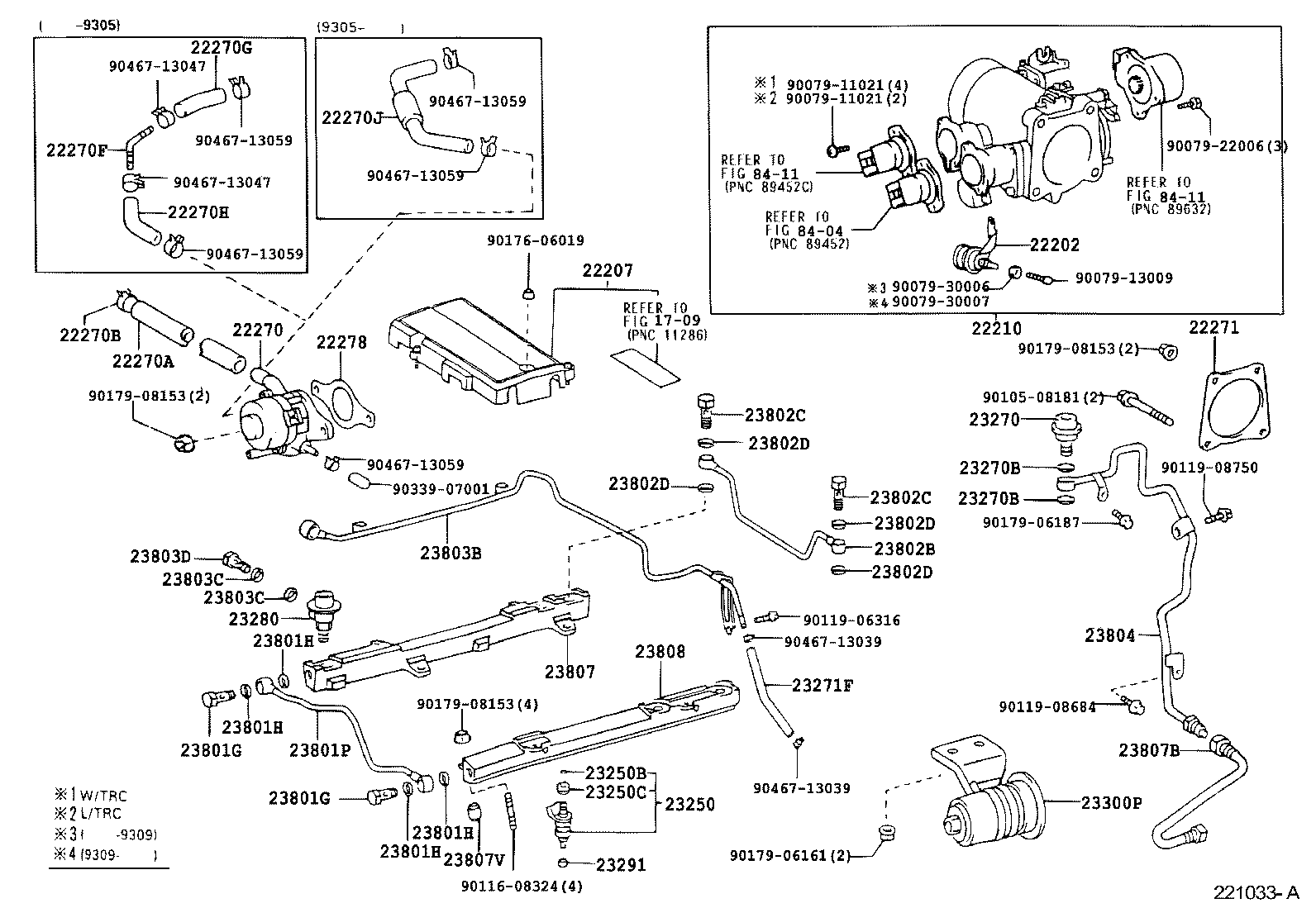

ILLUST NO. 1 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22202 - DASH POT SUB-ASSY | ||||
| 22202-50070 |
1UZFE..UCF1# |
1 | ||
| 22202-50011 |
1UZFE..UCF1# |
1 | ||
| 22207 - COVER SUB-ASSY, THROTTLE BODY | ||||
| 22207-50030 |
1UZFE..UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 22207-50010 |
1UZFE..UCF10..A |
1 | ||
| 22207-50030 |
1UZFE..UCF1#..B,C |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-50030 |
1UZFE..UCF10..A |
1 | ||
| 22030-50041 |
1UZFE..UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 22030-50040 |
1UZFE..UCF10..A ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 22210-50033 |
1UZFE..UCF10..A |
1 | ||
| 22030-50041 |
1UZFE..UCF1#..B,C |
1 | ||
| 22210-50031 |
1UZFE..UCF10..A |
1 | ||
| 22030-50040 |
1UZFE..UCF1#..B,C |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-50020 |
1UZFE..UCF1# |
1 | ||
| 22270-50010 |
1UZFE..UCF1# |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17341-50040 |
1UZFE..UCF1# |
1 | ||
| 17341-50010 |
1UZFE..UCF1# |
1 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-22007 |
1UZFE..UCF1# |
2 | ||
| 90467-26006 |
1UZFE..UCF1# |
2 | ||
| 22270F - PIPE, WATER, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 16289-50010 |
1UZFE..UCF1# |
1 | ||
| 22270G - HOSE, WATER, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 90910-05204 |
1UZFE..UCF1# |
1 | ||
| 22270H - HOSE, WATER, NO.2(FOR IDLE SPEED CONTROL VALVE) | ||||
| 90910-05205 |
1UZFE..UCF1# |
1 | ||
| 22270J - HOSE, WATER, NO.3(FOR IDEL SPEED CONTROL VALVE) | ||||
| 16295-50010 |
1UZFE..UCF1# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-50010 |
1UZFE..UCF1# |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-50011 |
1UZFE..UCF1# |
1 | ||
| 22278-50010 |
1UZFE..UCF1# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-50020 |
1UZFE..UCF1# |
8 | ||
| 23209-50010 |
1UZFE..UCF1# |
8 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1UZFE..UCF1# |
8 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1UZFE..UCF1# |
8 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-50010 |
1UZFE..UCF1# |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
1UZFE..UCF1# DELIVERRY PIPE SIDE |
1 | ||
| 23232-41081 |
1UZFE..UCF1# DAMPER SIDE |
1 | ||
| 90430-12026 |
1UZFE..UCF1# DELIVERY PIPE SIDE |
1 | ||
| 90430-12026 |
1UZFE..UCF1# DELIVERRY PIPE SIDE |
1 | ||
| 23232-28010 |
1UZFE..UCF1# DAMPER SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
1UZFE..UCF1# DELIVERRY PIPE SIDE |
1 | ||
| 23232-41081 |
1UZFE..UCF1# DAMPER SIDE |
1 | ||
| 90430-12026 |
1UZFE..UCF1# DELIVERY PIPE SIDE |
1 | ||
| 90430-12026 |
1UZFE..UCF1# DELIVERRY PIPE SIDE |
1 | ||
| 23232-28010 |
1UZFE..UCF1# DAMPER SIDE |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-50031 |
1UZFE..UCF1# |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-50010 |
1UZFE..UCF1# |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1UZFE..UCF1# |
8 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-50020 |
1UZFE..UCF1# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12023 |
1UZFE..UCF1# |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12023 |
1UZFE..UCF1# |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-50010 |
1UZFE..UCF1# |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-50010 |
1UZFE..UCF1# |
1 | ||
| 23802-50011 |
1UZFE..UCF1# |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12023 |
1UZFE..UCF1# |
2 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12023 |
1UZFE..UCF1# |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
1UZFE..UCF1# |
4 | ||
| 90430-12026 |
1UZFE..UCF1# |
4 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-50020 |
1UZFE..UCF1# |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-10012 |
1UZFE..UCF1# |
2 | ||
| 90430-10204 |
1UZFE..UCF1# |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-10012 |
1UZFE..UCF1# |
2 | ||
| 90430-10204 |
1UZFE..UCF1# |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-10038 |
1UZFE..UCF1# |
1 | ||
| 23804 - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23804-50010 |
1UZFE..UCF1# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-50020 |
1UZFE..UCF1# |
1 | ||
| 23807-50010 |
1UZFE..UCF1# |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 90923-01371 |
1UZFE..UCF1# |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08029 |
1UZFE..UCF1# |
4 | ||
| 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 | ||||
| 23808-50010 |
1UZFE..UCF1# |
1 | ||
| Common parts | ||||
| 90079-11021 | ||||
| 90079-13009 | ||||
| 90079-22006 | ||||
| 90079-30006 | ||||
| 90079-30007 | ||||
| 90105-08181 | ||||
| 90116-08324 | ||||
| 90119-06316 | ||||
| 90119-08684 | ||||
| 90119-08750 | ||||
| 90176-06019 | ||||
| 90179-06161 | ||||
| 90179-06187 | ||||
| 90179-08153 | ||||
| 90339-07001 | ||||
| 90467-13039 | ||||
| 90467-13047 | ||||
| 90467-13059 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8404 | ||||
| 8411 | ||||
ILLUST NO. 2 OF 2(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-50011 |
1UZFE..UCF1# |
1 | ||
| 23206-50020 |
1UZFE..UCF1# |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-50020 |
1UZFE..UCF1# NIPPONDENSO |
1 | ||
| 23217-16043 |
1UZFE..UCF1# AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-50010 |
1UZFE..UCF1# AISAN |
1 | ||
| 23221-50020 |
1UZFE..UCF1# NIPPONDENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1UZFE..UCF1# |
1 | ||
| 23229-16010 |
1UZFE..UCF1# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1UZFE..UCF1# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1UZFE..UCF1# |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1UZFE..UCF1# |
2 | ||
| 23239 - HOSE | ||||
| 23239-63010 |
1UZFE..UCF1# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
1UZFE..UCF1# |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90467-13001 | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
